V50 Multipack of 10 with white aluminium bezels
JC1001WHCP

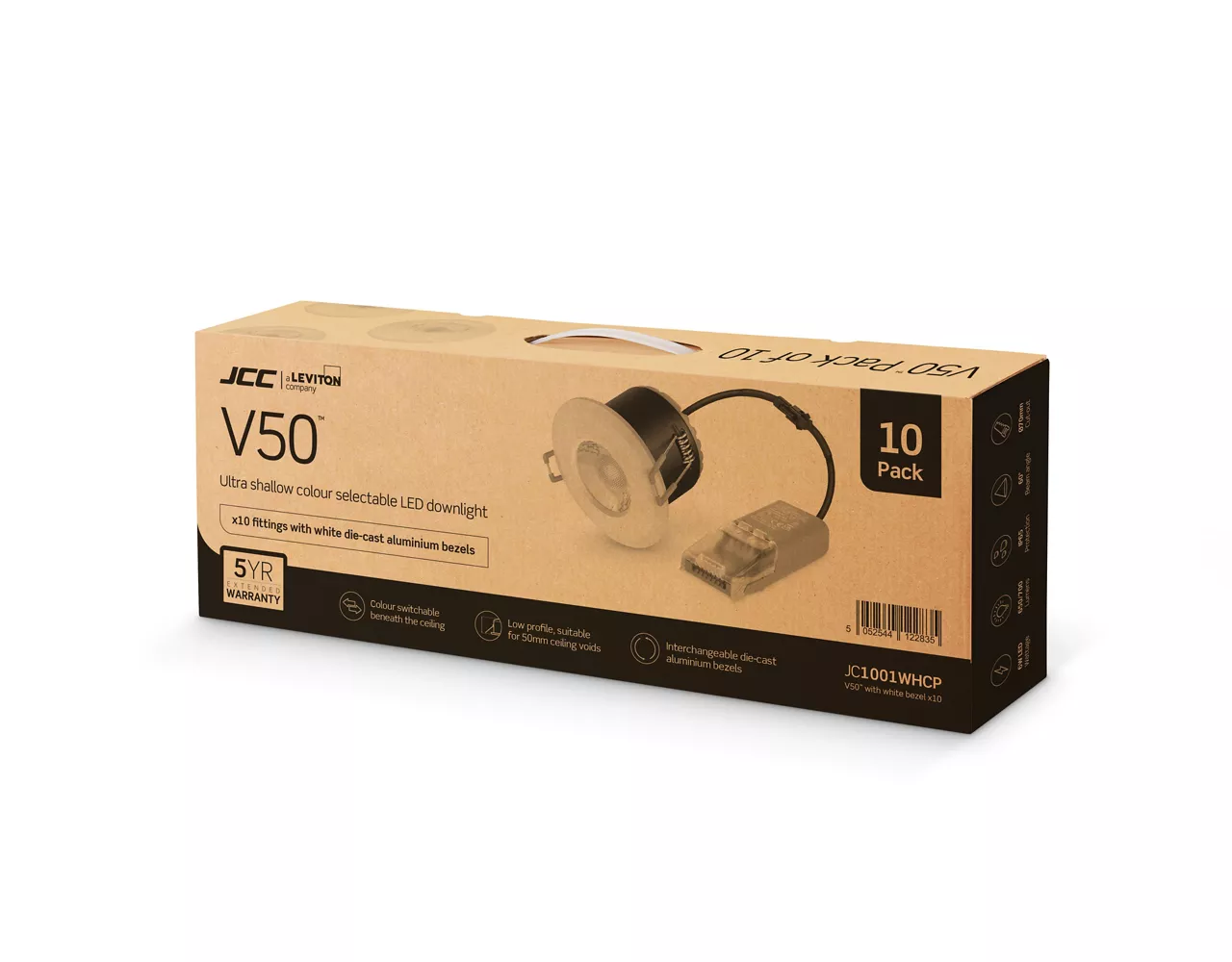

- V50 multipack including 10 white bezels
- Two colour selectable from below the ceiling, 3000 & 4000K
- Ultra-low profile suitable for shallow 50mm ceiling voids
- Fully fire-rated for 30, 60 and 90 minute ceilings
- IP65, suitable for bathrooms (internal use only)
- Strong, protected spring clips

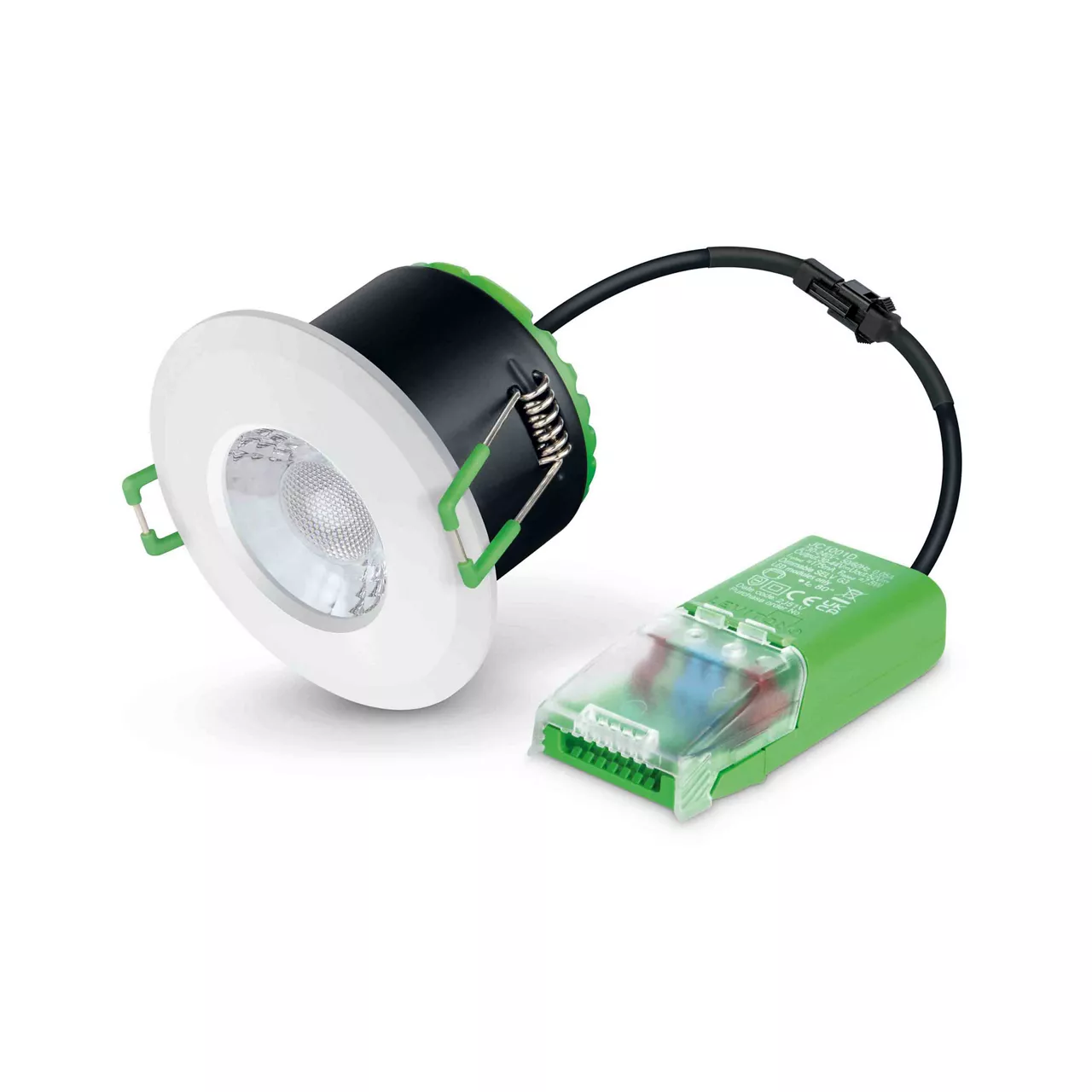

- Fast, push fit termination with remote driver
- Triac dimmable as standard (recommended dimmer list on JCC website)
- Twist & lock bezel design
- Cut-out ⌀70mm
Product Information
Electrical
Class : II
Dimmable : Yes
Luminaire Circuit Wattage : 6W
Voltage Rating : 230-240
General Information
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : White
Dimming Protocol Compatability : Triac
IP Rating : IP65
Light Source Features : Colour Selectable
Luminaire Accessories : Black, Brushed Brass, Brushed Nickel or Chrome Replacement Bezel; Concealer Ring; Converter Plate
Method of fix : Recessed with Spring Clips
Minimum Void Requirement : 50mm
Mounting : Recessed
Overall Dimensions : Ø84 x 67.7
Product Aperture Size : 70mm
Product Group : Fire-rated Downlights
Product Range : V50
Trade Name : V50
Warranty : 7 years( Terms & conditions apply)
Performance Data
Actual Lumen Output : 650 / 700
Beam Angle ° : 60
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K
Lumens Per Circuit Watt : 108 / 116
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0 to 26
