V50 Fire-rated LED downlight 6W 700lm IP65 3000K/4000K No bezel EM

JC1001/NBEM

  • Actual Lumen Output 650/700
  • Lumens Per Circuit Watt 108/116
  • Now with 7 year warranty
  • Two colour selectable from below the ceiling 3000K & 4000K
  • Ultra-low profile suitable for shallow 50mm ceiling voids
  • Tested for use in fire-rated ceilings
  • IP65 suitable for bathrooms (internal use only)
  • Strong protected spring clips

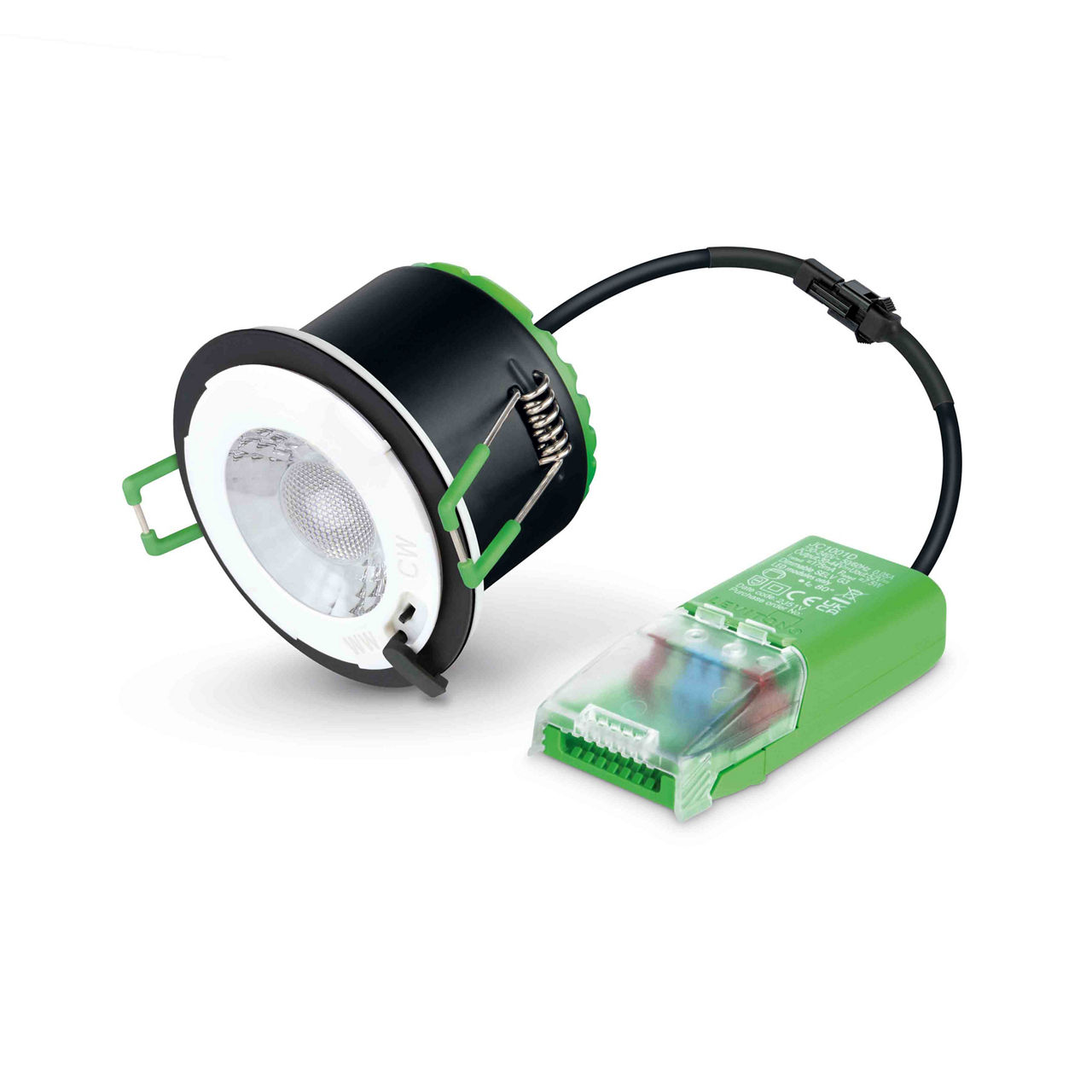

  • Fast push-fit termination with remote driver
  • Twist & lock bezel design

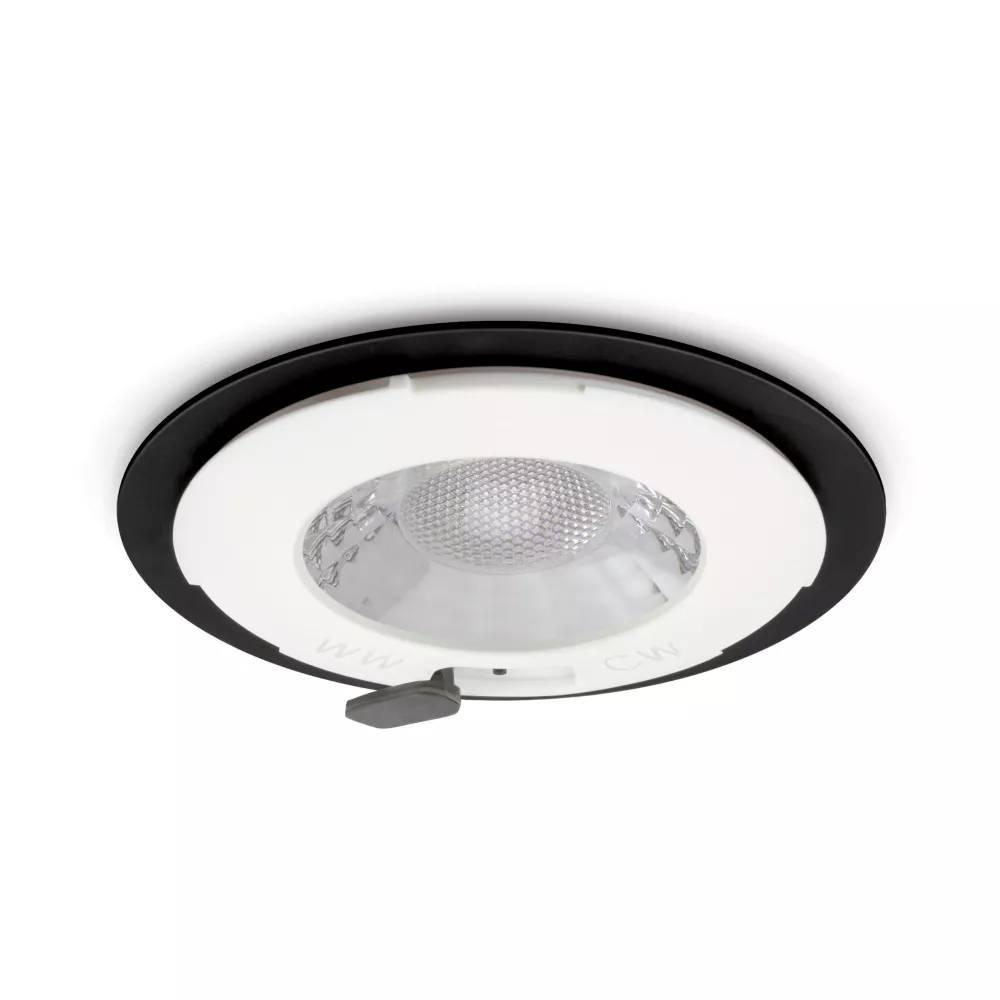

  • Available as complete fixture (JC1001) or without bezel (JC1001/NB)
  • JC1001/NB requires separate bezel (JC1006)
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : Ø84 x 67.7

  • Performance Specifications

    Dimming Protocol Compatibility : Triac

  • Product Details

    Additional Information : Maximum ceiling thickness is 30mm

    Color Finish : White

    Product Range : V50™

    Warranty : 3 Year Warranty(2 years on batteries)

  • Product Specifications

    Actual Lumen Output : 650/700

    Beam Angle : 60

    CRI : 80

    Class : I

    Correlated Color Temperature : 3000K/4000K

    Dimmable : Yes

    IP Rating : IP65

    Lumens Per Circuit Watt : 108/116

    Luminaire Circuit Wattage : 6

    Method of fix : Recessed with Spring Clips

    Operating Temperature range °C : 0 to 26

    Product Aperture Size : 70mm
