V50 Fire-rated LED downlight 6W 700lm IP65 No bezel
JC1001/NB
7 years ago we launched V50™, in that time it has become a market leader and the ‘go-to’ fire-rated downlight for electricians throughout the country. To celebrate this milestone, we have increased the warranty to 7 years.
- Actual Lumen Output 650/700
- Lumens Per Circuit Watt 108/116
- Cut-out ⌀70mm
- Now with 7 year warranty

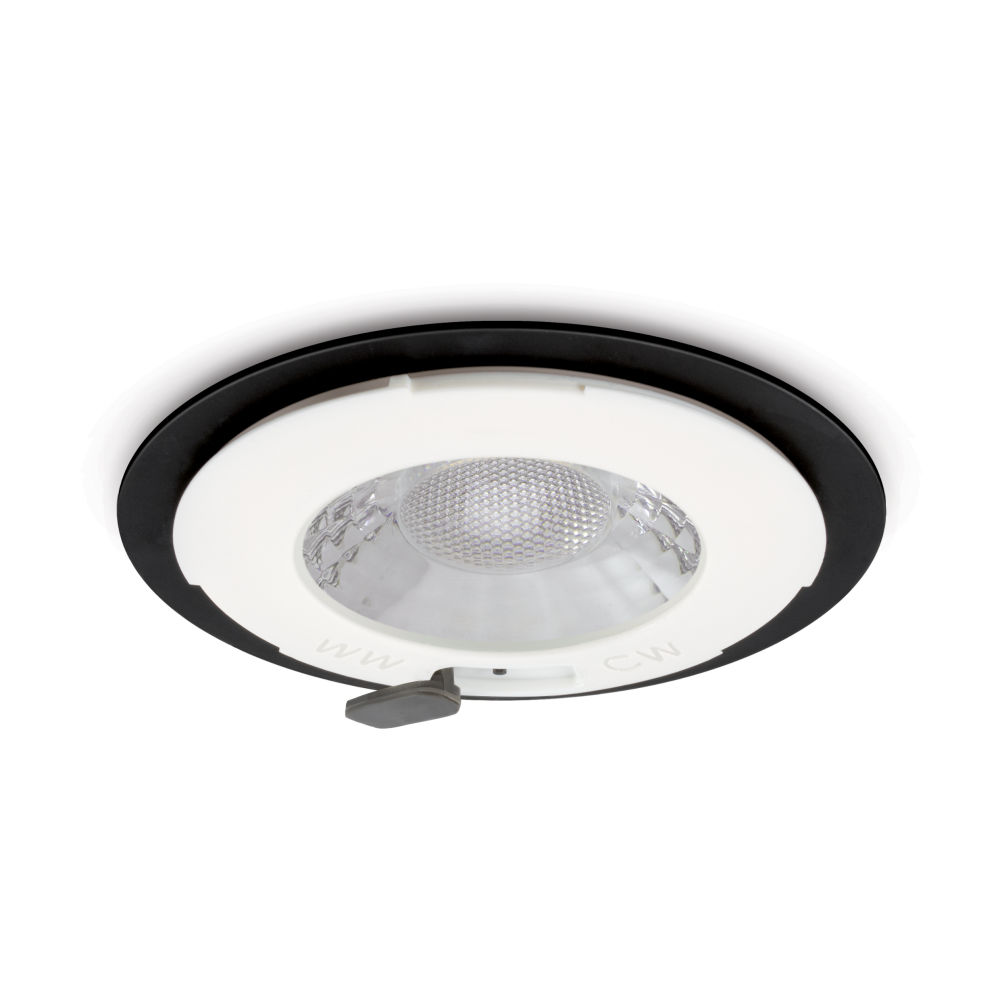

- Two colour selectable from below the ceiling, 3000 & 4000K

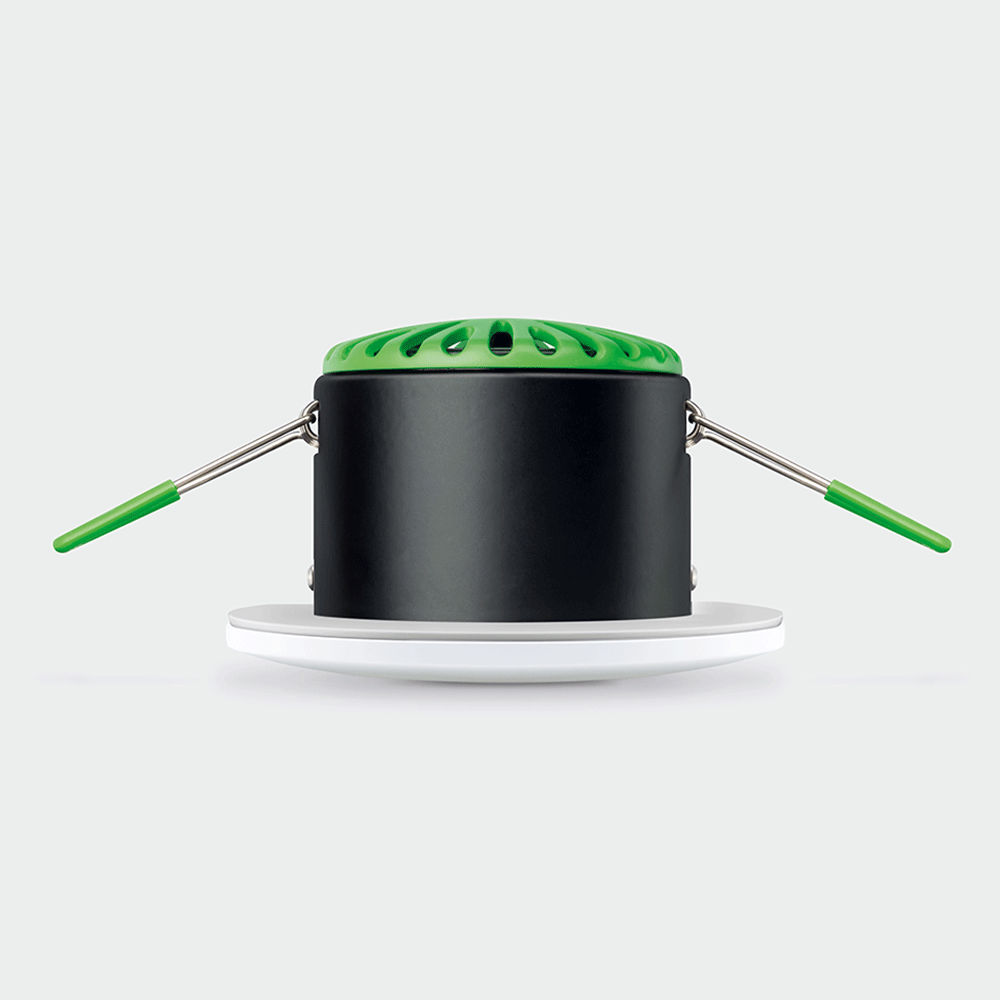

- Ultra-low profile suitable for shallow 50mm ceiling voids
- Fully fire-rated for 30, 60 and 90 minute ceilings
- IP65, suitable for bathrooms (internal use only)
- Strong, protected spring clips

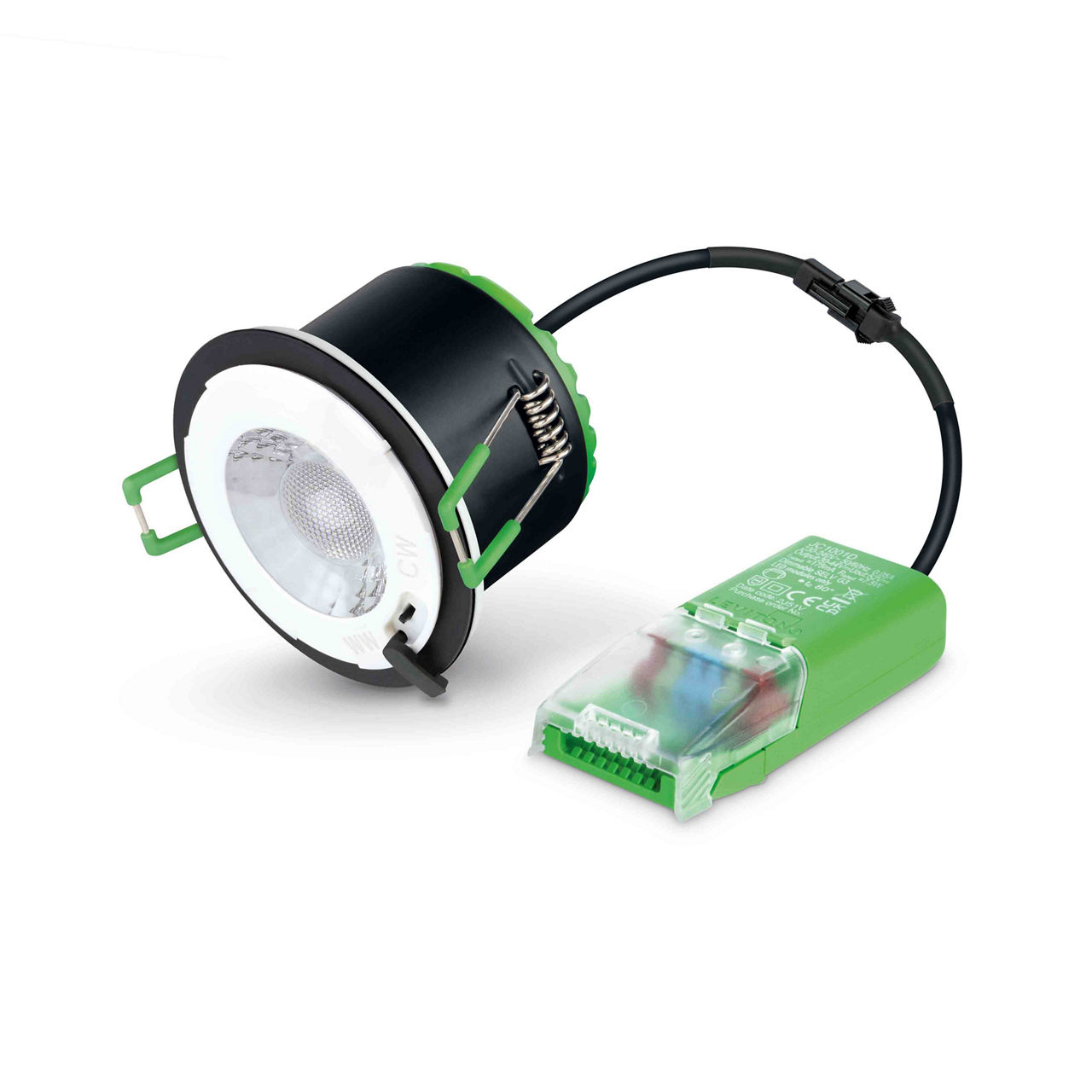

- Fast, push fit termination with remote driver
- Triac dimmable as standard (V50 recommended dimmer list)
- Twist & lock bezel design
Product Information
General Information
IP Rating : IP65
Light Source Features : Colour Selectable
Luminaire Accessories : Black, Brushed Brass, Brushed Nickel, Chrome or White Replacement Bezel; Concealer Ring; Converter Plate
Method of fix : Recessed with Spring Clips
Mounting : Recessed
Overall Dimensions : Ø84 x 67.7
Product Aperture Size : 70mm
Trade Name : V50
Warranty : 7 years( Terms & conditions apply)
Electrical
Class : II
Dimmable : Yes
Luminaire Circuit Wattage : 6
Voltage Rating : 230-240
Performance Data
Actual Lumen Output : 650/700
Beam Angle ° : 60
CRI: Ra : 80
Correlated Color Temperature : 3000K/4000K
Lumens Per Circuit Watt : 108/116
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0 to 26
- Now with 7 year warranty
- Two colour selectable from below the ceiling, 3000 & 4000K
- Ultra-low profile suitable for shallow 50mm ceiling voids
- Fully fire-rated for 30, 60 and 90 minute ceilings
- IP65, suitable for bathrooms (internal use only)
- Strong, protected spring clips
- Fast, push fit termination with remote driver
- Triac dimmable as standard (V50 recommended dimmer list)
- Twist & lock bezel design
