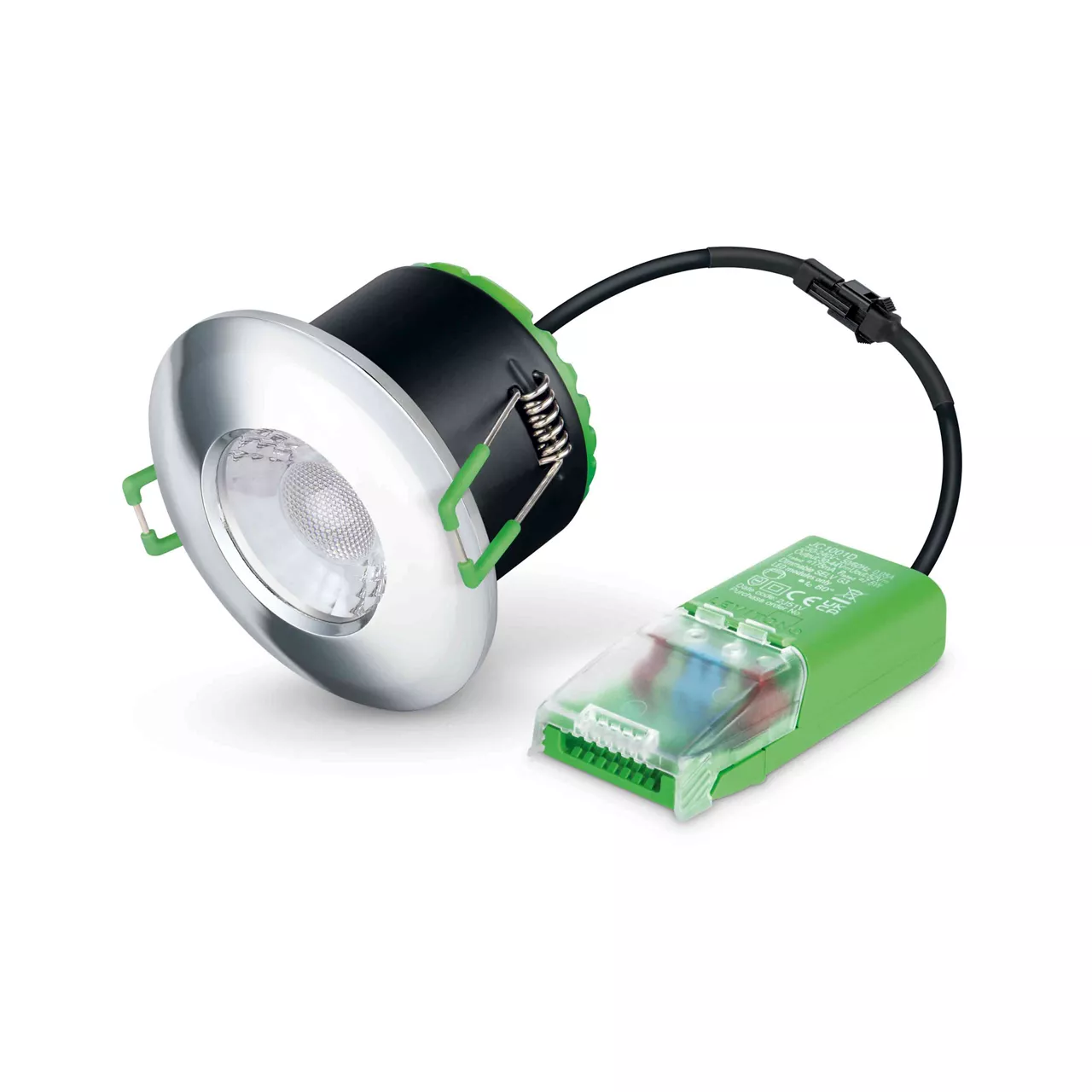

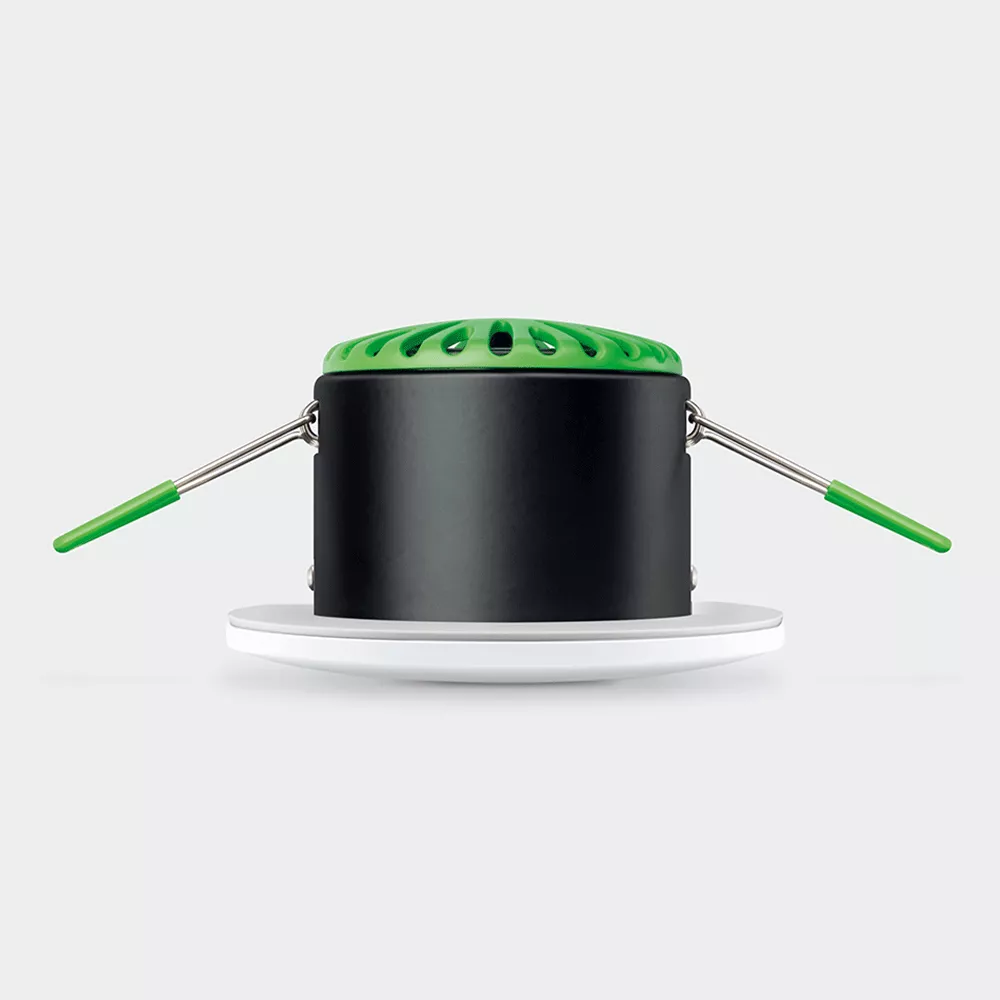

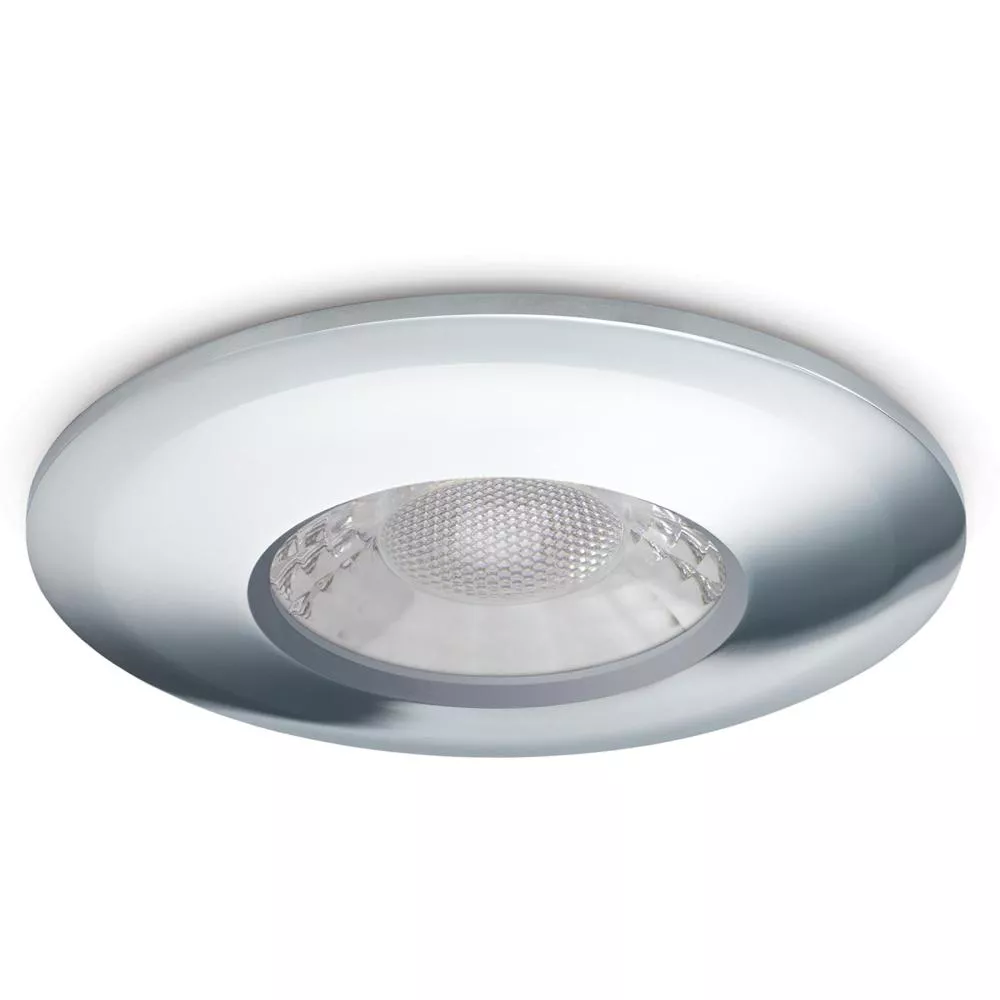

V50 Fire-rated LED downlight 6W 700lm IP65 CH EM

JC1001/CHEM

  • Actual Lumen Output 650/700
  • Lumens Per Circuit Watt 108/116
  • Now with 7 year warranty
  • Two colour selectable from below the ceiling, 3000 & 4000K
  • Ultra-low profile suitable for shallow 50mm ceiling voids
  • Fully fire-rated for 30, 60 and 90 minute ceilings
  • IP65, suitable for bathrooms (internal use only)
  • Strong, protected spring clips
  • Fast, push fit termination with remote driver
  • Triac dimmable as standard (recommended dimmer list on JCC website)
  • Twist & lock bezel design
  • Cut-out ⌀70mm
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : Ø84 x 67.7

  • Performance Specifications

    Dimming Protocol Compatibility : Triac

  • Product Details

    Additional Information : Maximum ceiling thickness is 30mm

    Color Finish : Chrome

    Product Range : V50™

    Warranty : 3 Year Warranty(2 years on batteries)

  • Product Specifications

    Actual Lumen Output : 650/700

    Beam Angle : 60

    CRI : 80

    Class : I

    Correlated Color Temperature : 3000K/4000K

    Dimmable : Yes

    IP Rating : IP65

    Lumens Per Circuit Watt : 108/116

    Luminaire Circuit Wattage : 6

    Method of fix : Recessed with Spring Clips

    Operating Temperature range °C : 0 to 26

    Product Aperture Size : 70mm
