V50 Fire-rated LED downlight 6W 700lm IP65 CH
JC1001/CH
- Actual Lumen Output 650/700
- Lumens Per Circuit Watt 108/116
- Now with 7 year warranty
- Two colour selectable from below the ceiling, 3000 & 4000K
- Ultra-low profile suitable for shallow 50mm ceiling voids
- Fully fire-rated for 30, 60 and 90 minute ceilings
- IP65, suitable for bathrooms (internal use only)
- Strong, protected spring clips

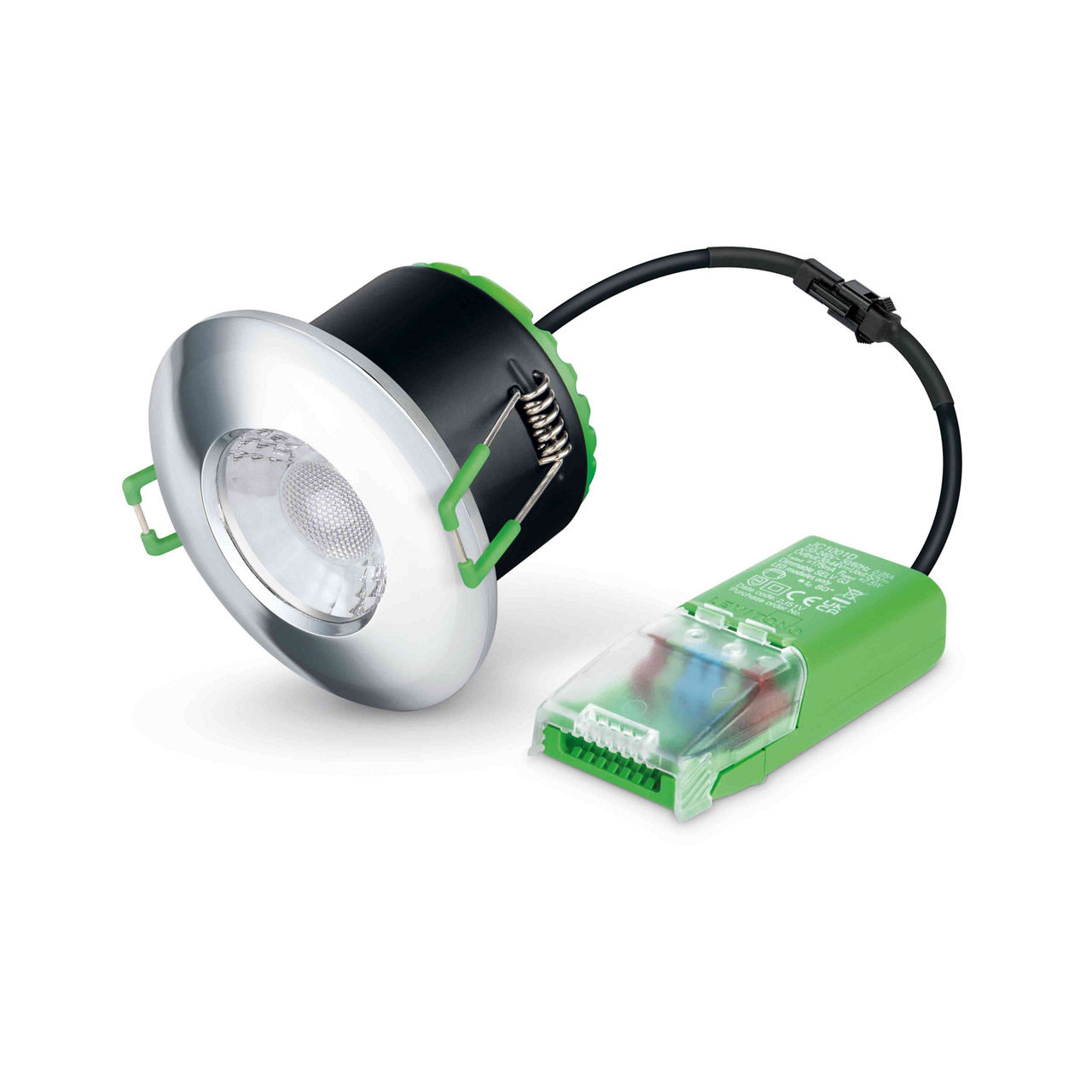

- Fast, push fit termination with remote driver
- Triac dimmable as standard (recommended dimmer list on JCC website)
- Twist & lock bezel design
- Cut-out ⌀70mm
Product Information
Dimensional Data
Overall Dimensions : Ø84 x 67.7
Performance Specifications
Dimming Protocol Compatibility : Triac
Product Details
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : Chrome
Product Range : V50
Warranty : 5 Year Warranty(domestic) 3 Year( Commercial)
Product Specifications
Actual Lumen Output : 650/700
Beam Angle : 60
CRI : 80
Class : II
Correlated Color Temperature : 3000K/4000K
Dimmable : Yes
IP Rating : IP65
Lumens Per Circuit Watt : 108/116
Luminaire Circuit Wattage : 6
Method of fix : Recessed with Spring Clips
Operating Temperature range °C : 0 to 26
Product Aperture Size : 70mm
Product Details
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : Chrome
Product Range : V50™
Warranty : 3 Year Warranty(2 years on batteries)
Product Specifications
Actual Lumen Output : 650/700
Beam Angle : 60
CRI : 80
Class : I
Correlated Color Temperature : 3000K/4000K
Dimmable : Yes
IP Rating : IP65
Lumens Per Circuit Watt : 108/116
Luminaire Circuit Wattage : 6
Method of fix : Recessed with Spring Clips
Operating Temperature range °C : 0 to 26
Product Aperture Size : 70mm
