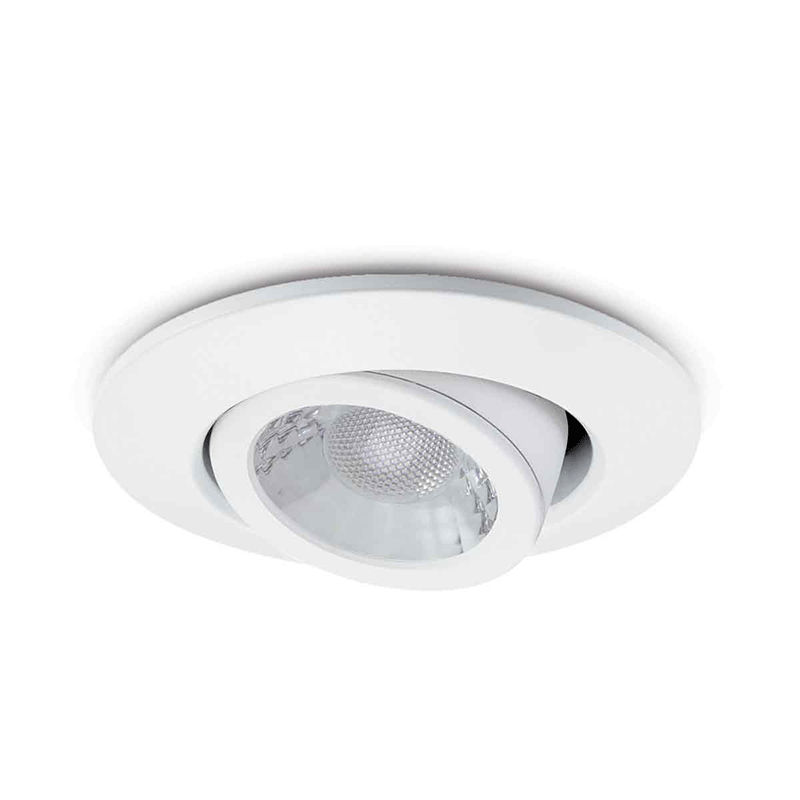

V50 Tilt Fire-rated LED downlight 6W 700lm IP20 WH
JC1002/WH
- Actual Lumen Output 650/700
- Lumens Per Circuit Watt 108/116
- Now with 7 year warranty
- Two colour selectable from remote driver, 3000K & 4000K
- 20º tiltable and 350º rotatable lens
- Fully fire-rated for 30, 60 and 90 minute ceilings
- Strong, protected spring clips
- Fast, push-fit termination with remote driver
- Triac dimmable as standard (recommended dimmer list on JCC website)
- Cut-out ⌀85mm
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : Yes
Luminaire Circuit Wattage : 6
Voltage Rating : 230-240
General Information
IP Rating : IP20
Light Source Features : Colour Selectable
Luminaire Accessories : Converter Plate
Method of fix : Recessed with Spring Clips
Mounting : Recessed
Overall Dimensions : Ø100 x 105
Product Aperture Size : 85mm
Trade Name : V50
Warranty : 7 years( Terms & conditions apply)
Performance Data
Actual Lumen Output : 650/700
Beam Angle ° : 60
CRI: Ra : 80
Correlated Color Temperature : 3000K/4000K
Lumens Per Circuit Watt : 108/116
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0 to 26
