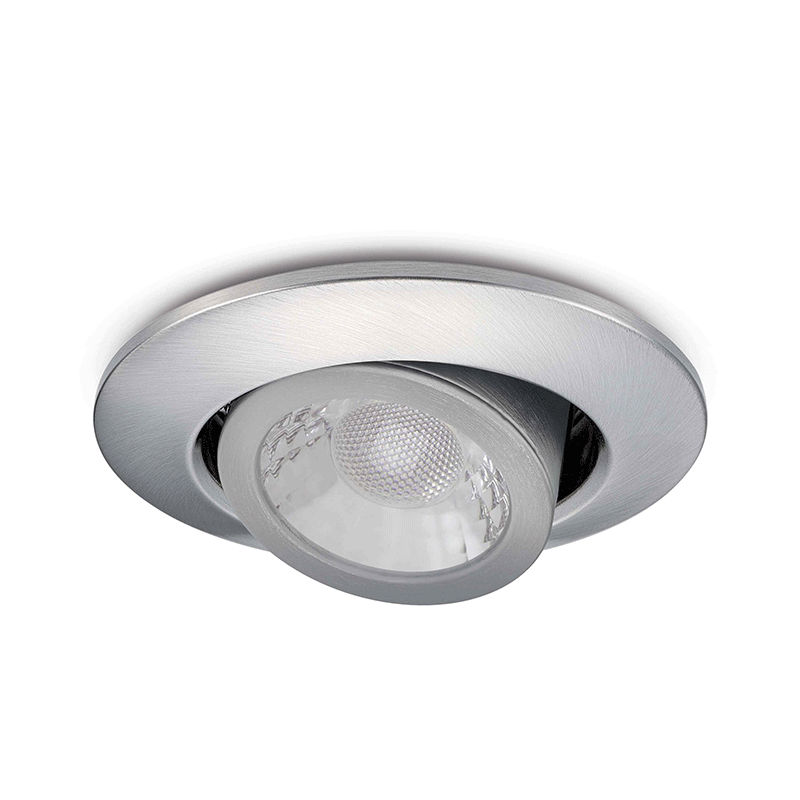

V50 Tilt Fire-rated LED downlight 6W 700lm IP20 BN
JC1002/BN
- Actual Lumen Output 650/700
- Lumens Per Circuit Watt 108/116
- Now with 7 year warranty
- Two colour selectable from remote driver, 3000K & 4000K
- 20º tiltable and 350º rotatable lens
- Fully fire-rated for 30, 60 and 90 minute ceilings
- Strong, protected spring clips
- Fast, push-fit termination with remote driver
- Triac dimmable as standard (recommended dimmer list on JCC website)
- Cut-out ⌀85mm
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : Ø100 x 105
Performance Specifications
Dimming Protocol Compatibility : Triac
Product Details
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : Brushed Nickel
Product Range : V50
Warranty : 5 Year Warranty(domestic) 3 Year( Commercial)
Product Specifications
Actual Lumen Output : 650/700
Beam Angle : 60
CRI : 80
Class : II
Correlated Color Temperature : 3000K/4000K
Dimmable : Yes
IP Rating : IP20
Lumens Per Circuit Watt : 108/116
Luminaire Circuit Wattage : 6
Method of fix : Recessed with Spring Clips
Operating Temperature range °C : 0 to 26
Product Aperture Size : 85mm
