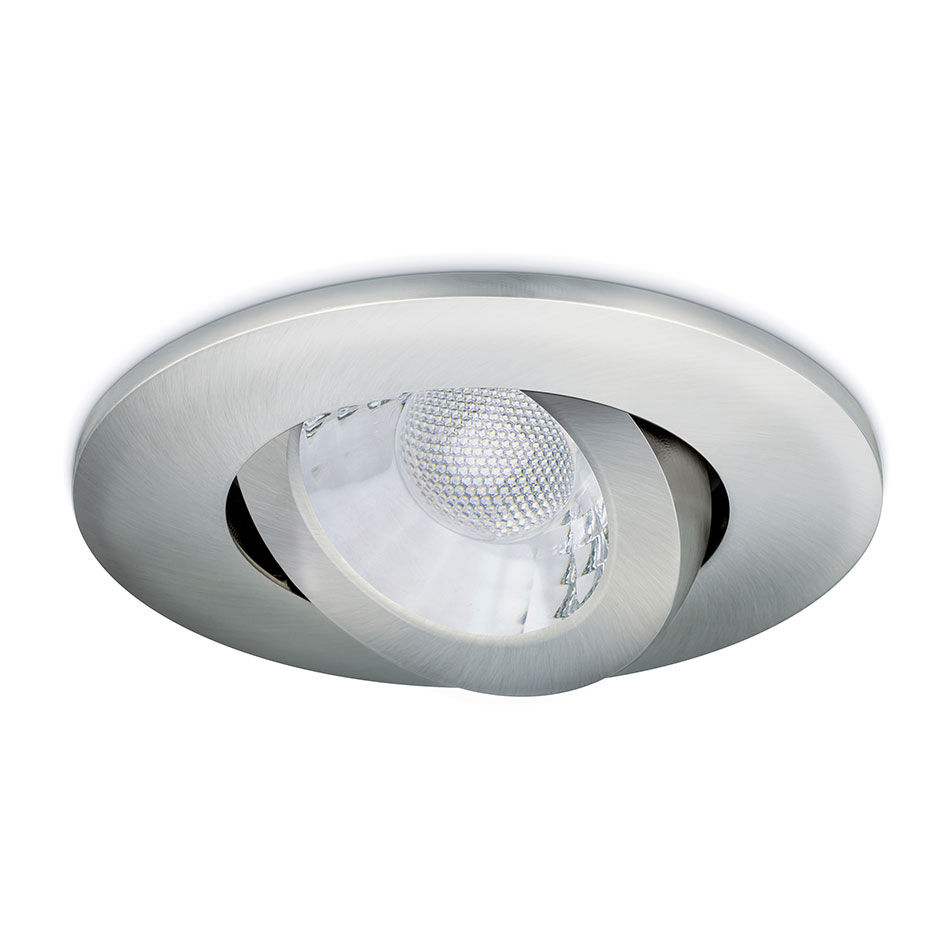

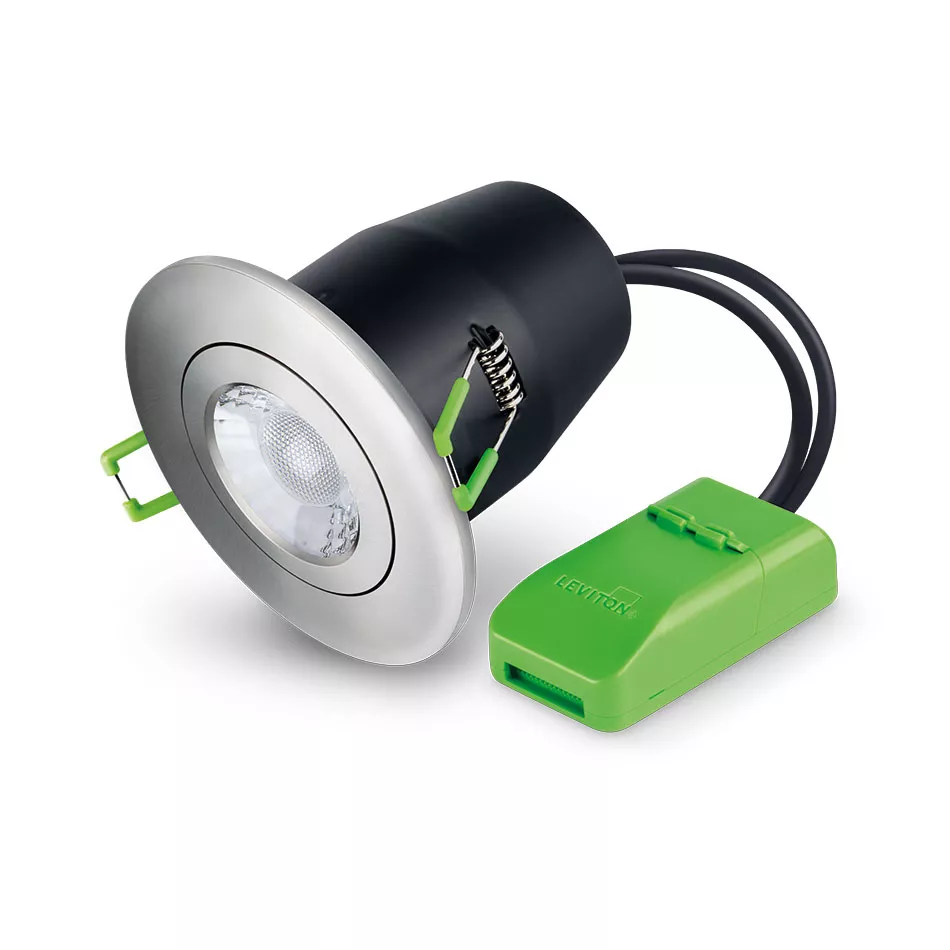

Fireguard® Next Generation Tilt IP20 with brushed nickel bezel | Fire Rated Downlight

JC010023/BN

  • Slim profile, die-cast aluminium bezels
  • Designed specifically for LED lamps
  • Ultra fast press fit loop-in/loop-out terminal
  • Tested for use in solid, I-Joist and steel open web joist ceilings
  • Thermally tested for use with mineral wool insulation
  • IP20 rated and IP65 rated variant available
  • IP20 rated Tilt variant available
  • Complies with 2014 building regulations: Part B, C and E
  • Cut-out ⌀85mm
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 115.45 x 100mm

  • Product Details

    Additional Information : Maximum ceiling thickness is 30mm

    Color Finish : Brushed nickel

    Product Range : Fireguard® Next Generation

    Warranty : 2 year standard warranty

  • Product Specifications

    Class : I

    Dimmable : Check with lamp manufacturer

    IP Rating : IP20

    Luminaire Circuit Wattage : 7W LED Max

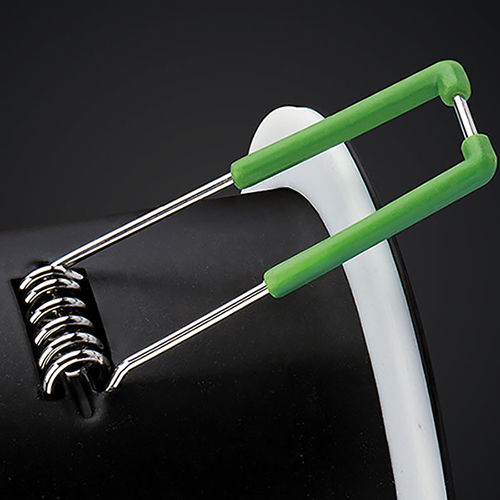

    Method of fix : Spring clips

    Operating Temperature range °C : 0 to +26

    Product Aperture Size : 85mm
