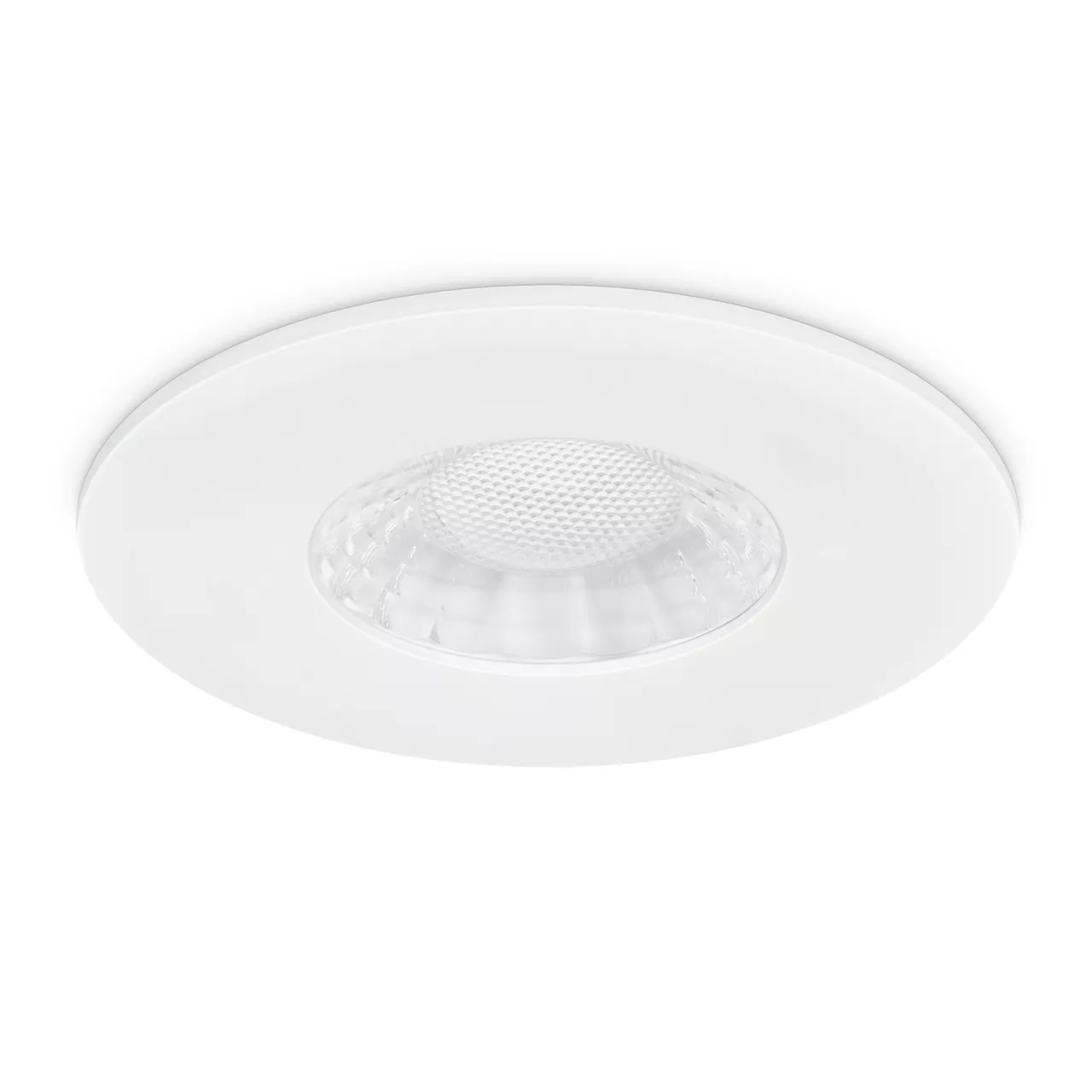

10 pack of X50 fire-rated downlight including white bezel | 3.5W/5W | 3000K/4000K/5700K
JC1101/WH10
- 3.5W - 480 lumens | 5W - 700 lumens
- Cut-out 68-70mm
- Two wattage and three colour selectable from beneath the ceiling

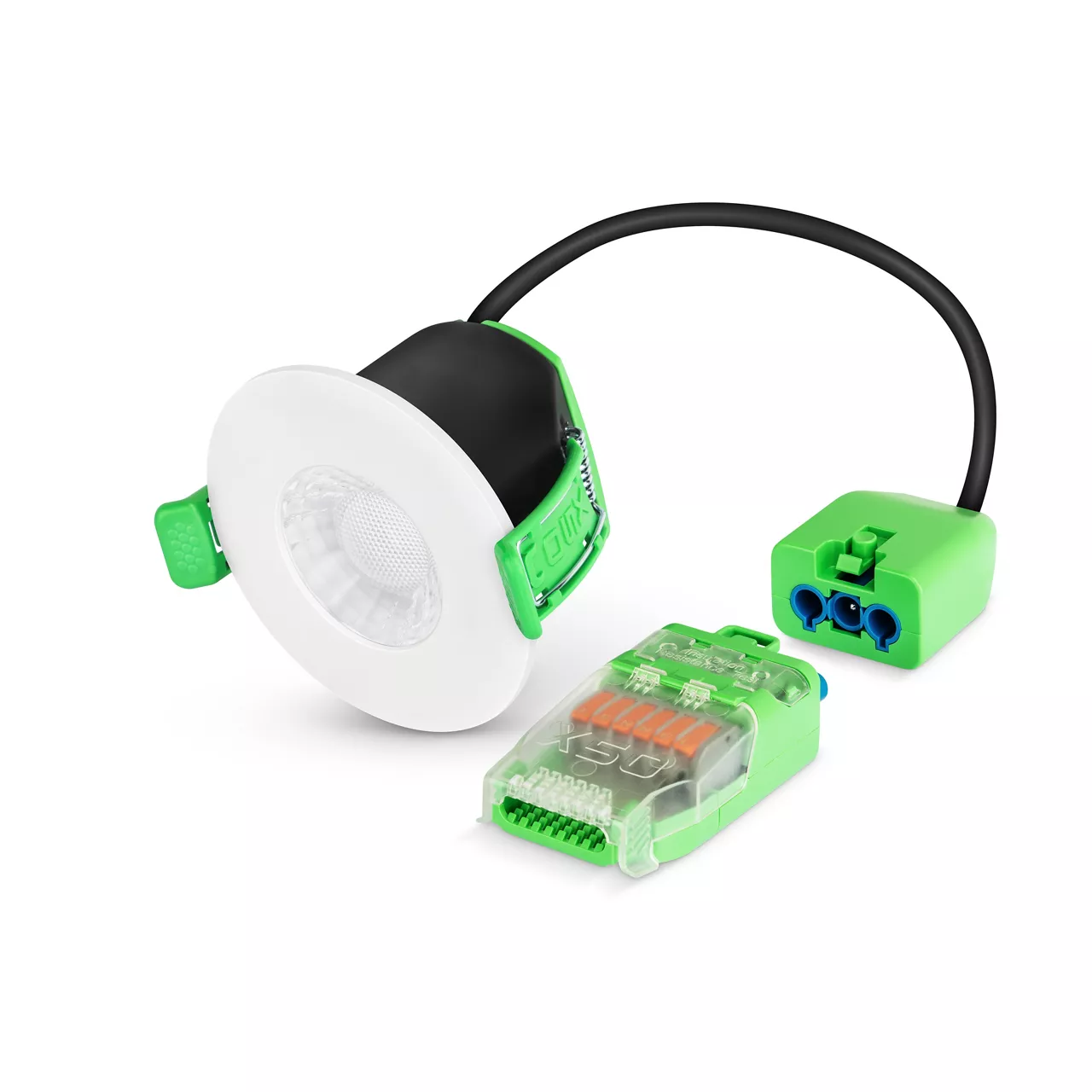

- Two-part first fix connector with dedicated testing terminals
- Double hinged terminal for easy access to terminal blocks
- Tested for use in Solid, I-Joist and Steel Open Web joist ceilings*
- Also available without bezel (JC1101/NB), add bezel with JC1107 (add suffix)
- *it is the responsibility of the installer to ensure compliance with all relevant regulations
Product Information
Electrical
Class : I
Dimmable : Yes, Triac dimmable only
Luminaire Circuit Wattage : 3W / 5W
Voltage Rating : 230-240
General Information
Additional Information : For Emergency version, use JC131003 only. Not suitable for use with JCEM002/JCEM002ST
Color Finish : White
Dimming Protocol Compatability : Triac dimmable
IP Rating : IP65
Light Source Features : 3CCT Switchable
Method of fix : Spring clips
Minimum Void Requirement : 50mm
Mounting : Recessed
Overall Dimensions : 84Ø x 55.4 x 322 cm (sse profile drawing for details)
Product Group : Fire-rated Downlights
Product Range : X50
Warranty : 5 Year Warranty (Terms & conditions apply)
Performance Data
Actual Lumen Output : 480 / 700
Beam Angle ° : 60°
CRI: Ra : 80
Correlated Color Temperature : 3000 / 4000 / 5700K
Lumens Per Circuit Watt : 160140140
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0 to 26
