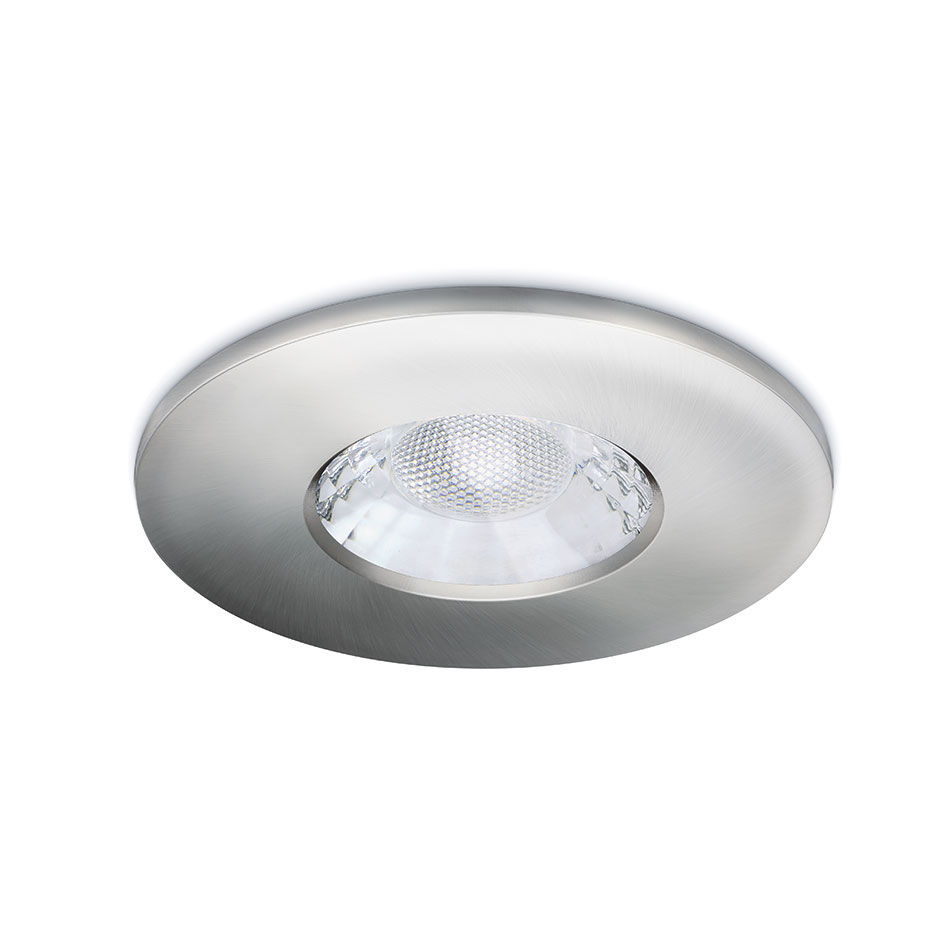

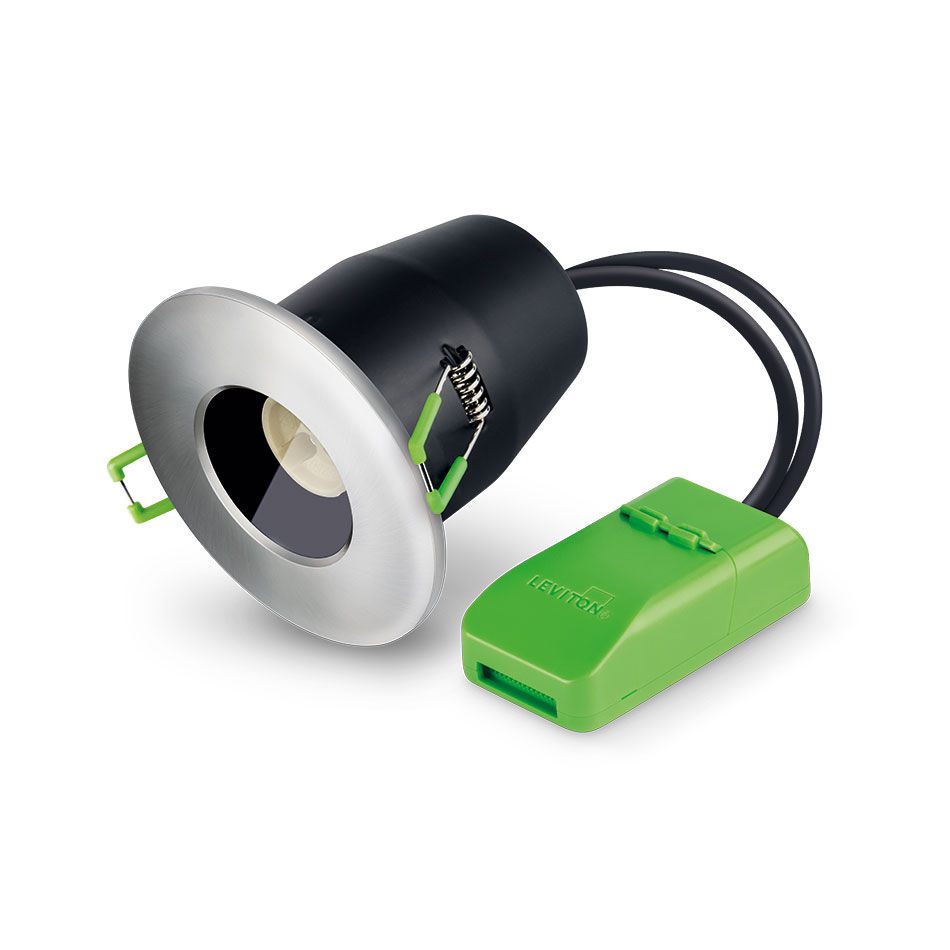

Fireguard® Next Generation IP65 with brushed nickel bezel | Fire Rated Downlight
JC010016/BN
- Slim profile, die-cast aluminium bezels
- Designed specifically for LED lamps
- Ultra fast press fit loop-in/loop-out terminal
- Tested for use in solid, I-Joist and steel open web joist ceilings
- Thermally tested for use with mineral wool insulation
- IP20 rated and IP65 rated variant available
- IP20 rated Tilt variant available
- Complies with 2014 building regulations: Part B, C and E
- Cut-out ⌀74mm
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 108.7 x 87 mm
Product Details
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : Brushed nickel
Product Range : Fireguard® Next Generation
Warranty : 2 year standard warranty
Product Specifications
Class : I
Dimmable : Check with lamp manufacturer
IP Rating : IP65
Luminaire Circuit Wattage : 7W LED Max

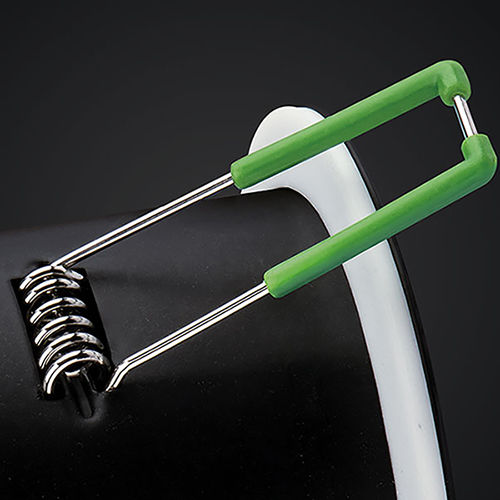

Method of fix : Spring clips
Operating Temperature range °C : 0 to +26
Product Aperture Size : 74mm
