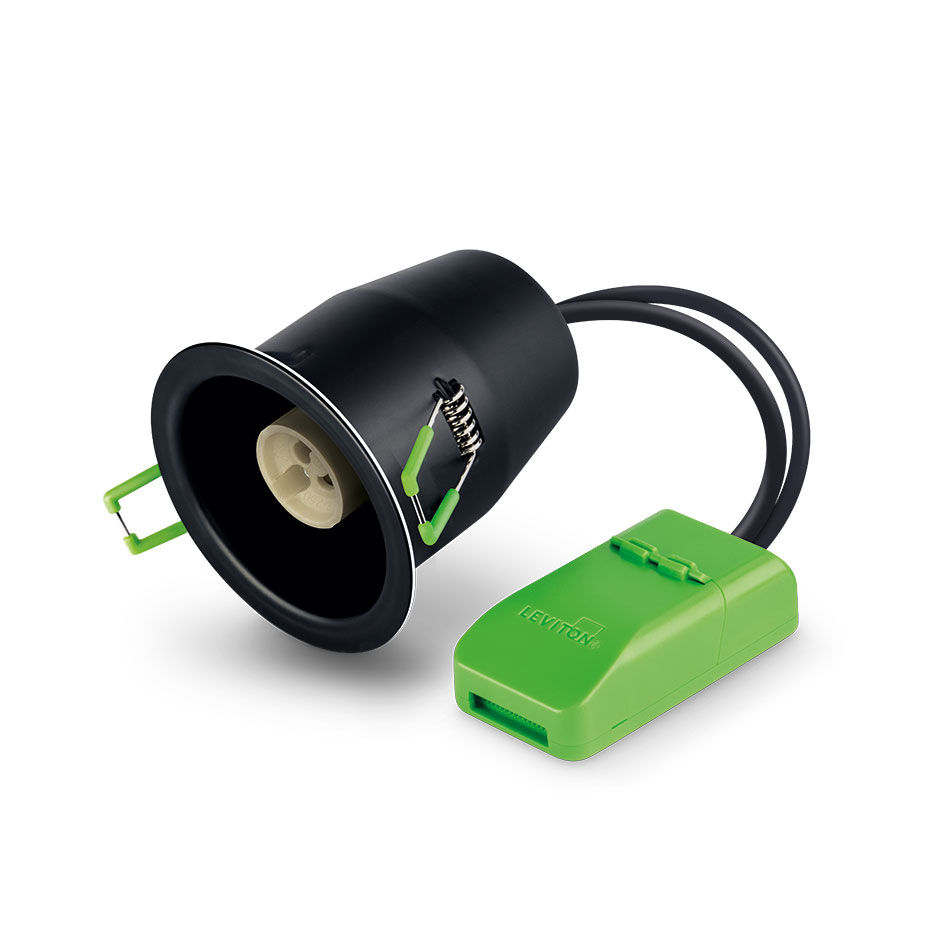

Fireguard® Next Generation IP20 without bezel | Fire Rated Downlight

JC010010/NB

  • Slim profile, die-cast aluminium bezels
  • Designed specifically for LED lamps
  • Ultra fast press fit loop-in/loop-out terminal
  • Tested for use in solid, I-Joist and steel open web joist ceilings
  • Thermally tested for use with mineral wool insulation
  • IP20 rated and IP65 rated variant available
  • IP20 rated Tilt variant available
  • Complies with 2014 building regulations: Part B, C and E
  • Cut-out ⌀74mm
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 108.7 x 87 mm

  • Product Details

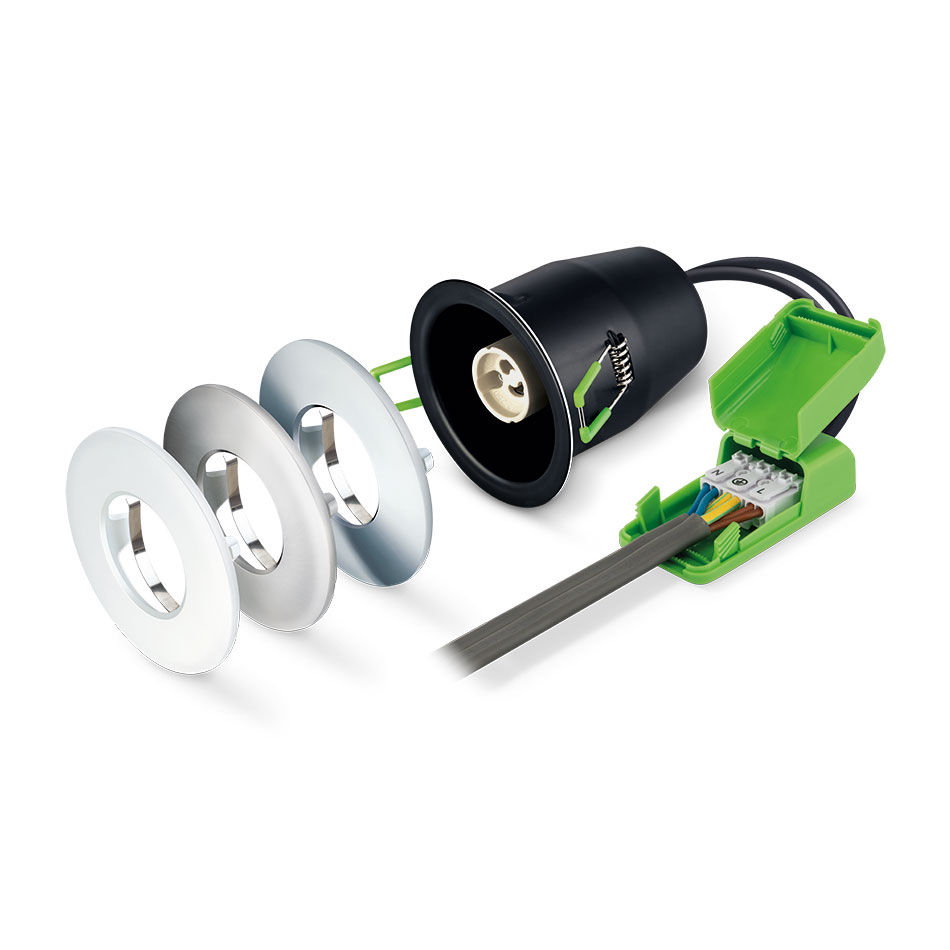

    Additional Information : Bezel options:JC010013/BN -IP20, JC010013/CH -IP20, JC010013/WH-IP20 , JC010013/BL -IP20, JC010019/BN -IP65, JC010019/CH -IP65, JC010019/WH -IP65

    Color Finish : White

    Product Range : Fireguard® Next Generation

    Warranty : 2 year standard warranty

  • Product Specifications

    Class : I

    Dimmable : Check with lamp manufacturer

    IP Rating : IP20

    Luminaire Circuit Wattage : 7W LED Max

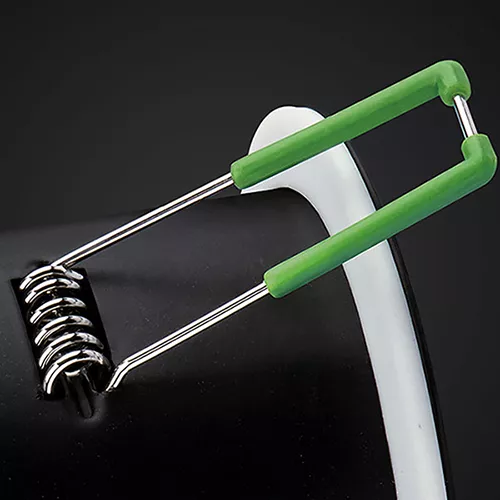

    Method of fix : Spring clips

    Operating Temperature range °C : 0 to +26

    Product Aperture Size : 74mm
