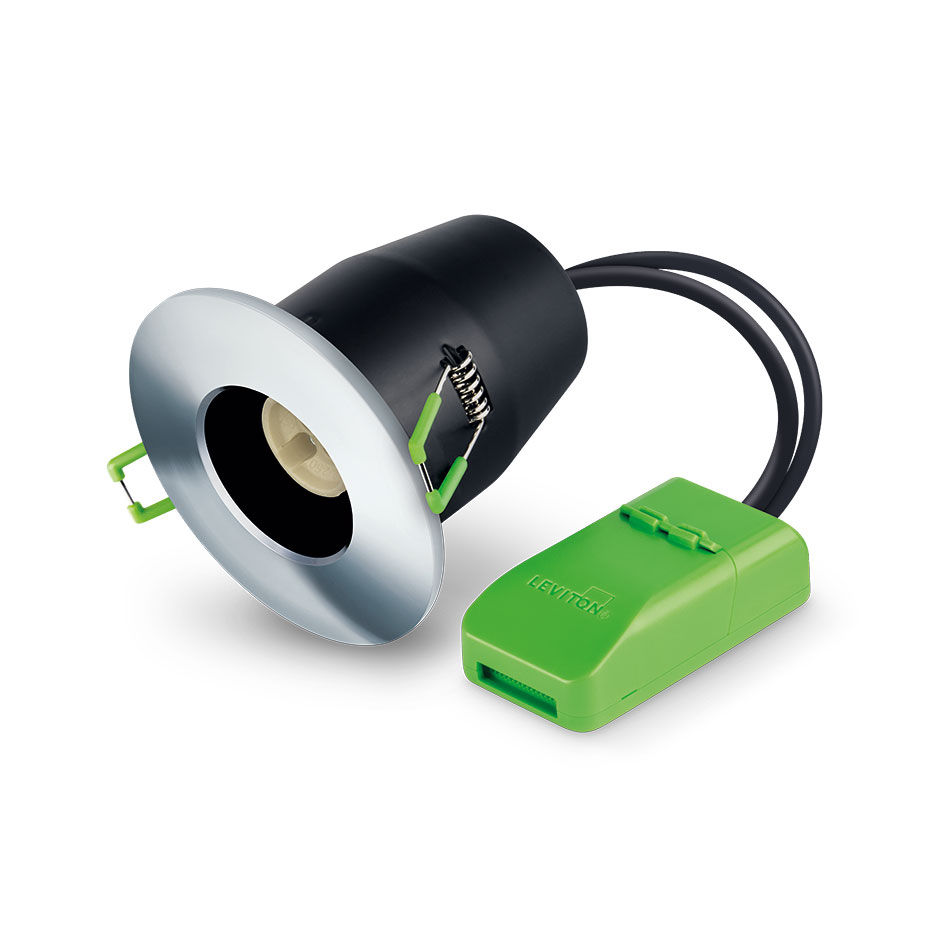

Fireguard® Next Generation IP20 with chrome bezel | Fire Rated Downlight
JC010010/CH

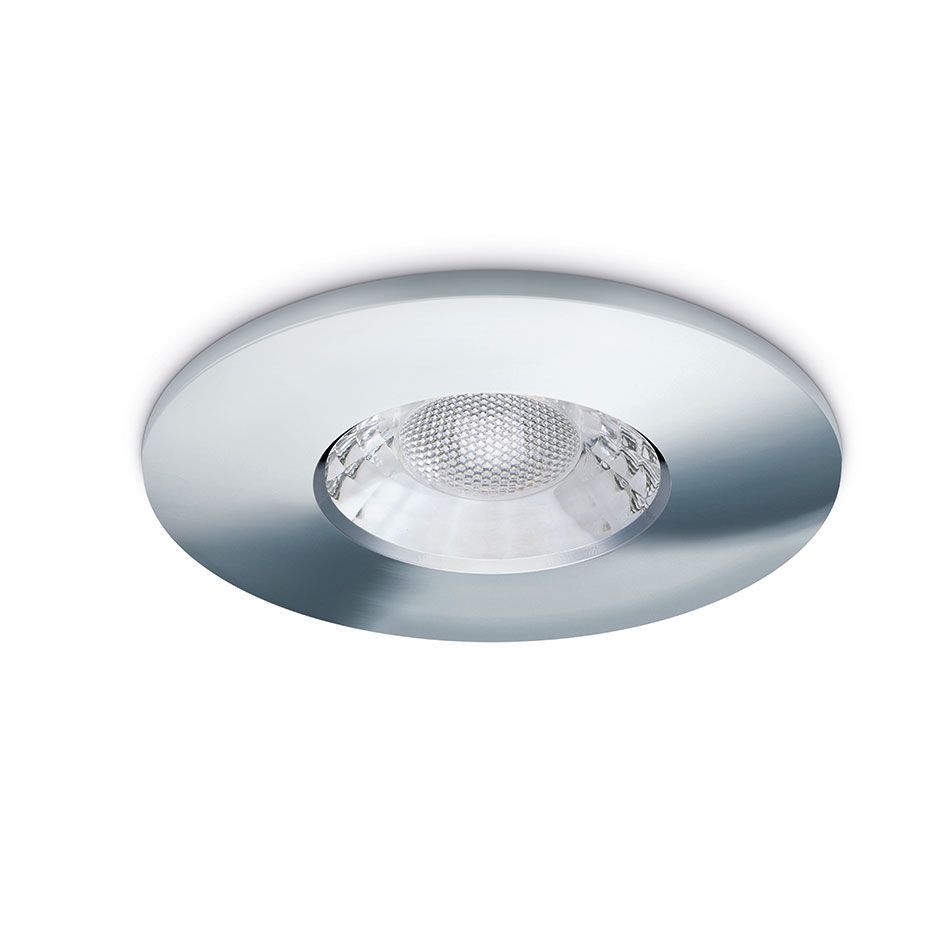

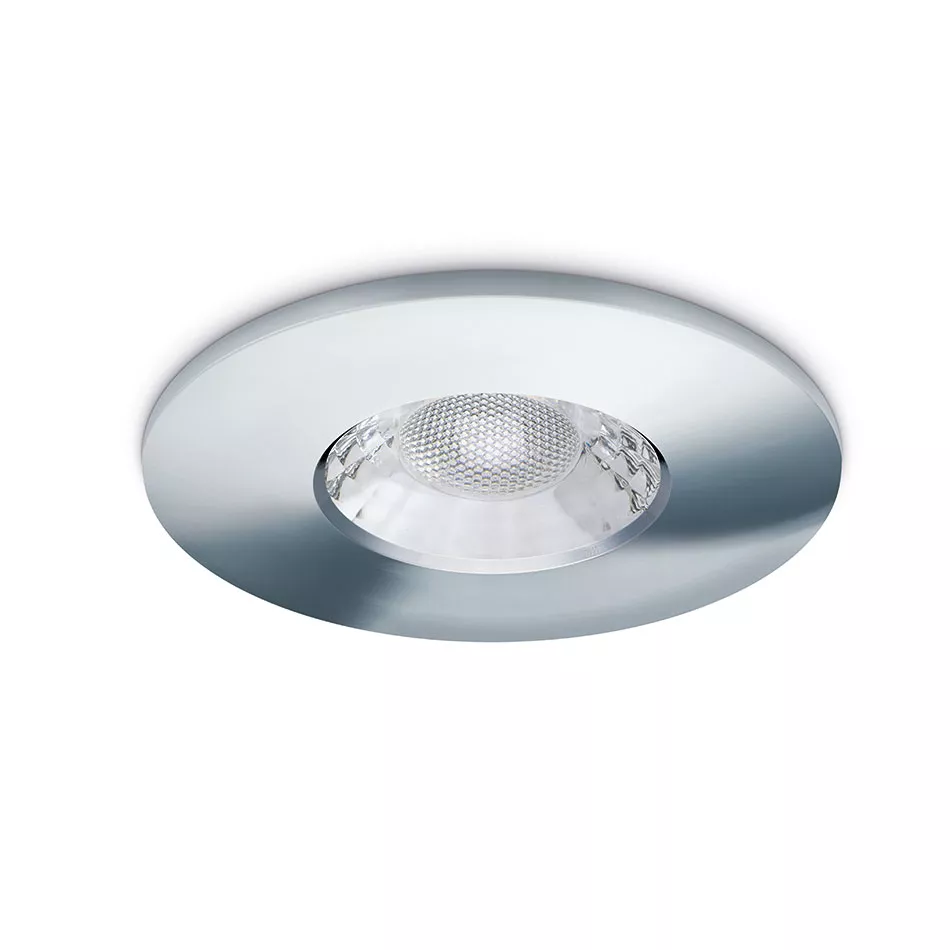

- Slim profile, die-cast aluminium bezels
- Designed specifically for LED lamps

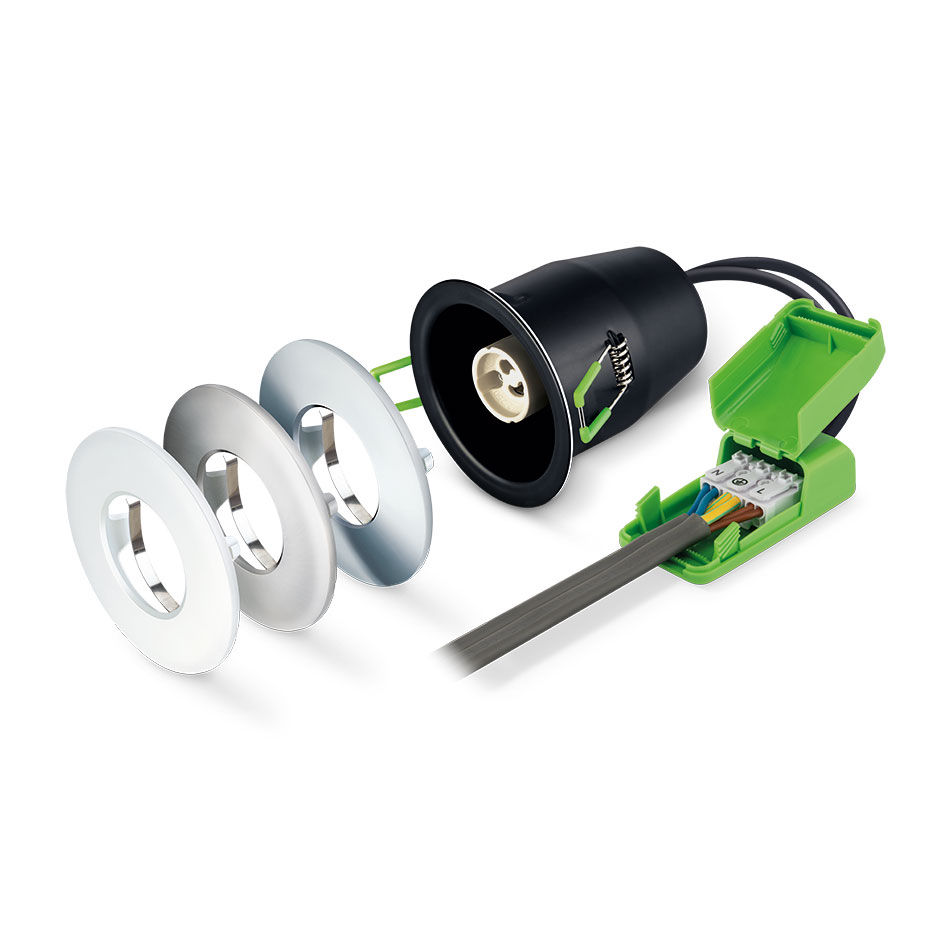

- Ultra fast press fit loop-in/loop-out terminal
- Tested for use in solid, I-Joist and steel open web joist ceilings
- Thermally tested for use with mineral wool insulation
- IP20 rated and IP65 rated variant available
- IP20 rated Tilt variant available
- Complies with 2014 building regulations: Part B, C and E
- Cut-out ⌀74mm
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : I
Dimmable : Check with lamp manufacturer
Luminaire Circuit Wattage : 7W LED Max
Voltage Rating : 220-240
General Information
IP Rating : IP20

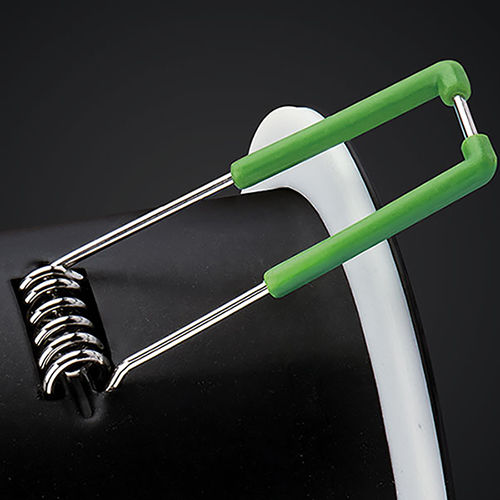

Method of fix : Spring clips
Mounting : Recessed
Overall Dimensions : 108.7 x 87 mm
Product Aperture Size : 74mm
Trade Name : Fireguard
Warranty : 2 year standard warranty
Thermals
Insulation Coverage : see instruction sheet
Operating Temperature Range °C : 0 to +26
