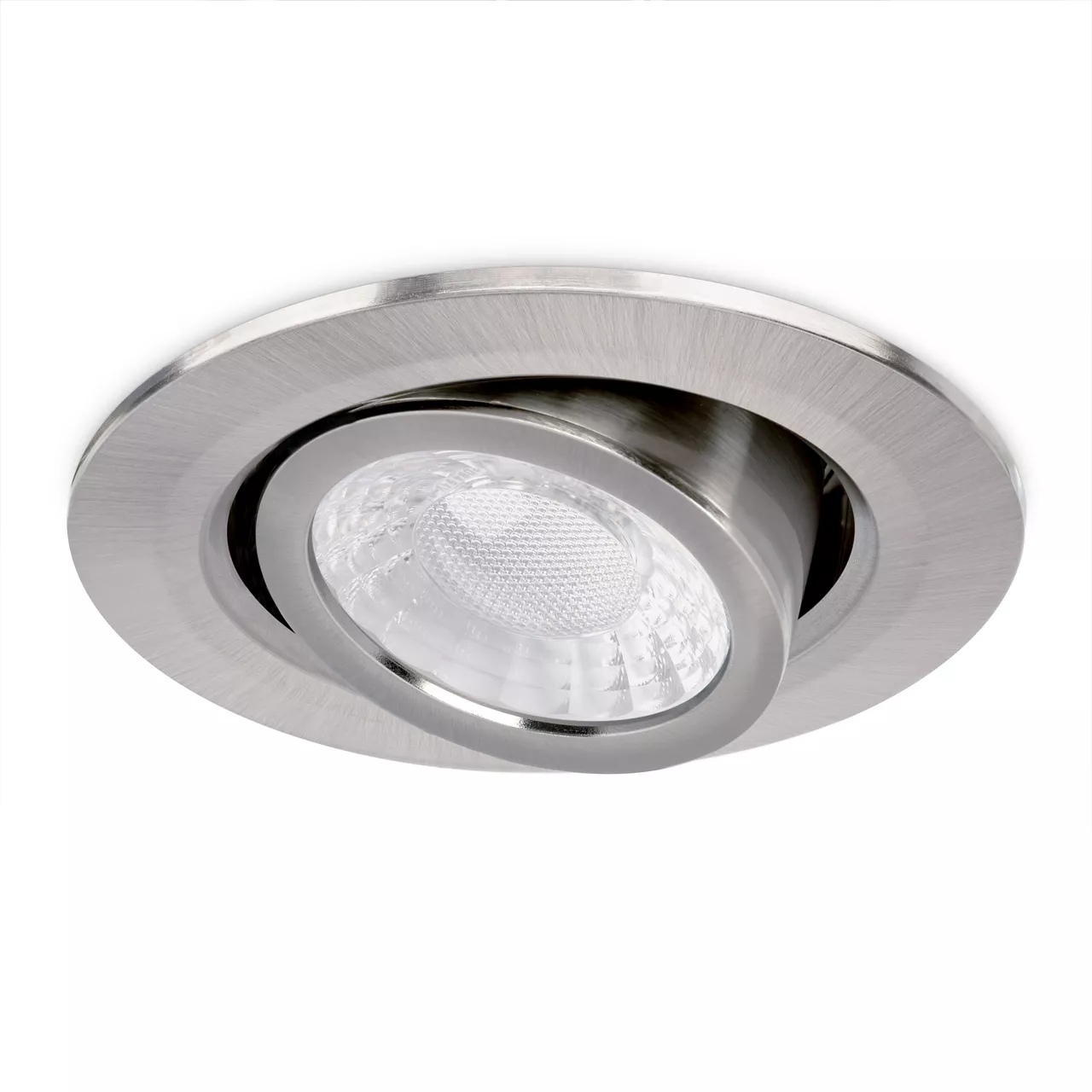

X50 Tilt fire-rated downlight with brushed nickel | 3.5W/5W | 3000K/4000K/5700K
JC1102/BN
- Two wattage and three colour selectable from remote driver
- Two-part first fix connector with dedicated testing terminals
- Double hinged terminal for easy access to terminal blocks
- Tested for use in Solid, I-Joist and Steel Open Web joist ceilings**
- 20º tiltable adjustment
Product Information
Electrical
Class : II
Dimmable : Yes, Triac dimmable only
Luminaire Circuit Wattage : 3W / 5W
Voltage Rating : 230-240
General Information
Additional Information : For Emergency version, use JC131003 only. Not suitable for use with JCEM002/JCEM002ST
Color Finish : Brushed nickel
Dimming Protocol Compatability : Triac dimmable
IP Rating : IP65
Light Source Features : 3CCT Switchable
Method of fix : Spring clips
Minimum Void Requirement : 50mm
Mounting : Recessed
Overall Dimensions : 100Ø x 58.4 x 547 cm (sse profile drawing for details)
Product Aperture Size : 83mm Ø
Product Group : Fire-rated Downlights
Product Range : X50
Warranty : 5 Year Warranty (Terms & conditions apply)
Performance Data
Actual Lumen Output : 480 / 700
Beam Angle ° : 60°
CRI: Ra : 80
Correlated Color Temperature : 3000 / 4000 / 5700K
Lumens Per Circuit Watt : 160140140
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0 to 26
