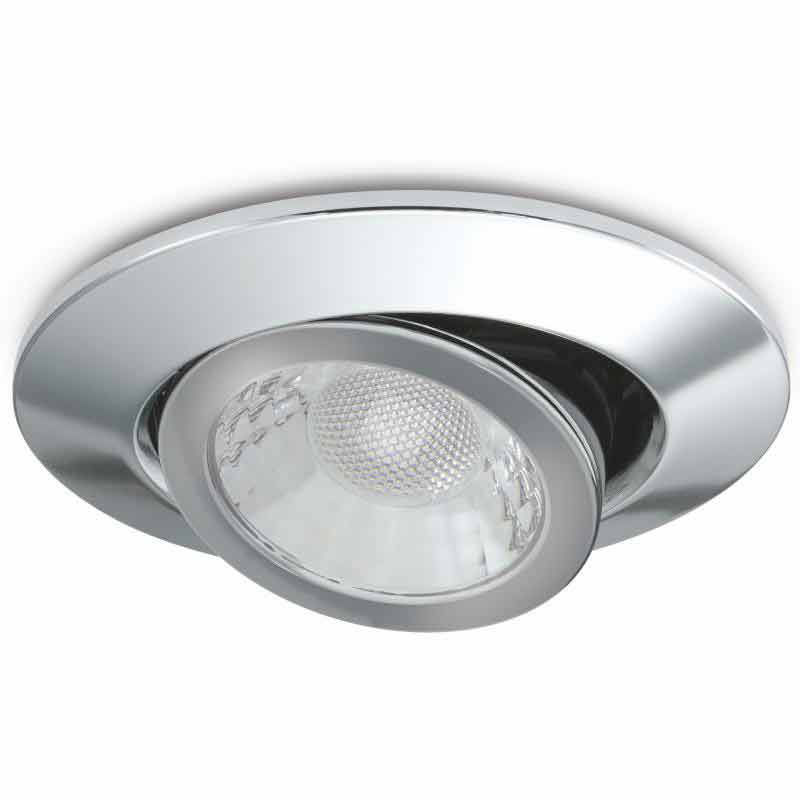

V50™ Pro Tilt Fire-rated LED Downlight 6W IP65 3000/4000K Chrome
JC1026/CH
- 650/700 Lumens
- 108/116 LpcW
- Now with 7 year warranty
- 3000K & 4000K colour temperature
- Not for use with emergency pack
- IP65 slim bezel version of V50™ Tilt, suitable for bathrooms
- Die-cast aluminium bezels
- 350° rotatable and 20° tiltable
- Low profile design, for installations in shallow 50mm ceiling voids
- Selectable colour temperature 3000K & 4000K
- Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
- Cut-out ⌀86mm
Product Information
Electrical
Class : II
Dimmable : Yes
Luminaire Circuit Wattage : 6W
Voltage Rating : 230-240
General Information
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : Chrome
Dimming Protocol Compatability : Triac
IP Rating : IP65
Light Source Features : Colour Selectable
Method of fix : Recessed with Spring Clips
Minimum Void Requirement : 50mm
Mounting : Recessed
Overall Dimensions : Ø100 x 62.7
Product Aperture Size : Ø86mm
Product Group : Fire-rated Downlights
Product Range : Fire-rated Downlights
Trade Name : V50™ Pro
Warranty : 7 years( Terms & conditions apply)
Performance Data
Actual Lumen Output : 650 / 700
Beam Angle ° : 60
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K
Lumens Per Circuit Watt : 108 /116
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0 to 26
