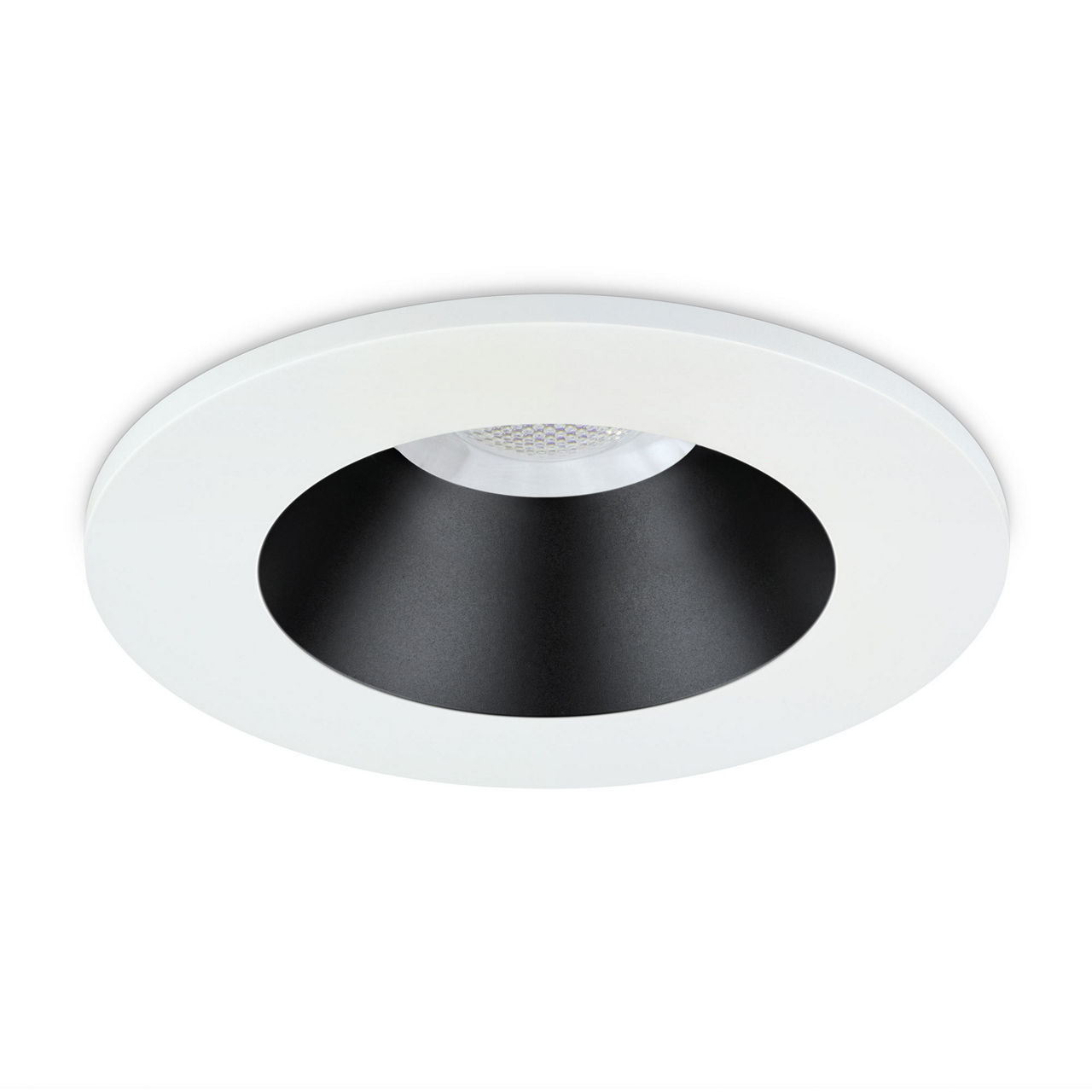

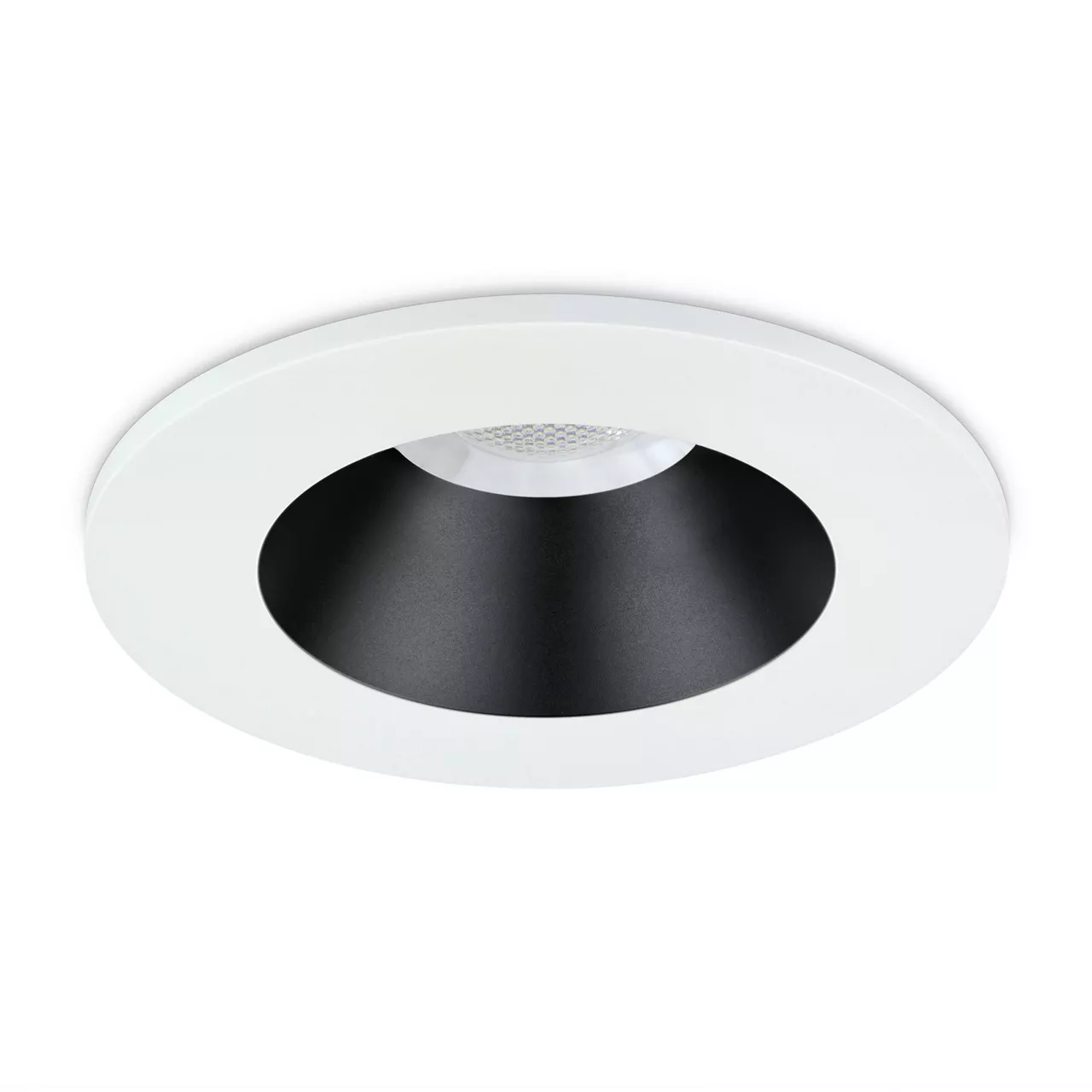

V50 Pro Anti-glare Fire-rated LED Downlight 6W IP65 3000K/4000K WH/BLK DALI

JC1019/WHBLKDALI

  • Actual Lumen Output 650/700
  • Lumens Per Circuit Watt 108/116
  • Now with 7 year warranty
  • Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals
  • Recessed lens to reduce glare, suitable for cut outs Ø70-76mm
  • Low profile design, for installations in shallow 50mm ceiling voids
  • Selectable colour temperature from beneath the ceiling, 3000K & 4000K
  • Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : Ø85 x 62.7

  • Performance Specifications

    Dimming Protocol Compatibility : DALI/1-10V

  • Product Details

    Additional Information : Maximum ceiling thickness is 30mm

    Color Finish : White bezel, black inner cone

    Product Range : Fire-rated Downlights

    Warranty : 5 Year Warranty(domestic) 3 Year( Commercial)

  • Product Specifications

    Actual Lumen Output : 650/700

    Beam Angle : 60

    CRI : 80

    Class : II

    Correlated Color Temperature : 3000K/4000K

    Dimmable : Yes, DALI/1-10V

    IP Rating : IP65

    Lumens Per Circuit Watt : 108/116

    Luminaire Circuit Wattage : 6

    Method of fix : Recessed with Spring Clips

    Operating Temperature range °C : 0 to 26

    Product Aperture Size : Ø70-76mm
