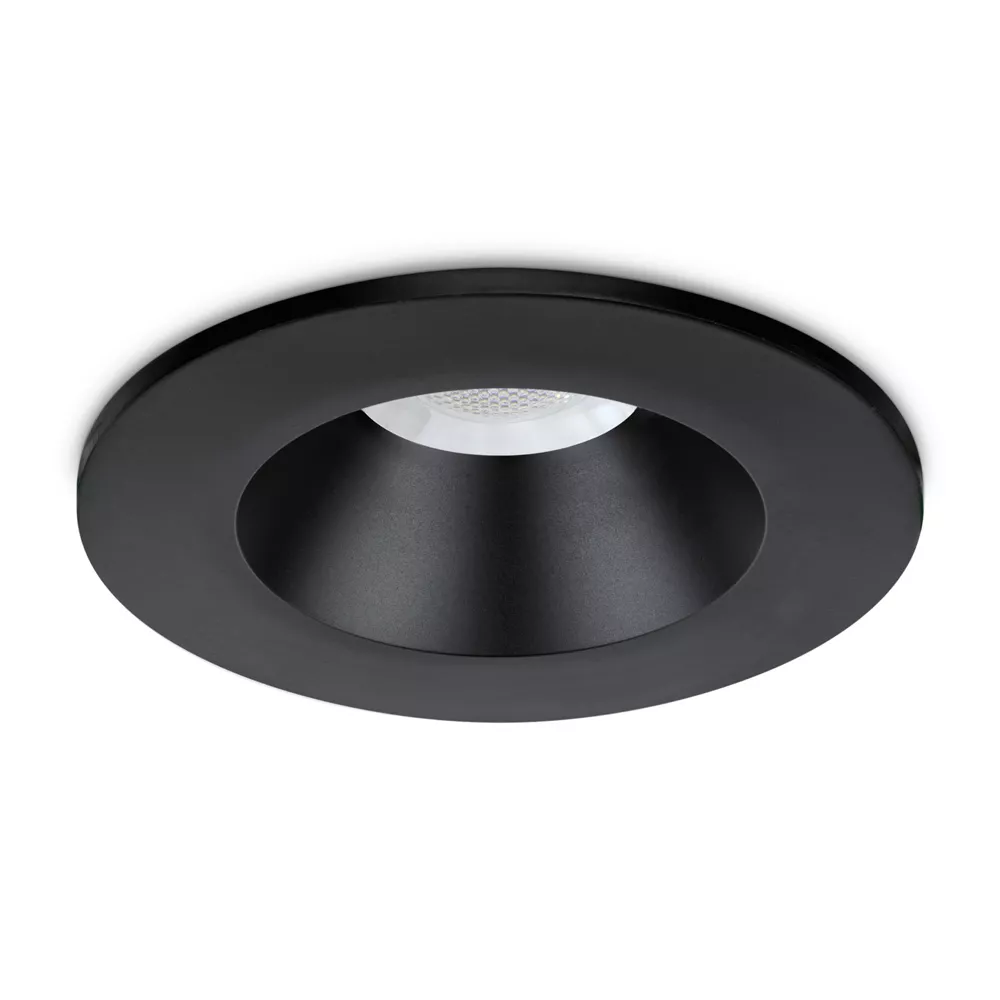

V50 Pro Anti-glare Fire-rated LED Downlight 6W IP65 3000K/4000K Black DALI
JC1019/BLKDALI
- Actual Lumen Output 650/700
- Lumens Per Circuit Watt 108/116
- Now with 7 year warranty
- Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals
- Recessed lens to reduce glare, suitable for cut outs Ø70-76mm
- Low profile design, for installations in shallow 50mm ceiling voids
- Selectable colour temperature from beneath the ceiling, 3000K & 4000K
- Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : Ø85 x 62.7
Performance Specifications
Dimming Protocol Compatibility : DALI/1-10V
Product Details
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : Black
Product Range : Fire-rated Downlights
Warranty : 5 Year Warranty(domestic) 3 Year( Commercial)
Product Specifications
Actual Lumen Output : 650/700
Beam Angle : 60
CRI : 80
Class : II
Correlated Color Temperature : 3000K/4000K
Dimmable : Yes, DALI/1-10V
IP Rating : IP65
Lumens Per Circuit Watt : 108/116
Luminaire Circuit Wattage : 6
Method of fix : Recessed with Spring Clips
Operating Temperature range °C : 0 to 26
Product Aperture Size : Ø70-76mm
