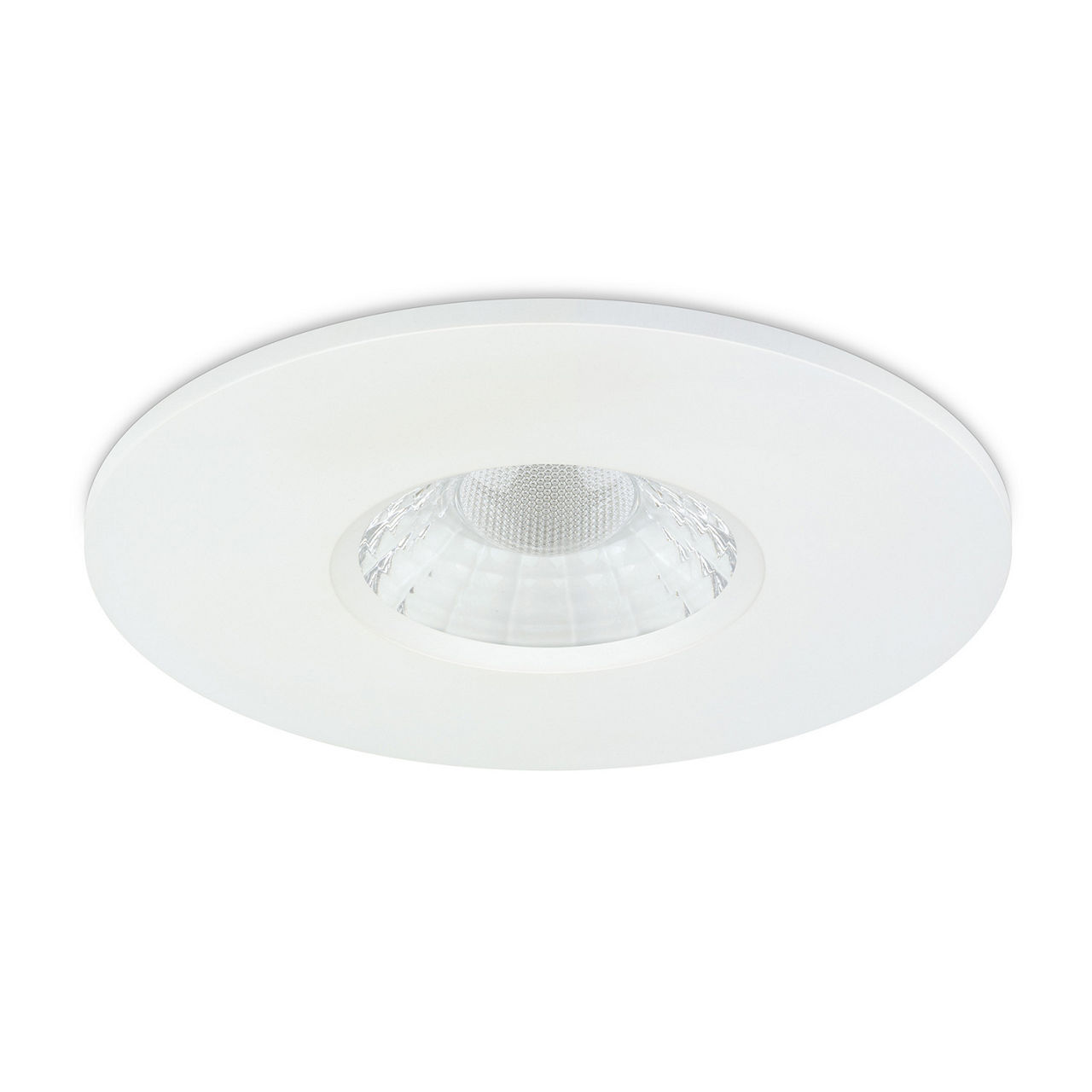

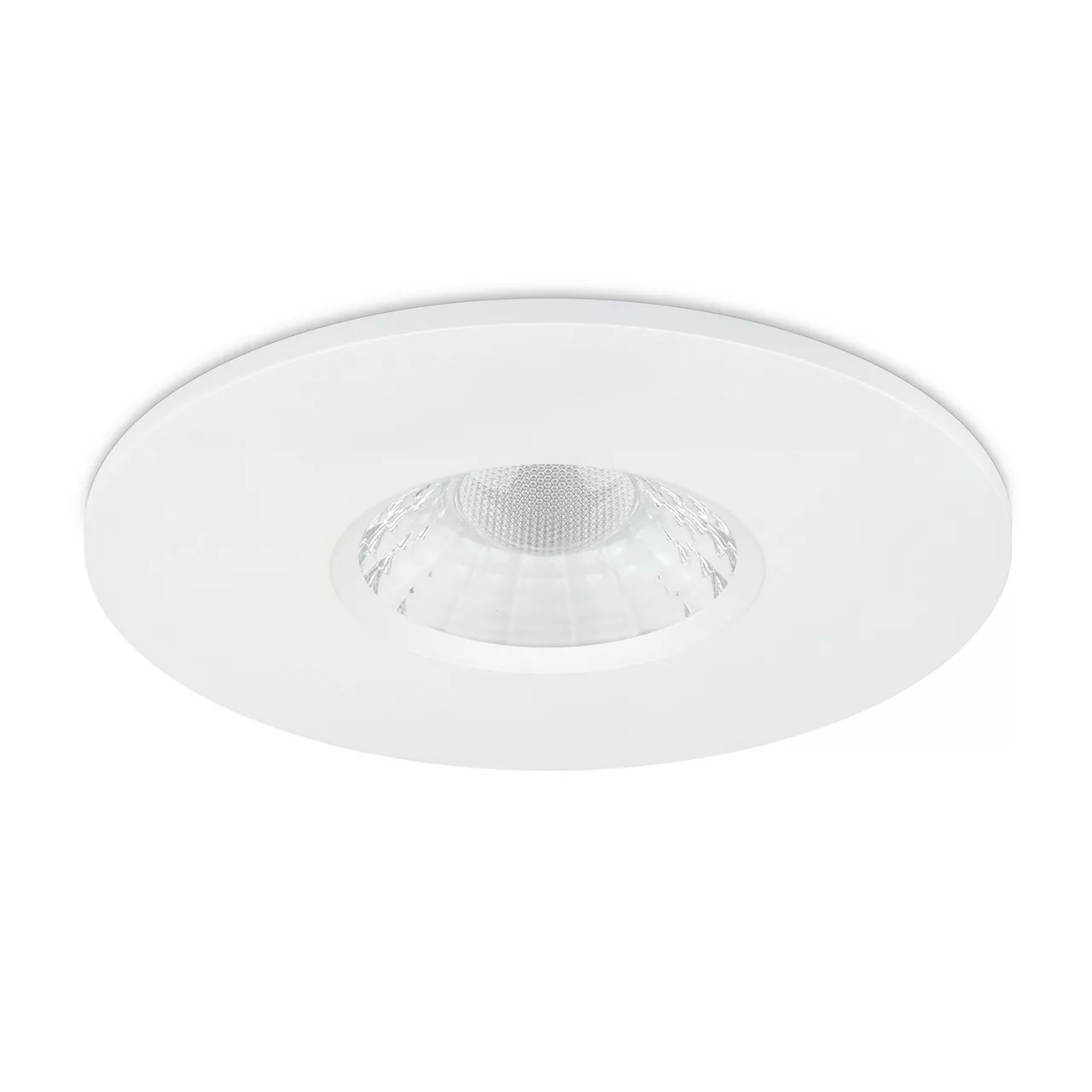

V50 Pro 100mm Retrofit Fire-rated LED Downlight 6W IP65 3000K/4000K White DALI
JC1013/WHDALI
- Slim profile 3mm bezel with a slimline double hinged driver, including colour coded loop in/loop out terminals
- Allows for retrofit where larger downlights were previously installed covers ceiling cut-outs Ø70-92mm
- Ideal for damage from previous fittings or replacement of traditional large fittings
- Low profile design, for installations in shallow 50mm ceiling voids
- Selectable colour temperature from beneath the ceiling, 3000K & 4000K
- Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : Ø100 x 54
Performance Specifications
Dimming Protocol Compatibility : DALI/1-10V
Product Details
Additional Information : Maximum ceiling thickness is 30mm
Color Finish : White
Product Range : Fire-rated Downlights
Warranty : 5 Year Warranty(domestic) 3 Year( Commercial)
Product Specifications
Actual Lumen Output : 650/700
Beam Angle : 60
CRI : 80
Class : II
Correlated Color Temperature : 3000K/4000K
Dimmable : Yes, DALI/1-10V
IP Rating : IP65
Lumens Per Circuit Watt : 108/116
Luminaire Circuit Wattage : 6
Method of fix : Recessed with Spring Clips
Operating Temperature range °C : 0 to 26
Product Aperture Size : Ø70-92mm
