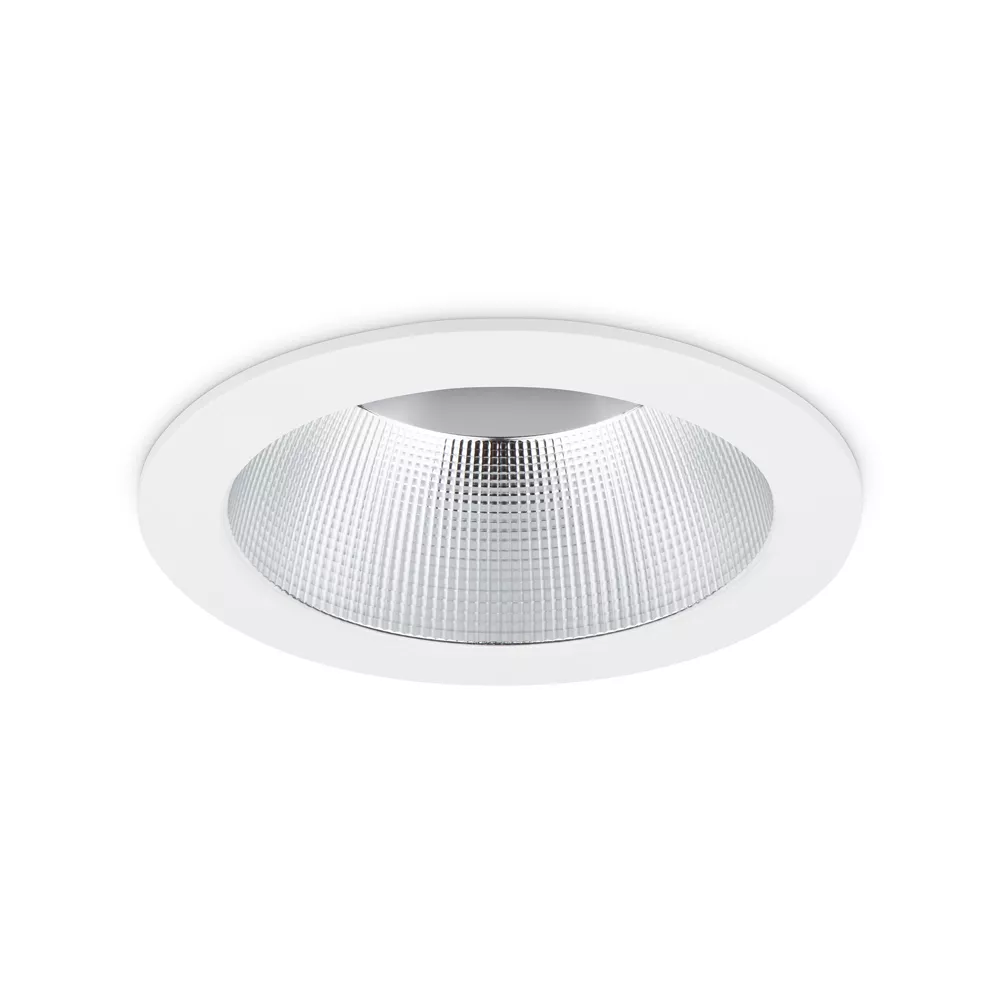

Rakula downlight 232mm 24W/35W 3000K/4000K/5700K IP65 TP(a) Non-dim
JC74009
Rakula downlight 232mm 24W/35W 3000K/4000K/5700K IP65 TP(a) Non-dim
- Three colour selectable 3000K, 4000K & 5700K
- Wattage selectable 24W/35W
- Designed for ceiling cut-outs from 195mm-210mm
- Loop-in/loop-out driver with permanent live and earth provision
- Triac, DALI/1-10V/Switch Dim available
- Manual test, self-test and DALI addressable emergency options available
- TP(a) rated
Product Information
Electrical
Class : II
Dimmable : No
Luminaire Circuit Wattage : 24W / 35W
Voltage Rating : 220-240
General Information
Color Finish : White
IP Rating : 65
Luminaire Accessories : Suitable for use with JCEM002 and JCEM002ST
Method of fix : Spring clips
Minimum Void Requirement : 130mm
Mounting : Recessed
Overall Dimensions : 232Ø x 110 mm
Product Aperture Size : Ø195mm-210mm
Product Group : Recessed
Product Range : Downlights
Trade Name : Rakula
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 3040 / 4270
Beam Angle ° : 61
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K / 5700K
Lumens Per Circuit Watt : 127122122
Thermals
Insulation Coverage : Do not cover
Operating Temperature Range °C : -20 to 40
- Three colour selectable 3000K, 4000K & 5700K
- Wattage selectable 24W/35W
- Designed for ceiling cut-outs from 195mm-210mm
- Loop-in/loop-out driver with permanent live and earth provision
- Triac, DALI/1-10V/Switch Dim available
- Manual test, self-test and DALI addressable emergency options available
- TP(a) rated
