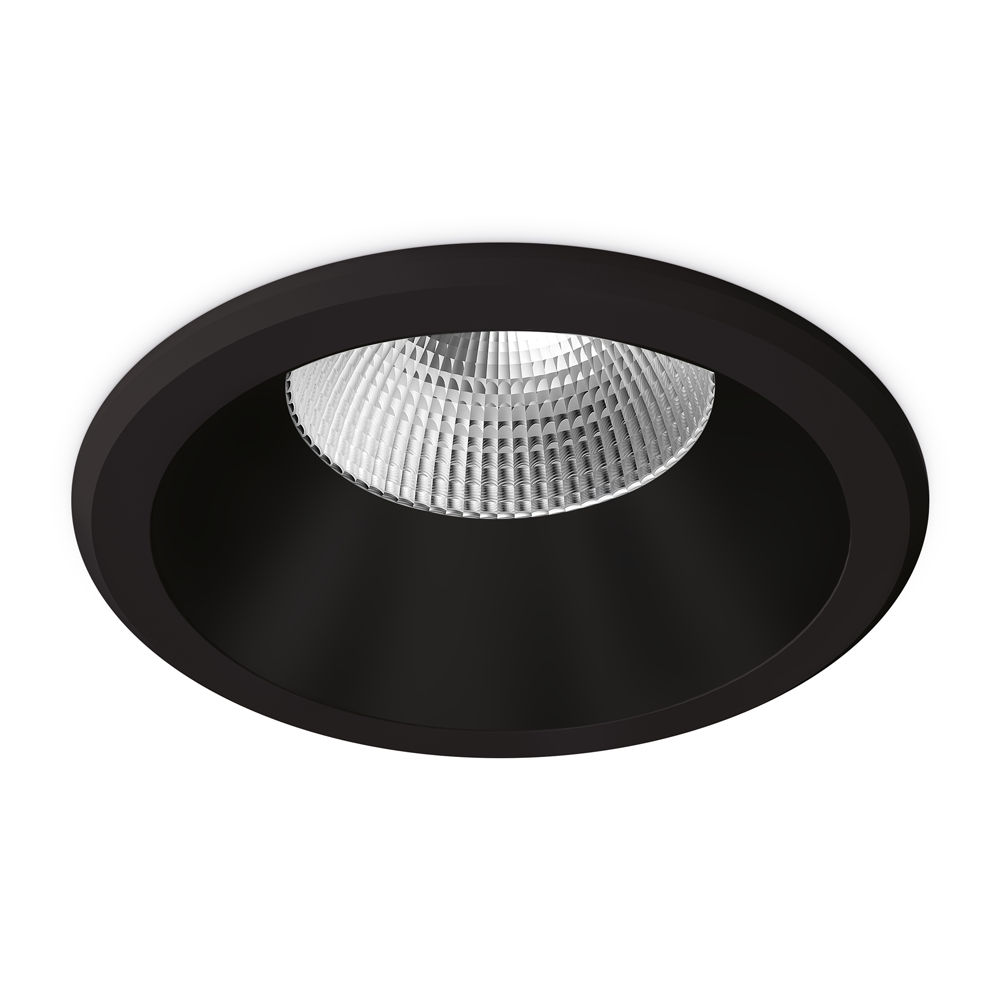

Parluma downlight 140mm 9W/12W 3K/4K/57K IP65 Black bezel Black ref Non-dim

JC73053

Parluma downlight 140mm 9W/12W 3K/4K/57K IP65 Black bezel Black ref Non-dim
  • Three colour selectable 3000K, 4000K & 5700K
  • Wattage selectable 9W/12W
  • Designed for ceiling cut-outs from 120mm-130mm
  • Loop-in/loop-out driver with permanent live and earth provision
  • Triac, DALI/1-10V/Switch Dim available
  • Manual test, self-test and DALI addressable emergency options available
  • TP(a) rated
Country of Origin: Please Contact Customer Service

Product Information

  • Electrical

    Class : II

    Dimmable : No

    Luminaire Circuit Wattage : 6W / 9W

    Voltage Rating : 220-240

  • General Information

    Color Finish : Black bezel and reflector

    Dimming Protocol Compatability : Non-dimmable

    IP Rating : 65

    Luminaire Accessories : Suitable for use with JCEM002 and JCEM002ST

    Method of fix : Spring clips

    Minimum Void Requirement : 105mm

    Mounting : Recessed

    Overall Dimensions : 140Ø x 80 mm

    Product Aperture Size : Ø120mm-130mm

    Product Group : Recessed

    Product Range : Downlights

    Trade Name : Parluma

    Warranty : 5 Year Warranty

  • Performance Data

    Actual Lumen Output : 1080 / 1440

    Beam Angle ° : 40

    CRI: Ra : 80

    Correlated Color Temperature : 3000K / 4000K / 5700K

    Lumens Per Circuit Watt : 120120120

  • Thermals

    Insulation Coverage : Do not cover

    Operating Temperature Range °C : -20 to 40

  • Three colour selectable 3000K, 4000K & 5700K
  • Wattage selectable 9W/12W
  • Designed for ceiling cut-outs from 120mm-130mm
  • Loop-in/loop-out driver with permanent live and earth provision
  • Triac, DALI/1-10V/Switch Dim available
  • Manual test, self-test and DALI addressable emergency options available
  • TP(a) rated
