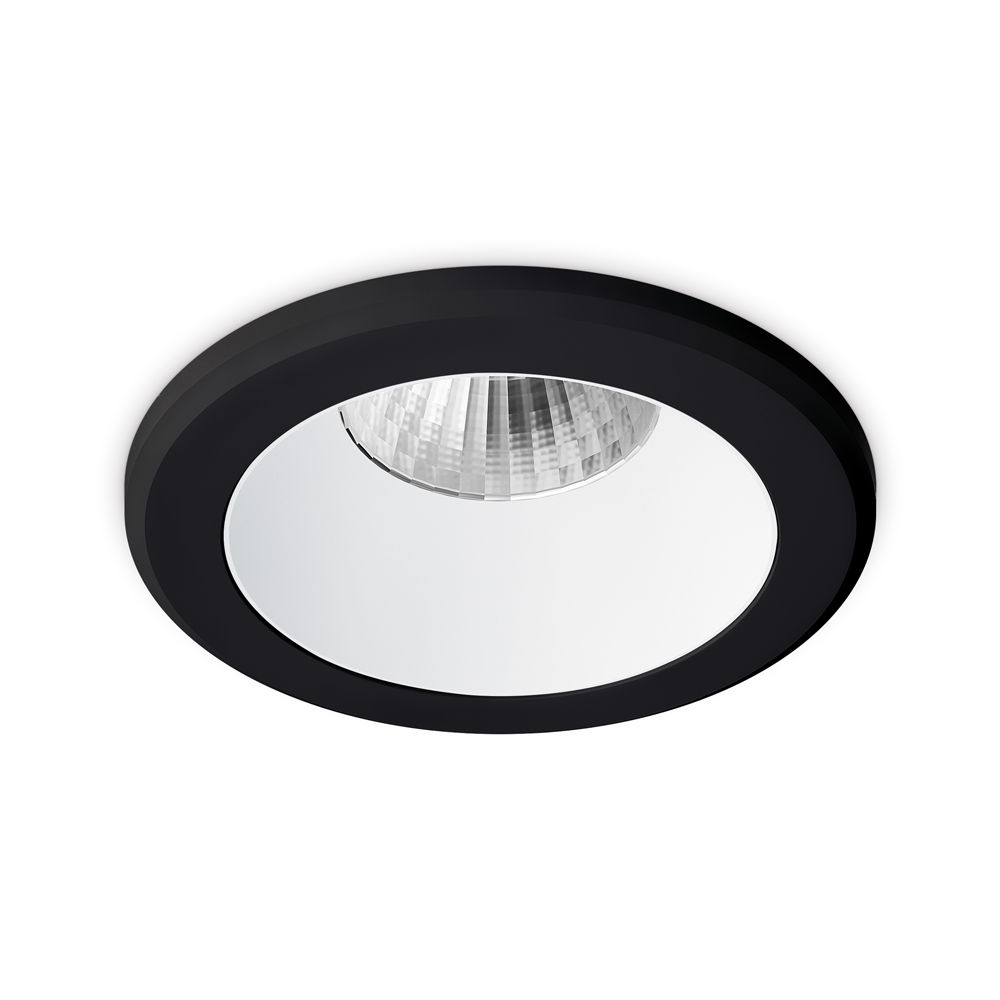

Parluma downlight 84mm 4W/6W 3K/4K/57K IP65 Black bezel White ref DALI/1-10V
JC73020
- Three colour selectable 3000K, 4000K & 5700K
- Wattage selectable 4W/6W
- Designed for ceiling cut-outs from 68mm-76mm
- Loop-in/loop-out driver with permanent live and earth provision
- Triac, DALI/1-10V/Switch Dim available
- Manual test, self-test and DALI addressable emergency options available
- TP(a) rated
Product Information
Electrical
Class : II
Dimmable : DALI, 1-10V, Retractive switch dimming
Luminaire Circuit Wattage : 4W / 6W
Voltage Rating : 220-240
General Information
Color Finish : Black bezel with white reflector
Dimming Protocol Compatability : DALI, 1-10V, Retractive switch dimming
IP Rating : 65
Luminaire Accessories : Suitable for use with JCEM002, JCEM002ST and JCEM002DALI
Method of fix : Spring clips
Minimum Void Requirement : 80mm
Mounting : Recessed
Overall Dimensions : 84Ø x 55 mm
Product Aperture Size : Ø68mm-76mm
Product Group : Recessed
Product Range : Downlights
Trade Name : Parluma
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 450 / 630
Beam Angle ° : 40
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K / 5700K
Lumens Per Circuit Watt : 113105105
Thermals
Insulation Coverage : Do not cover
Operating Temperature Range °C : -25 to 50
- Three colour selectable 3000K, 4000K & 5700K
- Wattage selectable 4W/6W
- Designed for ceiling cut-outs from 68mm-76mm
- Loop-in/loop-out driver with permanent live and earth provision
- Triac, DALI/1-10V/Switch Dim available
- Manual test, self-test and DALI addressable emergency options available
- TP(a) rated
