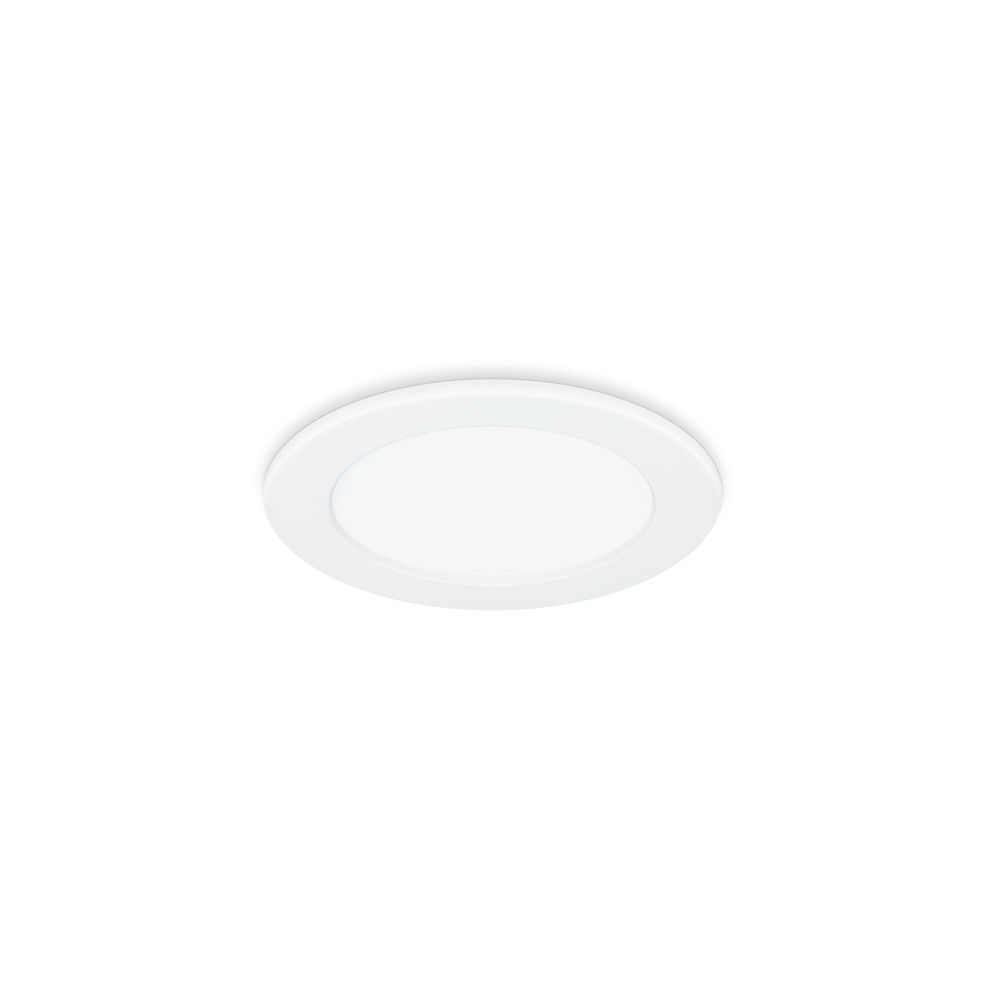

Skydisc 170mm 6W/9W 3000K/4000K/5700K IP65 TP(a) Non-dim
JC72002
Skydisc 170mm 6W/9W 3000K/4000K/5700K IP65 TP(a) Non-dim
- IP65 suitable for use in bathrooms (internal use only)
- Two wattage and three colour selectable from fitting
- Loop-in/loop-out driver with permanent live and earth provision
- Designed for ceiling cut-outs from 150-160mm
- Polycarbonate construction
- TP(a) rated
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : No
Luminaire Circuit Wattage : 6W / 9W
Voltage Rating : 220-240
General Information
Additional Information : Suitable for use with JCEM002 and JCEM002ST
Color Finish : White
Dimming Protocol Compatability : nan
IP Rating : 65
Method of fix : Spring Clips (supplied)
Mounting : Recessed
Overall Dimensions : Ø170 x 27mm
Product Aperture Size : 150-160mm
Product Group : LED - Recessed
Product Range : Skydisc CCT IP65
Trade Name : Skydisc CCT
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 700 / 950
Beam Angle ° : 110
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K / 5700K
Lumens Per Circuit Watt : 117106106
Thermals
Insulation Coverage : Do not cover
Operating Temperature Range °C : -20 to 40
