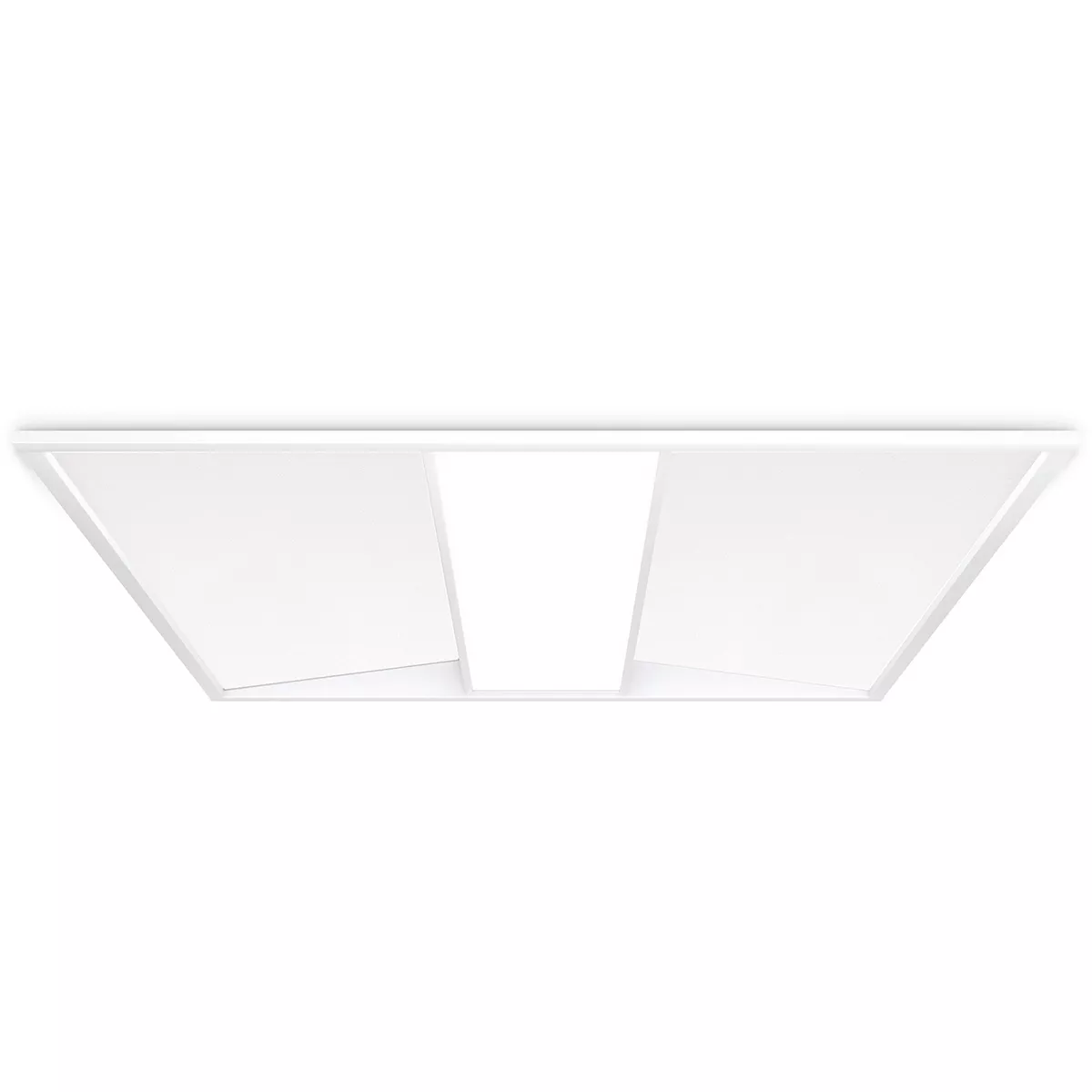

Skytile Direct/Indirect LED Panel | 4000K
JC71376
- Contemporary alternative to LED flat panels
- Specifically engineered to reduce glare
- Colour temperature matches Skytile range
- Smooth, even light distribution
Product Information
Dimensional Data
Overall Dimensions : 595 x 595 x 101mm
Product Details
Additional Information : Not fire rated
Color Finish : White
Product Range : Skytile
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 3400
Beam Angle : 120
CRI : 80
Class : II
Correlated Color Temperature : 4000K
IP Rating : IP20
Lumens Per Circuit Watt : 97
Luminaire Circuit Wattage : 35
Method of fix : 15mm or 25mm Ceiling grid system
Operating Temperature range °C : 0 to +26
Performance Specifications
Dimming Protocol Compatibility : 1-10V
Product Specifications
Actual Lumen Output : 3400
Beam Angle : 120
CRI : 80
Class : II
Correlated Color Temperature : 4000K
Dimmable : 1-10V dimmable
IP Rating : IP20
Lumens Per Circuit Watt : 97
Luminaire Circuit Wattage : 35
Method of fix : 15mm or 25mm Ceiling grid system
Operating Temperature range °C : 0 to +26
Performance Specifications
Dimming Protocol Compatibility : DALI
Product Specifications
Actual Lumen Output : 3400
Beam Angle : 120
CRI : 80
Class : II
Correlated Color Temperature : 4000K
Dimmable : DALI dimmable
IP Rating : IP20
Lumens Per Circuit Watt : 97
Luminaire Circuit Wattage : 35
Method of fix : 15mm or 25mm Ceiling grid system
Operating Temperature range °C : 0 to +26
Performance Specifications
Dimming Protocol Compatibility : DSI
Product Specifications
Actual Lumen Output : 3400
Beam Angle : 120
CRI : 80
Class : II
Correlated Color Temperature : 4000K
Dimmable : DSI dimmable
IP Rating : IP20
Lumens Per Circuit Watt : 97
Luminaire Circuit Wattage : 35
Method of fix : 15mm or 25mm Ceiling grid system
Operating Temperature range °C : 0 to +26
