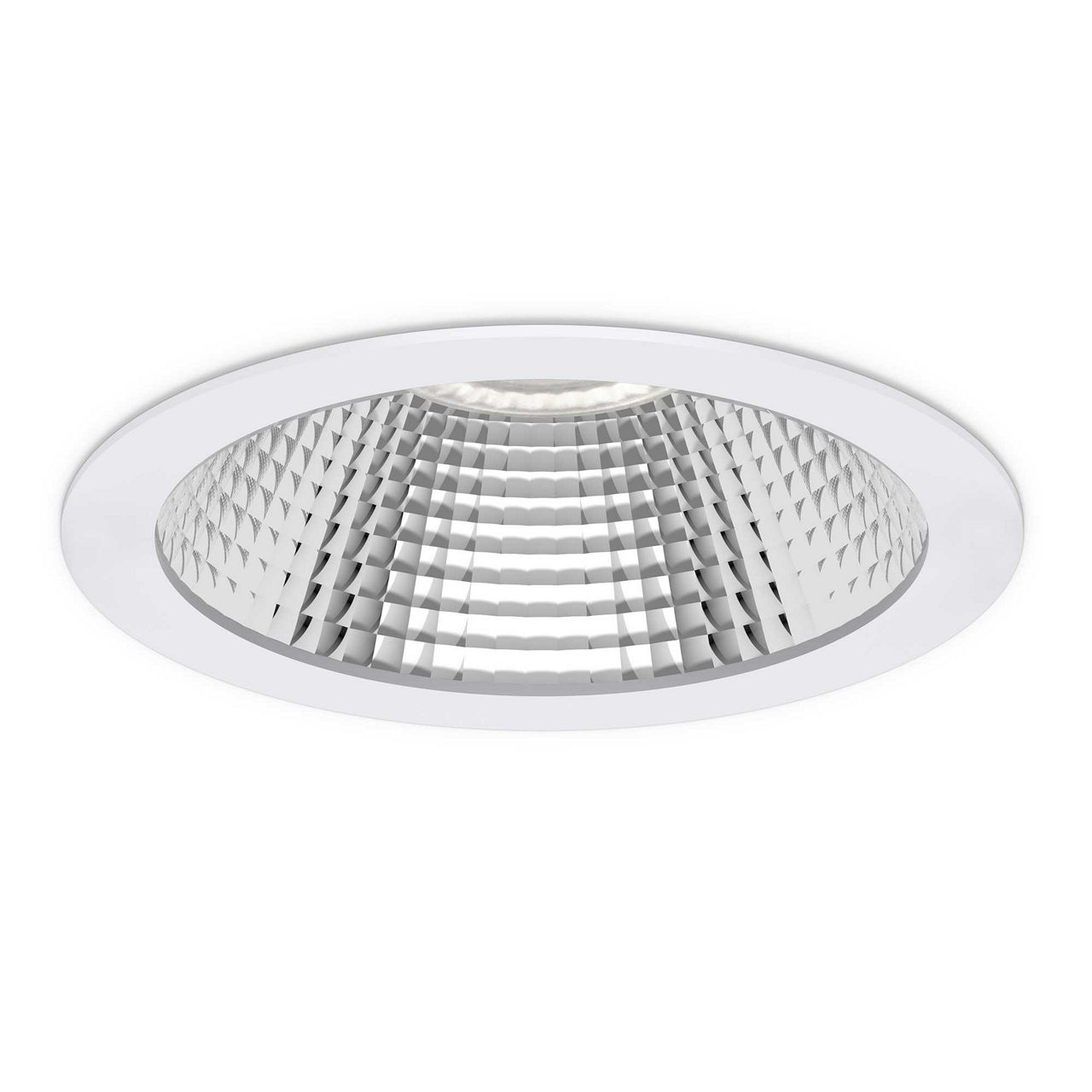

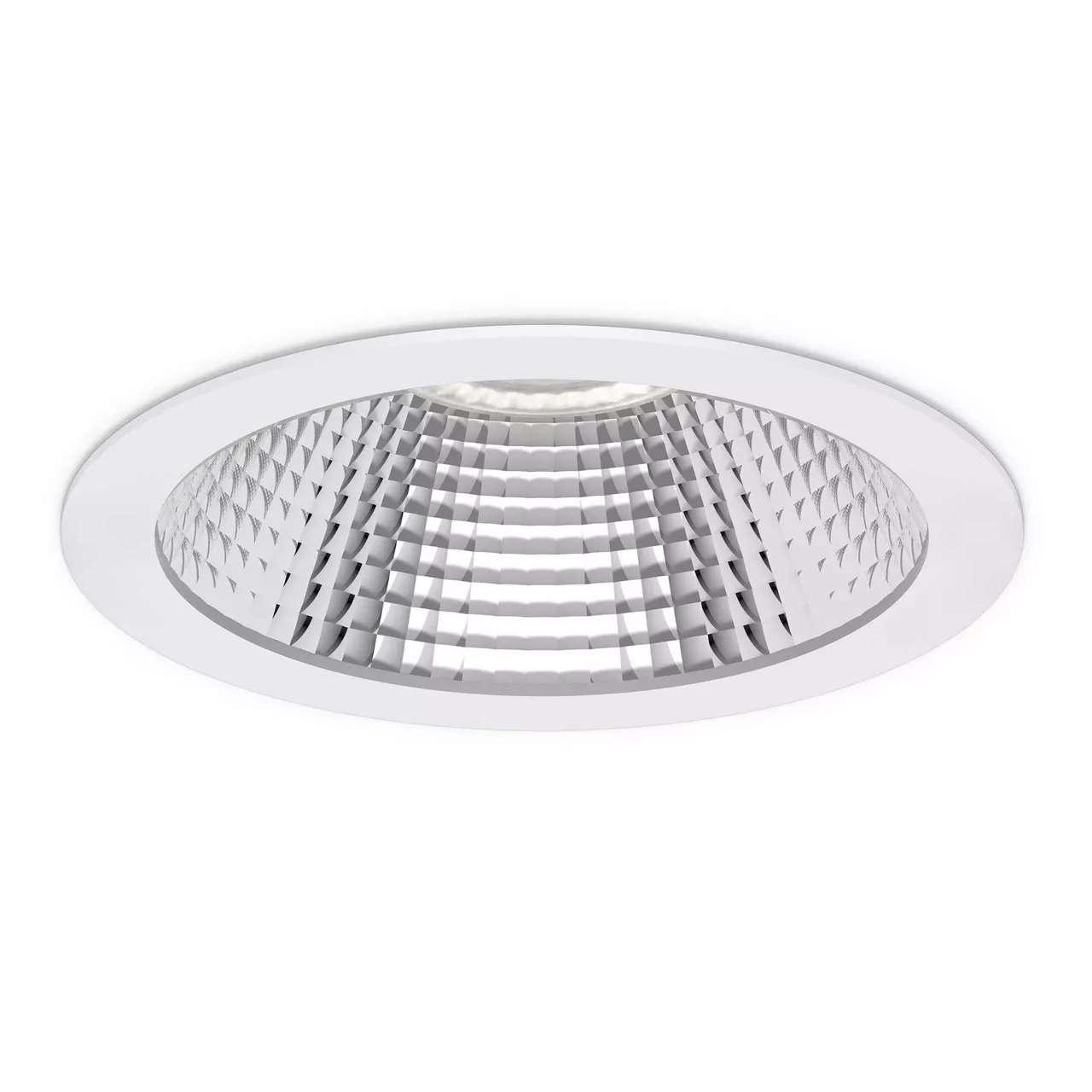

CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DSI

JC5505

  • 3CCT switchable as standard, 3000K/4000K/5700K
  • 13W, 18W and 25W Options
  • UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
  • Up to 133 LpcW
  • IP54 rated
  • Low profile, suitable for shallow ceilings
  • 60° beam angle with a Cri: of 85
  • Non-dimmable flicker free driver
  • DALI/1-10V/SW dim and DSI dimmable options
  • Suitable for use with JCEM002/JCEM002ST remote emergency packs
Country of Origin: Please Contact Customer Service

Product Information

  • Performance Specifications

    Dimming Protocol Compatibility : DSI

  • Product Details

    Additional Information : Suitable for use with JCEM002/JCEM002ST emergency packs

    Color Finish : White

    Product Range : Coral™ Plus

    Warranty : 5 Year Warranty

  • Product Specifications

    Actual Lumen Output : 2400

    Beam Angle : 60

    CRI : 85

    Class : II

    Correlated Color Temperature : 3000/4000/5700

    Dimmable : DSI

    IP Rating : IP54

    Lumens Per Circuit Watt : 133

    Luminaire Circuit Wattage : 18

    Method of fix : Spring clips

    Operating Temperature range °C : -25 to +60

    Product Aperture Size : Ø200-210mm
