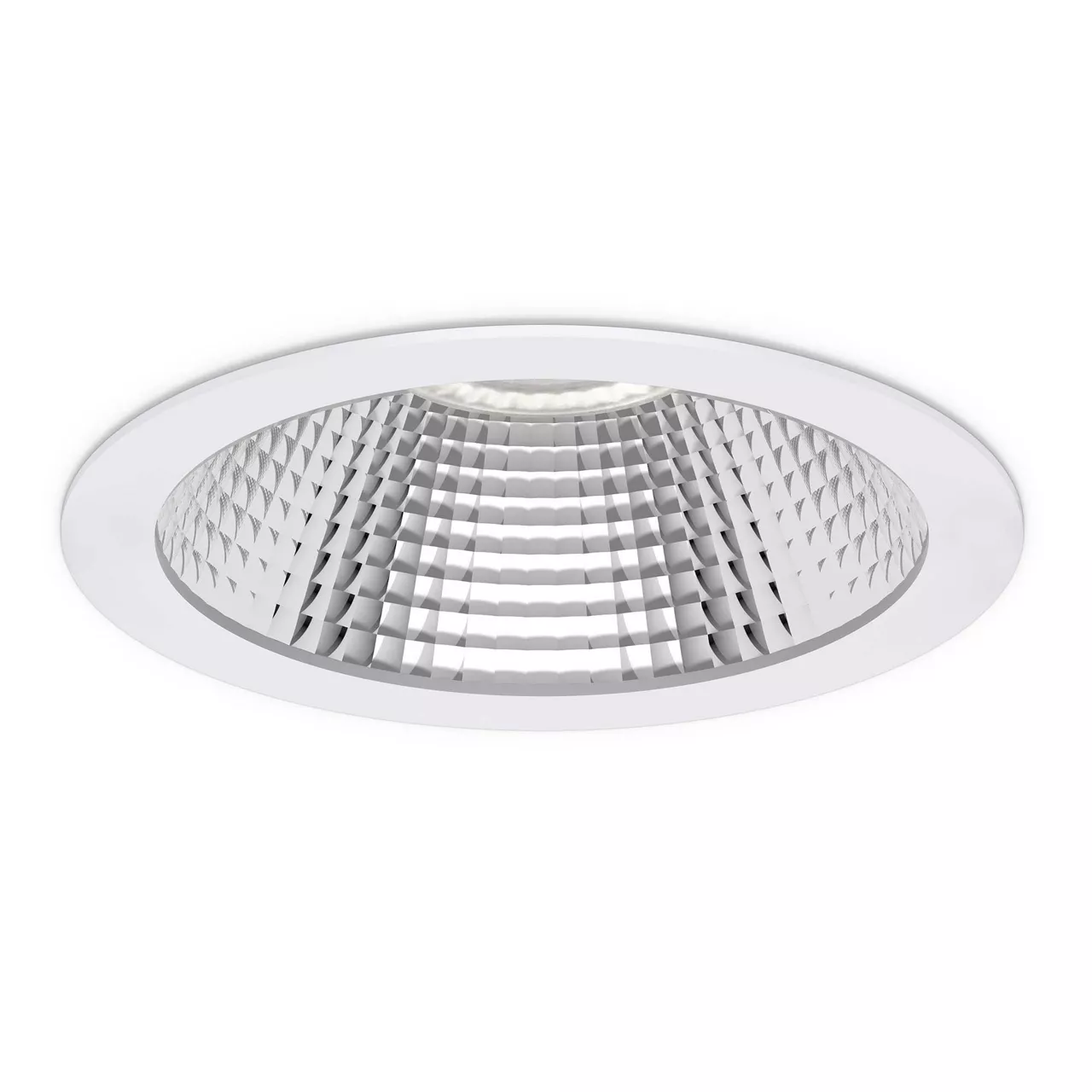

CoraLED™ Plus Commercial Downlight 18W IP54 3000K/4000K/5700K DALI/1-10V/SW dim

JC5504

  • 3CCT switchable as standard, 3000K/4000K/5700K
  • 13W, 18W and 25W Options
  • UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
  • Up to 133 LpcW
  • IP54 rated
  • Low profile, suitable for shallow ceilings
  • 60° beam angle with a Cri: of 85
  • Non-dimmable flicker free driver
  • DALI/1-10V/SW dim and DSI dimmable options
  • Suitable for use with JCEM002/JCEM002ST remote emergency packs
Country of Origin: Please Contact Customer Service

Product Information

  • Electrical

    Class : II

    Dimmable : DALI/1-10V/SW dim

    Luminaire Circuit Wattage : 18

    Voltage Rating : 220-240

  • General Information

    IP Rating : IP54

    Method of fix : Spring clips

    Mounting : Recessed

    Product Aperture Size : Ø200-210mm

    Warranty : 5 Year Warranty

  • Performance Data

    Actual Lumen Output : 2400

    Beam Angle ° : 60

    CRI: Ra : 85

    Correlated Color Temperature : 3000/4000/5700

    Lumens Per Circuit Watt : 133

  • Thermals

    Insulation Coverage : Do not cover with insulation

    Operating Temperature Range °C : -25 to +50
