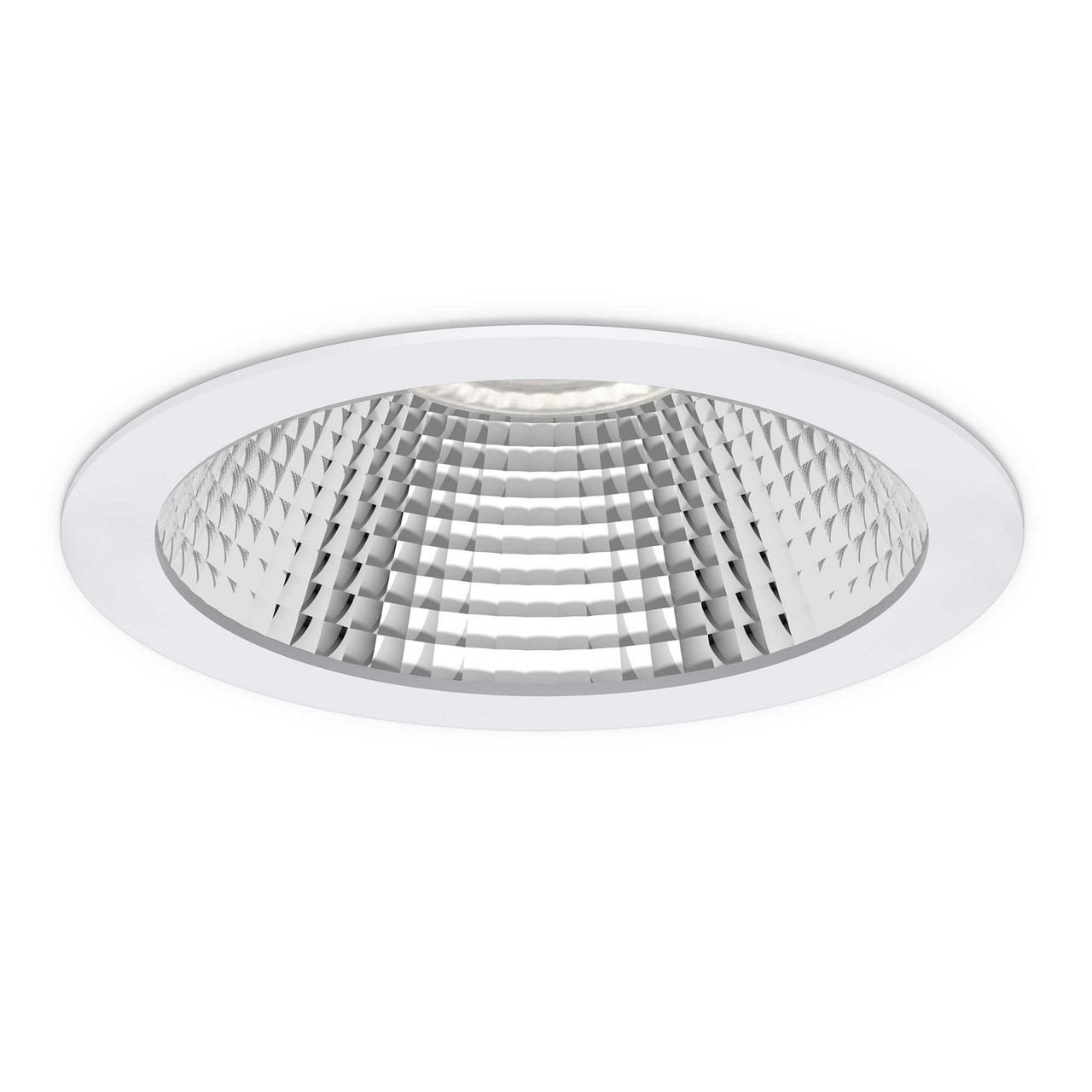

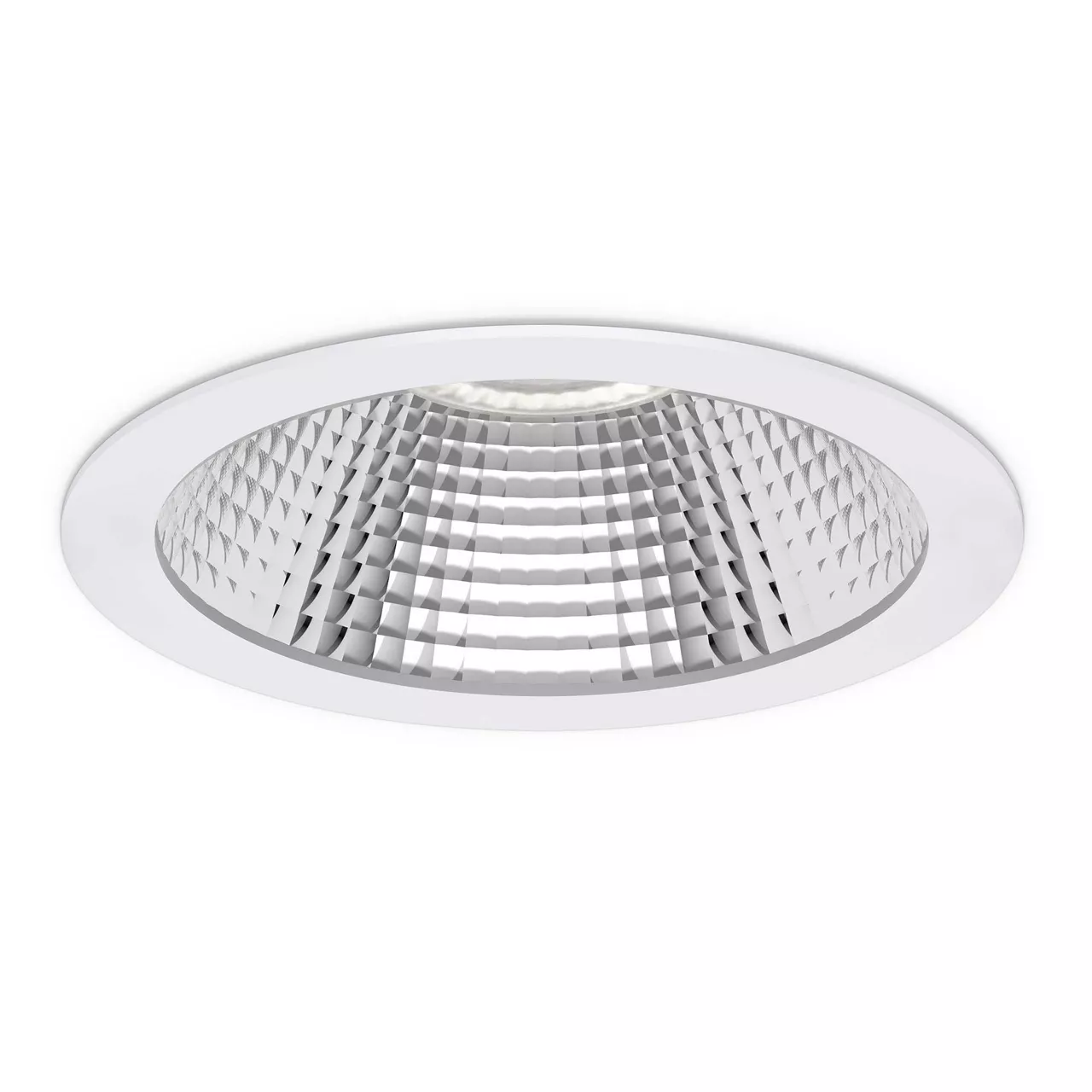

CoraLED™ Plus Commercial Downlight 13W IP54 3000K/4000K/5700K DSI
JC5502
- 3CCT switchable as standard, 3000K/4000K/5700K
- 13W, 18W and 25W Options
- UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace
- Up to 133 LpcW
- IP54 rated
- Low profile, suitable for shallow ceilings
- 60° beam angle with a Cri: of 85
- Non-dimmable flicker free driver
- DALI/1-10V/SW dim and DSI dimmable options
- Suitable for use with JCEM002/JCEM002ST remote emergency packs
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : DSI
Luminaire Circuit Wattage : 13
Voltage Rating : 220-240
General Information
IP Rating : IP54
Method of fix : Spring clips
Mounting : Recessed
Product Aperture Size : Ø200-210mm
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 1700
Beam Angle ° : 60
CRI: Ra : 85
Correlated Color Temperature : 3000/4000/5700
Lumens Per Circuit Watt : 131
Thermals
Insulation Coverage : Do not cover with insulation
Operating Temperature Range °C : -25 to +60
