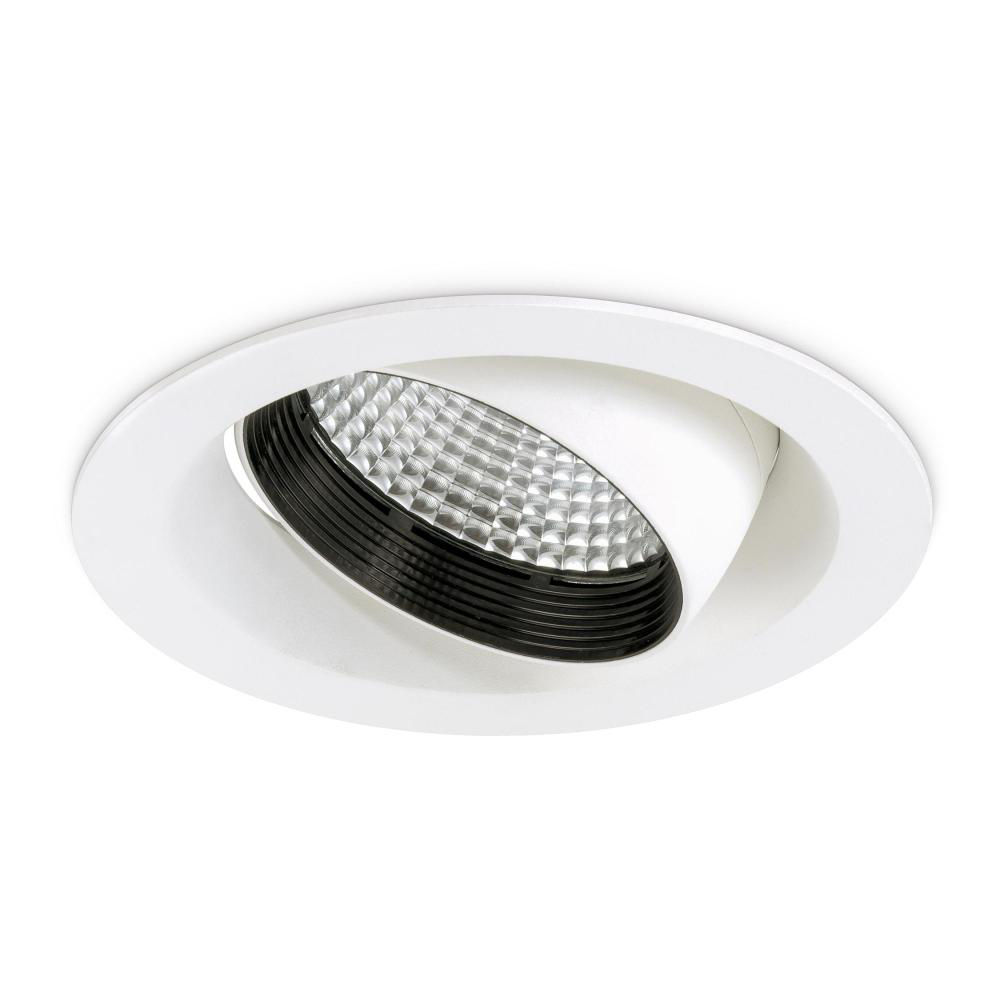

Commercial Gimbal Downlight 35W IP20 non-dimmable 4000K 3420lm 45°

JC54304

  • Up to 98 LpcW
  • 360° rotatable and 30° tiltable
  • Zero maintenance, no need to relamp
  • CRI 80, ideal for retail applications
  • 20°, 45° and 60° beam angle options
  • Produced to order, contact JCC customer services on 01243 838999
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : Ø185 x 130mm

  • Product Details

    Additional Information : Suitable for use with JCEM002 Remote pack and JCEM002ST Self test remote pack

    Color Finish : White

    Product Range : Commercial Gimbal

    Warranty : 5 Year Warranty

  • Product Specifications

    Actual Lumen Output : 3420

    Beam Angle : 45

    CRI : 80

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : No

    IP Rating : IP20

    Lumens Per Circuit Watt : 98

    Luminaire Circuit Wattage : 35

    Method of fix : spring clips

    Operating Temperature range °C : -20 to +45

    Product Aperture Size : 155mm

  • Product Specifications

    Actual Lumen Output : 3380

    Beam Angle : 45

    CRI : 80

    Class : II

    Correlated Color Temperature : 3000K

    Dimmable : No

    IP Rating : IP20

    Lumens Per Circuit Watt : 97

    Luminaire Circuit Wattage : 35

    Method of fix : spring clips

    Operating Temperature range °C : -20 to +45

    Product Aperture Size : 155mm

  • Performance Specifications

    Dimming Protocol Compatibility : DALI/1-10V

  • Product Specifications

    Actual Lumen Output : 3420

    Beam Angle : 45

    CRI : 80

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : DALI/1-10V

    IP Rating : IP20

    Lumens Per Circuit Watt : 98

    Luminaire Circuit Wattage : 35

    Method of fix : spring clips

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 155mm
