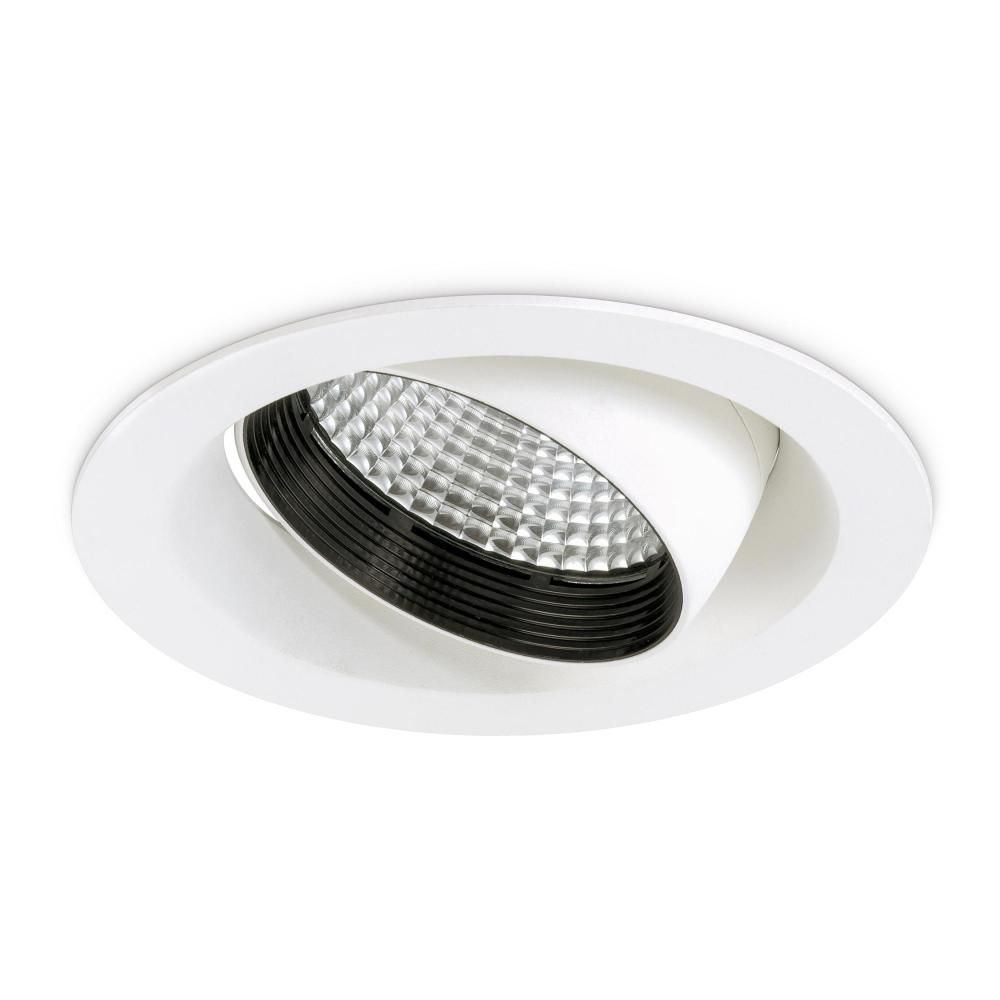

Commercial Gimbal Downlight 35W IP20 non-dimmable 4000K 3490lm 24°
JC54303
- Up to 100 LpcW
- 360° rotatable and 30° tiltable
- Zero maintenance, no need to relamp
- CRI 80, ideal for retail applications
- 20°, 45° and 60° beam angle options
- Produced to order, contact JCC customer services on 01243 838999
Product Information
Dimensional Data
Overall Dimensions : Ø185 x 130mm
Product Details
Additional Information : Suitable for use with JCEM002 Remote pack and JCEM002ST Self test remote pack
Color Finish : White
Product Range : Commercial Gimbal
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 3490
Beam Angle : 24
CRI : 80
Class : II
Correlated Color Temperature : 4000K
Dimmable : No
IP Rating : IP20
Lumens Per Circuit Watt : 100
Luminaire Circuit Wattage : 35
Method of fix : spring clips
Operating Temperature range °C : -20 to +45
Product Aperture Size : 155mm
Performance Specifications
Dimming Protocol Compatibility : DALI/1-10V
Product Specifications
Actual Lumen Output : 3490
Beam Angle : 24
CRI : 80
Class : II
Correlated Color Temperature : 4000K
Dimmable : DALI/1-10V
IP Rating : IP20
Lumens Per Circuit Watt : 100
Luminaire Circuit Wattage : 35
Method of fix : spring clips
Operating Temperature range °C : -25 to +50
Product Aperture Size : 155mm
