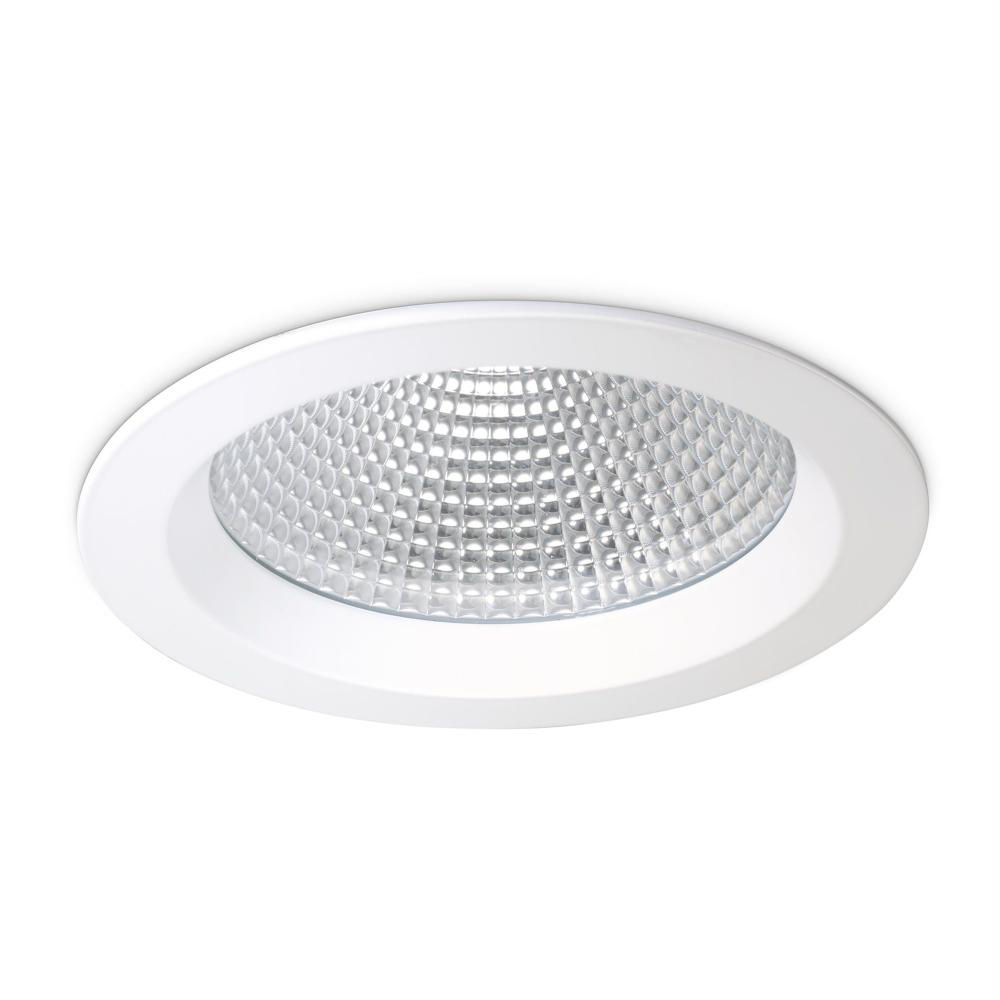

18W LED Downlight IP54 4000K 60° Ø120-130 cut out DALI / 1-10V
JC54300DIM
Product Information
Electrical
Class : II
Dimmable : DALI/1-10V
Luminaire Circuit Wattage : 18W
Voltage Rating : 220-240
General Information
Additional Information : Suitable for use with JCEM002 Remote pack and JCEM002ST Self test remote pack
Color Finish : White
Dimming Protocol Compatability : DALI/1-10V
IP Rating : IP54
Light Source Features : Neutral White
Method of fix : spring clips
Minimum Void Requirement : 150mm
Mounting : Recessed
Overall Dimensions : Ø145x65mm
Product Aperture Size : 120-130mm
Product Group : LED - Recessed
Product Range : LED commercial downlight
Trade Name : Commercial
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 1960
Beam Angle ° : 60
CRI: Ra : 80
Lumens Per Circuit Watt : 109
Thermals
Insulation Coverage : Do not cover
Operating Temperature Range °C : -25 to +50
