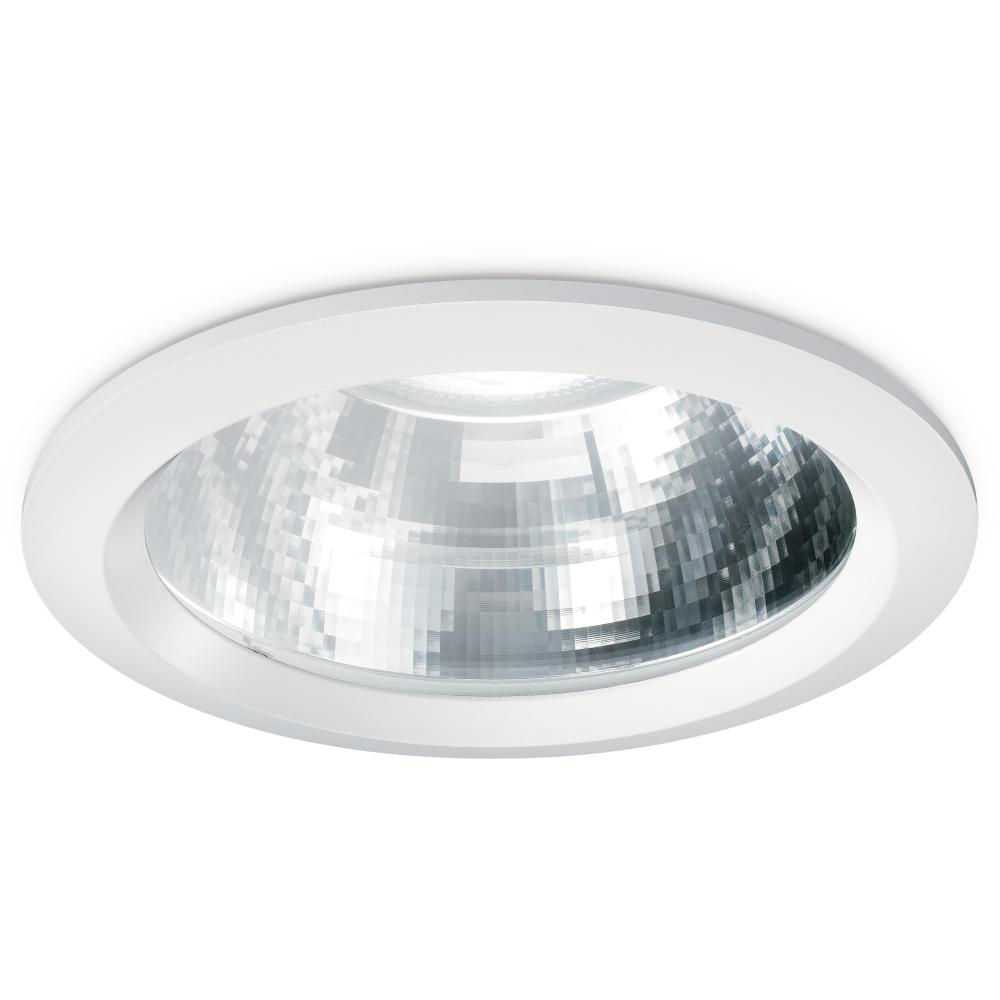

Coral LED CRI90 Mains IP20 Recessed Downlight 32W 4000K Emergency
JC5422EM
- 2x32W CFL direct replacement
- Over 50% energy saving
- Up to 20% greater light output
- Zero maintenance, no need to relamp
- Quick and easy CFL retrofit
- CRI 90, suitable for retail applications
Product Information
Product Details
Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)
Product Range : Commercial
Warranty : 5 Year Warranty (2 year on batteries)
Product Specifications
Actual Lumen Output : 2800
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : no
IP Rating : IP20
Lumens Per Circuit Watt : 88
Luminaire Circuit Wattage : 32
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Performance Specifications
Dimming Protocol Compatibility : 1-10V
Product Specifications
Actual Lumen Output : 2800
Beam Angle : 110
CRI : 90
Class : III
Correlated Color Temperature : 4000K
Dimmable : Yes, requires 1-10V dimmer module
IP Rating : IP20
Lumens Per Circuit Watt : 88
Luminaire Circuit Wattage : 32
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Performance Specifications
Dimming Protocol Compatibility : DALI
Product Specifications
Actual Lumen Output : 2800
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : Yes, using compatible DALI system only (off/1%-100%)
IP Rating : IP20
Lumens Per Circuit Watt : 88
Luminaire Circuit Wattage : 32
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Performance Specifications
Dimming Protocol Compatibility : DSI
Product Specifications
Actual Lumen Output : 2800
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : Yes, using compatible DSI system only (off/1%-100%)
IP Rating : IP20
Lumens Per Circuit Watt : 88
Luminaire Circuit Wattage : 32
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
