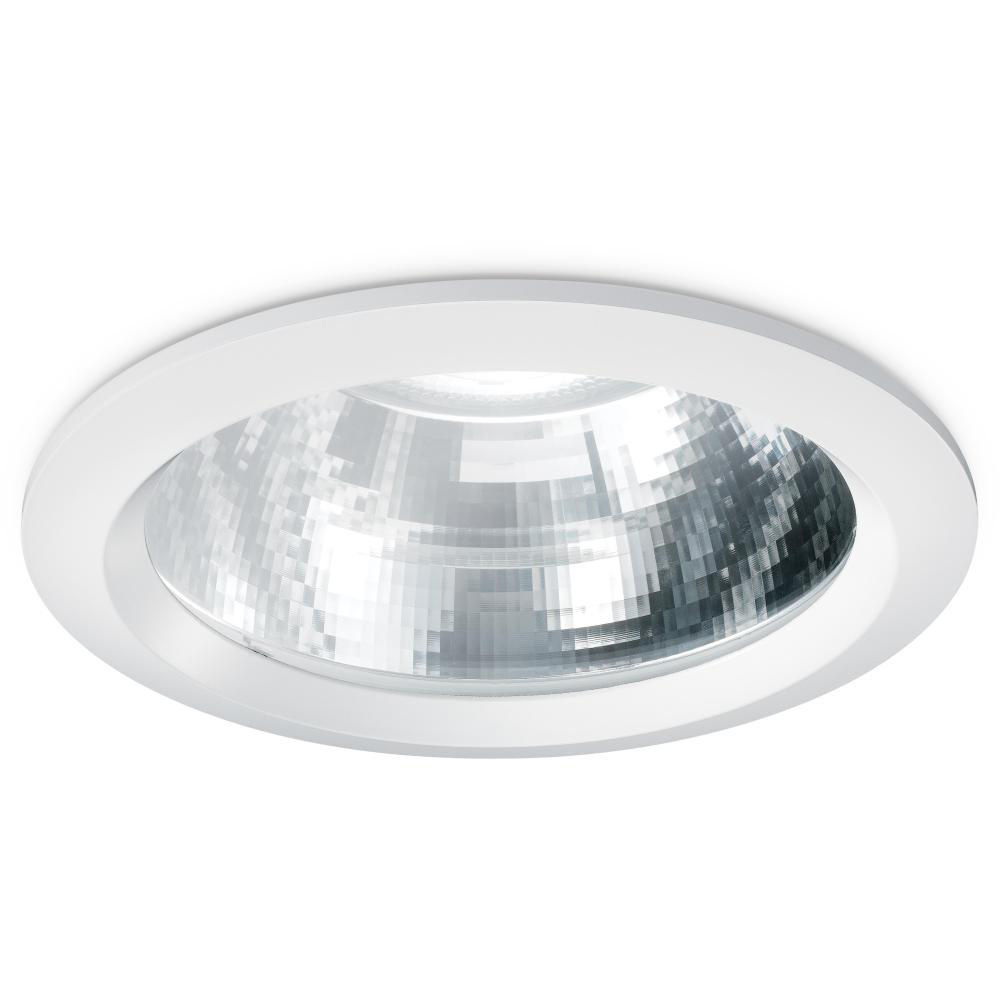

Coral LED CRI90 Mains IP20 Recessed Downlight 32W 4000K

JC5422

  • 2x32W CFL direct replacement
  • Over 50% energy saving
  • Up to 20% greater light output
  • Zero maintenance, no need to relamp
  • Quick and easy CFL retrofit
  • CRI 90, suitable for retail applications
Country of Origin: Please Contact Customer Service

Product Information

  • Product Details

    Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)

    Product Range : Commercial

    Warranty : 5 Year Warranty

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : no

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +26

    Product Aperture Size : 212mm

  • Performance Specifications

    Dimming Protocol Compatibility : 1-10V

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : Yes, requires 1-10V dimmer module

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +26

    Product Aperture Size : 212mm

  • Performance Specifications

    Dimming Protocol Compatibility : DALI

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DALI system only (off/1%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +26

    Product Aperture Size : 212mm

  • Performance Specifications

    Dimming Protocol Compatibility : DSI

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DSI system only (off/1%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +26

    Product Aperture Size : 212mm

  • Product Details

    Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)

    Product Range : Commercial

    Warranty : 5 Year Warranty (2 year on batteries)

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : no

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : III

    Correlated Color Temperature : 4000K

    Dimmable : Yes, requires 1-10V dimmer module

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DALI system only (off/1%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Specifications

    Actual Lumen Output : 2800

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DSI system only (off/1%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 88

    Luminaire Circuit Wattage : 32

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm
