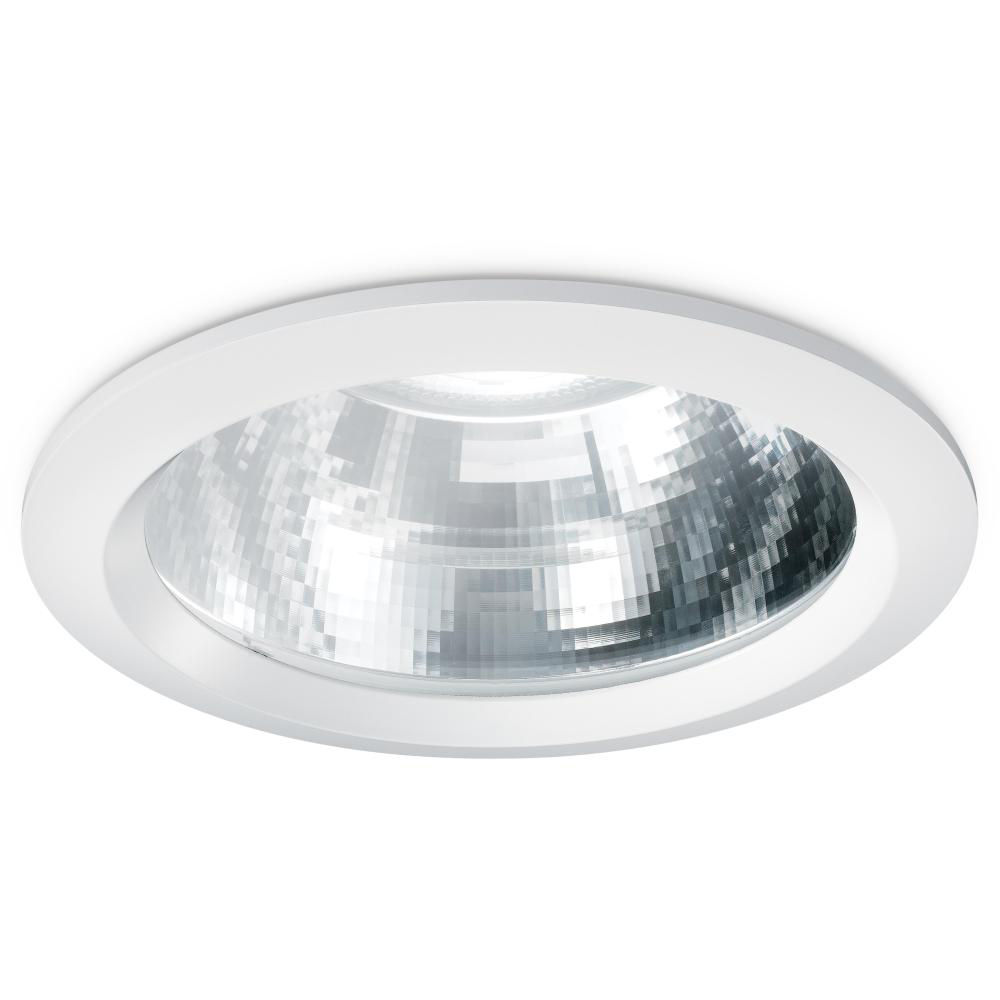

Coral LED CRI90 Mains IP20 Recessed Downlight 16W 4000K DALI Dimmable 3M
JC5421EMDALI
- 2x 18W CFL direct replacement
- Structural heat sink removes the need for noisy and inefficient cooling fans
- Zero maintenance, no need to relamp
- Quick and easy retrofit
- Ideal for lower level lighting applications such as corridors and walkways
- CRI 90, suitable for retail applications
Product Information
Electrical
Class : I
Dimmable : Yes, using compatible DALI system only (off/5%-100%)
Luminaire Circuit Wattage : 16W
Voltage Rating : 220-240
Emergency data
Battery Type : nickel metal Hydride
LOR % in Emergency Mode : 12
General Information
Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)
Dimming Protocol Compatability : DALI
IP Rating : IP20
Light Source Features : Neutral White
Luminaire Accessories : JC5052N / JC5060 / JC5368
Method of fix : Use the ceiling clips provided
Minimum Void Requirement : 150mm
Mounting : Recessed
Product Aperture Size : 212mm
Product Group : LED- 3M Recessed
Product Range : Commercial
Trade Name : Coral LED
Warranty : 5 Year Warranty (2 year on batteries)
Performance Data
Actual Lumen Output : 1600
Beam Angle ° : 110
CRI: Ra : 90
Lumens Per Circuit Watt : 100
Thermals
Insulation Coverage : Do not cover
Operating Temperature Range °C : -25 to +50
