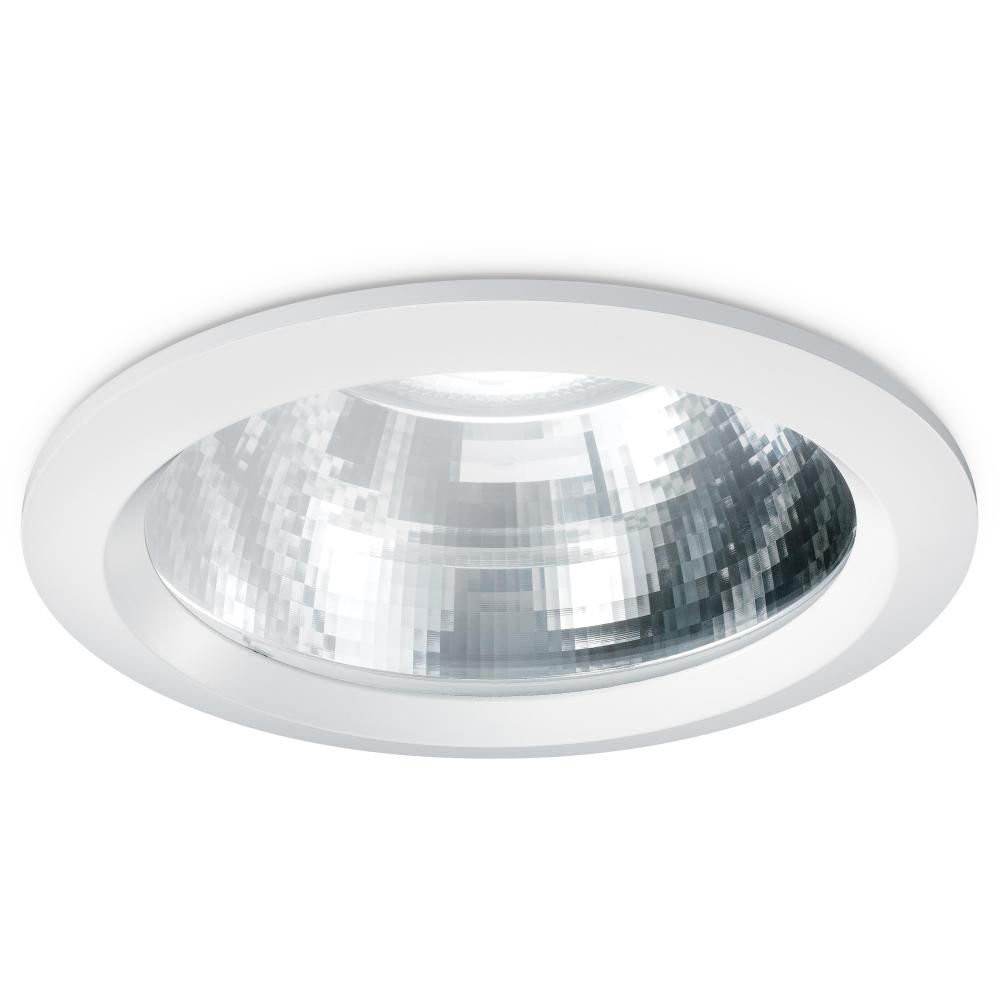

Coral LED CRI90 Mains IP20 Recessed Downlight 16W 4000K

JC5421

  • 2x 18W CFL direct replacement
  • Structural heat sink removes the need for noisy and inefficient cooling fans
  • Zero maintenance, no need to relamp
  • Quick and easy retrofit
  • Ideal for lower level lighting applications such as corridors and walkways
  • CRI 90, suitable for retail applications
Country of Origin: Please Contact Customer Service

Product Information

  • Product Details

    Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)

    Product Range : Commercial

    Warranty : 5 Year Warranty

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : no

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +26

    Product Aperture Size : 212mm

  • Performance Specifications

    Dimming Protocol Compatibility : 1-10V

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : yes, requires 1-10V dimmer module

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Performance Specifications

    Dimming Protocol Compatibility : DALI

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DALI system only (off/1%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +56

    Product Aperture Size : 212mm

  • Performance Specifications

    Dimming Protocol Compatibility : DSI

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : II

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DSI system only (off/1%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Details

    Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)

    Product Range : Commercial

    Warranty : 5 Year Warranty (2 year on batteries)

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : no

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes, requires 1-10V dimmer module

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DALI system only (off/5%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm

  • Product Specifications

    Actual Lumen Output : 1600

    Beam Angle : 110

    CRI : 90

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes, using compatible DSI system only (off/5%-100%)

    IP Rating : IP20

    Lumens Per Circuit Watt : 100

    Luminaire Circuit Wattage : 16

    Method of fix : Use the ceiling clips provided

    Operating Temperature range °C : -25 to +50

    Product Aperture Size : 212mm
