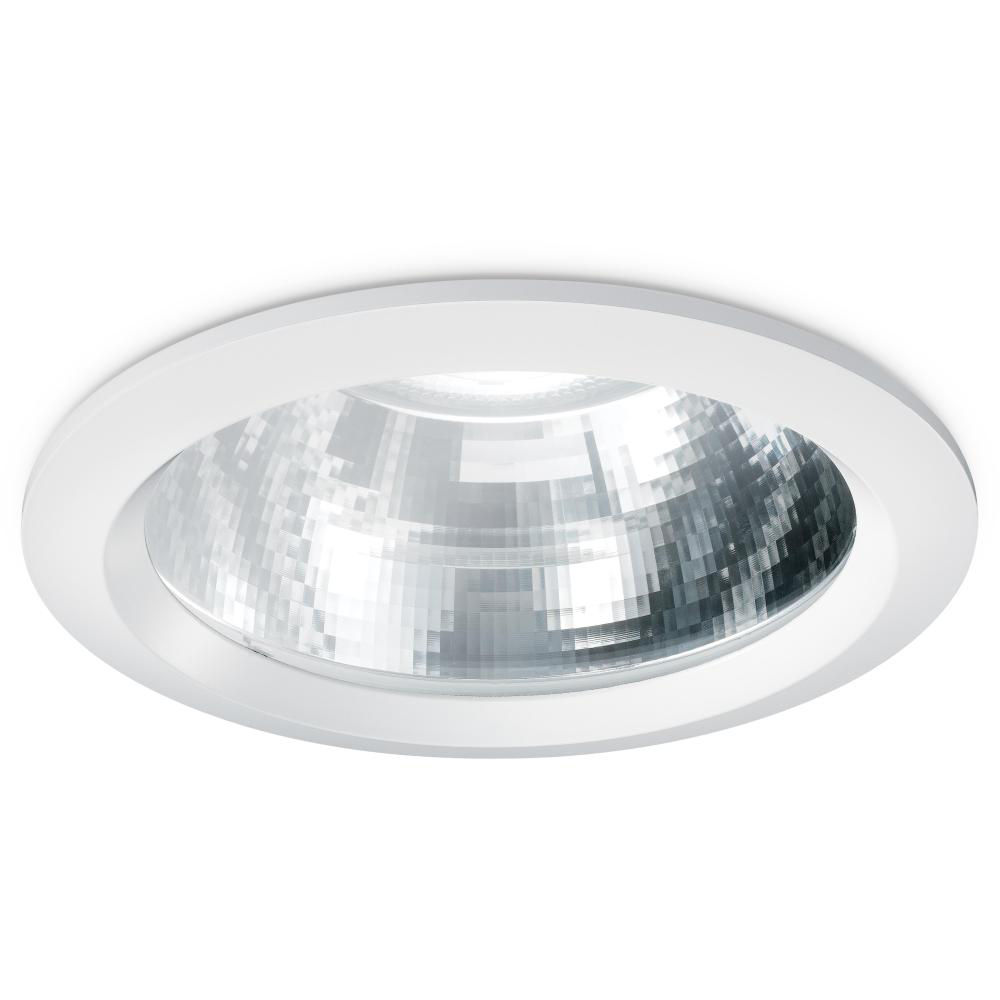

Coral LED CRI90 Mains IP20 Recessed Downlight 24W 4000K
JC5420
- Market leading performance of over 92 lpcw
- 2x26W CFL direct replacement
- Over 50% energy saving
- CRI 90, suitable for retail applications
- Zero maintenance, no need to relamp
- Shallow recess depth – standard ceiling cutout size
- Accessorise your Coral LED fittings with a number of decorative rims
- Pre-wired with GST plug for quick and easy installation (standard fitting only)
Product Information
Product Details
Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)
Product Range : Commercial
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : no
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +26
Product Aperture Size : 212mm
Performance Specifications
Dimming Protocol Compatibility : 1-10V
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : II
Correlated Color Temperature : 4000K
Dimmable : Yes, requires 1-10V dimmer module
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Performance Specifications
Dimming Protocol Compatibility : DALI
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : Yes, using compatible DALI system only (off/5%-100%)
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Performance Specifications
Dimming Protocol Compatibility : DSI
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : II
Correlated Color Temperature : 4000K
Dimmable : Yes, using compatible DSI system only (off/1%-100%)
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Product Details
Additional Information : See luminaire accessories for rim finishes available(IP65 rim optional)
Product Range : Commercial
Warranty : 5 Year Warranty (2 year on batteries)
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : no
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : Yes, requires 1-10V dimmer module
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
Product Specifications
Actual Lumen Output : 2200
Beam Angle : 110
CRI : 90
Class : I
Correlated Color Temperature : 4000K
Dimmable : Yes, using compatible DSI system only (off/1%-100%)
IP Rating : IP20
Lumens Per Circuit Watt : 92
Luminaire Circuit Wattage : 24
Method of fix : Use the ceiling clips provided
Operating Temperature range °C : -25 to +50
Product Aperture Size : 212mm
