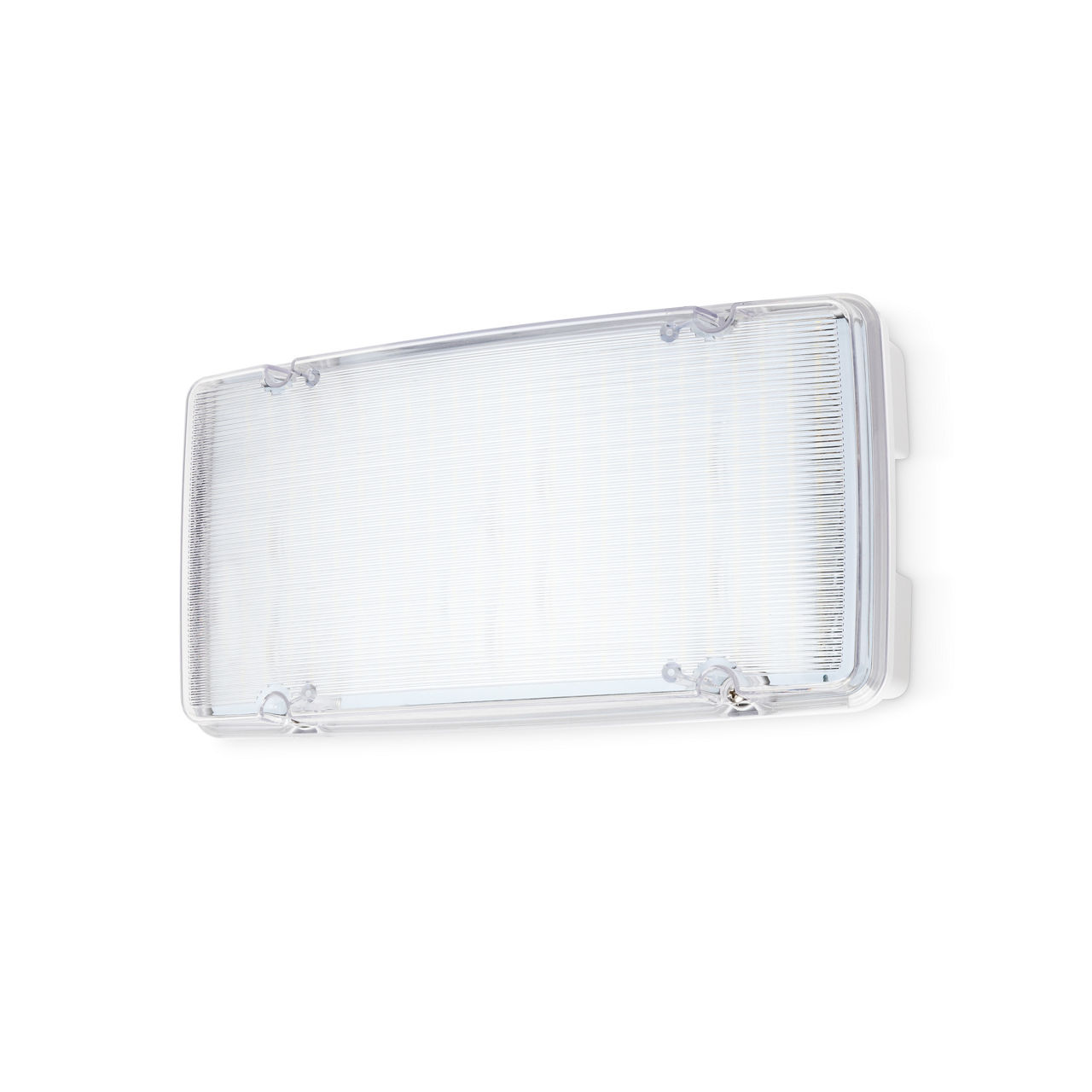

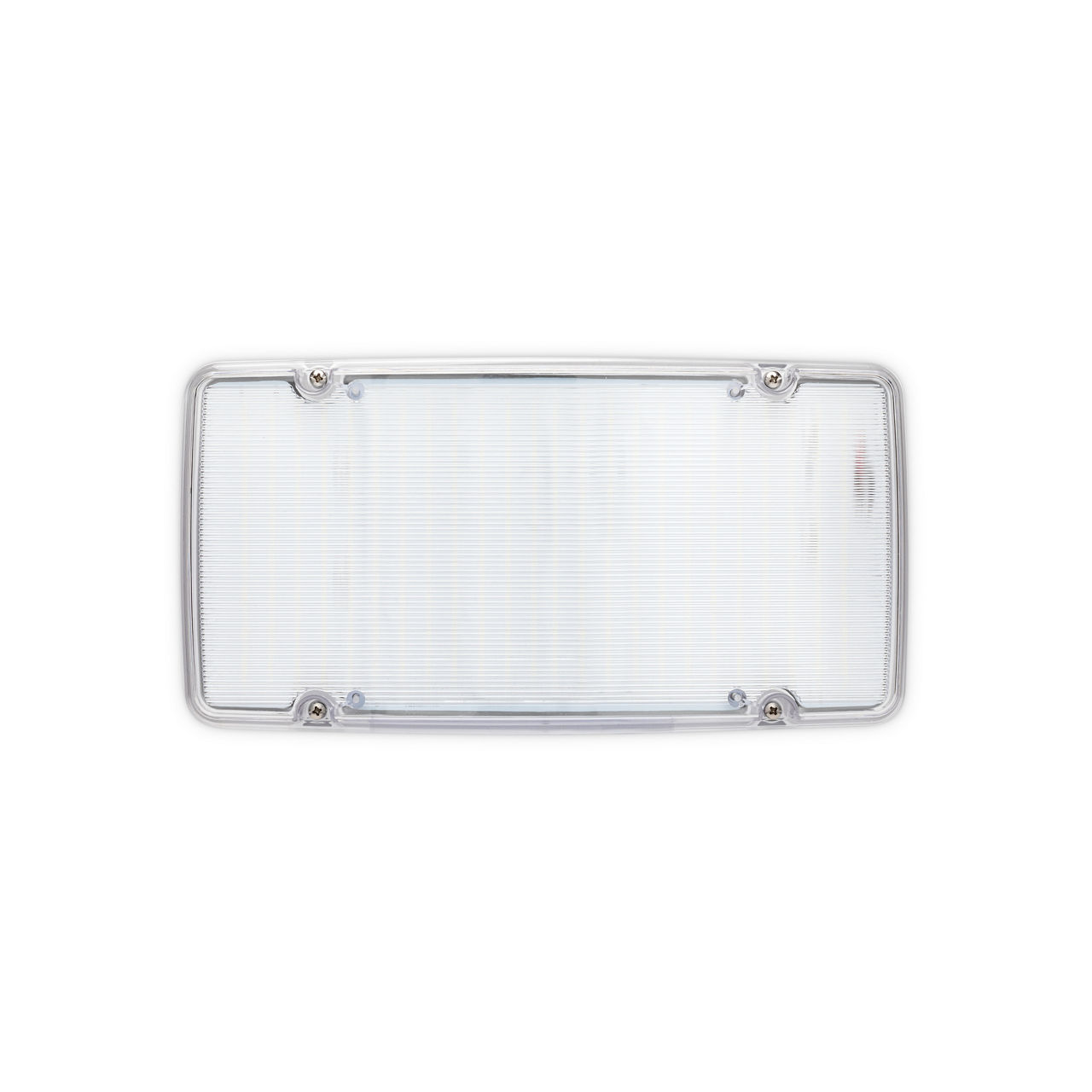

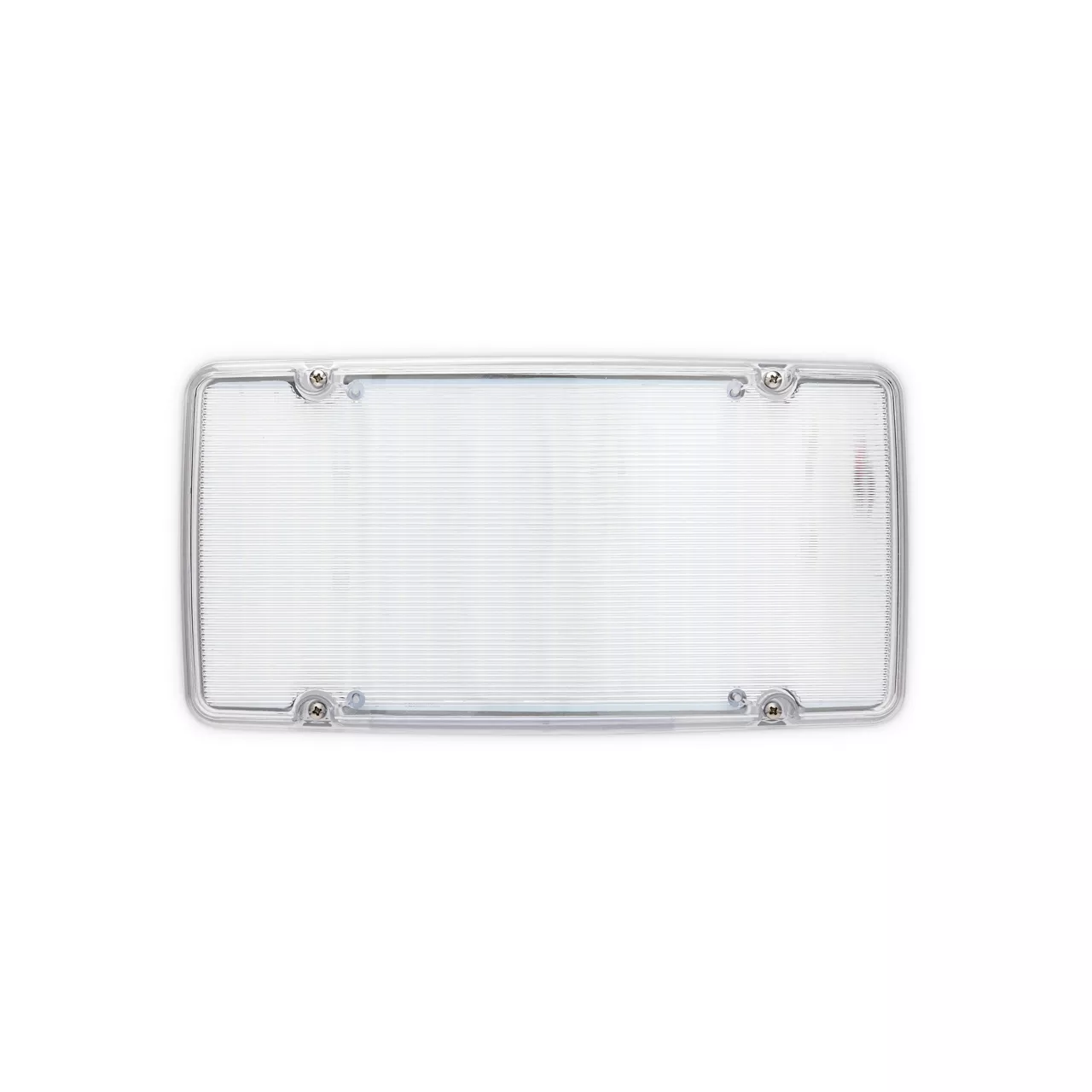

Emergency Bulkhead High Output 10W | 6500K | IP65 | Non-maintained
JC50340
- High output emergency bulkhead up 1,500 lumens
- IP65 rated
- Non maintained
- 5 year warranty

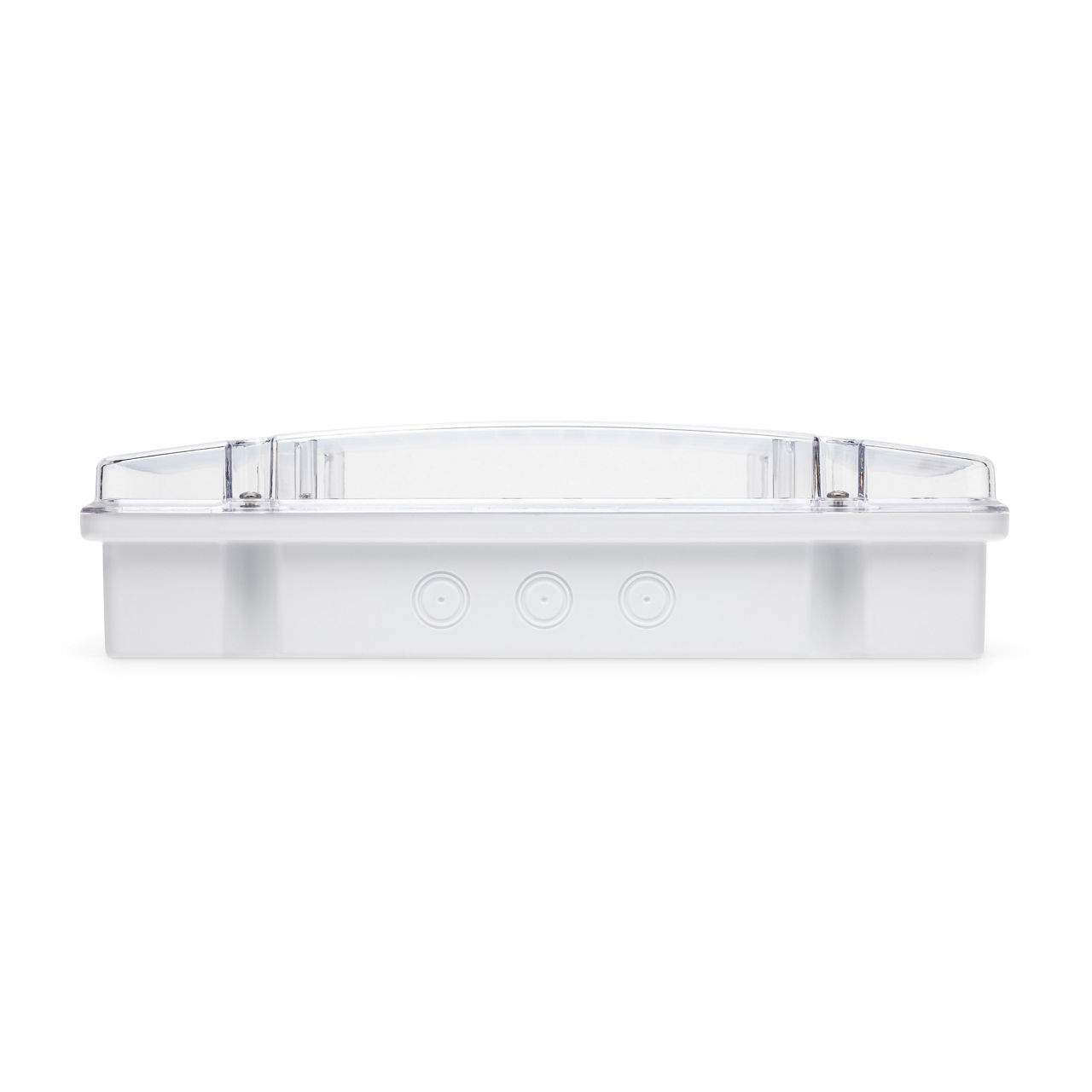

- Multiple conduit entry points on side, rear and ends
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : No
Luminaire Circuit Wattage : 10
Voltage Rating : 220-240
Emergency data
LOR % in Emergency Mode : 100
General Information
IP Rating : IP65
Method of fix : Screw Fix to Suitable Surface
Mounting : Wall
Overall Dimensions : 321 x 167 x 83mm
Trade Name : Emergency Range
Warranty : 5 Year Warranty (including 5 years on batteries)
Performance Data
Actual Lumen Output : 1500
Battery Type : LifePO4
Beam Angle ° : 120
CRI: Ra : 80
Correlated Color Temperature : 6500
Lumens Per Circuit Watt : 165
Thermals
Operating Temperature Range °C : 5 to 45
