3W Exit box self-test PC Housing/Acrylic c/w down legend IP20
JC50322
- Visible from a distance of 24 metres
- Supplied as standard with down running man legend
- Left/right or up running man bought separately
- Top and rear conduit entry knock out points

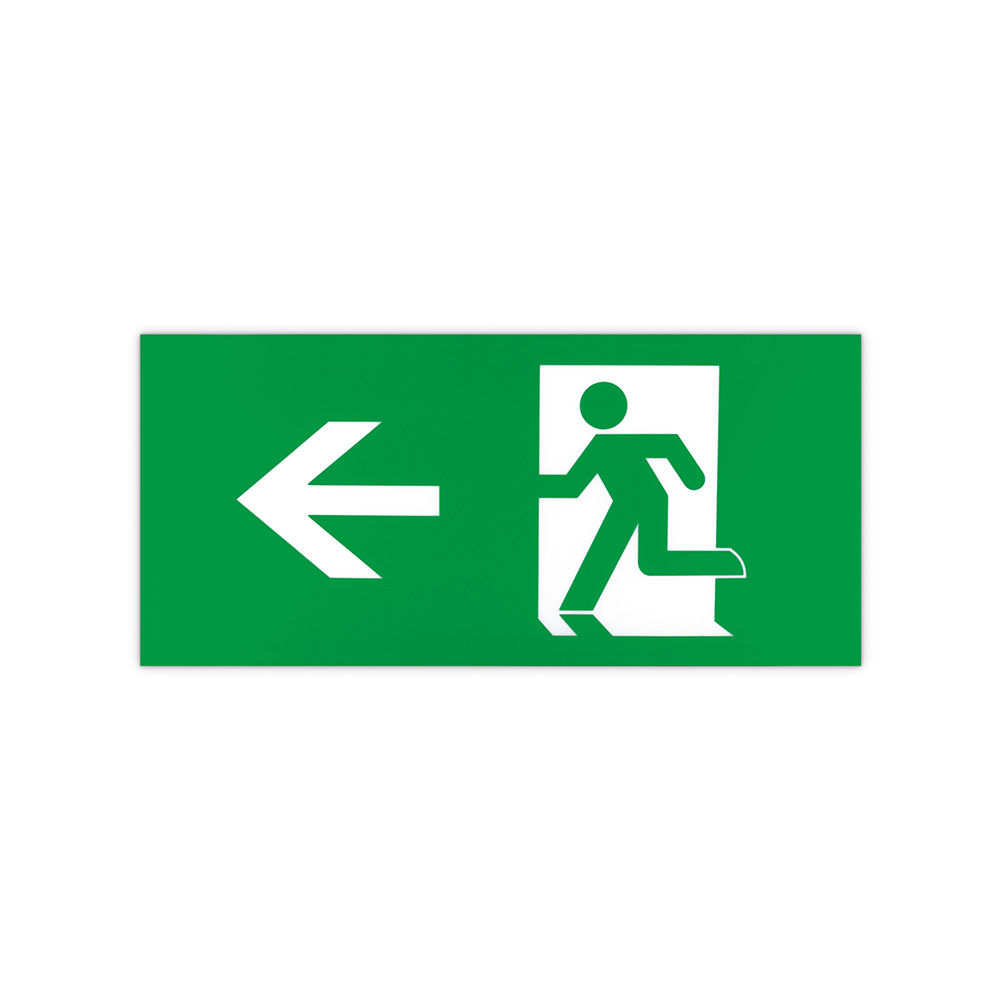

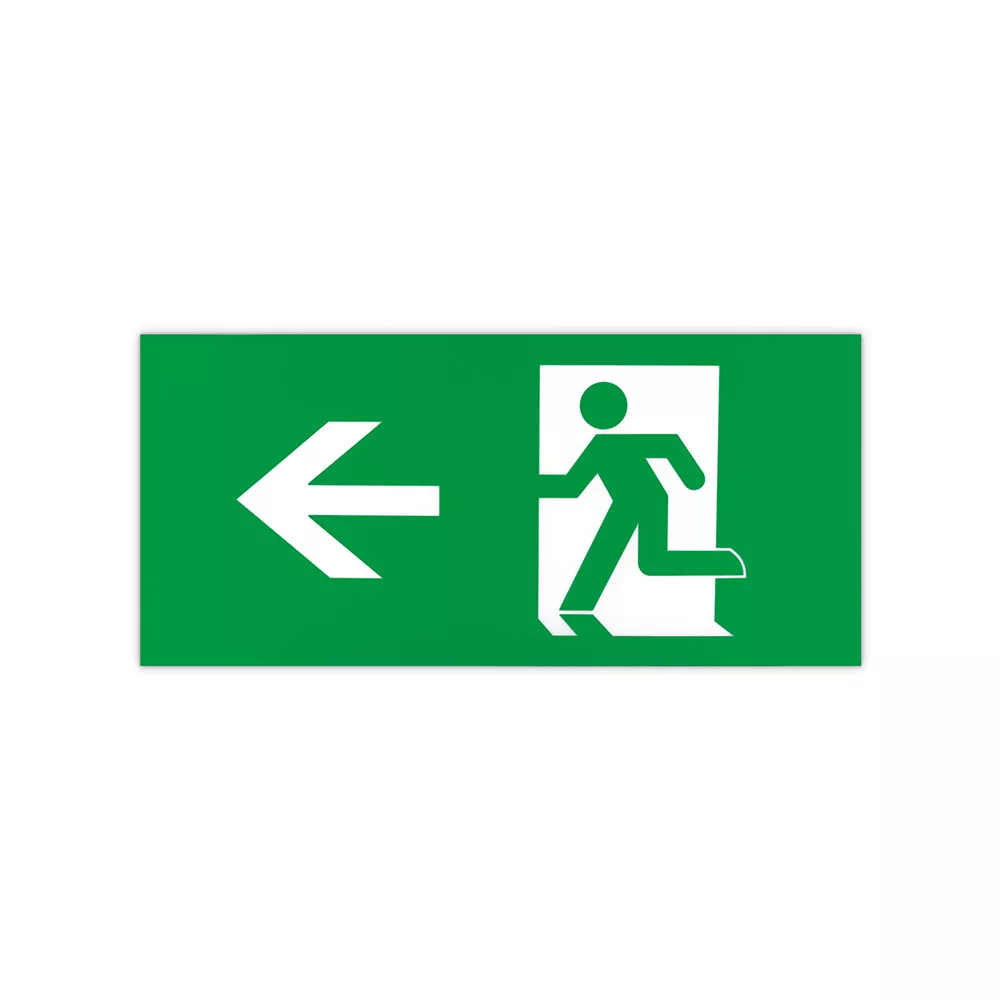

- Exit box bulkhead Legend - Left/Right/Up Legend available, JC50329
Product Information
Electrical
Class : II with earth provision
Dimmable : No
Luminaire Circuit Wattage : 3W(AC)8.6W(DC)W
Voltage Rating : 220-240
Emergency data
Battery Type : LiFePO4
LOR % in Emergency Mode : 1
General Information
Additional Information : Viewing distance 34 metres
Color Finish : White
IP Rating : IP20
Light Source Features : Vibrant White
Luminaire Accessories : JC50329(left/right/Up) legend pack
Method of fix : Screws and rawl plugs(not supplied)
Mounting : Wall
Overall Dimensions : 390 x 190 x 27.5 mm
Product Group : Emergency
Product Range : Exit box
Trade Name : Emergency Range
Warranty : 5 Year Warranty(5 years on batteries)
Performance Data
Actual Lumen Output : 15 (AC) 16 (DC)
CRI: Ra : 80
Lumens Per Circuit Watt : 5 Lpcw(AC) 5 LpcW(DC)
Thermals
Operating Temperature Range °C : 0 to +26
