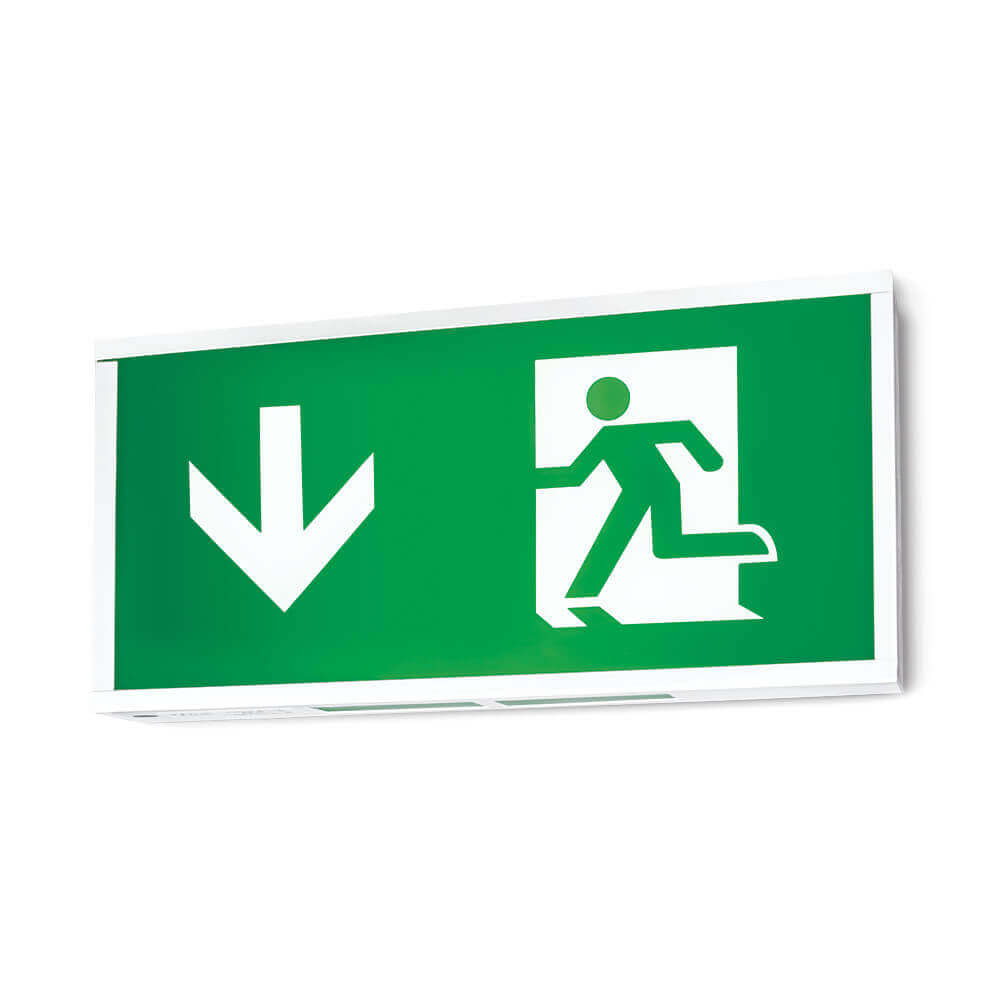

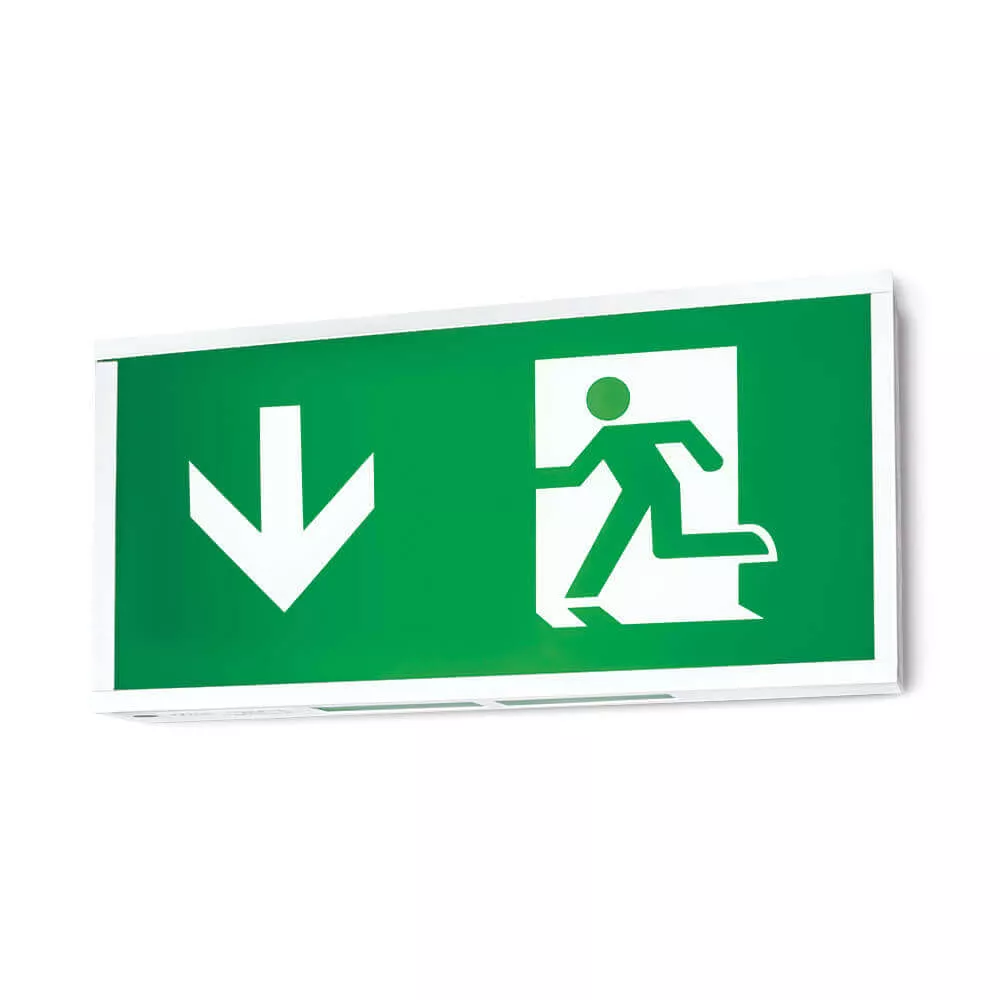

Aluminium Exit Box Maintained 3M IP20 191X395mm 1800mAh including 1pcs Legend
JC50303
- Visible from a distance of 24 metres
- Supplied as standard with down running man legend
- Left/right or up running man bought separately
- Top and rear conduit entry knock out points
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : I
Luminaire Circuit Wattage : 5.7W(AC)8.6W(DC)
Voltage Rating : 220-240
General Information
IP Rating : IP20
Light Source Features : Vibrant White
Luminaire Accessories : JC50304(Legend Left/Right) JC50314(Legend Up)
Method of fix : Screws and rawl plugs(not supplied)
Mounting : Wall
Overall Dimensions : 390 x 190 x 60 mm
Trade Name : Emergency Range
Warranty : 3 Year Warranty(2 years on batteries)
Performance Data
Actual Lumen Output : 95 (AC) 48 (DC)
Correlated Color Temperature : 7000K
Lumens Per Circuit Watt : 17 LpcW(AC) 6 LpcW(DC)
Thermals
Operating Temperature Range °C : 0 to +26
