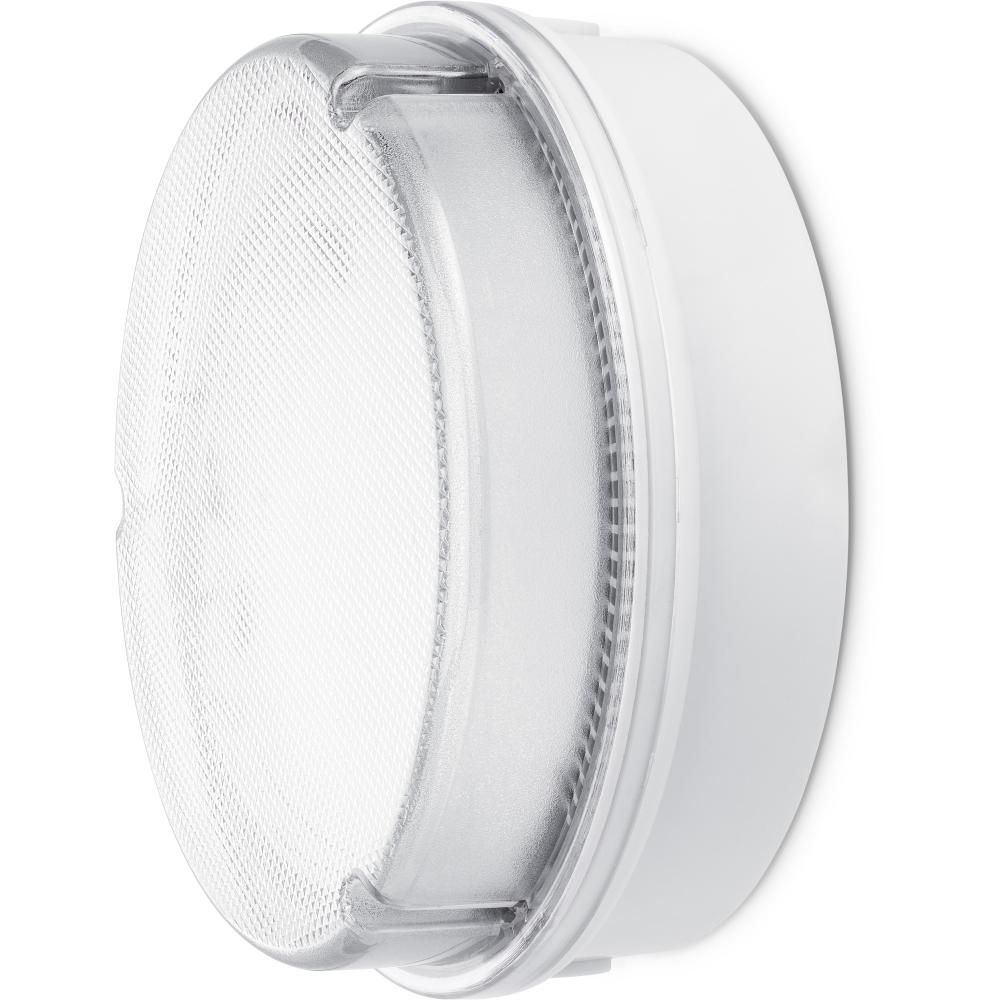

RadiaLED Utility Mains IP65 Ø205mm Bulkhead 12W 4000K 1150lm LED Prismatic EM

JC23401EMWPR

  • IP65 weather resistant, anti-vandal construction
  • Corrosion resistant suitable for coastal locations
  • Opal or prismatic polycarbonate diffuser options
  • IK09 impact rating
  • dusk to dawn on/off photocell available
  • LED not affected by on/off switching
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 203 x 85mm

  • Product Details

    Color Finish : White

    Product Range : RadiaLED Utility

    Warranty : 5 Year Warranty (2 year on batteries)

  • Product Specifications

    Actual Lumen Output : 1150

    Beam Angle : 120

    CRI : 80

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : no

    IP Rating : IP65

    Lumens Per Circuit Watt : 96

    Luminaire Circuit Wattage : 12

    Method of fix : Back fix using screws provided

    Operating Temperature range °C : 0 to +50

  • Performance Specifications

    Dimming Protocol Compatibility : DALI/1-10V

  • Product Specifications

    Actual Lumen Output : 1150

    Beam Angle : 120

    CRI : 80

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : Yes

    IP Rating : IP65

    Lumens Per Circuit Watt : 96

    Luminaire Circuit Wattage : 12

    Method of fix : Back fix using screws provided

    Operating Temperature range °C : -25 to +50
