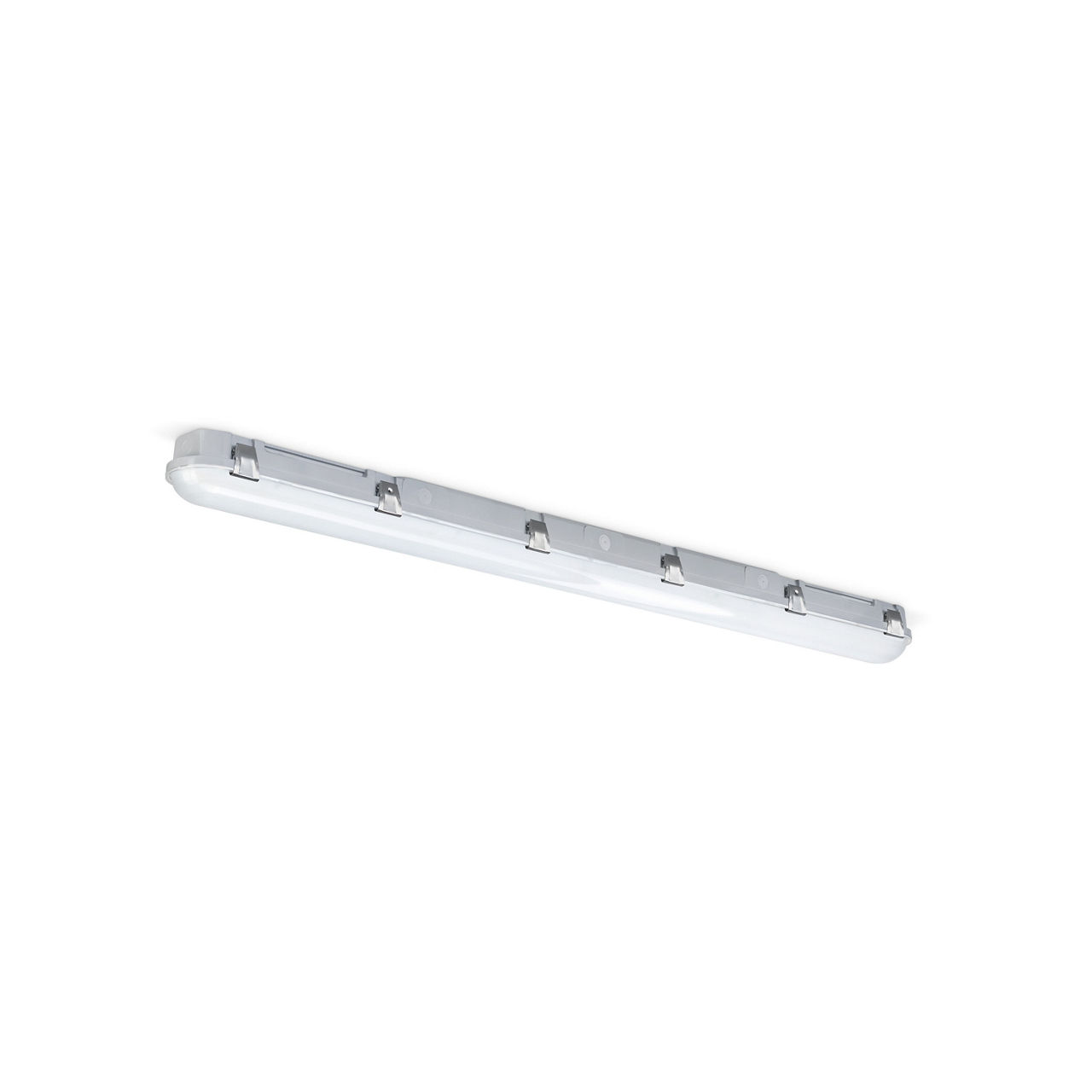

ToughLED Pro CCT 5ft 30/40/52/63W IP66 Frosted
JC180116
The ToughLED Pro CCT is colour temperature selectable (3000K, 4000K, 5700K) and wattage selectable. It features IK10 impact rating, IP66 protection, and dimming options. Installation has been made simple with its lock-in-place side clip design, detachable terminal block, and loop-in/loop-out cable restraints. It supports emergency and sensor modules and comes with a 5-year warranty.

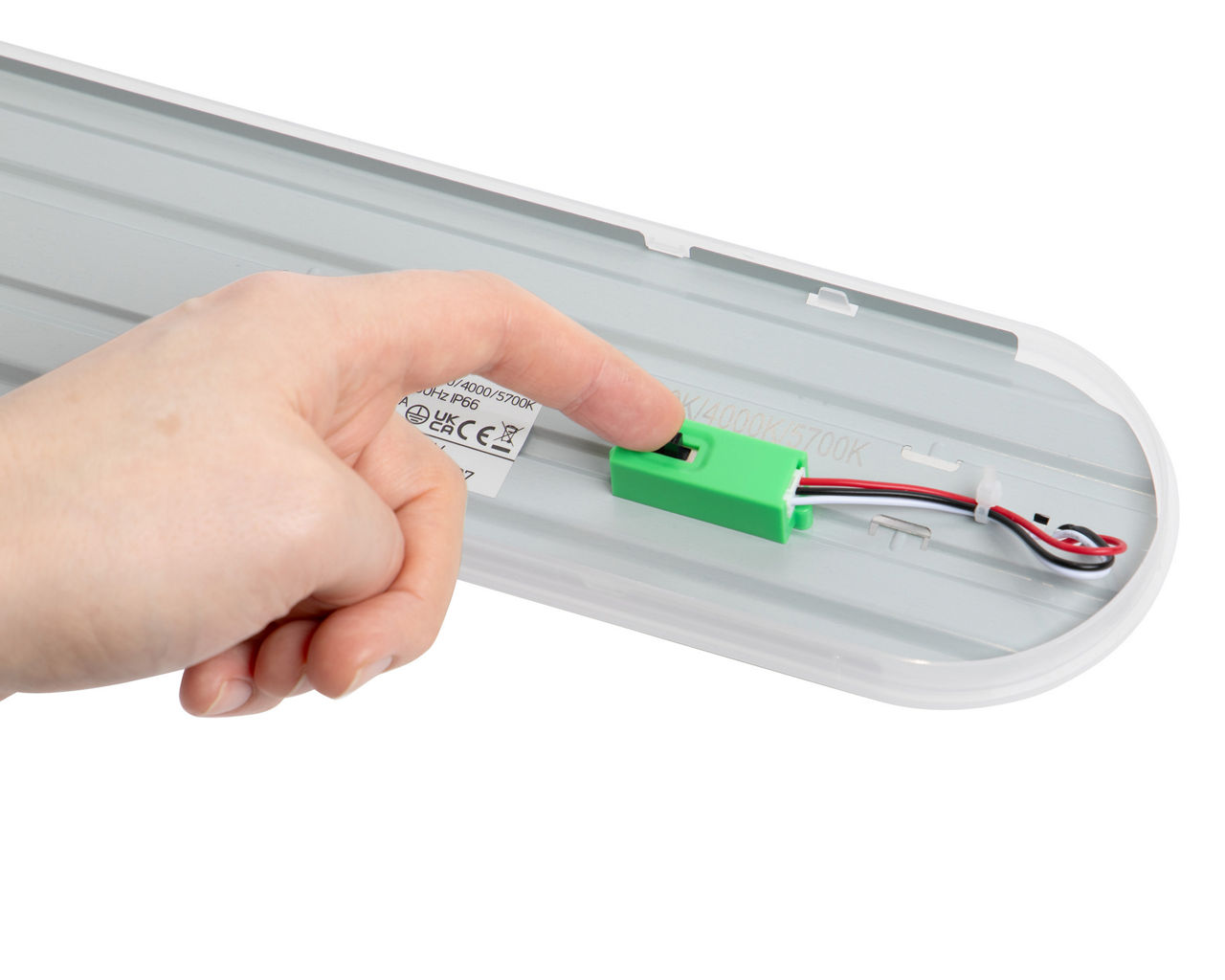

- Colour temperature selectable 3000K/4000K/5700K

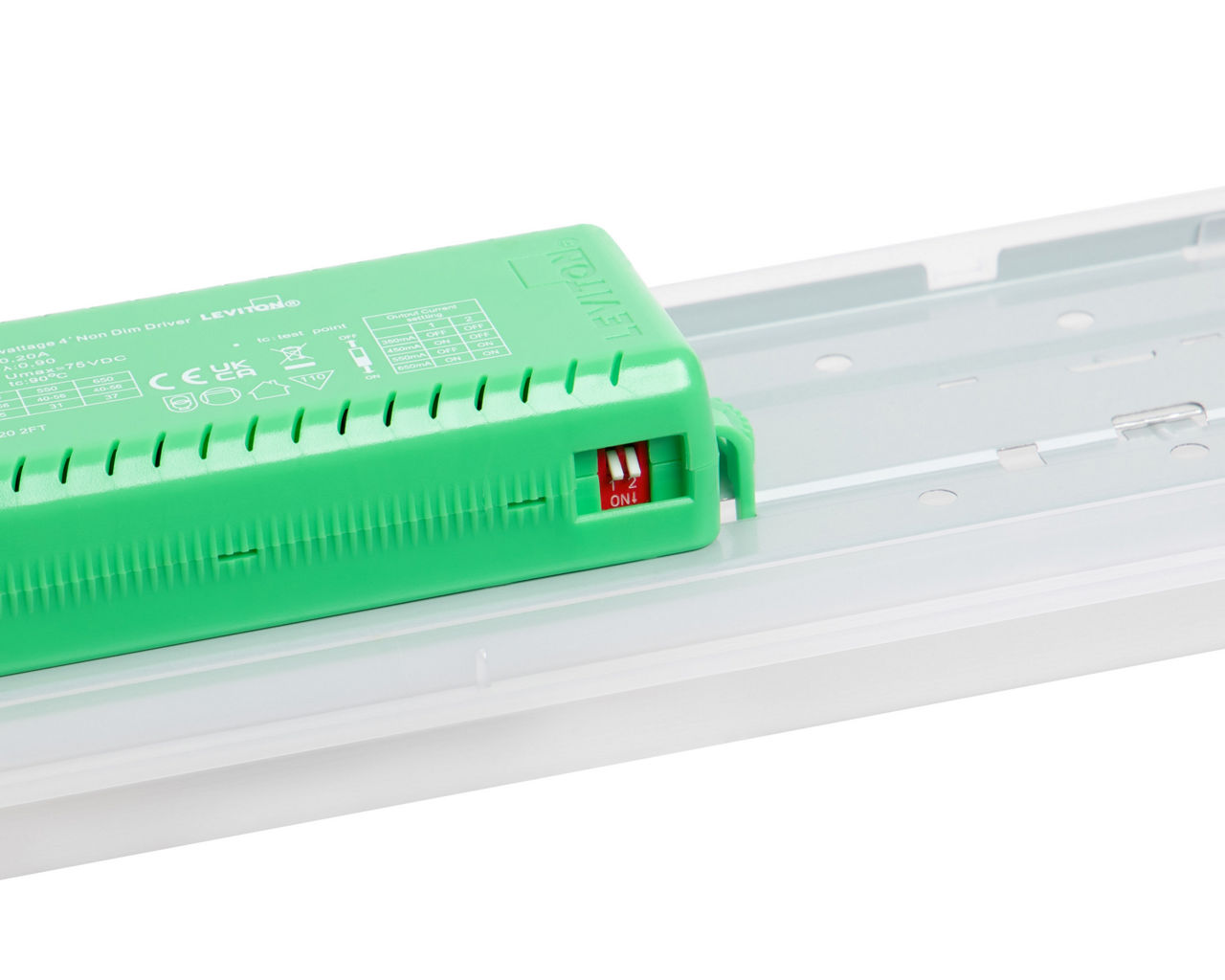

- Wattage selectable 30W/40W/52W/63W
- IK10 impact rated and IP66 protection against high pressure water jets and is dust tight

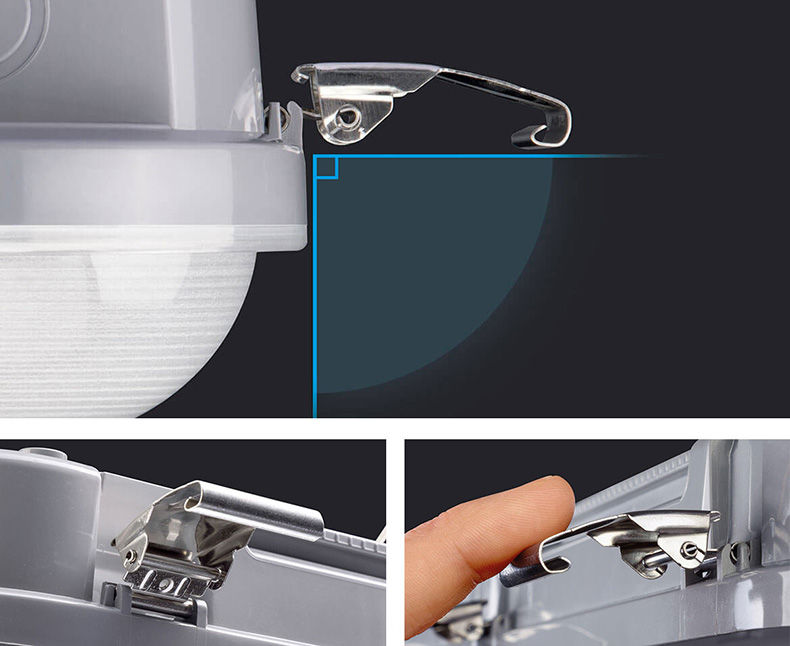

- 90º Lock-in-place side clip design, keeps clips clear during installation

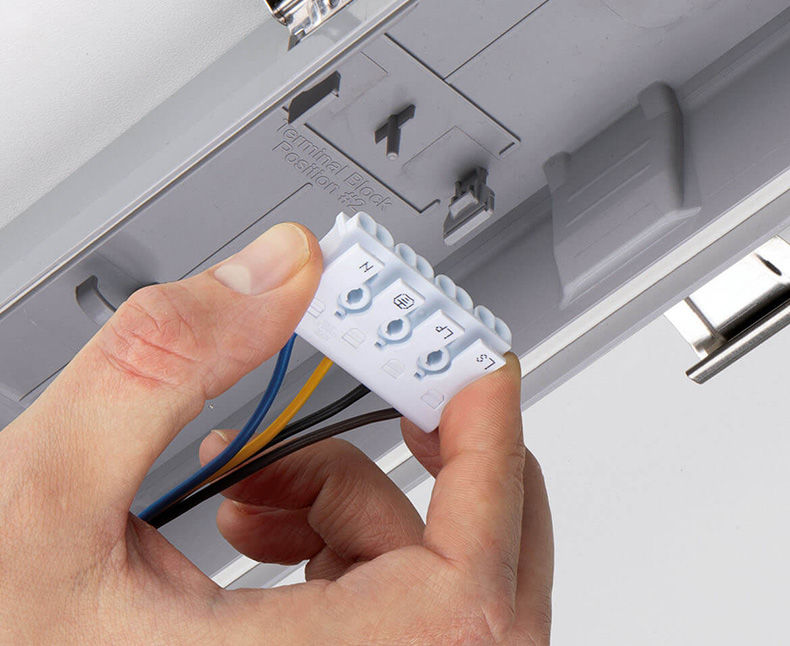

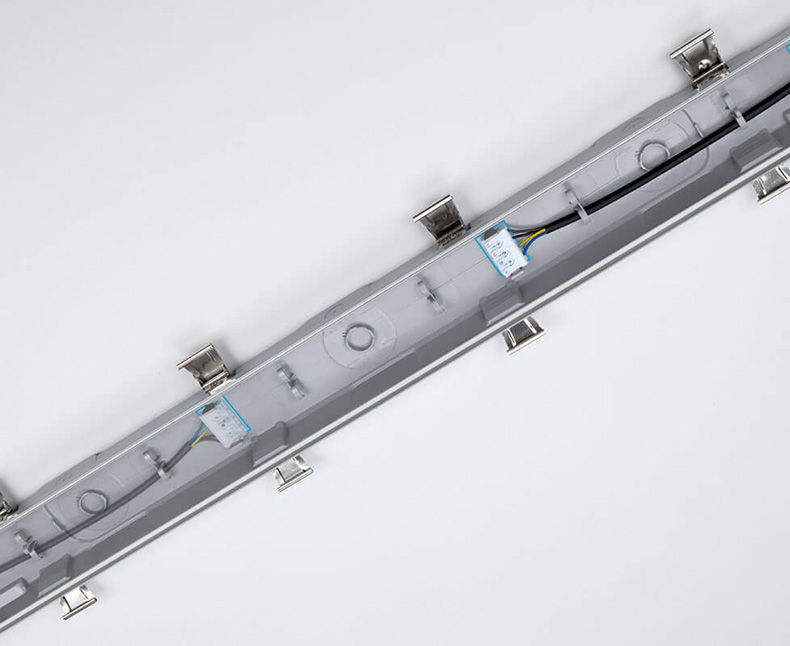

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

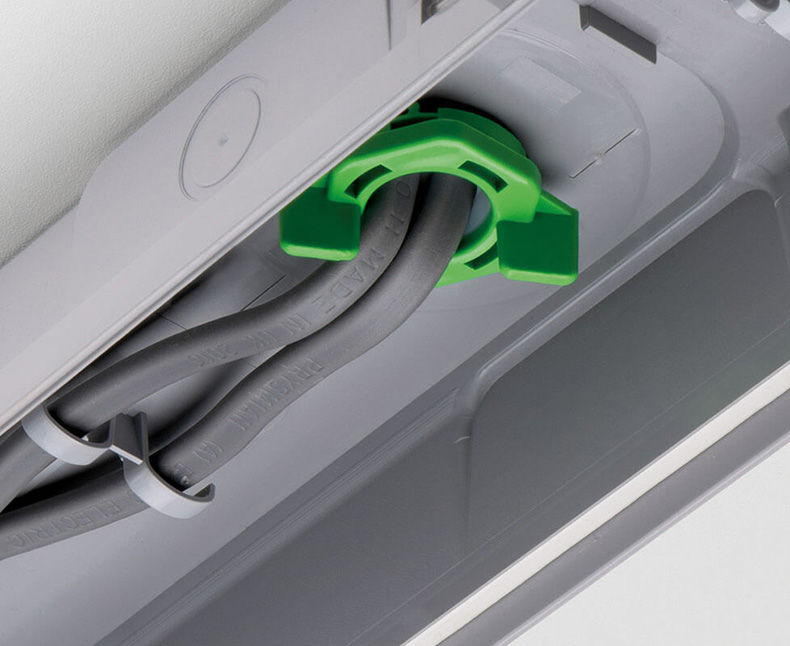

- Inbuilt loop-in/loop-out cable restraints ensure cables don't clash when closing the fixture

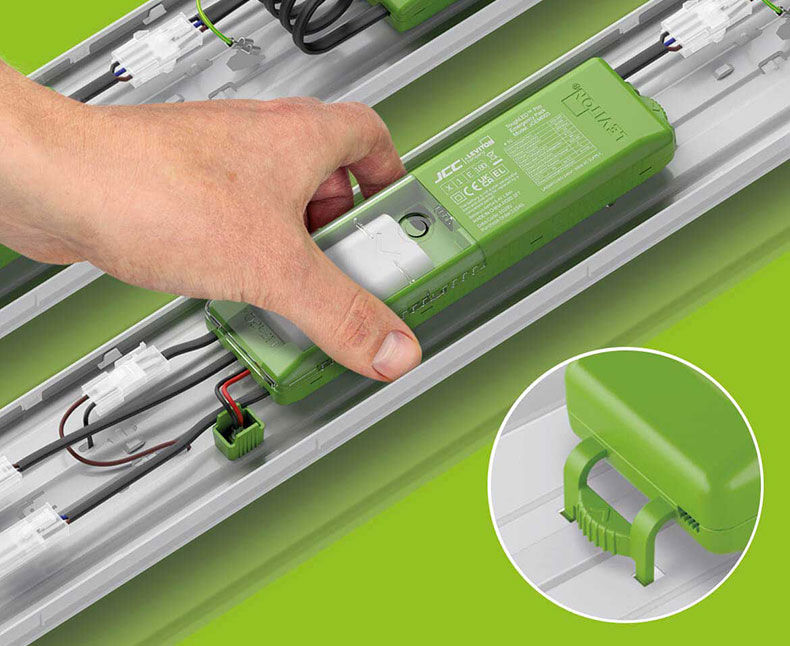

- Plug & play emergency & microwave sensor modules with optional remote control

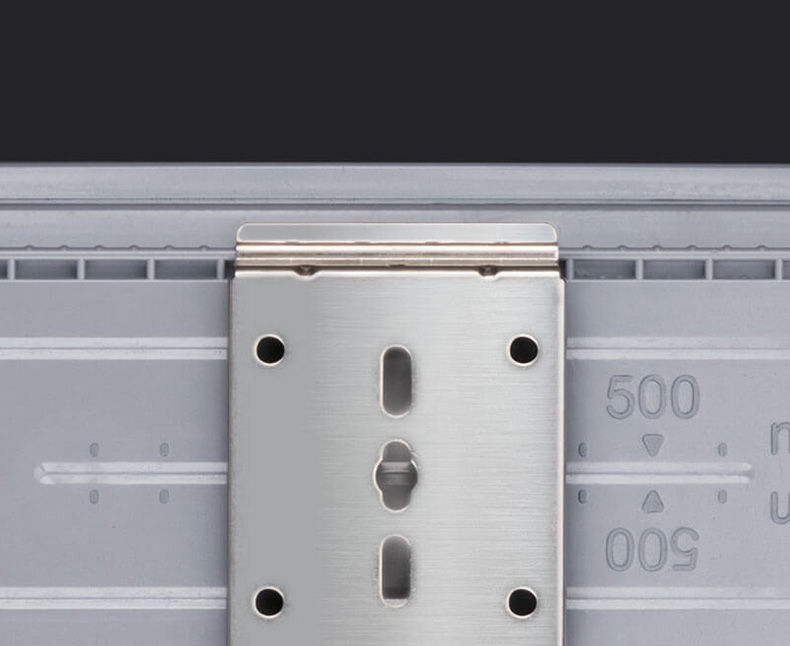

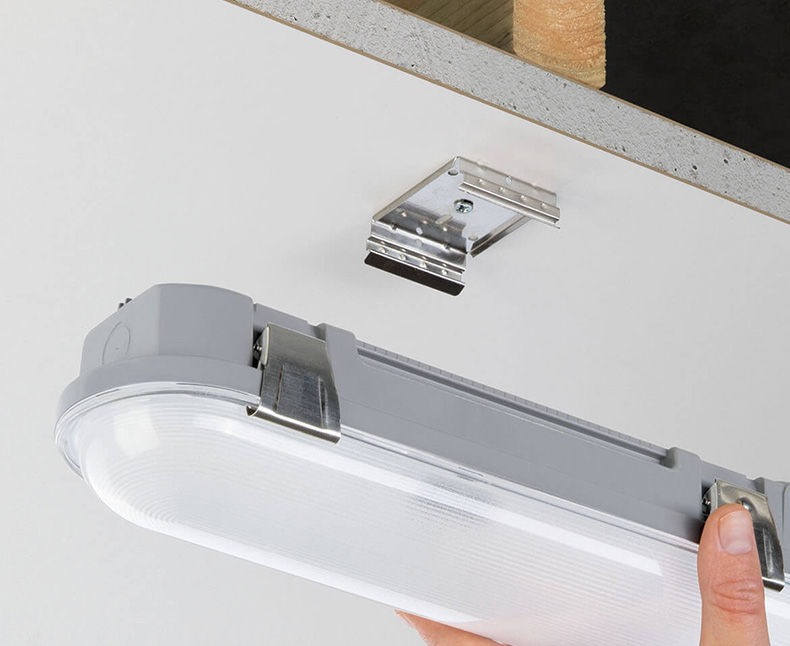

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists
- Wide body for retrofitting BESA box mounting, with rear, side & end conduit entry points

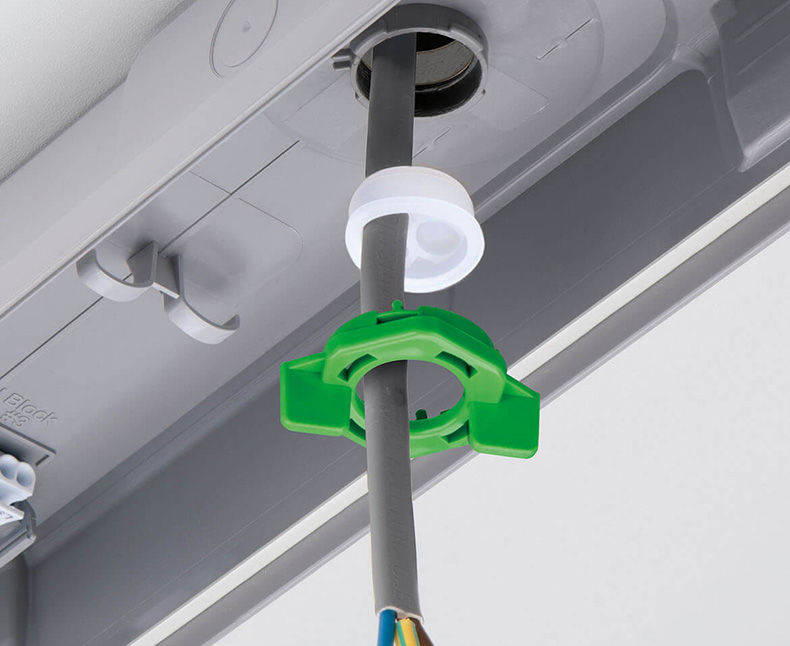

- Unique IP66 gasket, sealing cable entry from within the fixture when surface mounting
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture and batteries
Product Information
Electrical
Beam Angle ° : 120

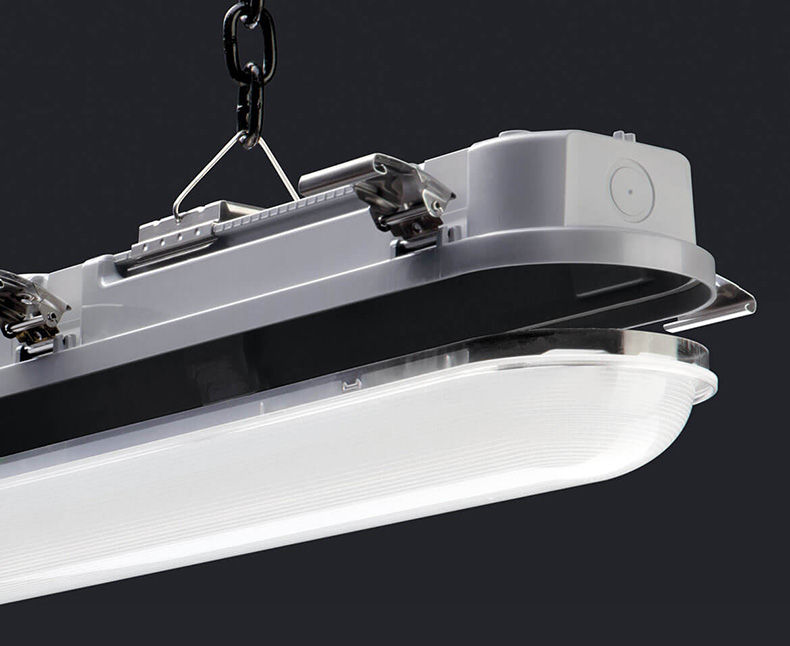

Mounting : Surface or Suspended
Emergency data
Overall Dimensions : 1570 x 96 x 81.3
Product Group : nan
General Information
Actual Lumen Output : 4700/6050/7700/8850
CRI: Ra : 80
Class : I
Correlated Color Temperature : 3000/4000/5700
Dimmable : No
IP Rating : IP66
Lumens Per Circuit Watt : 157/151/148/140
Luminaire Circuit Wattage : 30/40/52/63
Operating Temperature Range °C : -20 to +50
Voltage Rating : 220-240
Warranty : 5 Year Warranty (See Website for terms and conditions)
Performance Data
Method of fix : Mounting Brackets, Suspension chains or conduit mounting
Trade Name : ToughLED™ Pro
Thermals
Light Source Features : 3 CCT Selectable
