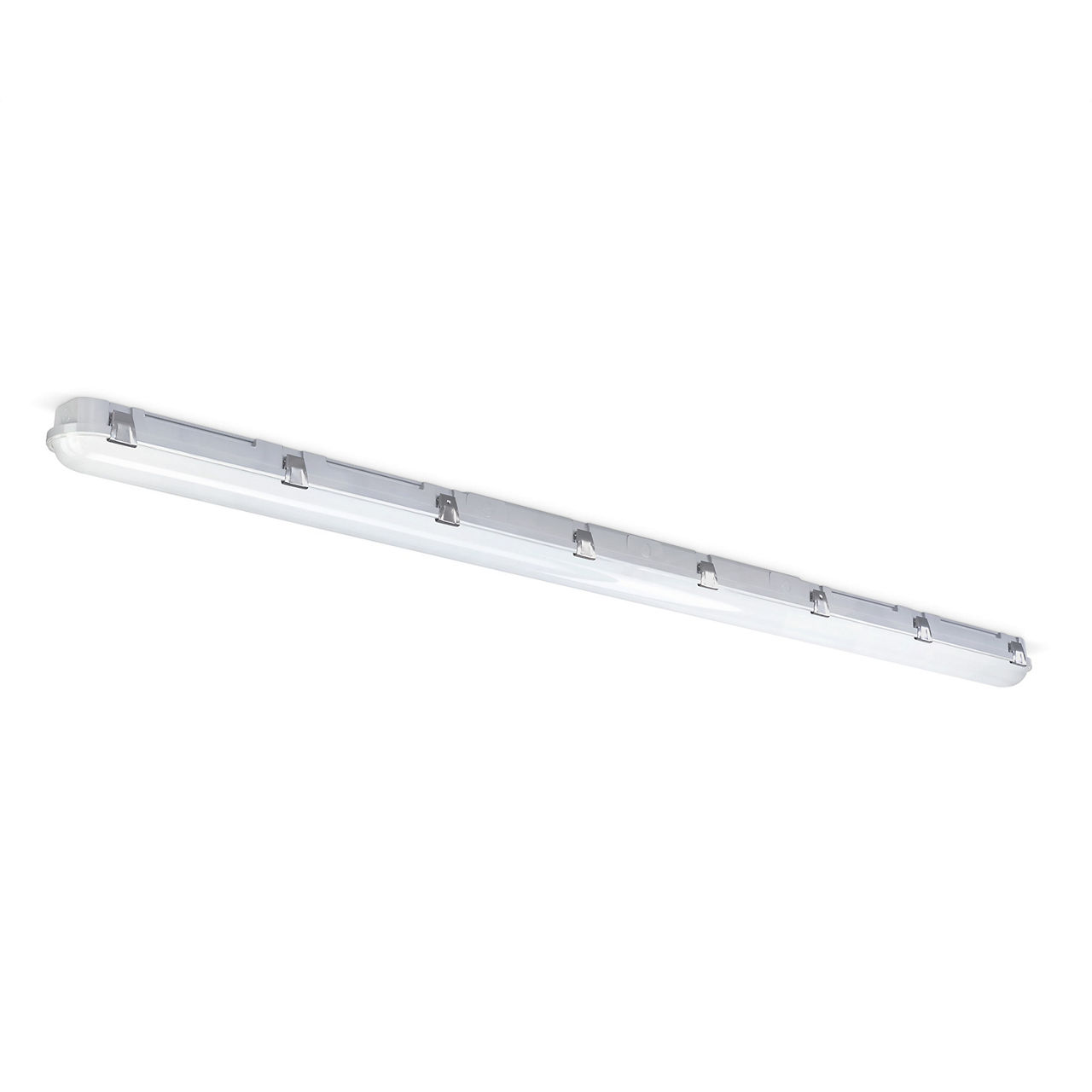

ToughLED™ Pro 6ft Twin 76W Self-Test Emergency FR
JC180082ST
- 8600 Lumens
- 113 LpcW
- IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
- High efficiency up to 145 LpcW, IP66, IK10

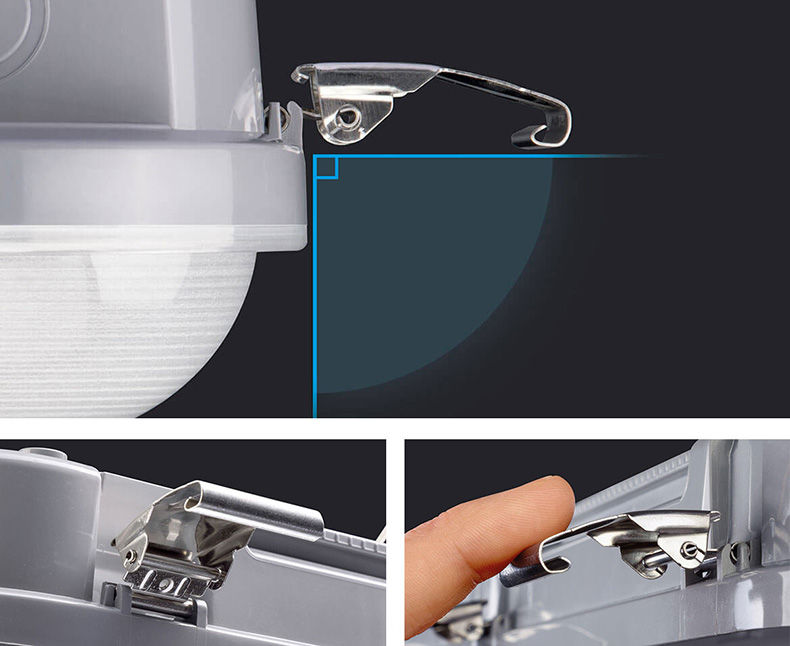

- 90º Lock-in-place side clip design, keeps clips clear during installation

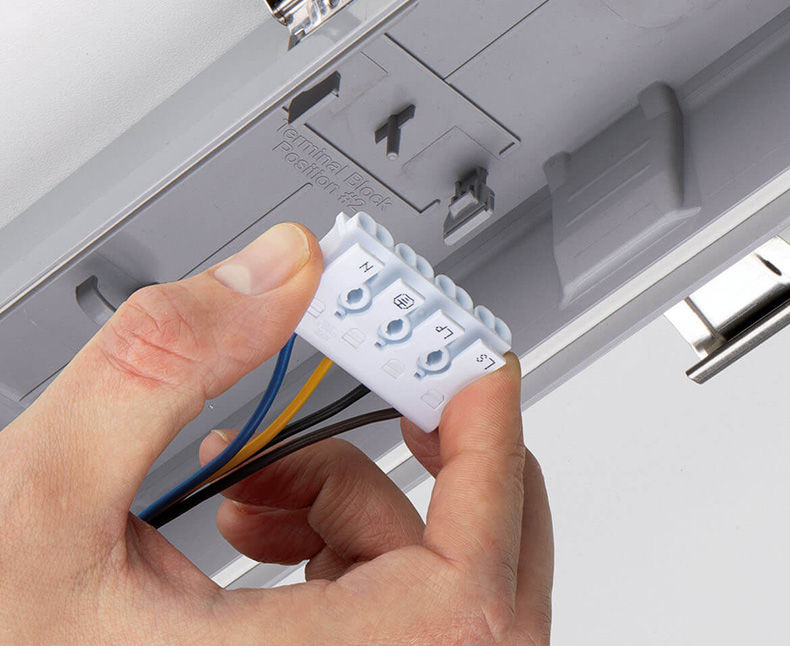

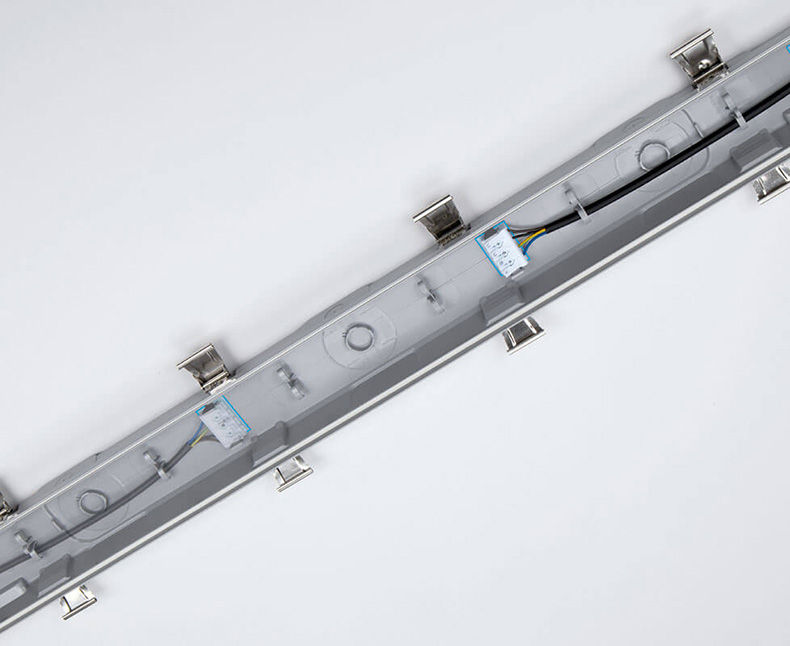

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

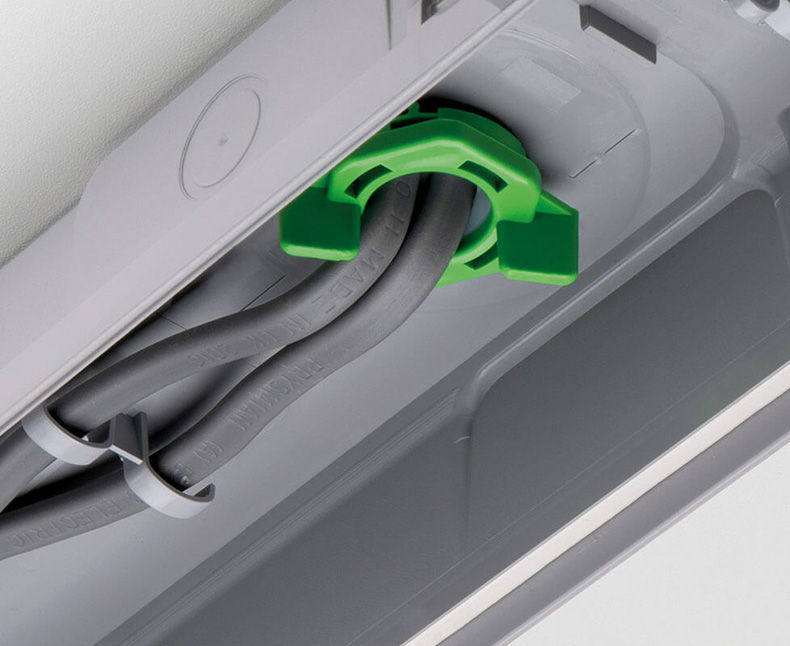

- Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture

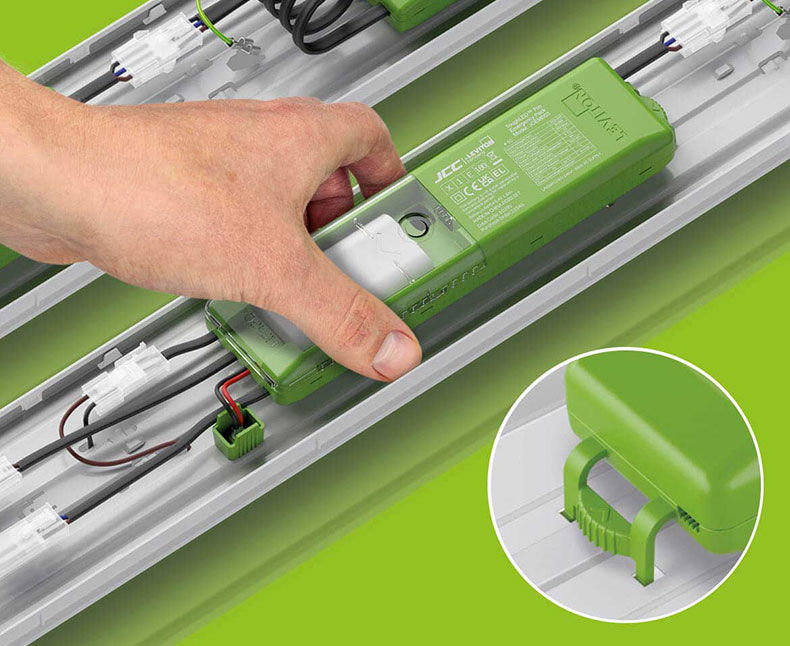

- Plug & play emergency & microwave sensor modules with optional remote control

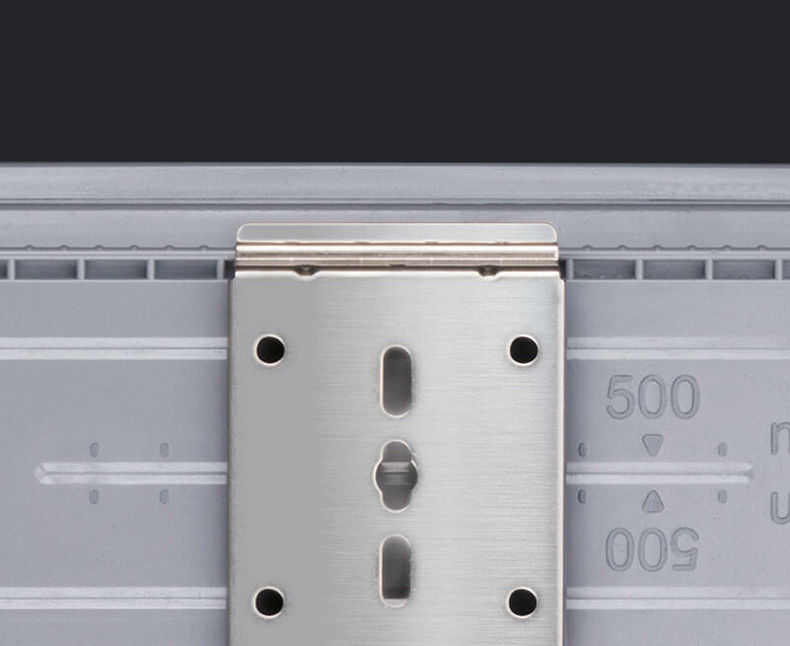

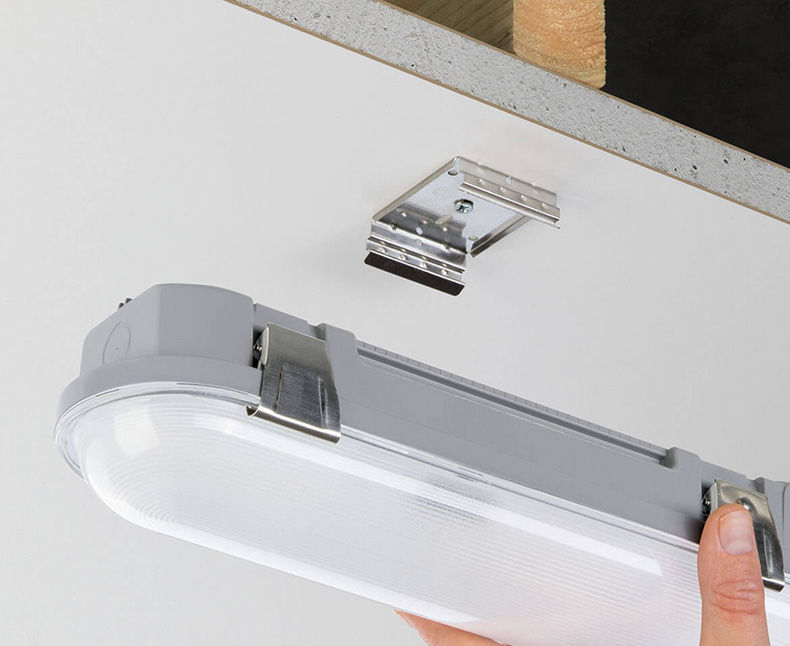

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists

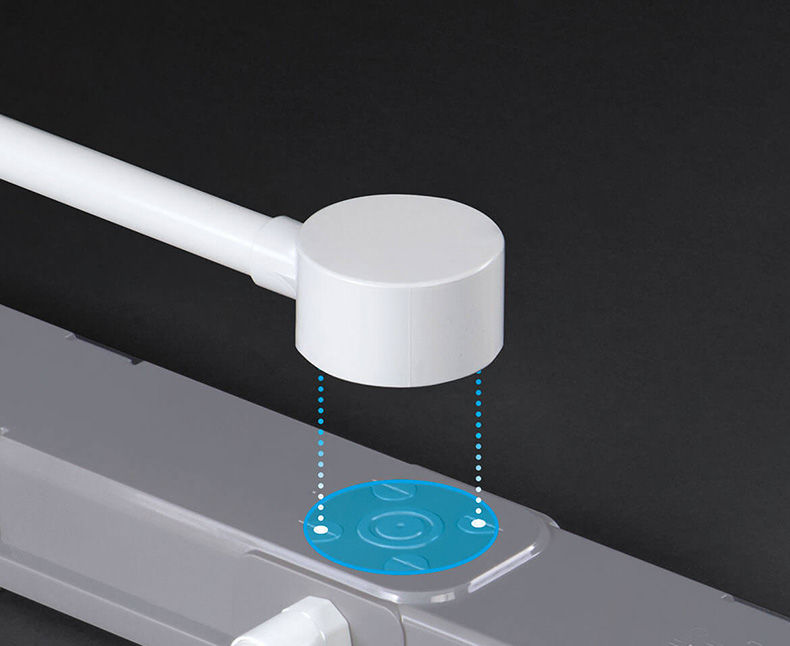

- Wide body for retrofitting BESA conduit box mounting, with rear, side and end conduit entry points

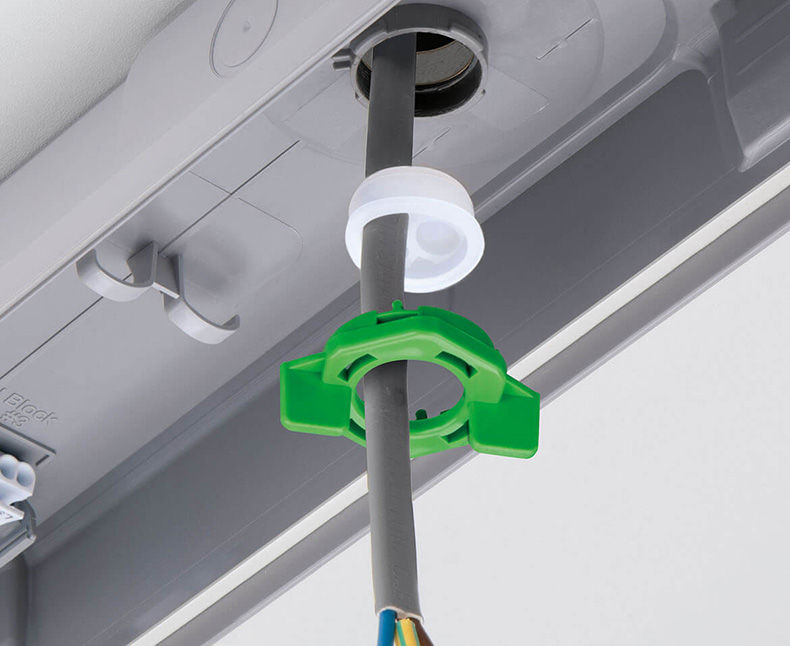

- Unique rear IP66 gasket, sealing cable entry from within the fixture for surface mounting applications
- 4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture and batteries, which uses LifePO4 batteries for improved performance and life
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : I
Dimmable : No
Luminaire Circuit Wattage : 76
Voltage Rating : 220-240
Emergency data
LOR % in Emergency Mode : 3
General Information
IP Rating : IP66

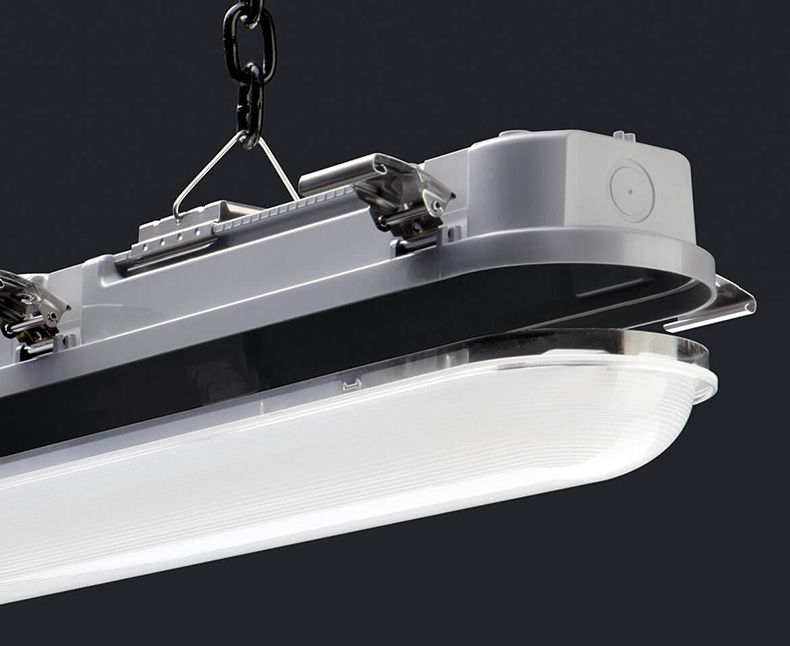

Mounting : Surface or Suspended
Overall Dimensions : 1870 x 96 x 81.3
Trade Name : ToughLED Pro
Warranty : 5 Year Warranty (5 years on batteries)
Performance Data
Actual Lumen Output : 8600
Battery Type : LifePO4
Beam Angle ° : 120
CRI: Ra : 80
Correlated Color Temperature : 4000K
Lumens Per Circuit Watt : 113
Thermals
Operating Temperature Range °C : 0 to +50
