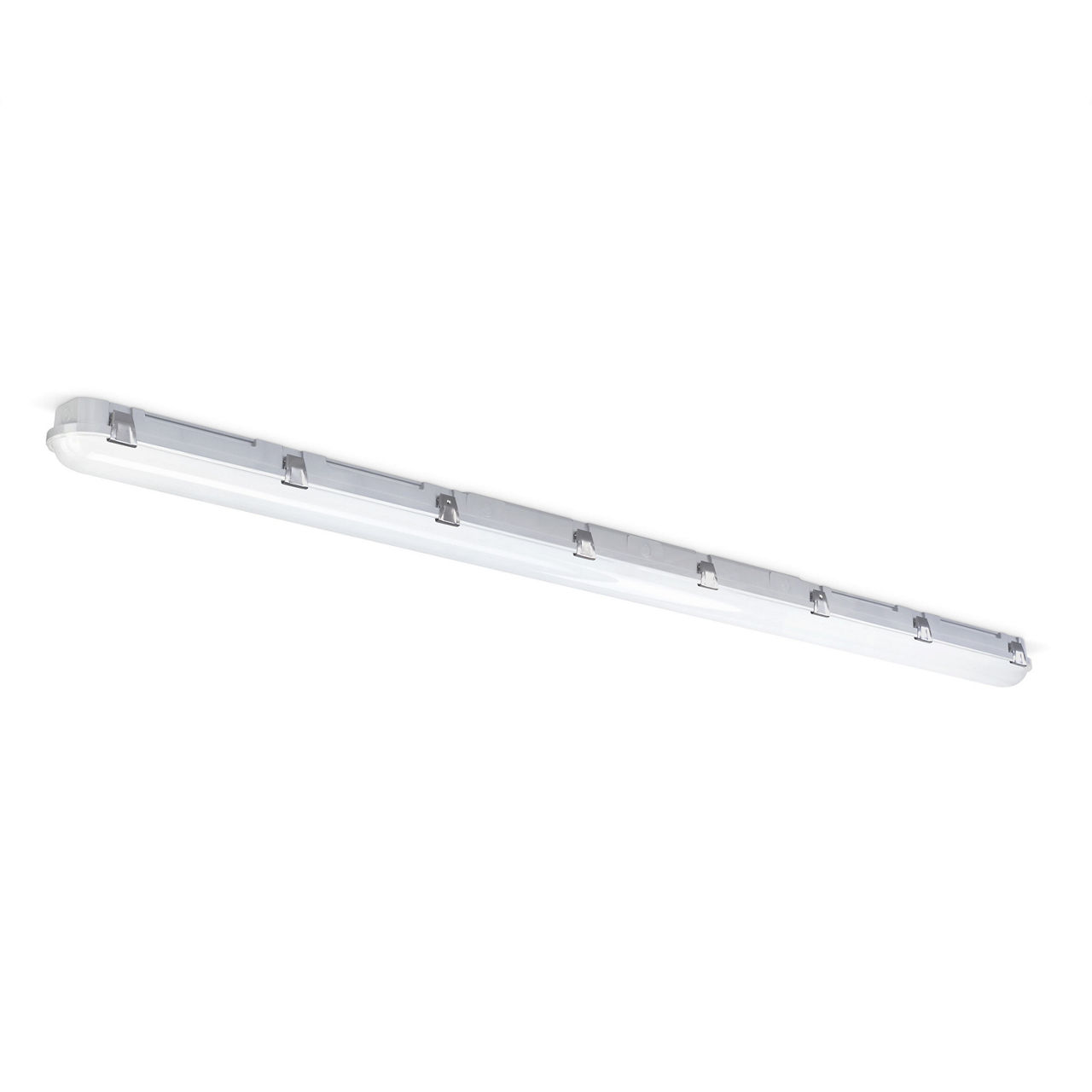

ToughLED™ Pro 6ft Single 39W 1-10V WOP
JC180079/1-10V
- 4900 Lumens
- 126 LpcW
- IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
- 4000K colour temperature

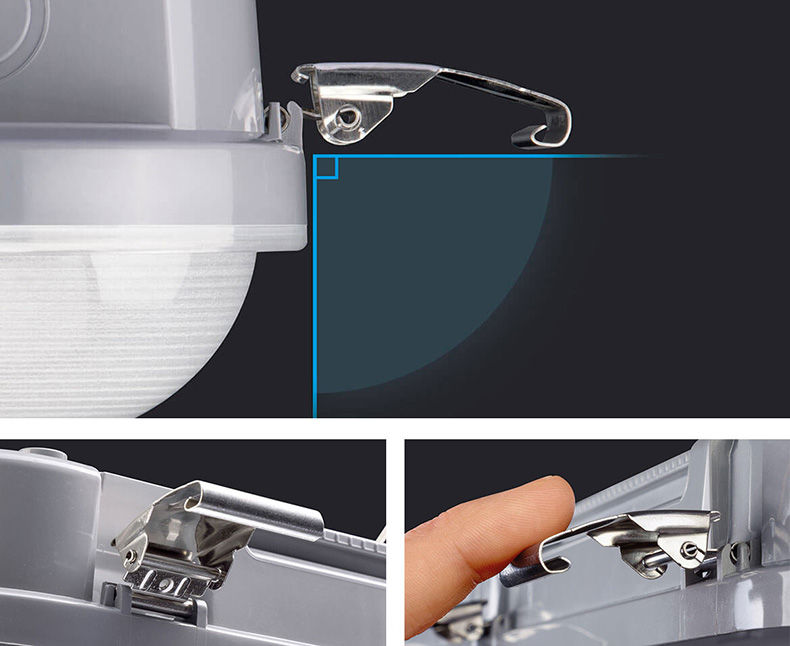

- 90º Lock-in-place side clip design, keeps clips clear during installation

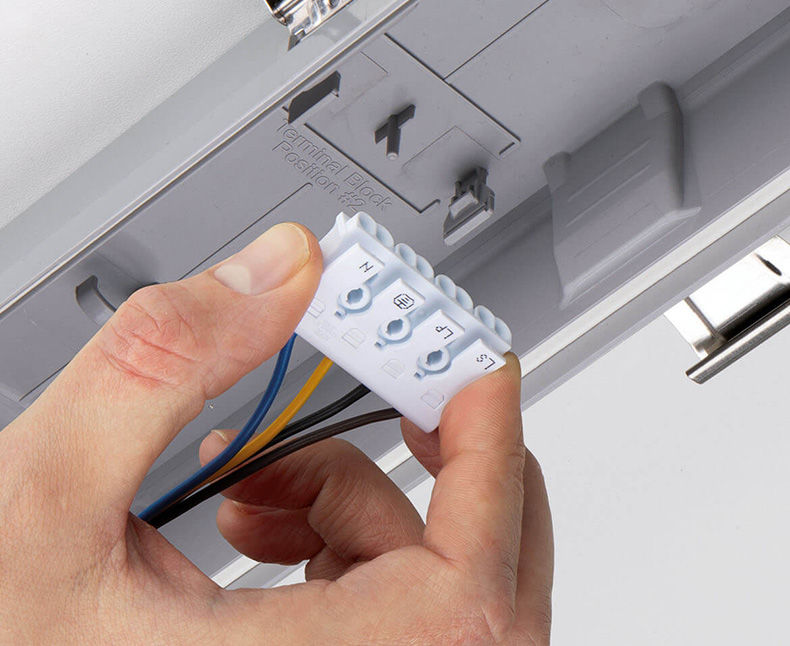

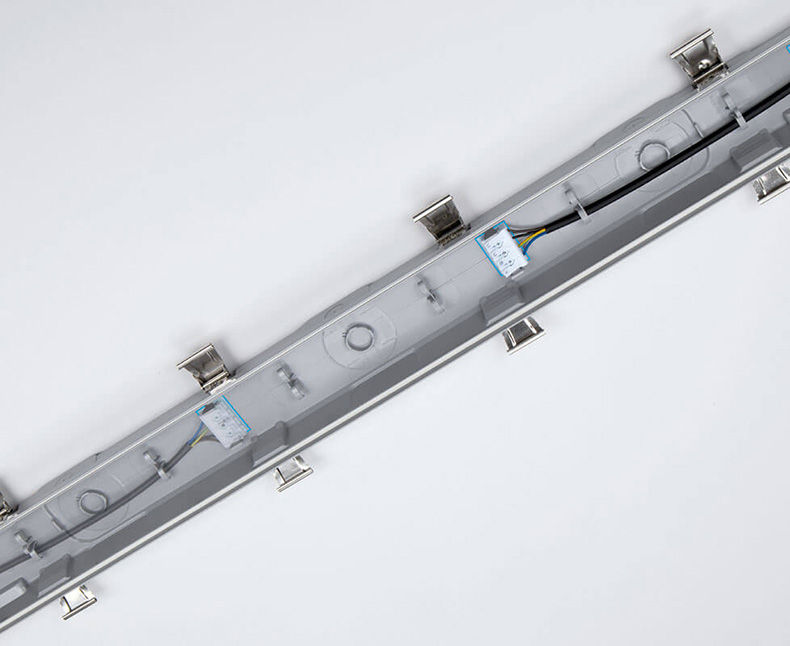

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

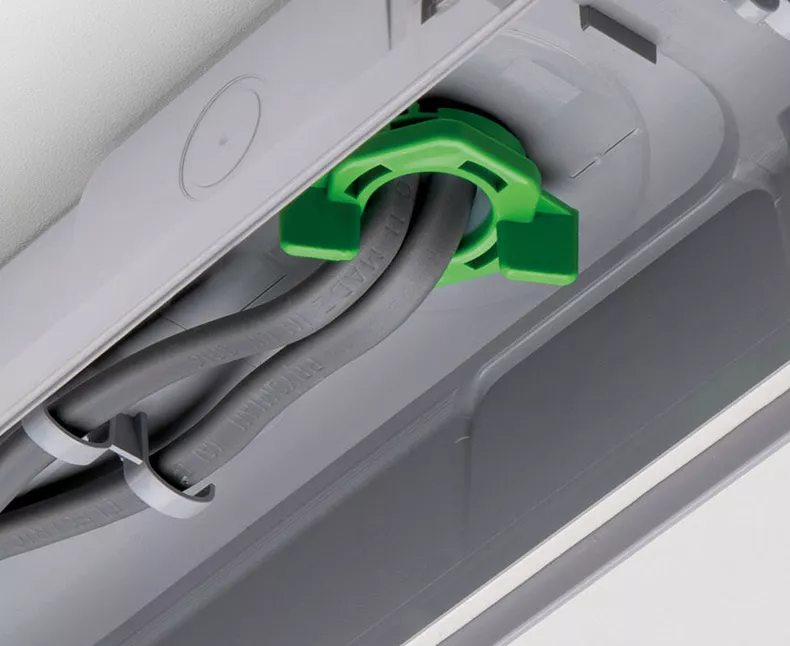

- Inbuilt loop-in/loop-out cable restraints ensure cables don't clash when closing the fixture

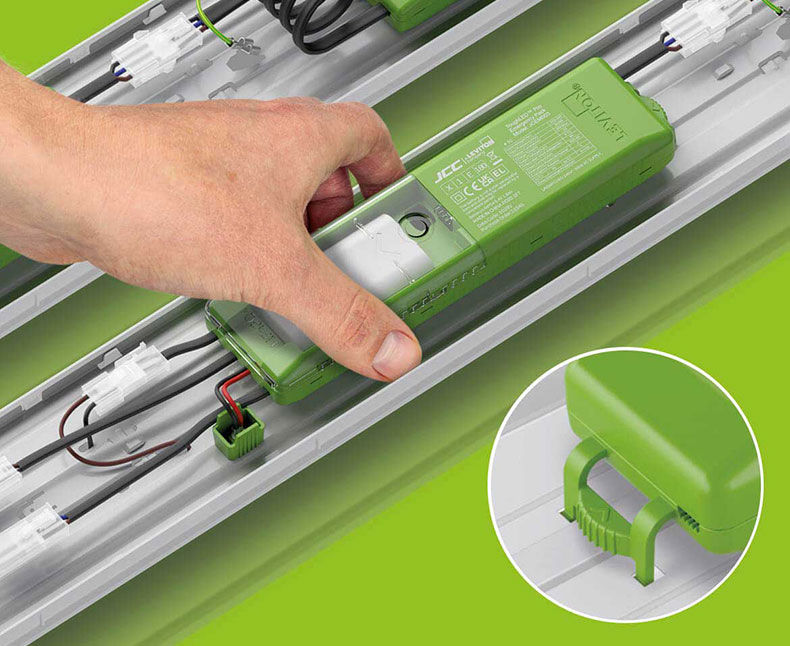

- Plug & play emergency & microwave sensor modules with optional remote control

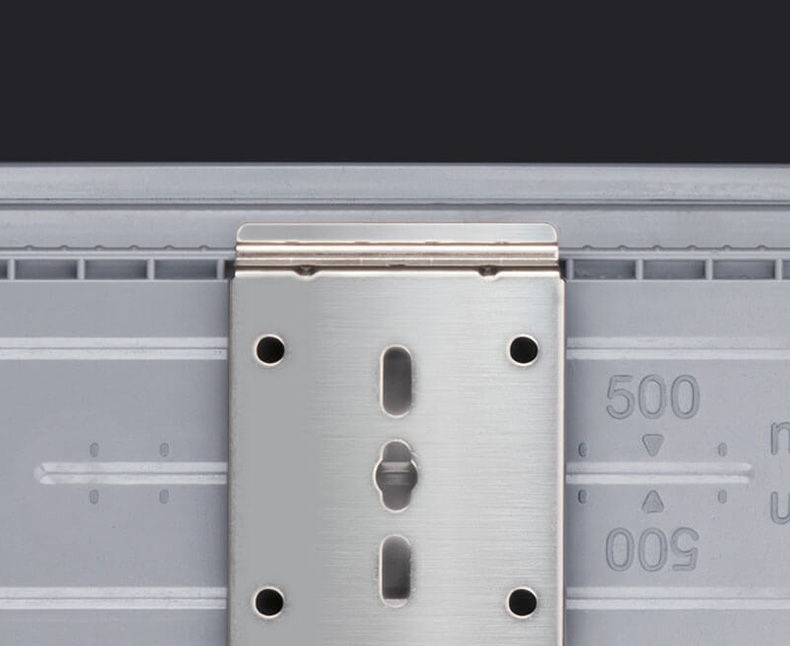

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists

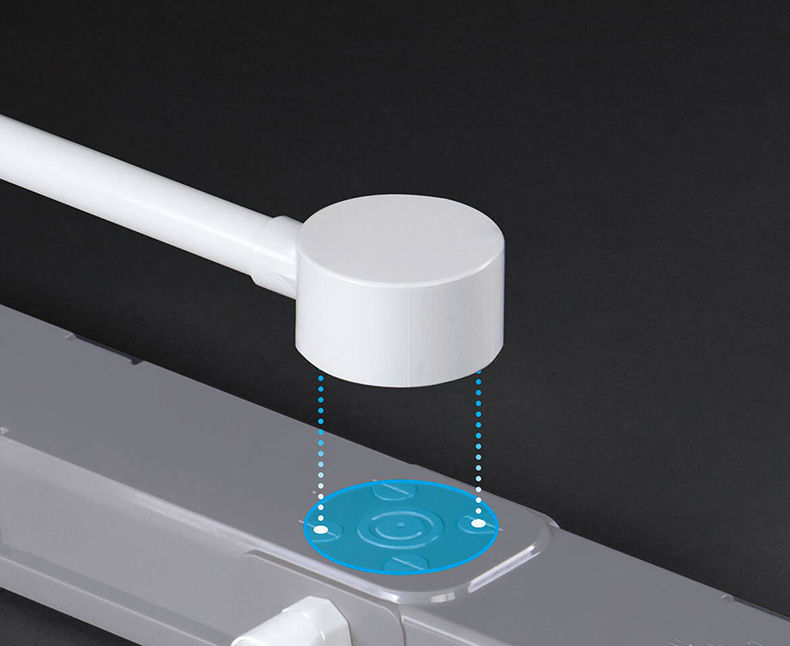

- Wide body for retrofitting BESA box mounting, with rear, side & end conduit entry points

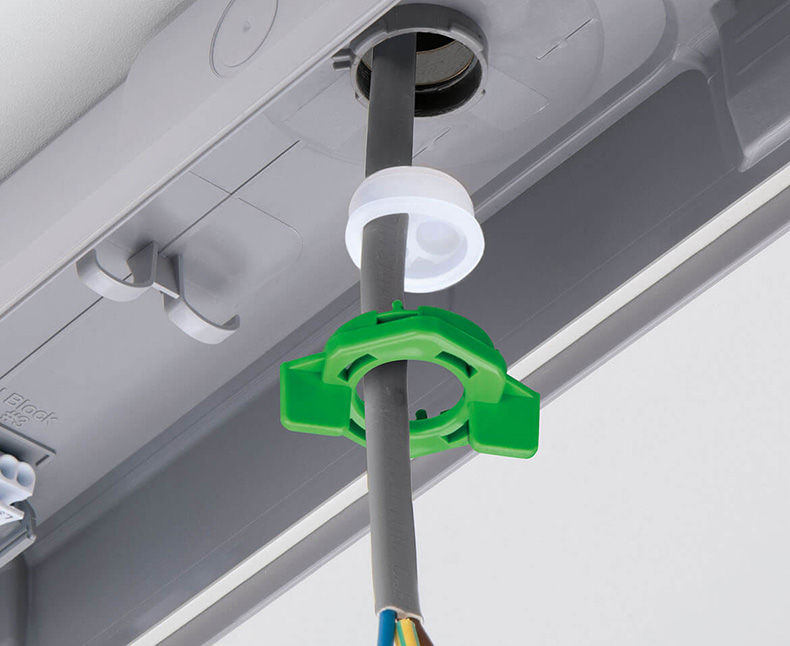

- Unique IP66 gasket, sealing cable entry from within the fixture when surface mounting
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture and batteries
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : I
Dimmable : 1-10V
Luminaire Circuit Wattage : 39W
Voltage Rating : 220-240
General Information
Color Finish : Grey
IP Rating : IP66

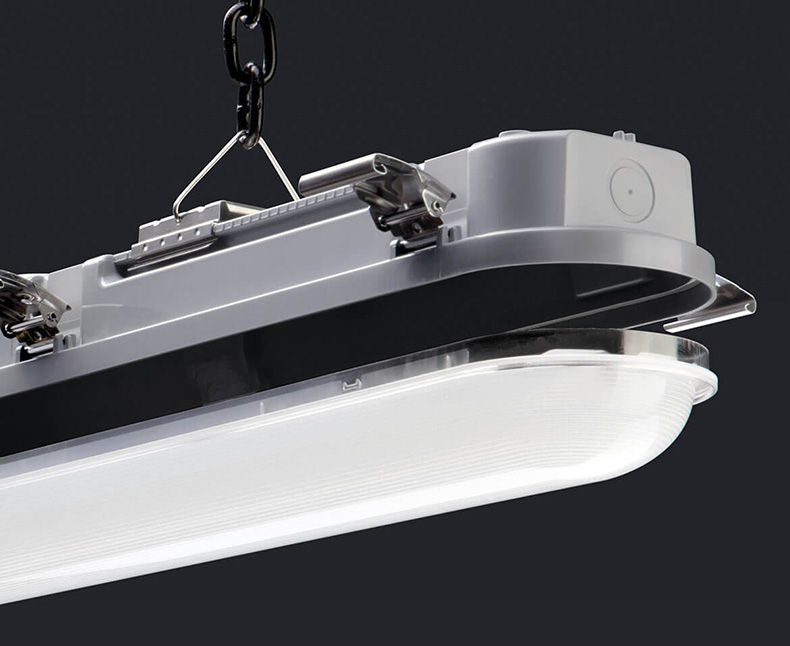

Method of fix : Mounting Brackets, Suspension chains or conduit mounting
Mounting : Surface or Suspended
Overall Dimensions : 1870 x 96 x 81.3
Product Group : LED - Surface
Product Range : ToughLED™ Pro
Trade Name : ToughLED™ Pro
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 4900
Beam Angle ° : 120
CRI: Ra : 80
Lumens Per Circuit Watt : 126
Thermals
Operating Temperature Range °C : -20 to +50
