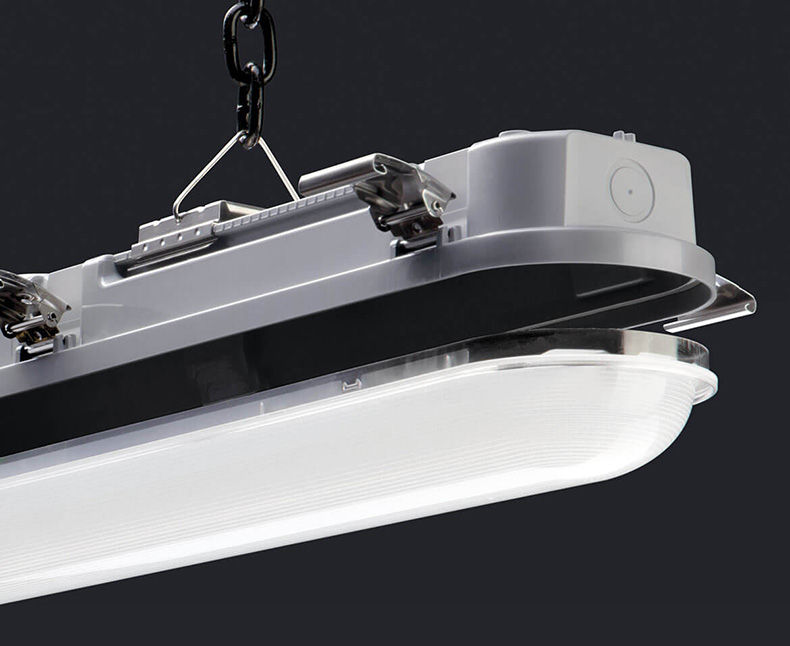

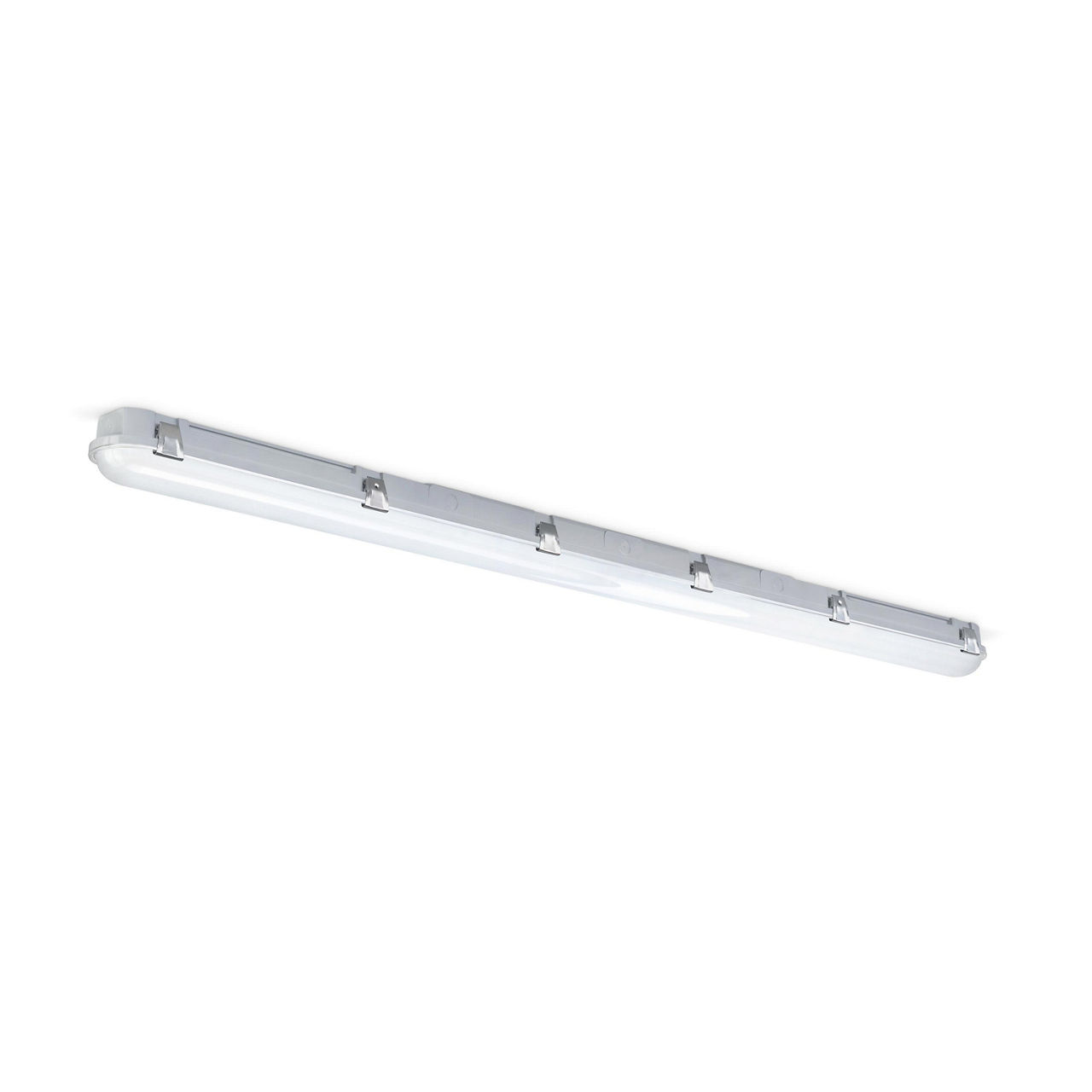

ToughLED™ Pro 5ft Single 29W DALI FR
JC180039/DALI
- 4200 Lumens
- 145 LpcW
- IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
- 4000K colour temperature

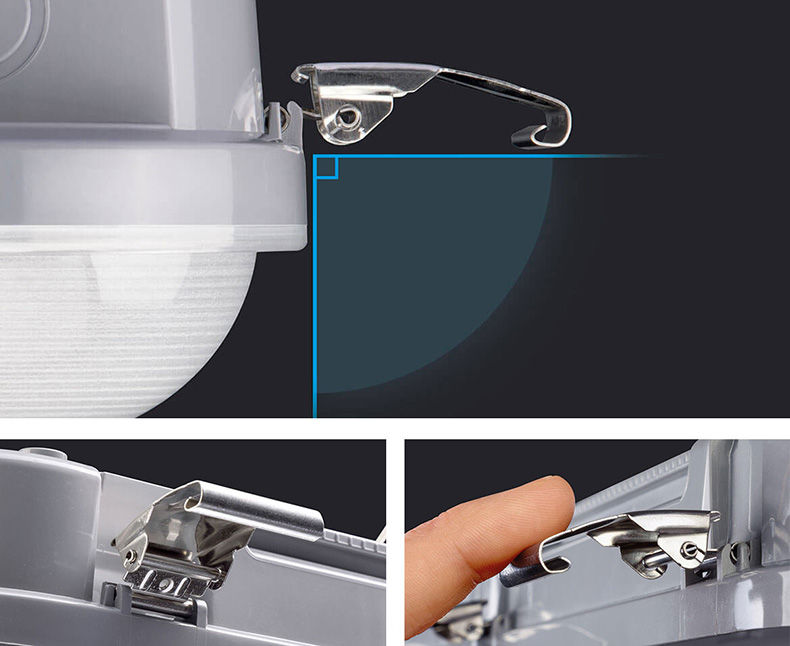

- 90º Lock-in-place side clip design, keeps clips clear during installation

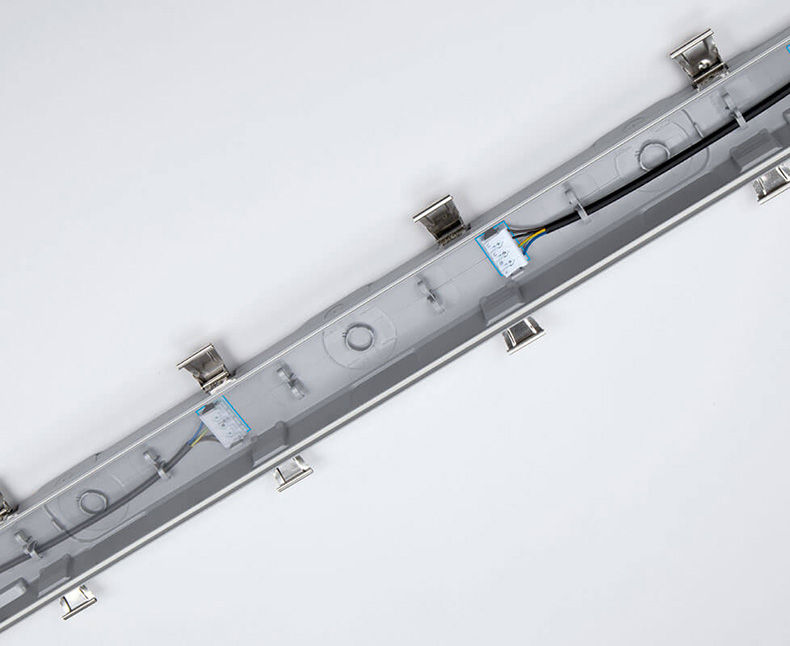

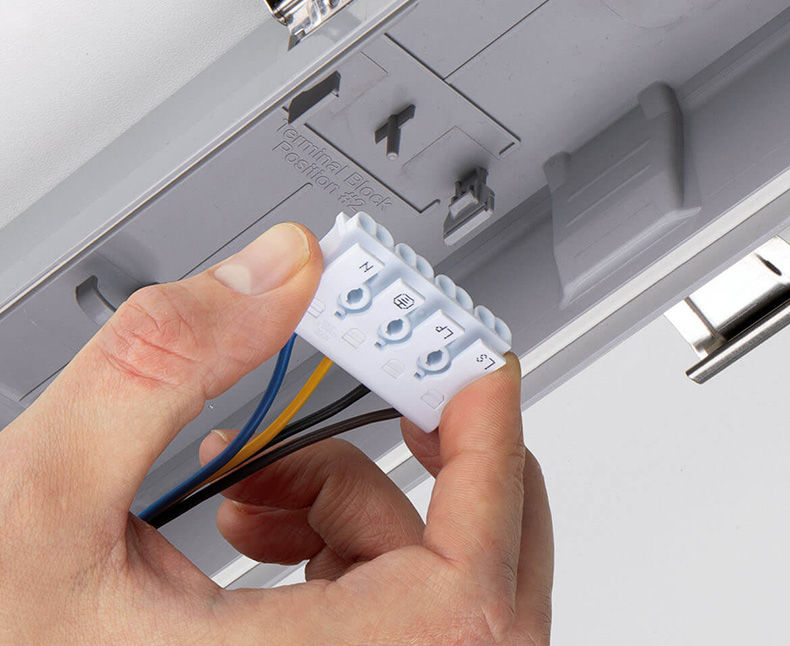

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

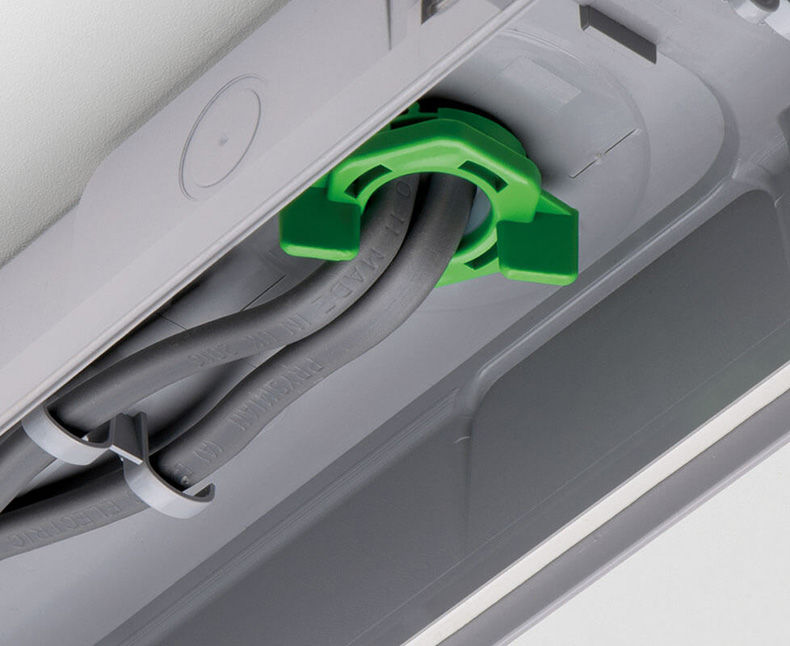

- Inbuilt loop-in/loop-out cable restraints ensure cables don't clash when closing the fixture

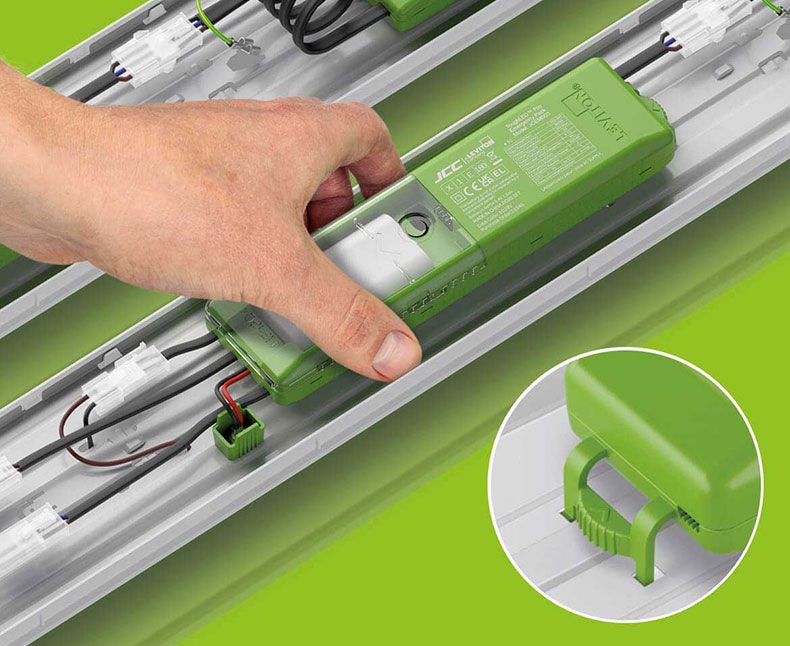

- Plug & play emergency & microwave sensor modules with optional remote control

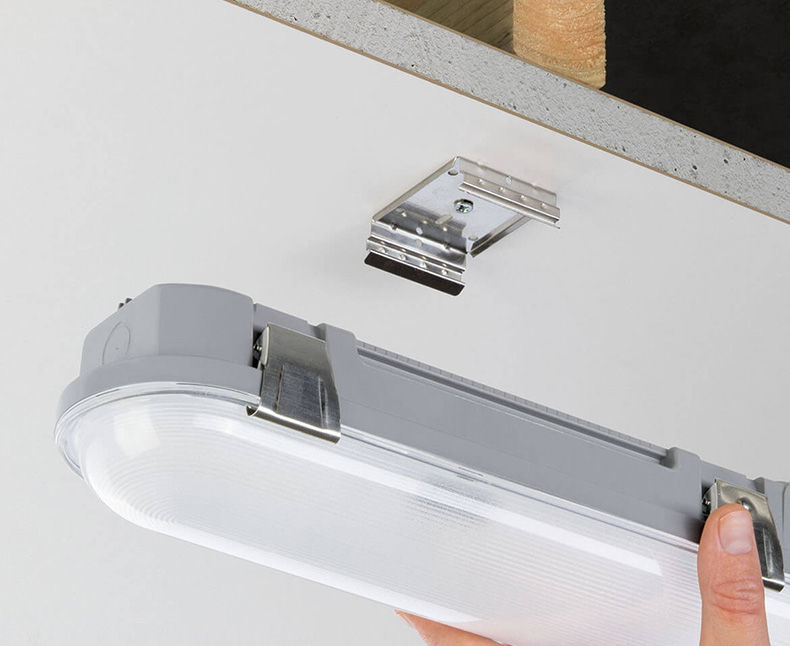

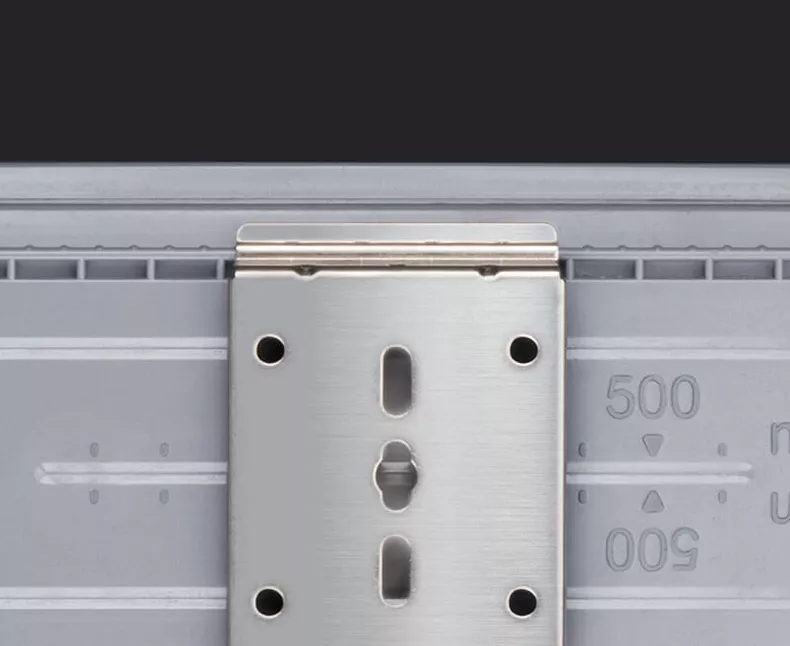

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists

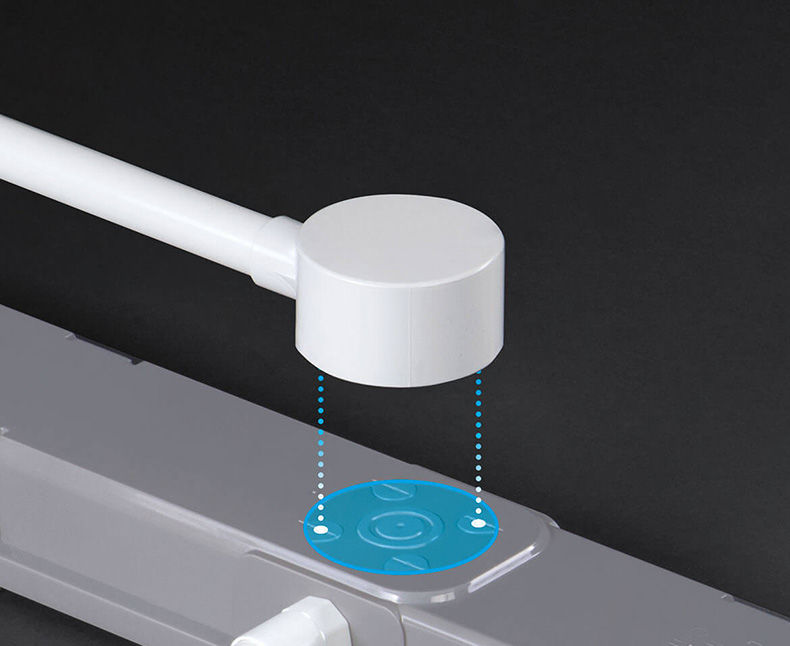

- Wide body for retrofitting BESA box mounting, with rear, side & end conduit entry points

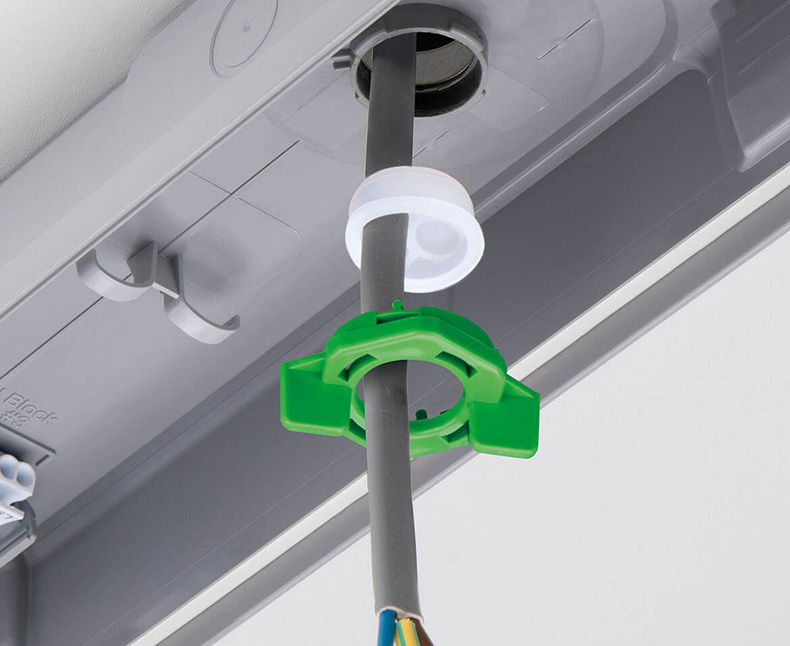

- Unique IP66 gasket, sealing cable entry from within the fixture when surface mounting
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture and batteries
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data
Overall Dimensions : 1570 x 96 x 81.3
Product Details
Color Finish : Grey
Product Range : ToughLED™ Pro
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 4200
Beam Angle : 120
CRI : 80
Class : I
Correlated Color Temperature : 4000K
Dimmable : DALI
IP Rating : IP66
Lumens Per Circuit Watt : 145
Luminaire Circuit Wattage : 29
Method of fix : Mounting Brackets, Suspension chains or conduit mounting
Operating Temperature range °C : -20 to +50
