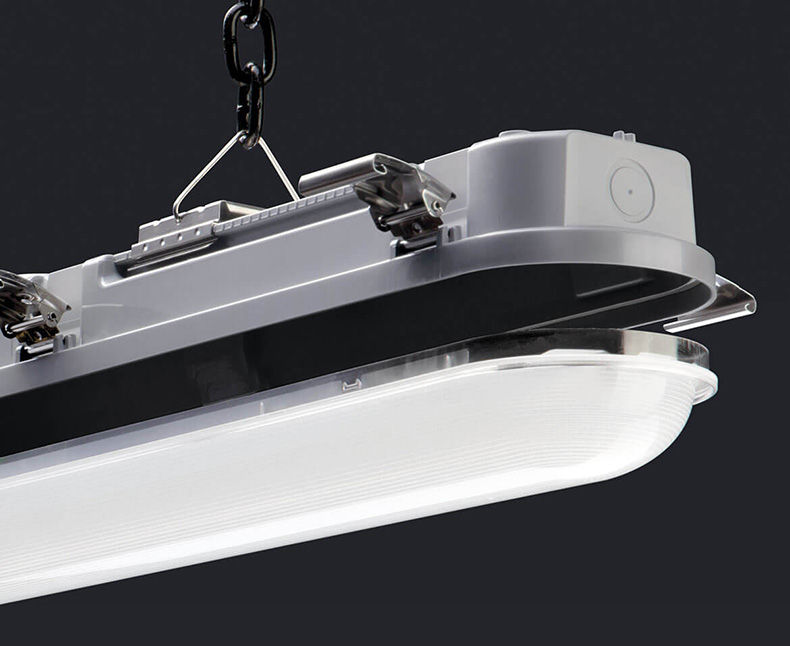

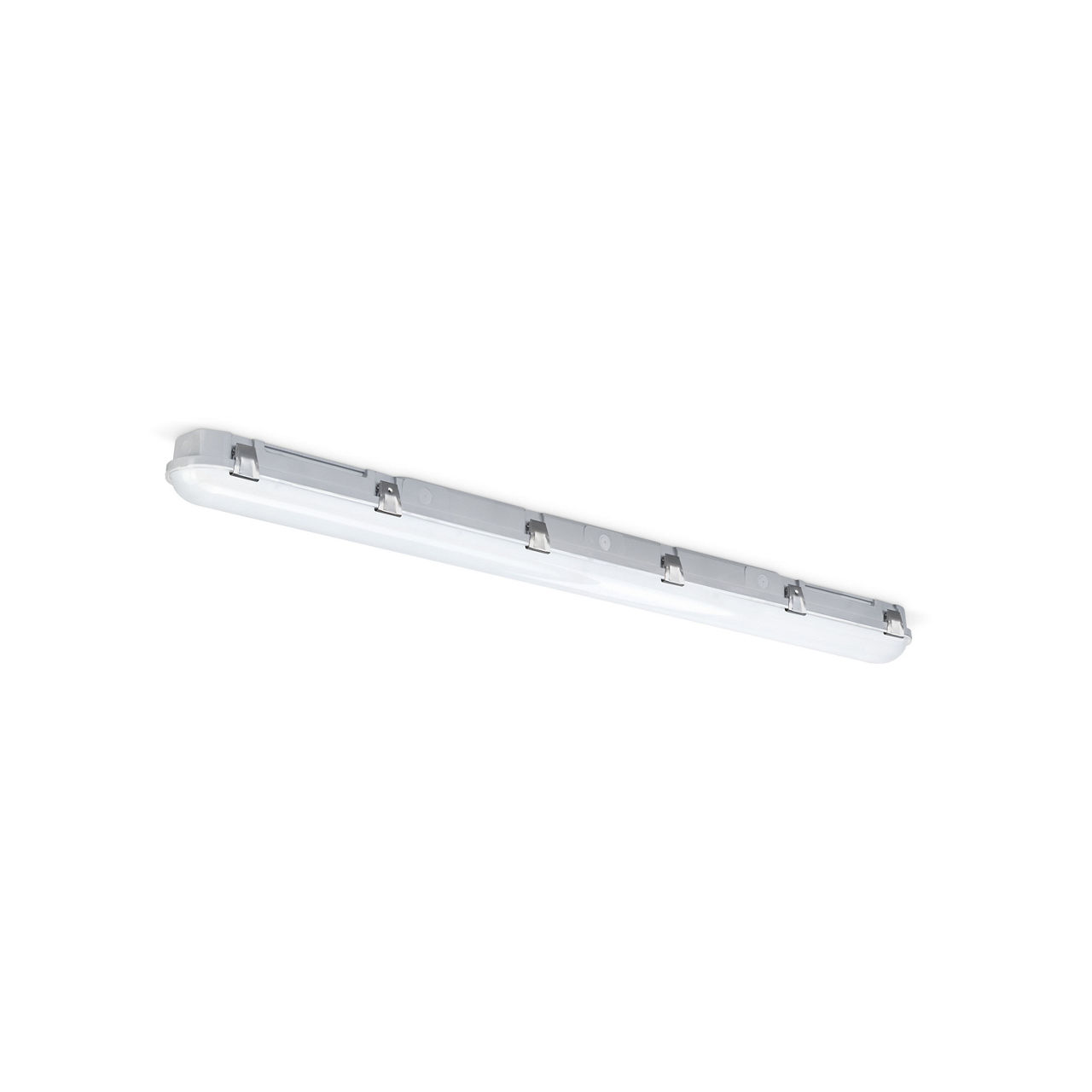

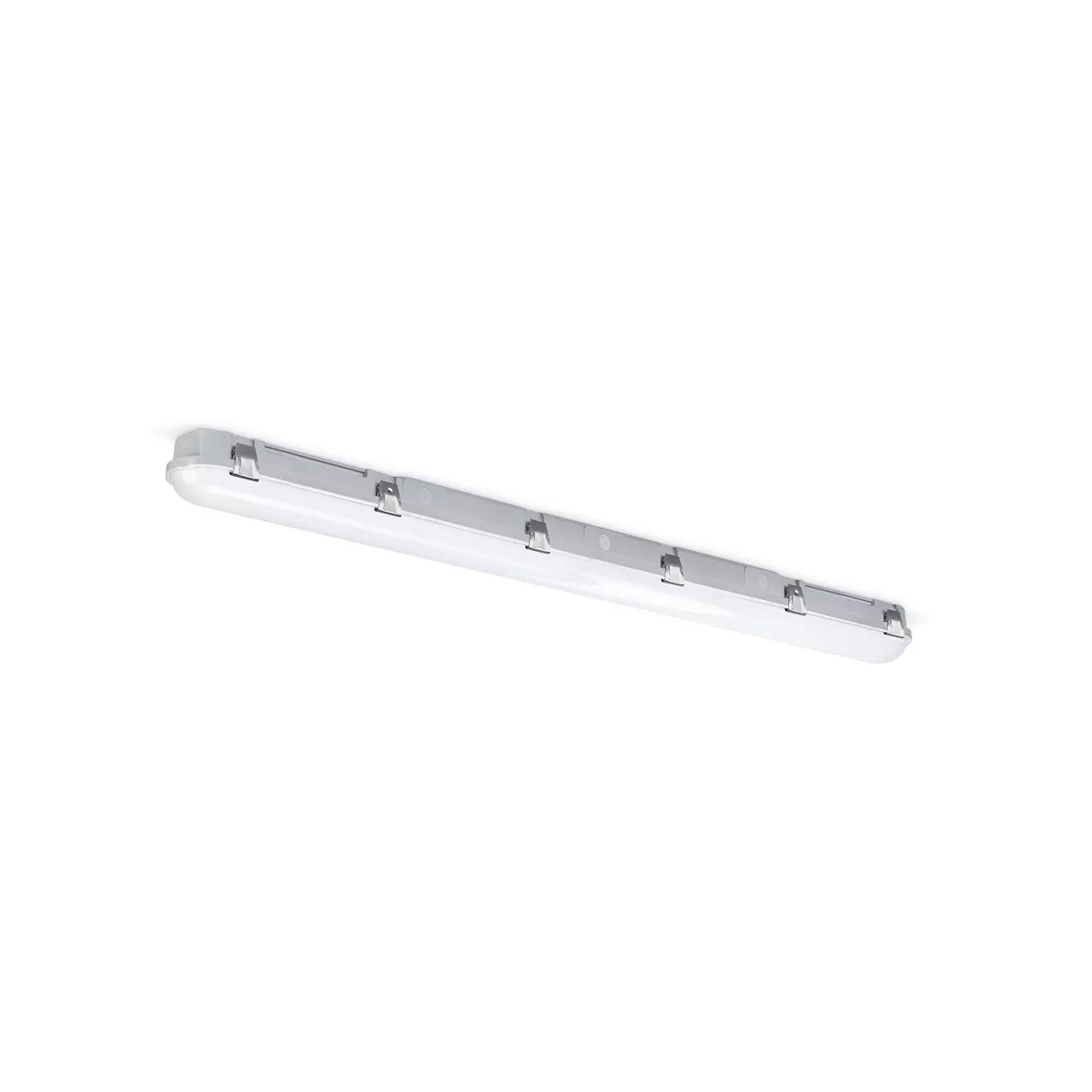

ToughLED™ Pro 4ft Twin 42W 1-10V Emergency WOP
JC180032/1-10V
- 5000 Lumens
- 119 LpcW
- IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
- 4000K colour temperature

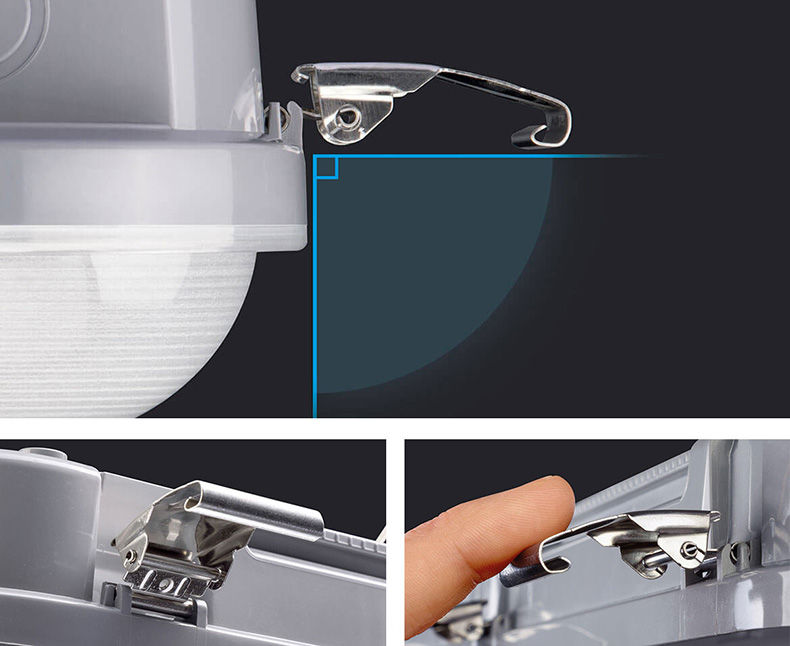

- 90º Lock-in-place side clip design, keeps clips clear during installation

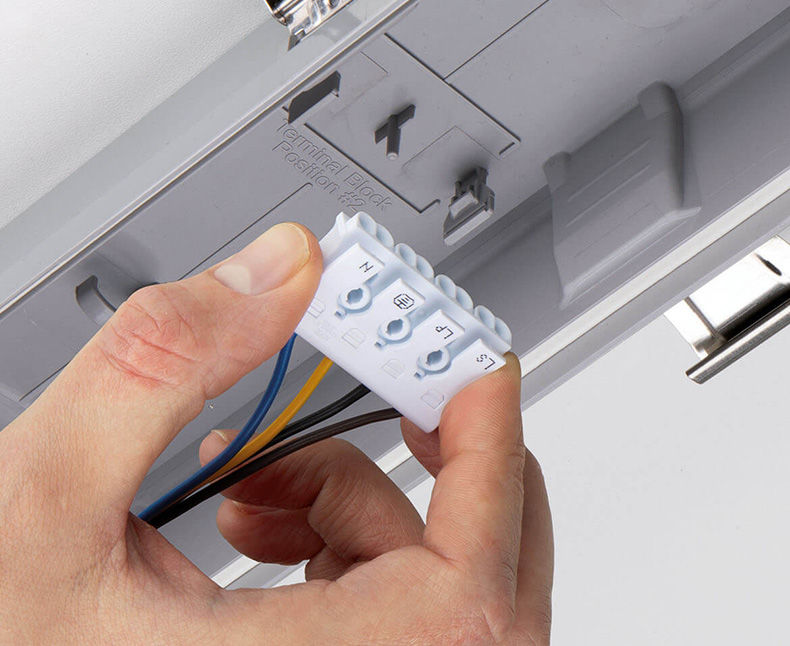

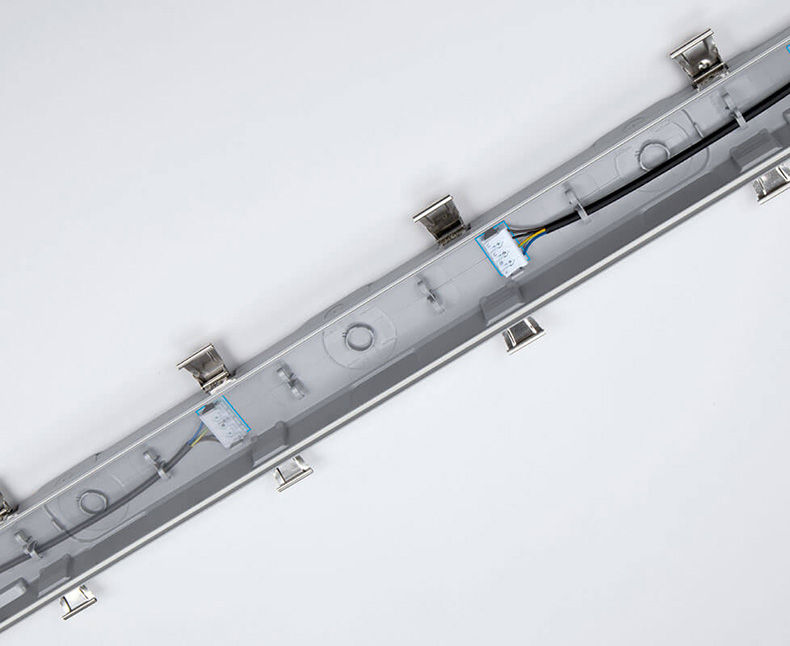

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

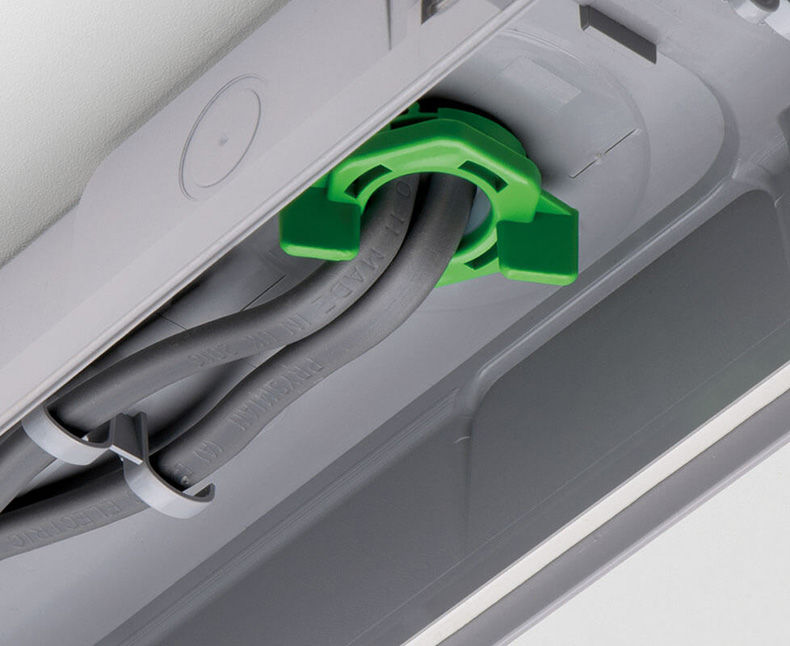

- Inbuilt loop-in/loop-out cable restraints ensure cables don't clash when closing the fixture

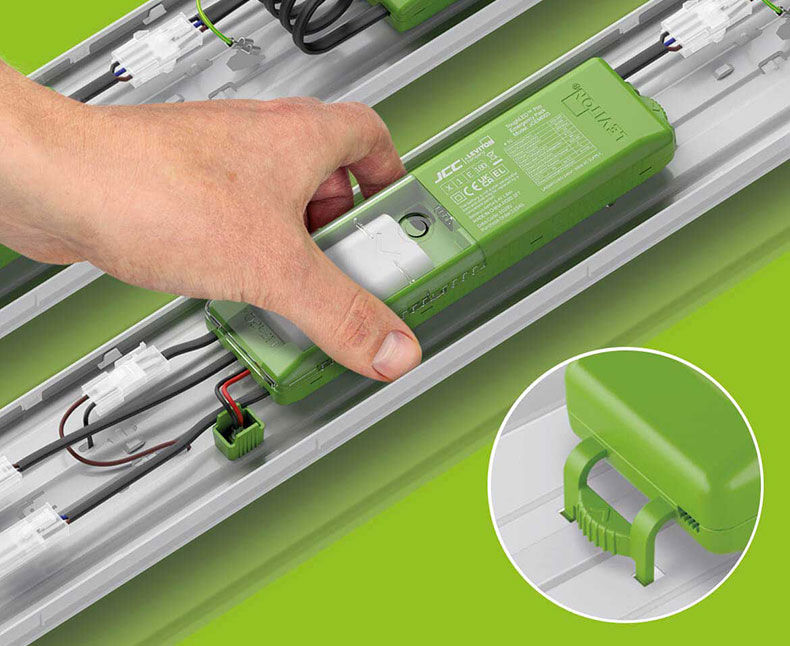

- Plug & play emergency & microwave sensor modules with optional remote control

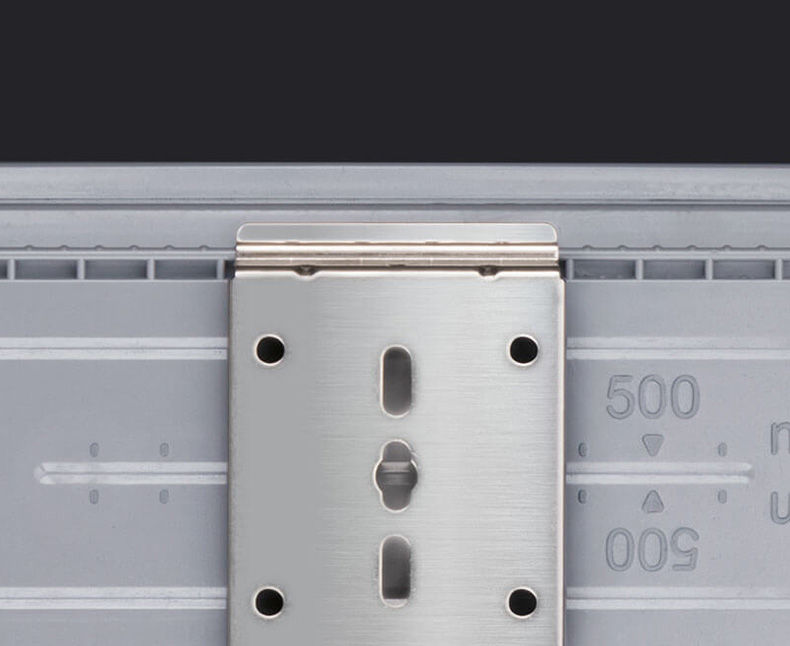

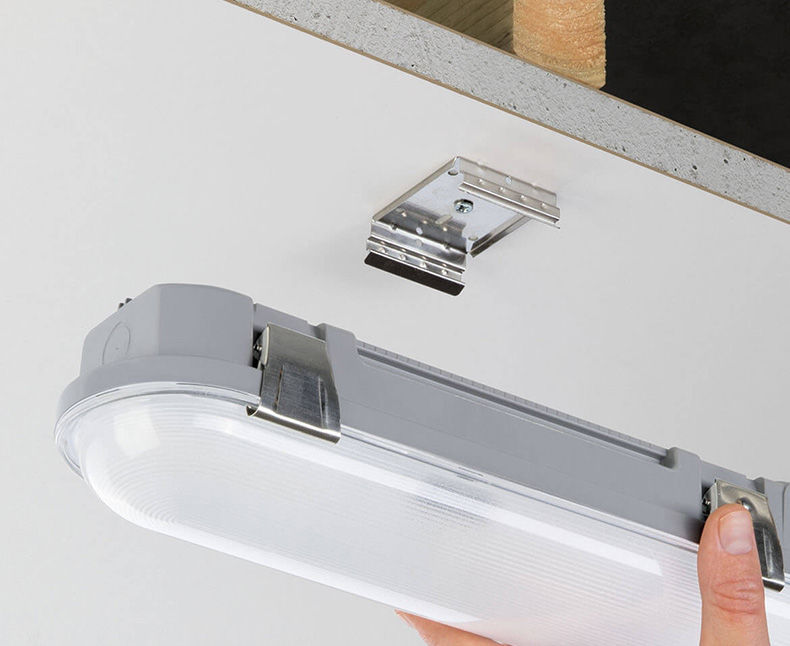

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists

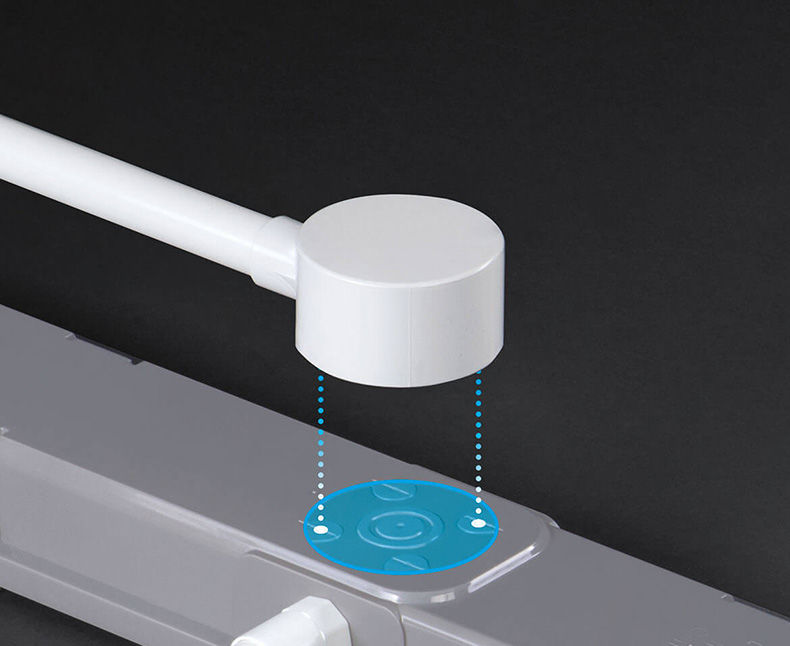

- Wide body for retrofitting BESA box mounting, with rear, side & end conduit entry points

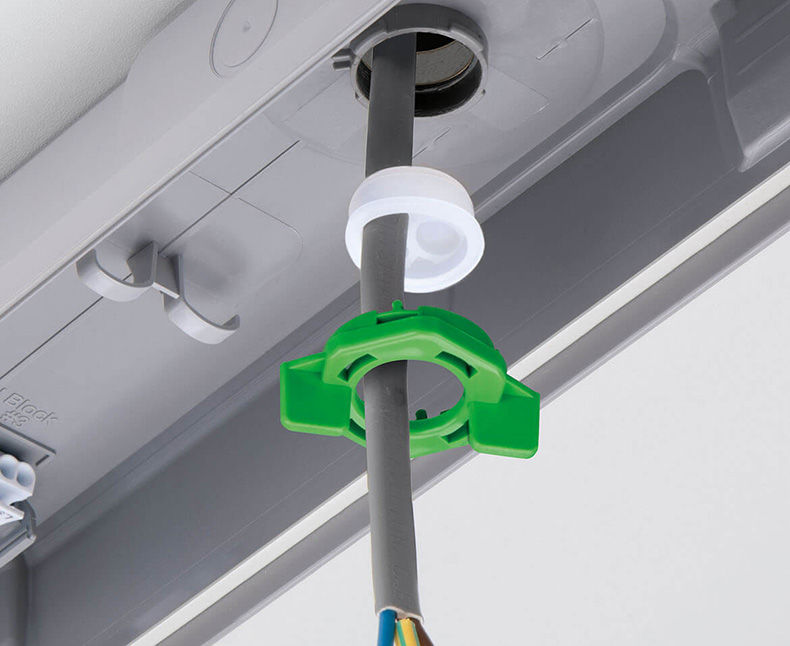

- Unique IP66 gasket, sealing cable entry from within the fixture when surface mounting
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture and batteries
Country of Origin: Please Contact Customer Service
Product Information
Updated
Dimensional Data
Overall Dimensions : 1270 x 96 x 81.3
Performance Specifications
Dimming Protocol Compatibility : 1-10V
Product Details
Color Finish : Grey
Product Range : ToughLED™ Pro
Warranty : 5 Year Warranty (5 years on batteries)
Product Specifications
Actual Lumen Output : 5000
Beam Angle : 120
CRI : 80
Class : I
Correlated Color Temperature : 4000K
Dimmable : 1-10V
IP Rating : IP66
Lumens Per Circuit Watt : 119
Luminaire Circuit Wattage : 42
Operating Temperature range °C : 0 to +50
