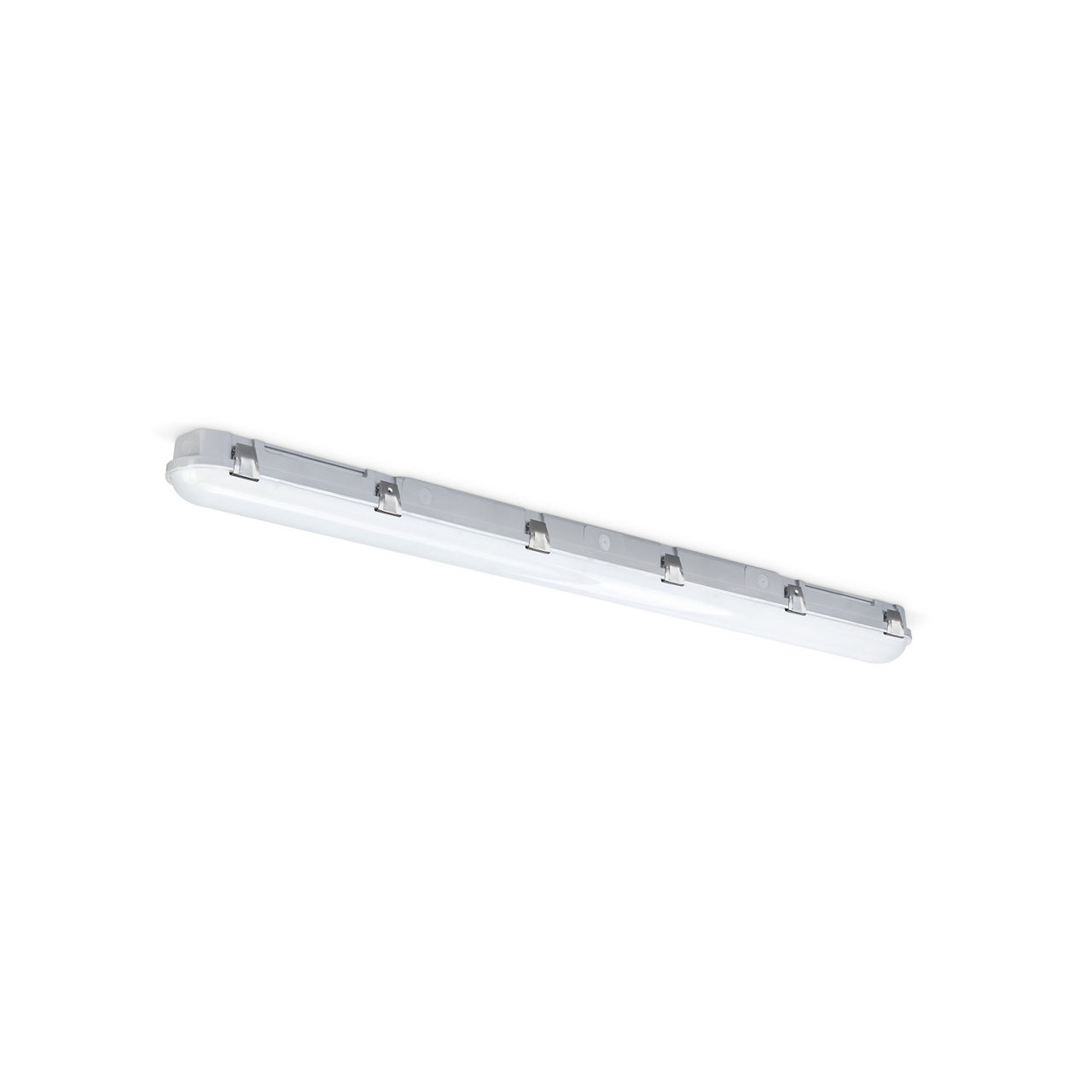

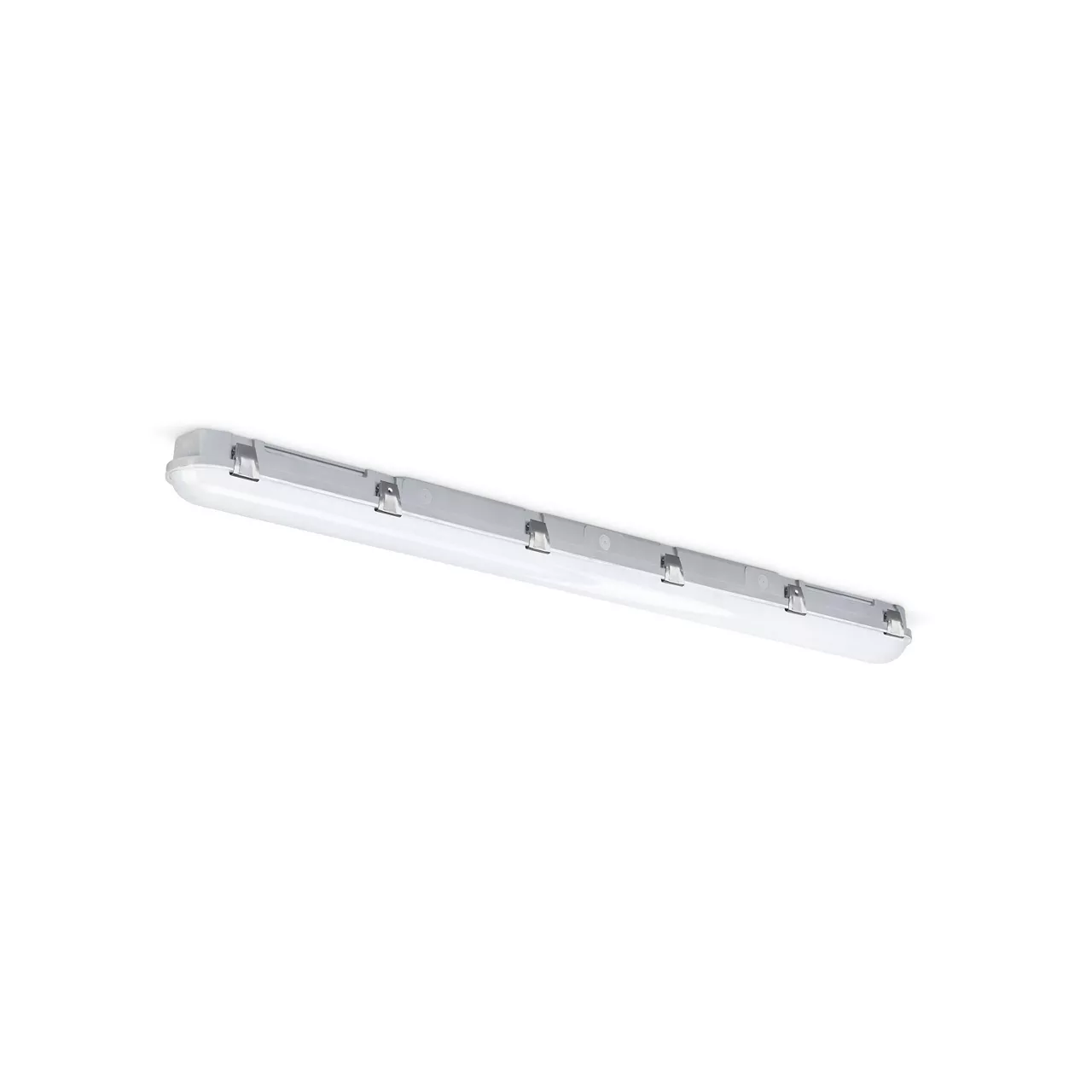

ToughLED™ Pro 4ft Twin 38W DALI WOP

JC180031/DALI

  • 5000 Lumens
  • 132 LpcW
  • IK10 impact rated and IP66 protection against high pressure water jets and is dust tight
  • 4000K colour temperature

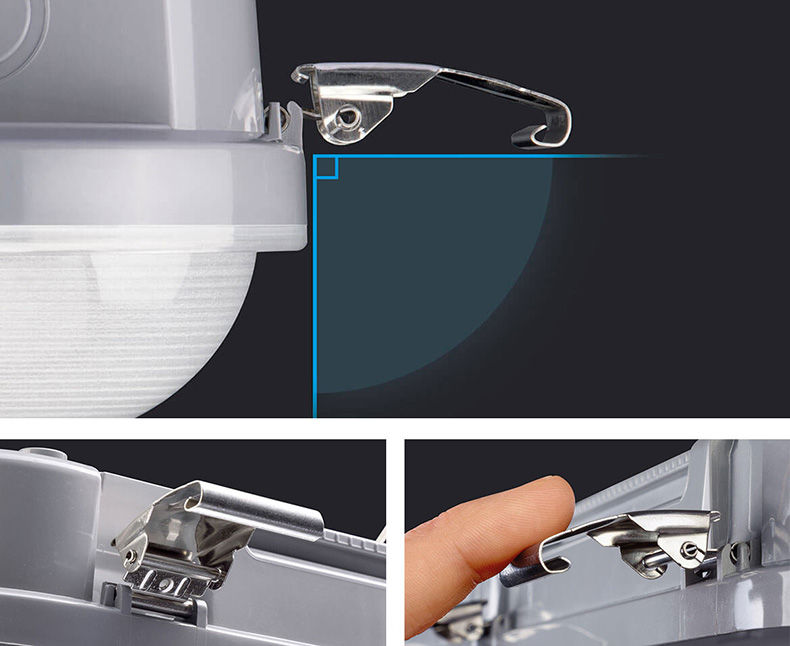

  • 90º Lock-in-place side clip design, keeps clips clear during installation

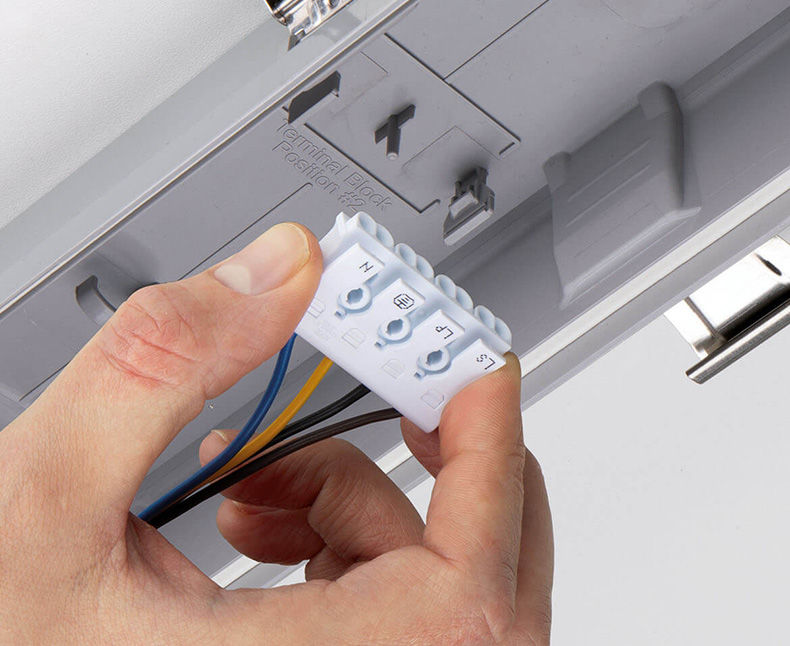

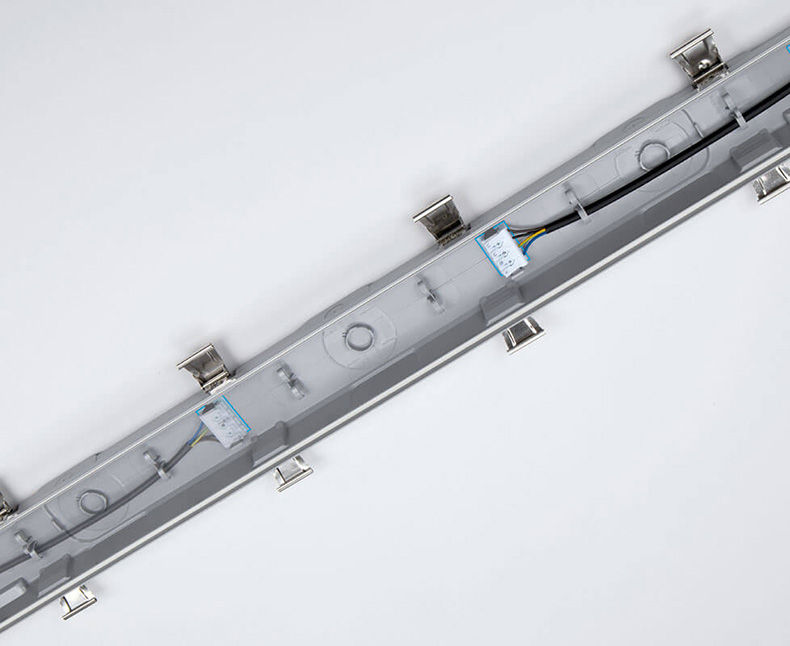

  • Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points

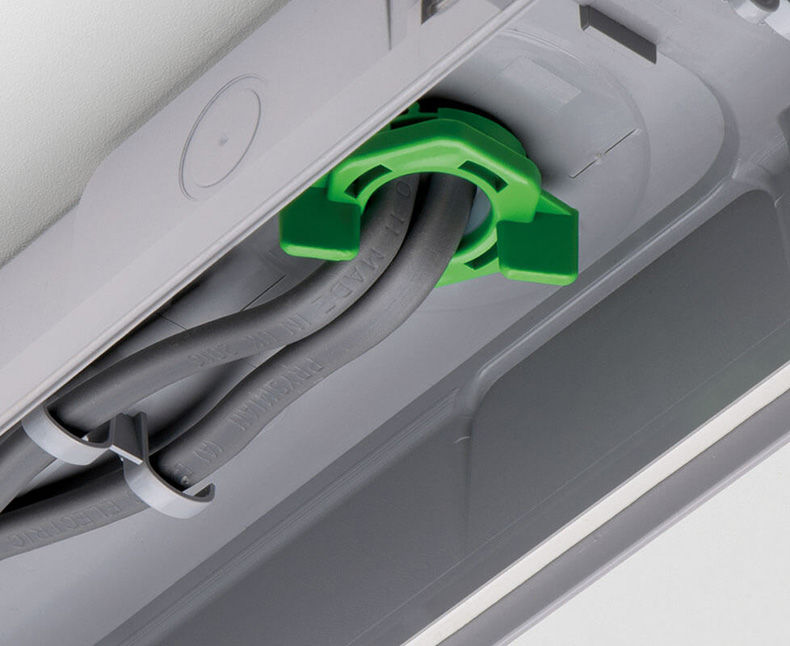

  • Inbuilt loop-in/loop-out cable restraints ensure cables don't clash when closing the fixture

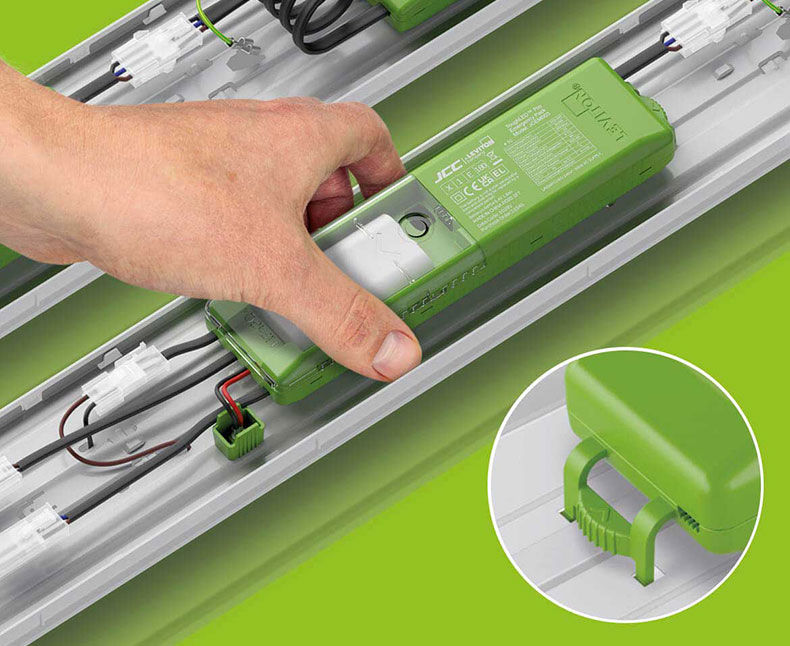

  • Plug & play emergency & microwave sensor modules with optional remote control

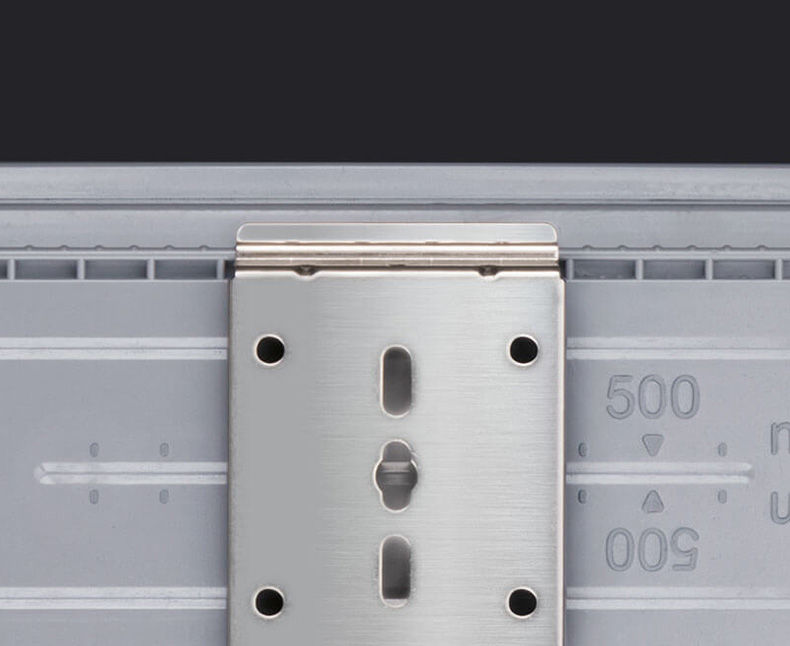

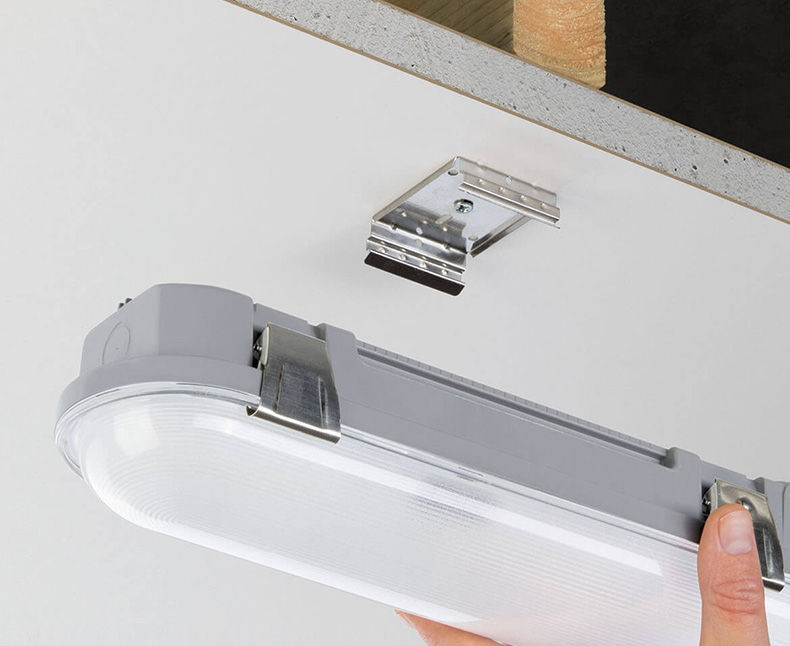

  • Ultra-wide surface mount bracket rail to enable flexibility to locate joists

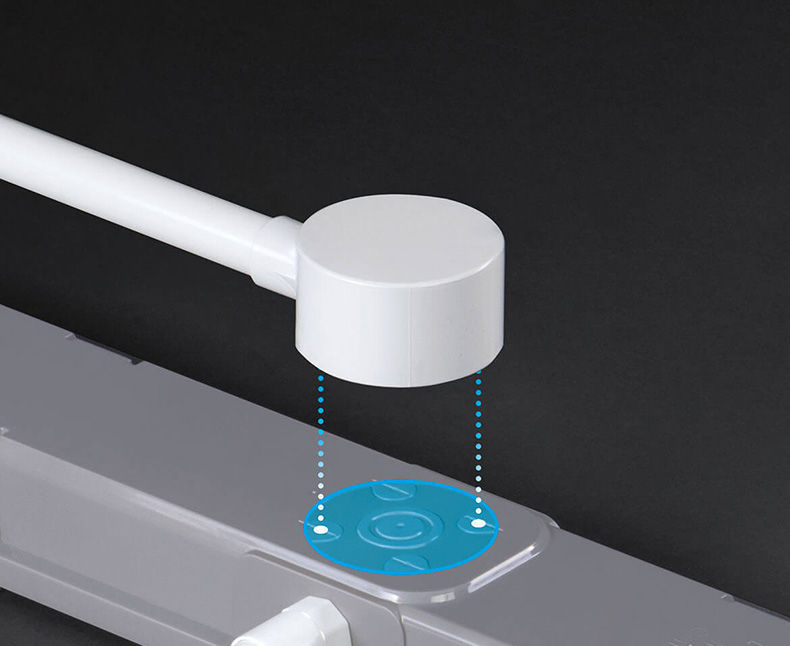

  • Wide body for retrofitting BESA box mounting, with rear, side & end conduit entry points

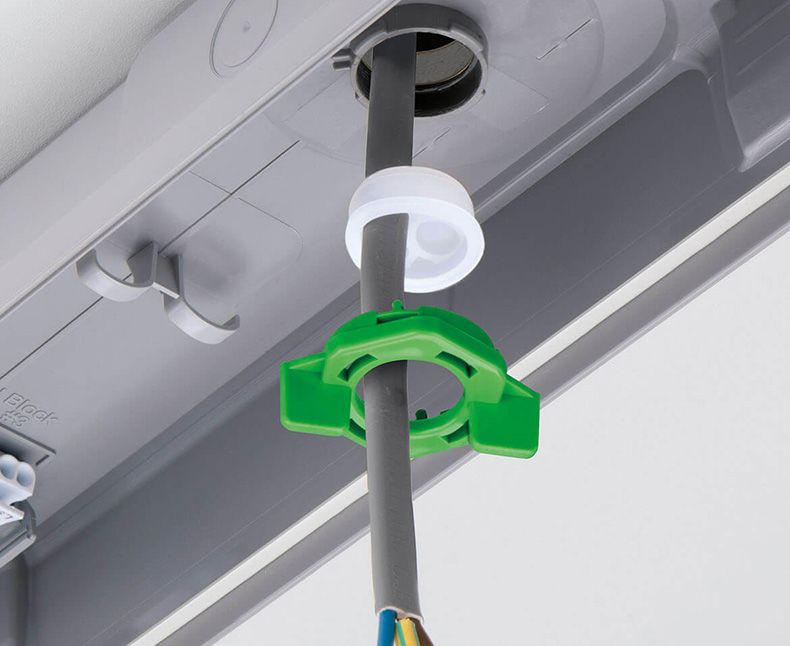

  • Unique IP66 gasket, sealing cable entry from within the fixture when surface mounting
  • Microwave step dimmable, DALI and 1-10V dimmable options available
  • 5-year extended warranty on fixture and batteries
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 1270 x 96 x 81.3

  • Product Details

    Color Finish : Grey

    Product Range : ToughLED™ Pro

    Warranty : 5 Year Warranty

  • Product Specifications

    Actual Lumen Output : 5000

    Beam Angle : 120

    CRI : 80

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : DALI

    IP Rating : IP66

    Lumens Per Circuit Watt : 132

    Luminaire Circuit Wattage : 38

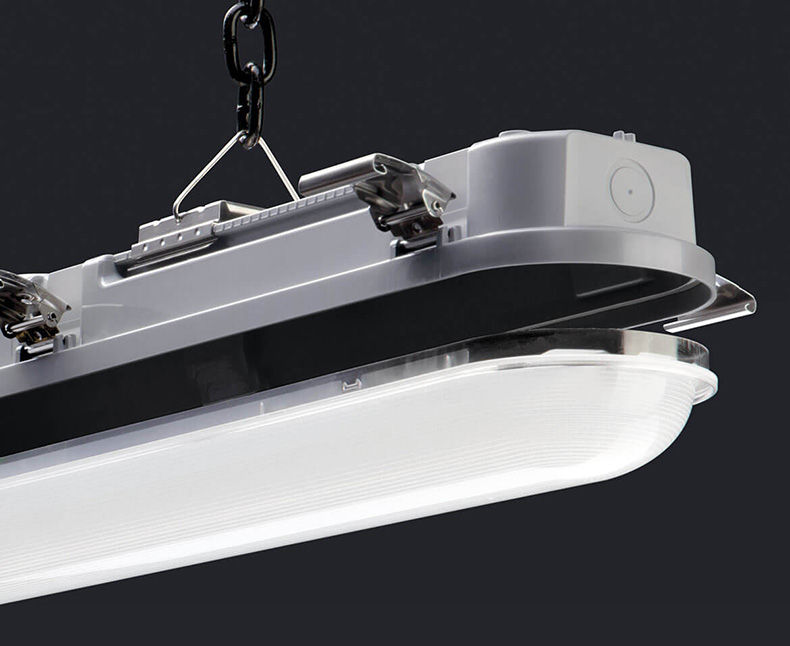

    Method of fix : Mounting Brackets, Suspension chains or conduit mounting

    Operating Temperature range °C : -20 to +50
