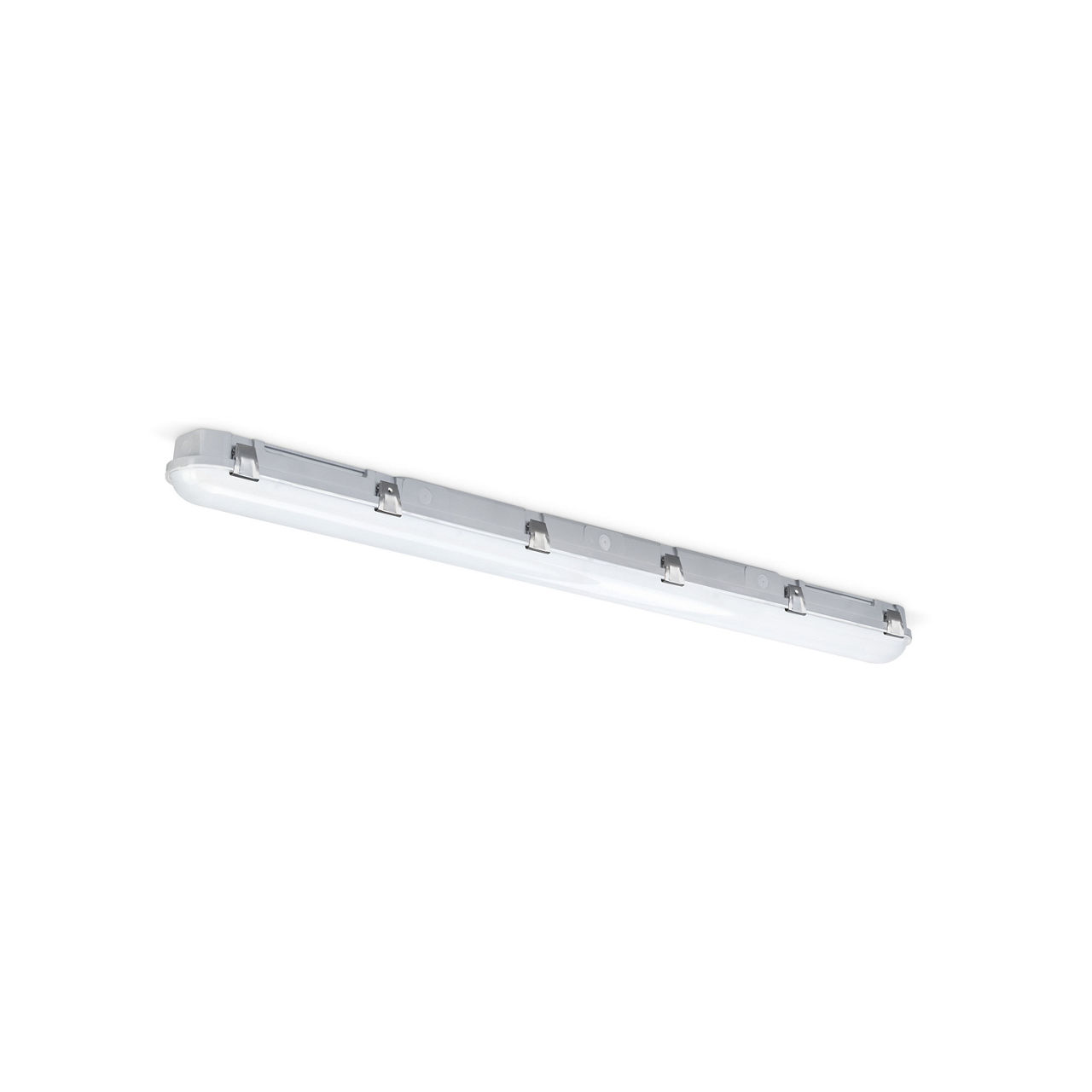

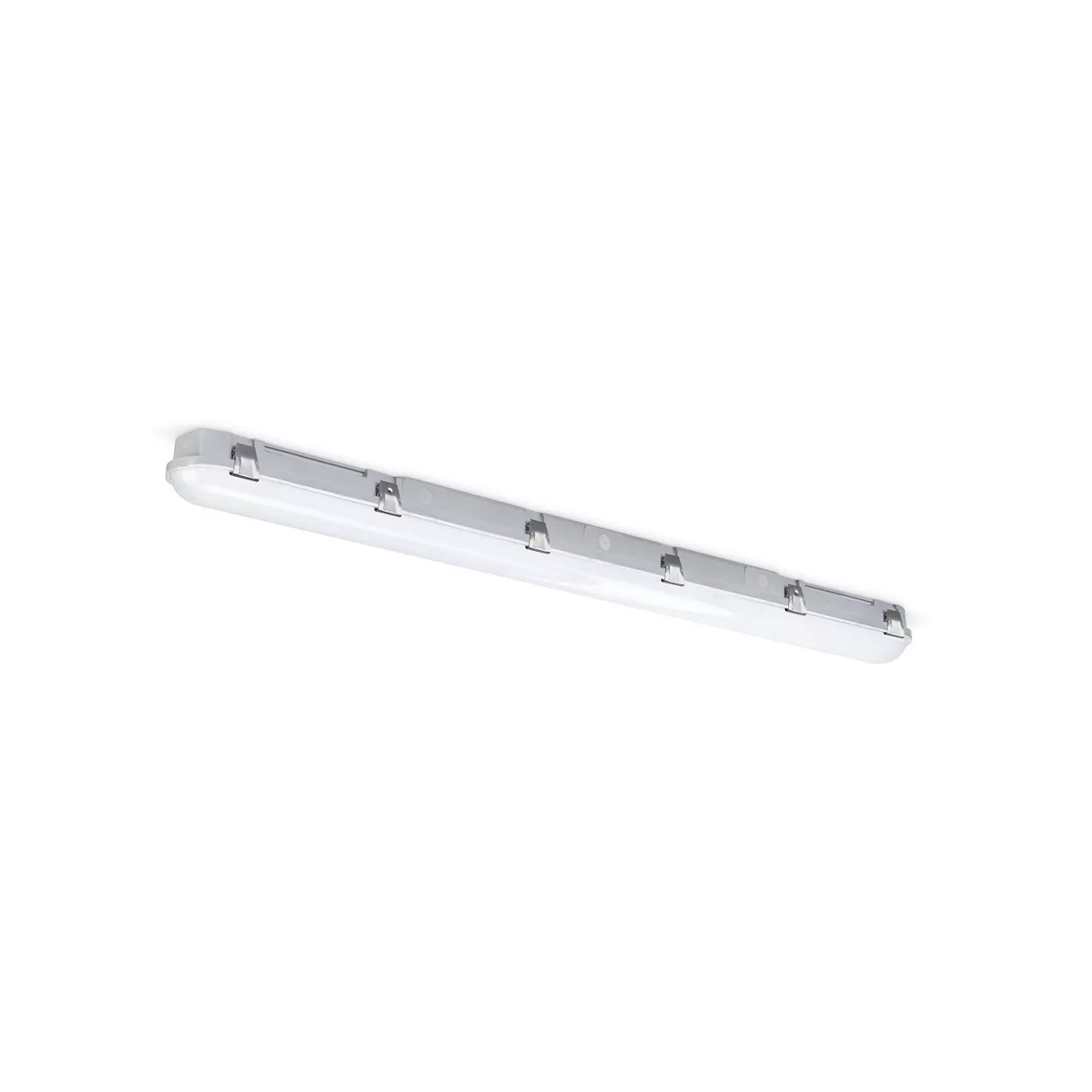

ToughLED™ Pro 1200mm 4ft Single 22W IP66 4000K DALI Addressable EM IK10 WOP

JC180016/DALIDALI

  • High efficiency up to 145 LpcW, IP66, IK10

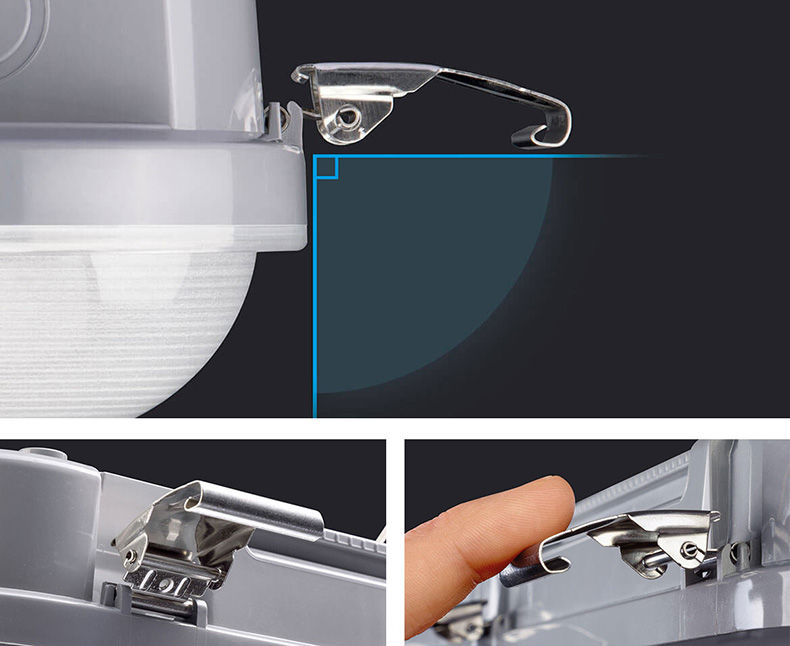

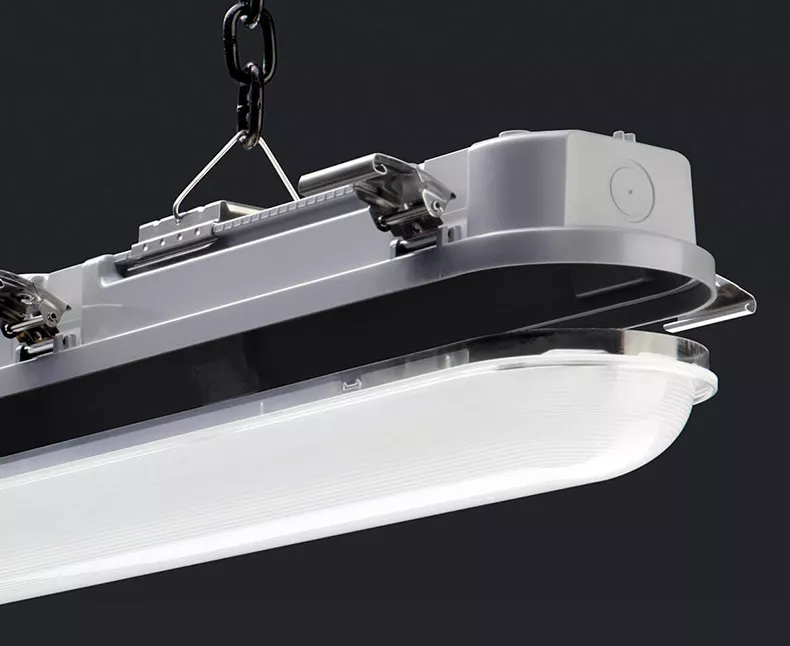

  • 90º Lock-in-place side clip design, keeps clips clear during installation

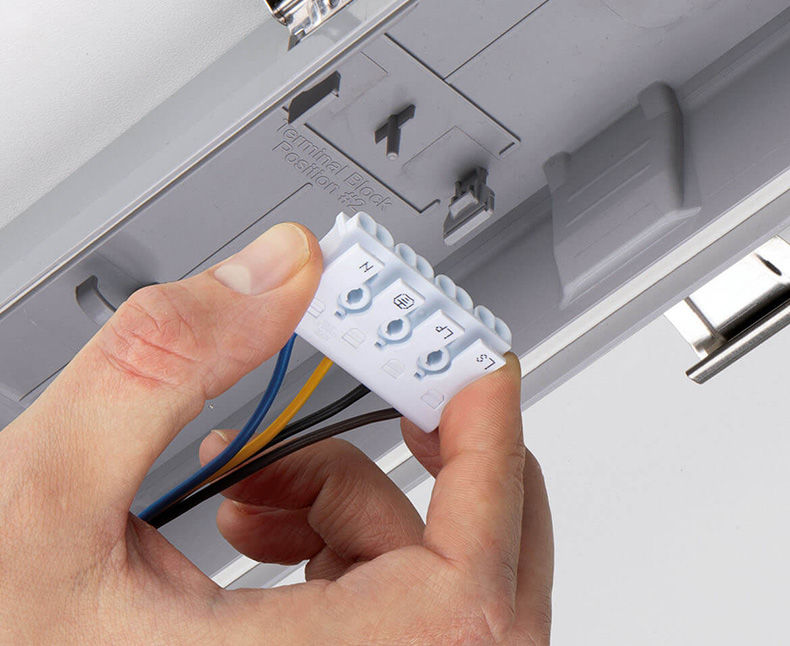

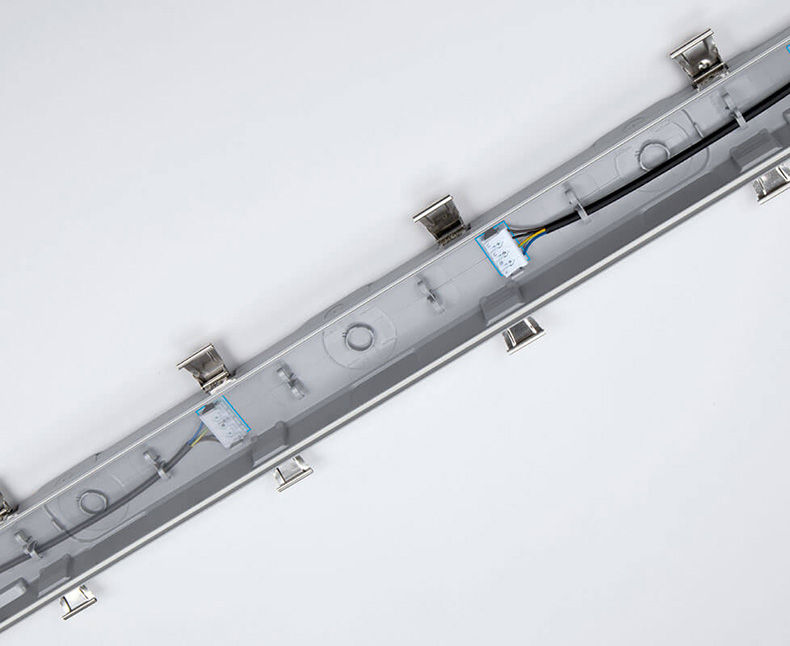

  • Detachable 4 pin terminal block with multiple positions adjacent to all cable entrypoints

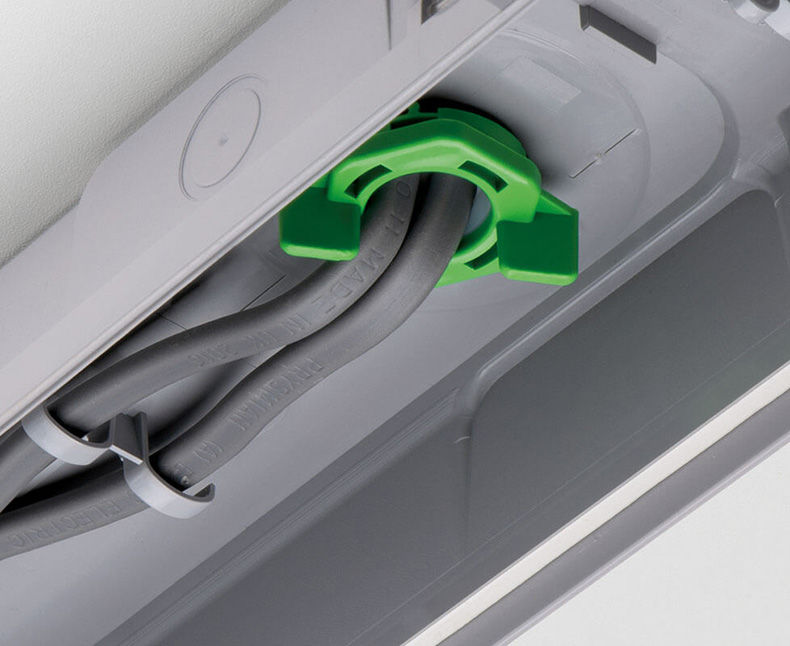

  • Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash whenclosing the fixture

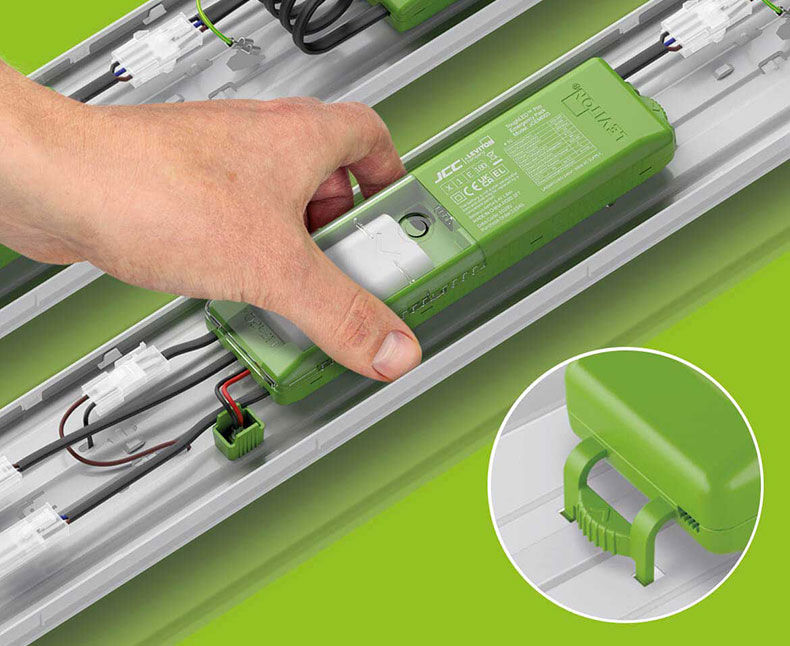

  • Plug & play emergency & microwave sensor modules with optional remote control

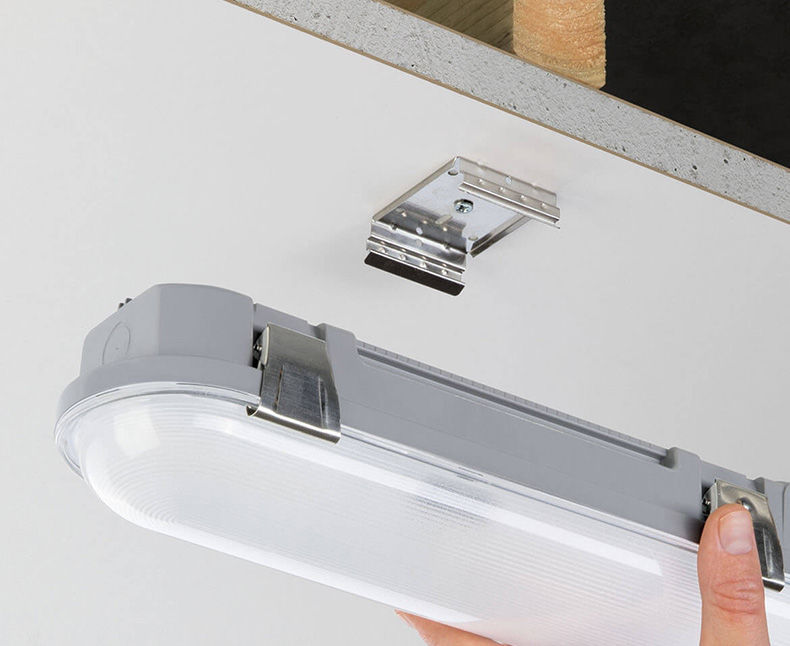

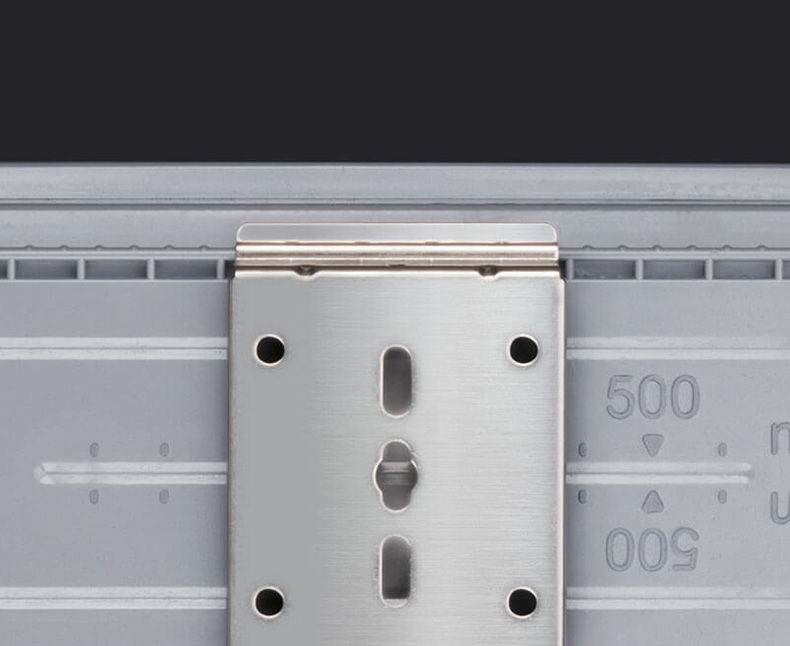

  • Ultra-wide surface mount bracket rail to enable flexibility to locate joists

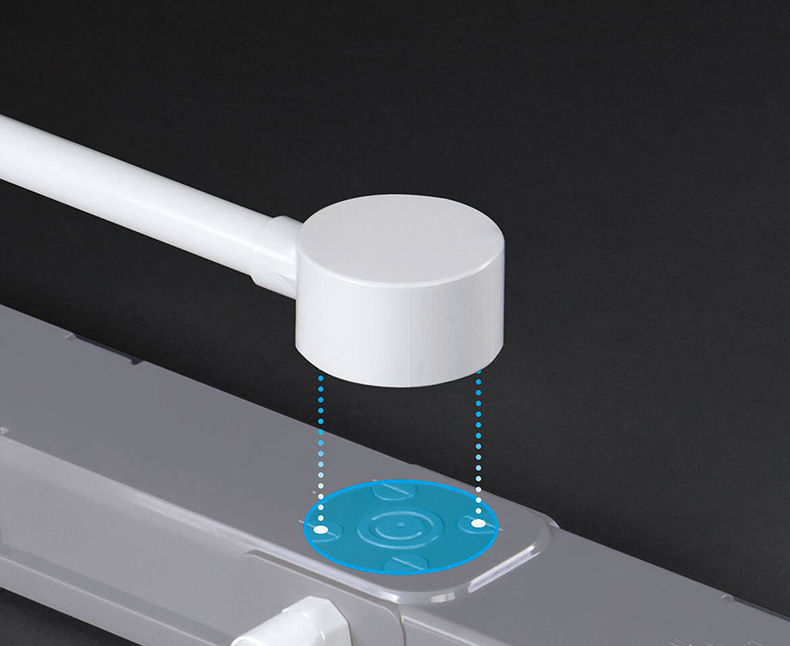

  • Wide body for retrofitting BESA conduit box mounting, with rear, side and endconduit entry points

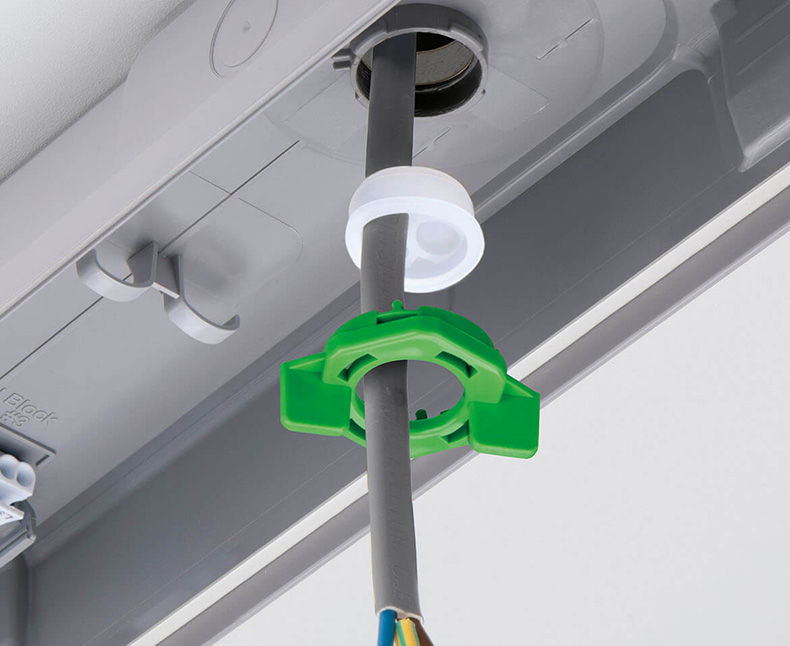

  • Unique rear IP66 gasket, sealing cable entry from within the fixture for surfacemounting applications
  • 4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
  • Microwave step dimmable, DALI and 1-10V dimmable options available
  • 5-year extended warranty on fixture and batteries, which uses LifePO4 batteriesfor improved performance and life
Country of Origin: Please Contact Customer Service

Product Information

  • Dimensional Data

    Overall Dimensions : 1270 x 96 x 81.3

  • Performance Specifications

    Dimming Protocol Compatibility : DALI ADDRESSABLE

  • Product Details

    Color Finish : Grey

    Product Range : ToughLED™ Pro

    Warranty : 5 Year Warranty (5 years on batteries)

  • Product Specifications

    Actual Lumen Output : 2400

    Beam Angle : 120

    CRI : 80

    Class : I

    Correlated Color Temperature : 4000K

    Dimmable : DALI

    IP Rating : IP66

    Lumens Per Circuit Watt : 109

    Luminaire Circuit Wattage : 22

    Operating Temperature range °C : 0 to +50
