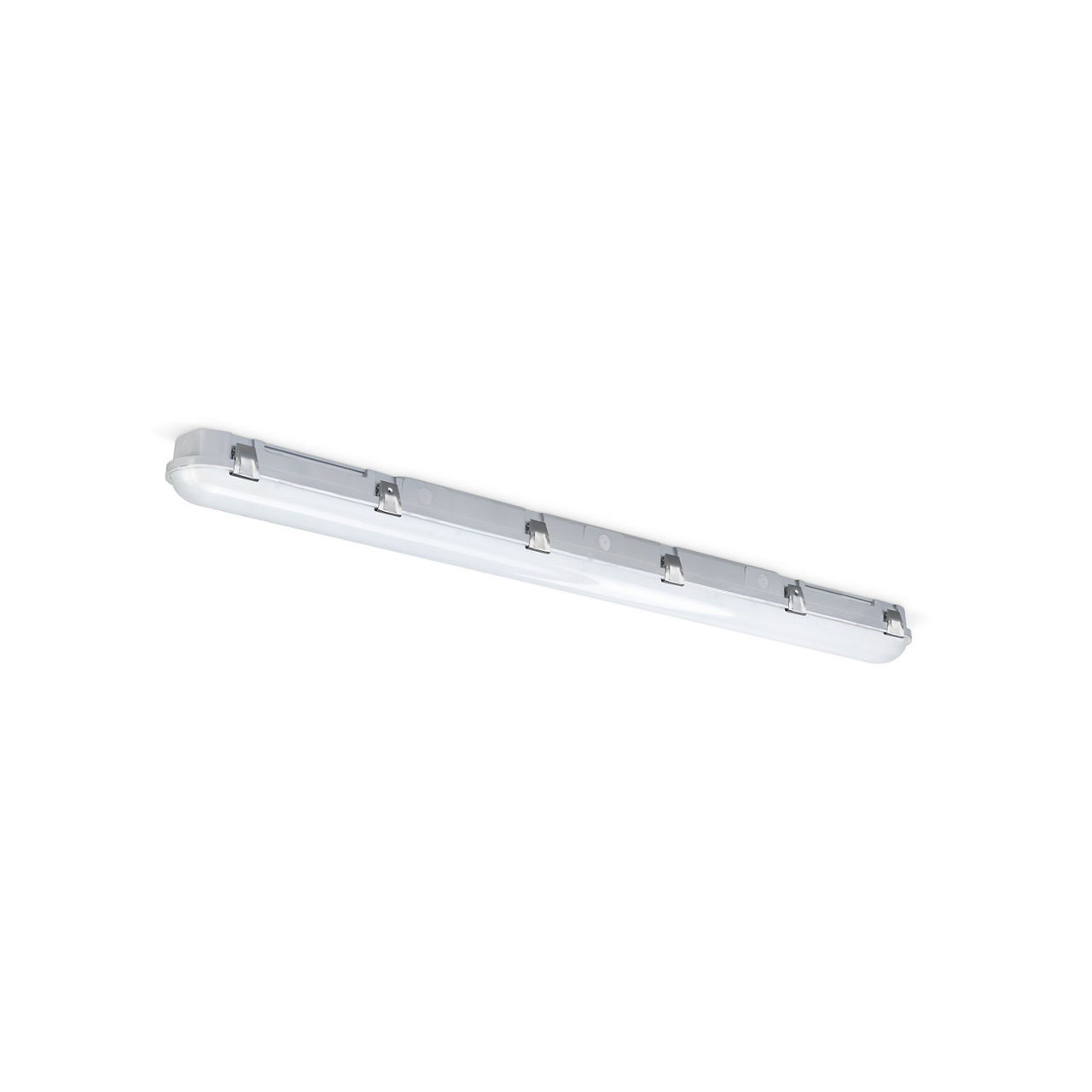

ToughLED™ Pro 1200mm 4ft Single 22W IP66 4000K DALI Addressable EM IK10 FR
JC180008/DALIDALI
- High efficiency up to 145 LpcW, IP66, IK10

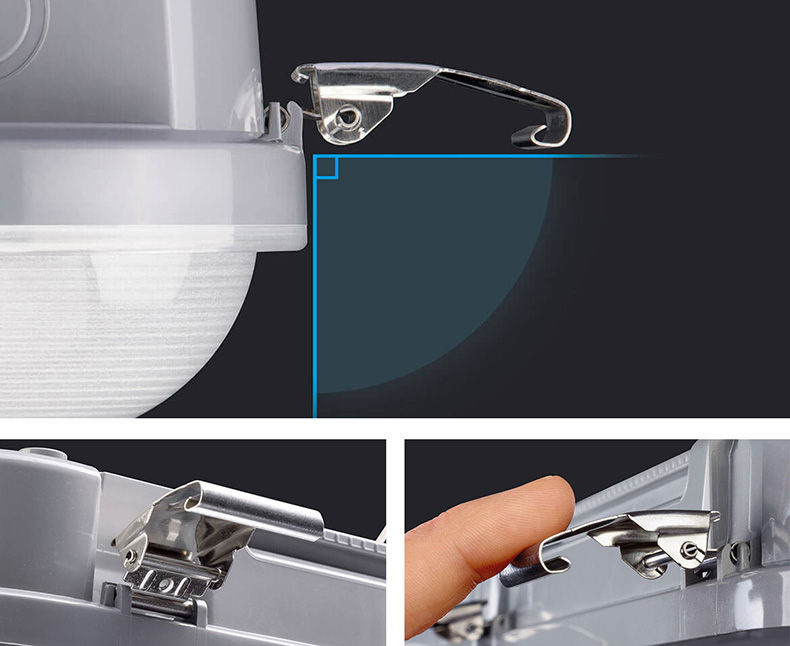

- 90º Lock-in-place side clip design, keeps clips clear during installation

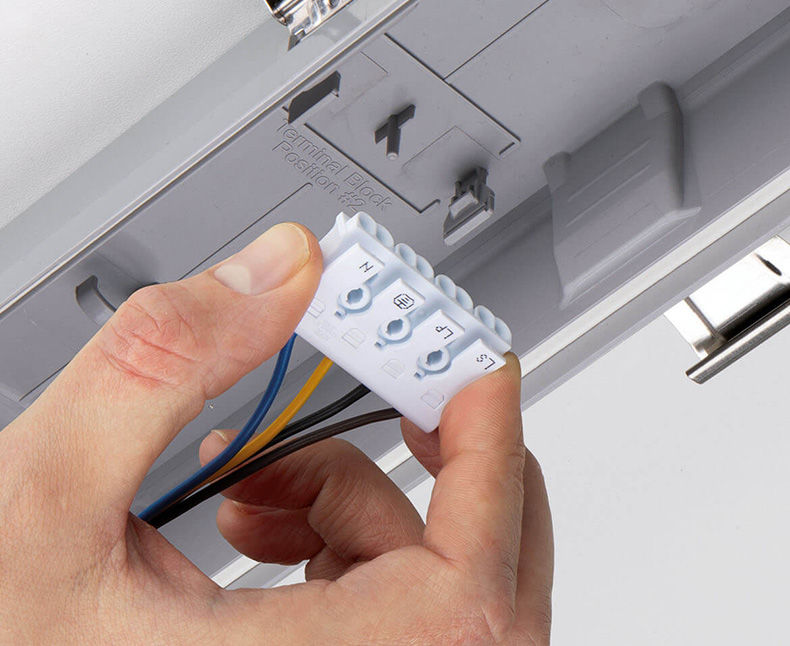

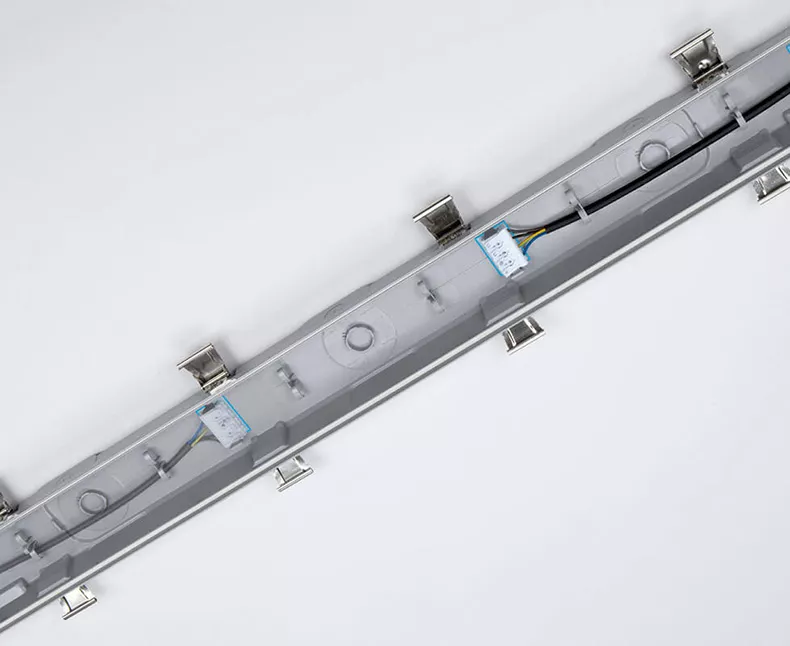

- Detachable 4 pin terminal block with multiple positions adjacent to all cable entrypoints

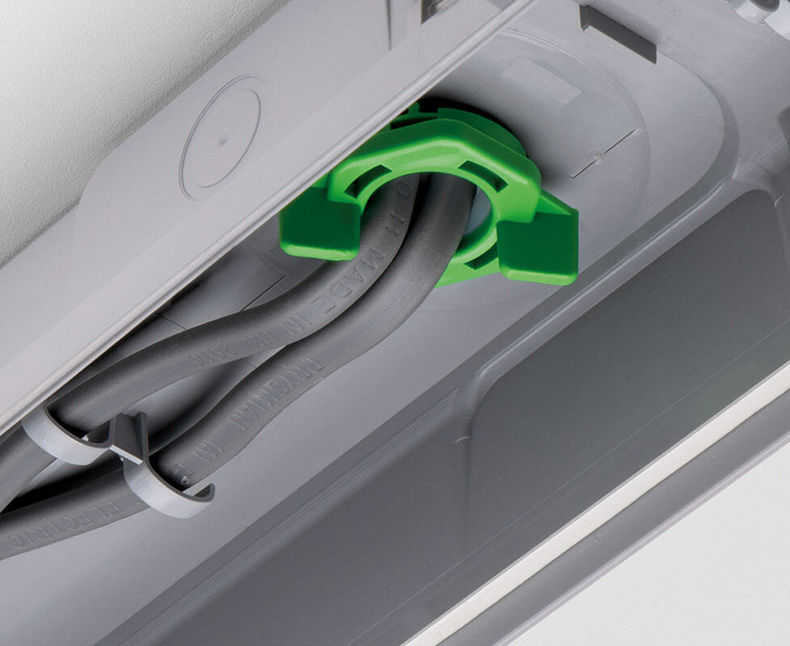

- Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash whenclosing the fixture

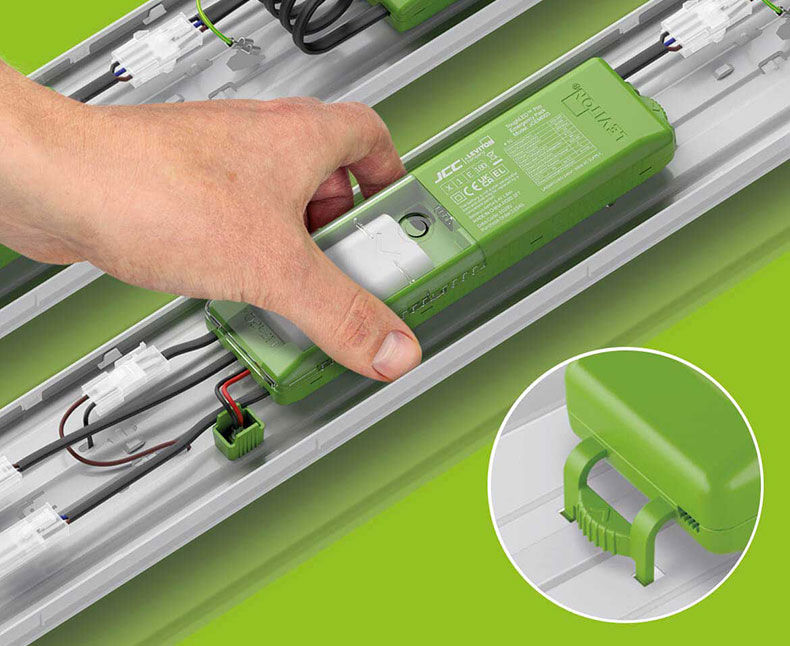

- Plug & play emergency & microwave sensor modules with optional remote control

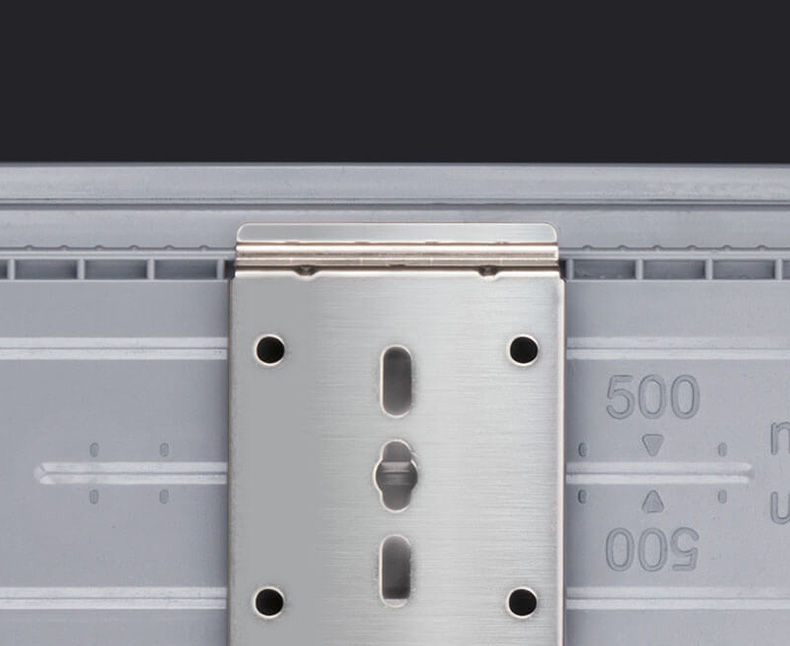

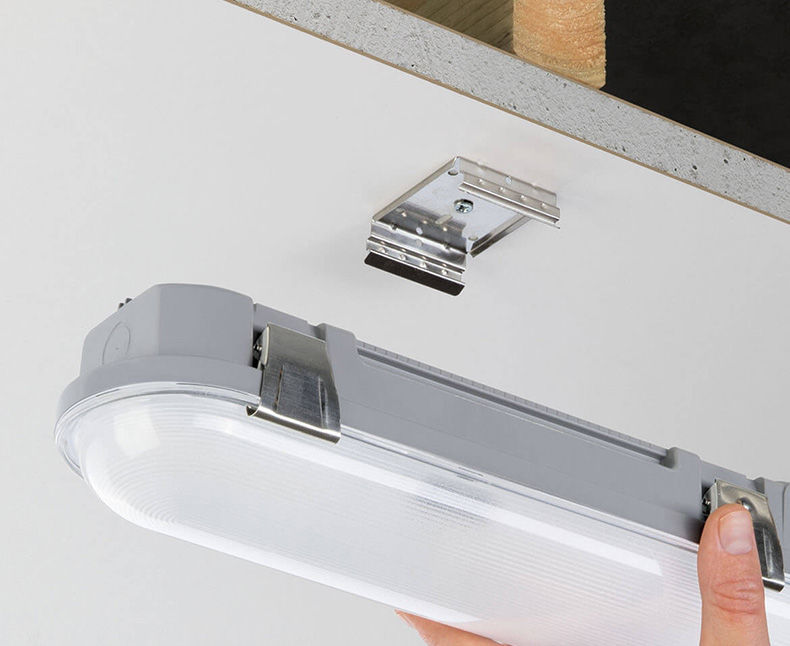

- Ultra-wide surface mount bracket rail to enable flexibility to locate joists

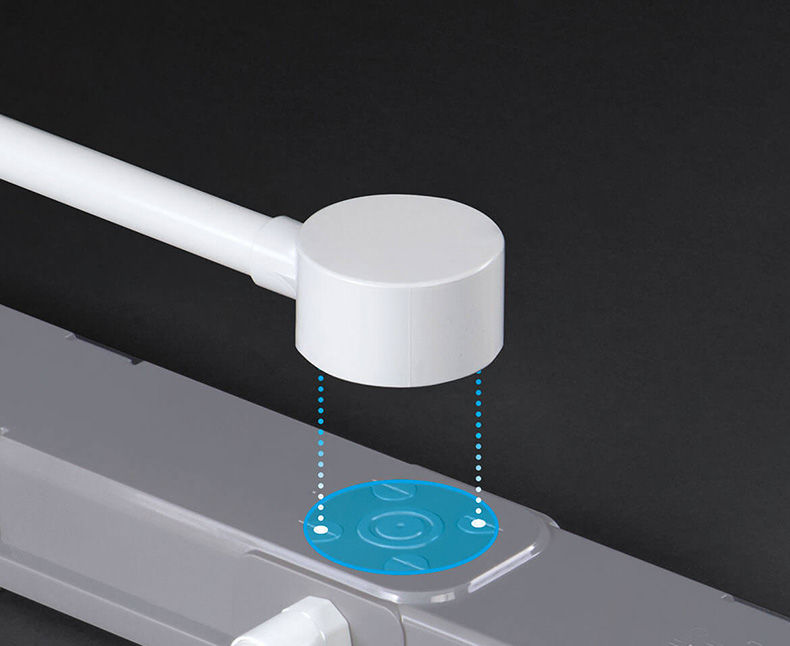

- Wide body for retrofitting BESA conduit box mounting, with rear, side and endconduit entry points

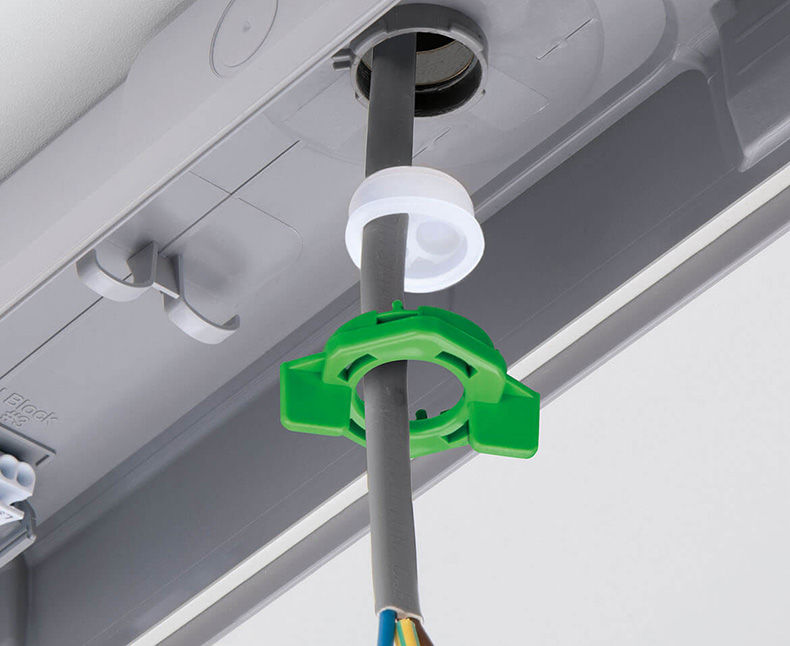

- Unique rear IP66 gasket, sealing cable entry from within the fixture for surfacemounting applications
- 4ft, 5ft, 6ft single and twin light outputs in both opal and prismatic diffuser options
- Microwave step dimmable, DALI and 1-10V dimmable options available
- 5-year extended warranty on fixture
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : I
Dimmable : DALI
Luminaire Circuit Wattage : 22
Voltage Rating : 220-240
Emergency data
LOR % in Emergency Mode : 11
General Information
IP Rating : IP66

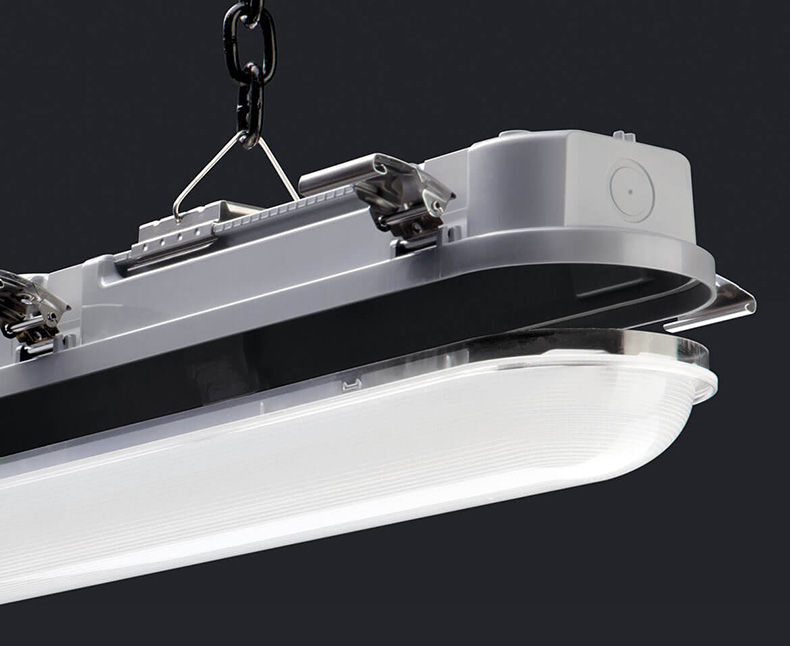

Mounting : Surface or Suspended
Overall Dimensions : 1270 x 96 x 81.3
Trade Name : ToughLED Pro
Warranty : 5 Year Warranty (5 years on batteries)
Performance Data
Actual Lumen Output : 2600
Battery Type : LifePO4
Beam Angle ° : 120
CRI: Ra : 80
Correlated Color Temperature : 4000K
Lumens Per Circuit Watt : 118
Thermals
Operating Temperature Range °C : 0 to +50
