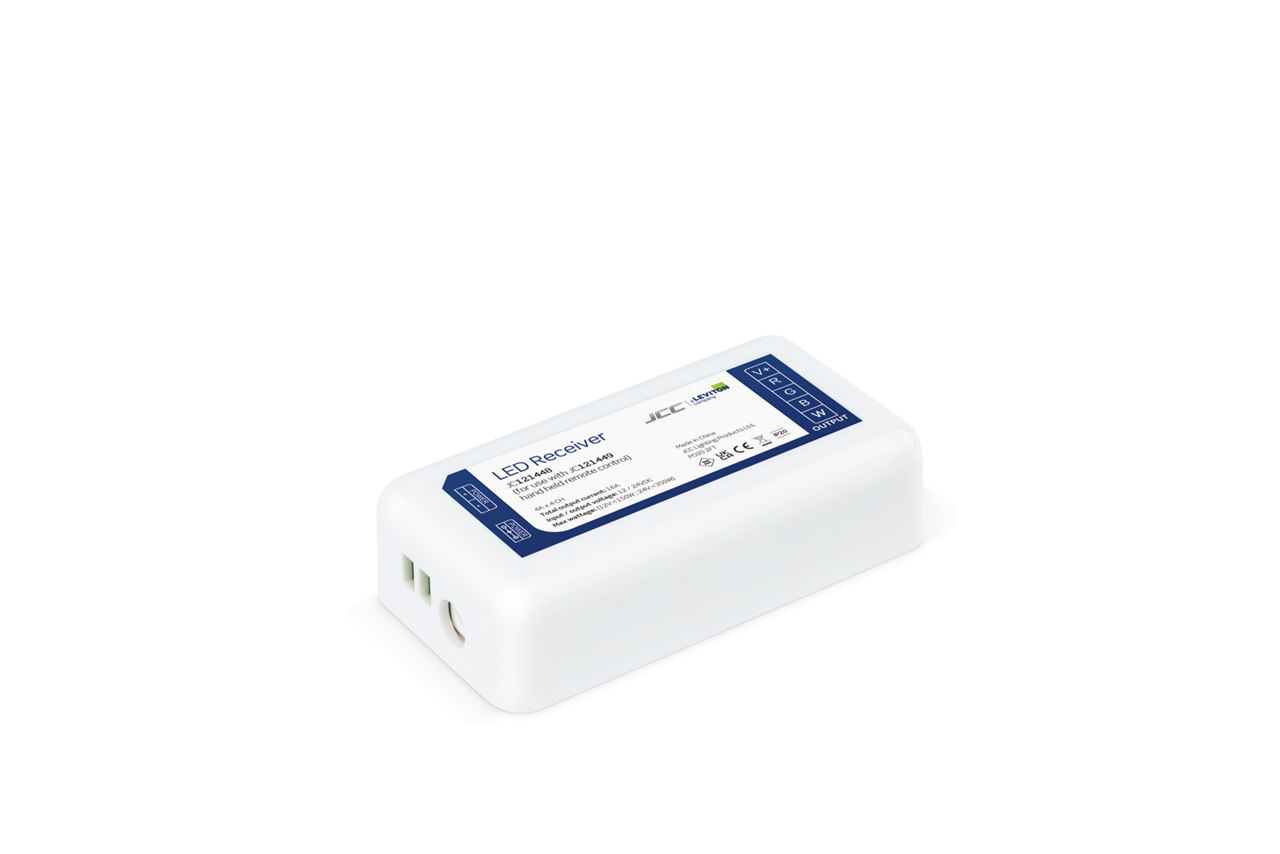

RGBW 2.4G RF LED Receiver for use with JC121451 Remote Control, Wall mounted
JC121450
- Controllers for use with JCC RGBW strip
- Simple, fast installation
- Easy set up and pairing with Wall Control
- 2.4GHz RF, does not require line of site to operate using JC121373 Wall Control
- 350W max output per controller
- 12VDC or 24VDC, requires constant Voltage non dim driver (to match tape Wattage connected) *JCC RGBW Tape is 24VDC
- Run up to 10m 17.6W RGBW tape per controller *based on 180W driver-must not exceed the maximum Wattage of the driver
- Run up to 25m 7.2W RGBW tape per controller *based on 180W driver-must not exceed the maximum Wattage of the driver
- Connect up to 10 controllers (100m 17.6W RGBW and 250m 7.2W RGBW) per zone *based on 180W driver-must not exceed the maximum Wattage of the driver
Product Information
Dimensional Data
Overall Dimensions : 85 x 45 x 23
Product Details
Additional Information : Please note: All LED tape can suffer voltage drop over distance, depending on configuration of LED tape, DC cable and driver. Any run over 10m may result in up to 2% loss of output per meter thereafter. Consider adding a new power supply every 10m to ensure you achieve the maximum performance of your tape. All the standard length LED tape products can be cut every 50mm if required. It is the installer’s responsibilty to ensure if the IP65 tape is cut, they maintain the IP rating of the tape by using heatshrink, silicone end caps with suitable silicone sealant where applicable.
Color Finish : White
Product Range : RGBW Controllers
Warranty : 2 year standard warranty
Product Specifications
Class : III
IP Rating : IP20
Luminaire Circuit Wattage : 350
