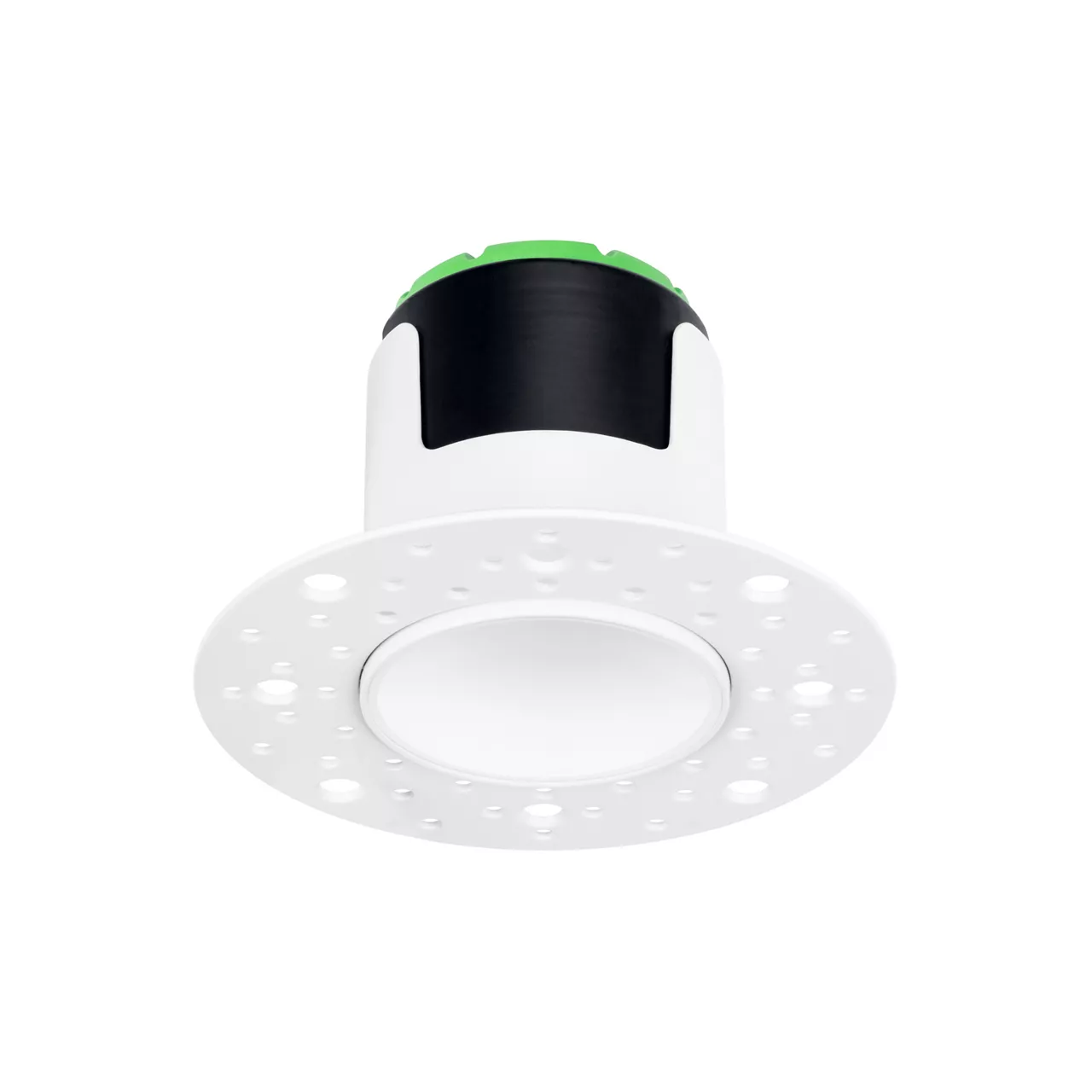

V50 Pro Plaster-in Fire-rated Downlight with white inner | 5W | 3000/4000K selectable
JC1020/WH
- Now with 7 year warranty
- Countersunk screw points for ultra secure mounting
- Unique AC cable holder
- Shallow baffle lip designed to reduce the required thickness of plaster
- Double hinged driver with clear casing
- Selectable colour temperature from remote driver, 3000K & 4000K
- Tested for use in Solid and I-joist ceilings. See jcc.co.uk for latest test reports**
Country of Origin: Please Contact Customer Service
Product Information
Electrical
Class : II
Dimmable : Triac dimmable
Luminaire Circuit Wattage : 6.2
Voltage Rating : 230-240
General Information
IP Rating : 65
Light Source Features : Colour selectable
Overall Dimensions : 121Ø x 78.7mm
Product Aperture Size : 68-70mm
Warranty : 7 years( Terms & conditions apply)
Performance Data
Actual Lumen Output : 668/749
Beam Angle ° : 60
CRI: Ra : 80
Correlated Color Temperature : 3000/4000K
Lumens Per Circuit Watt : 107/120
Thermals
Insulation Coverage : Loosely Cover with Mineral Wool Insulation
Operating Temperature Range °C : 0-26
