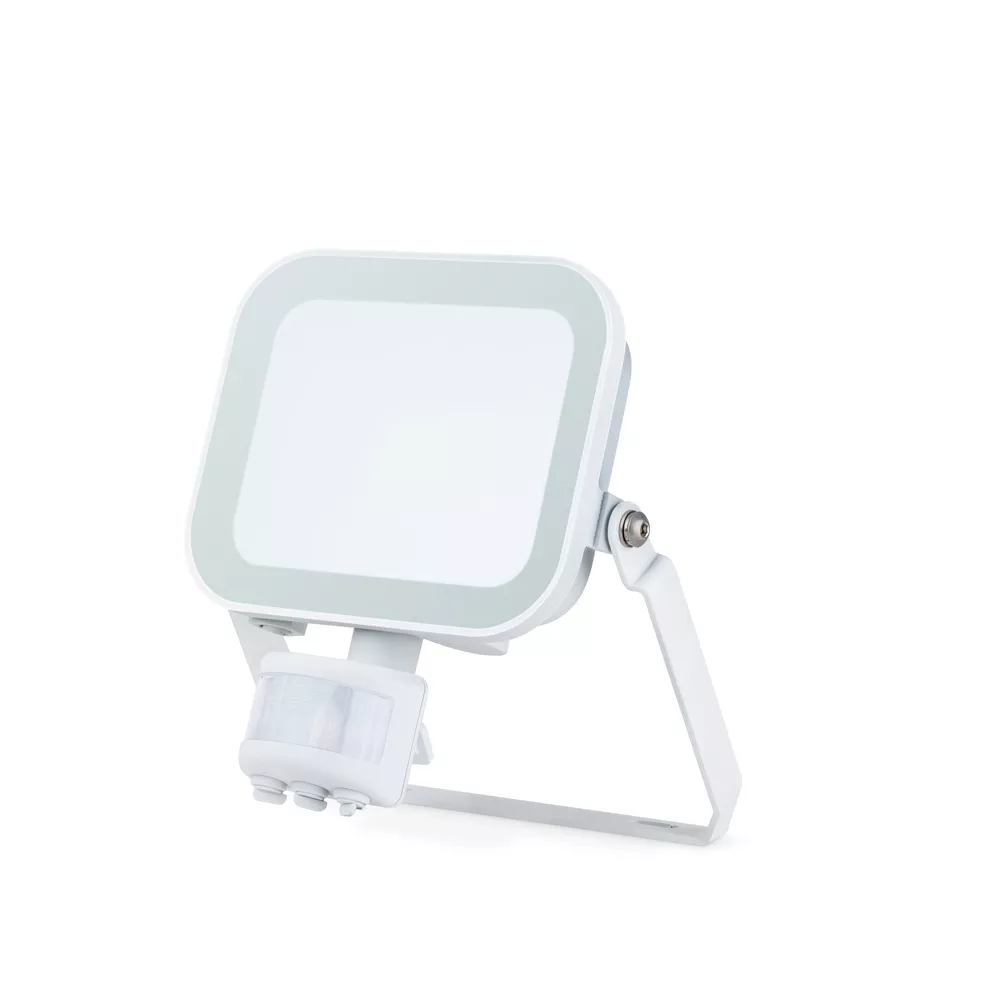

Niteflood® LED Floodlight 20W IP65 4000K White +PIR
JC091012
- 2100 Lumens
- 105 LpcW
- 4000K colour temperature
- IP65 protection of full fitting, including PIR
- Manual override function
- Breather gland protects against condensation
- Opal glass for reduced glare
- Angled bracket for ease of installation
- Supplied pre-wired with 800mm flex
- Driverless technology
- 10 - 2000 Lux adjustable
- 10sec to 7min adjustable 'on' time
- 180º detection
- 1.8m to 2.5m mounting height
- 10m detection at 2.5m
- Independently tested to ISO9227:2022 salt spray test
Product Information
Electrical
Class : I
Luminaire Circuit Wattage : 20W
Voltage Rating : 220-240
General Information
Additional Information : To operate the manual override function: Turn the power OFF/ON/OFF/ON within 5 seconds.To return to Automatic PIR detection mode: Turn off power for 10 seconds, then turn power ON.If the power is off for longer than 15 seconds the floodlight will light up for 5 seconds before activating automatic PIR detection mode.
Color Finish : White
IP Rating : IP65
Method of fix : Screws/Rawl plugs
Mounting : Wall Mount
Overall Dimensions : 154.8 x 146.6 x 99.3
Product Group : LED Floodlights
Product Range : Niteflood®
Warranty : 3 Year Warranty
Performance Data
Actual Lumen Output : 2100
Beam Angle ° : 100
CRI: Ra : 83
Lumens Per Circuit Watt : 105
Thermals
Operating Temperature Range °C : -10 to 30
