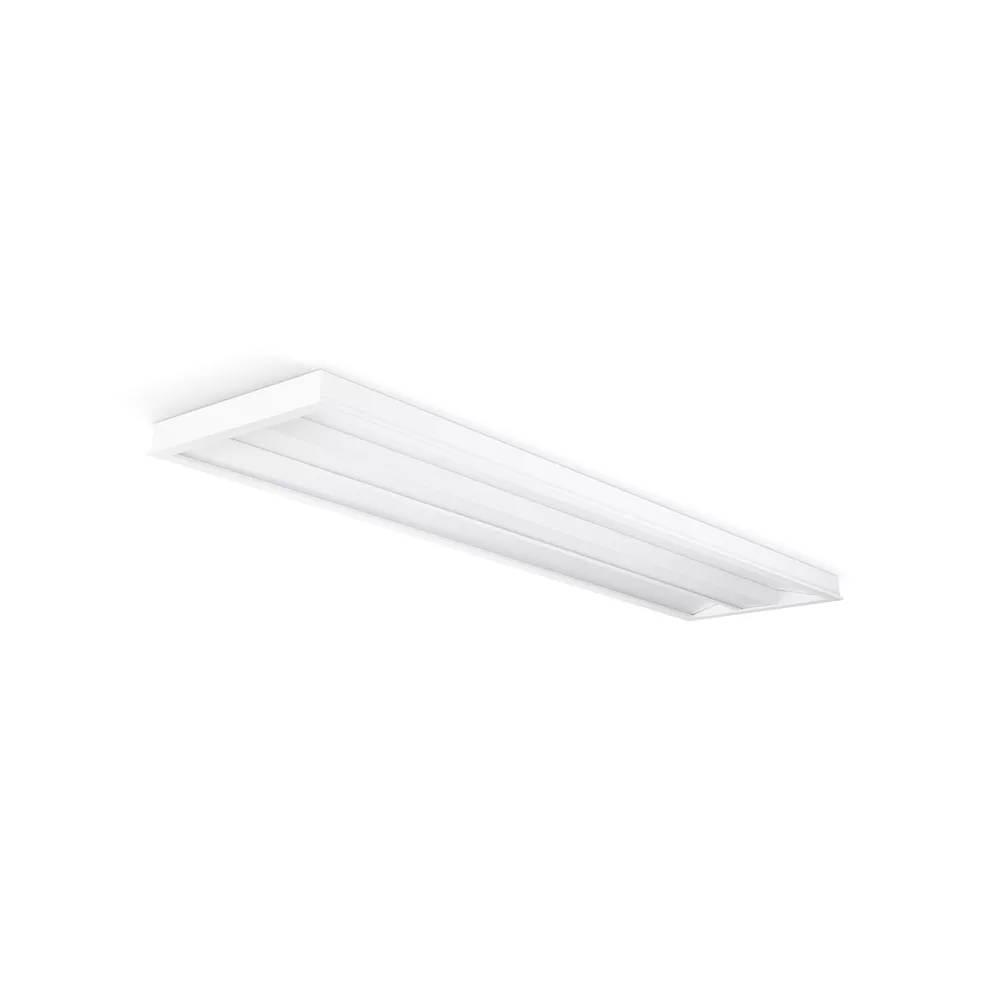

Skytile Direct indirect 1200x300 UGR Tpa 23/34W 3/4/5700K IP20 White DALI/1-10V/SD
JC080255
- Colour selectable, 3000K/4000K/5700K
- UGR <19 as standard
- DALI and 1-10V dimmable options available
- Emergency remote pack options available
Product Information
Electrical
Class : Class II
Dimmable : DALI2/1-10V, Switch dim
Luminaire Circuit Wattage : 23W / 34W
Voltage Rating : 220-240
General Information
Color Finish : White
Dimming Protocol Compatability : DALI2/1-10V/Switch dim
IP Rating : 20
Luminaire Accessories : Surface mount box- JC080264. JCEM002/JCEM002ST/JCEM002DALI EM Packs
Method of fix : Method of fix 15mm or 25mm Ceiling grid system
Minimum Void Requirement : 100mm
Mounting : Recessed
Overall Dimensions : 1195 x 295 x 65mm
Product Group : LED recessed
Product Range : Skytile Direct/Indirect
Warranty : 5 Years
Performance Data
Actual Lumen Output : 2840 / 4010
Beam Angle ° : 90
CRI: Ra : 80
Correlated Color Temperature : 3000K / 4000K / 5700K
Lumens Per Circuit Watt : 123118118
Thermals
Insulation Coverage : No
Operating Temperature Range °C : 0-40
- Colour selectable, 3000K/4000K/5700K
- UGR <19 as standard
- DALI and 1-10V dimmable options available
- Emergency remote pack options available
