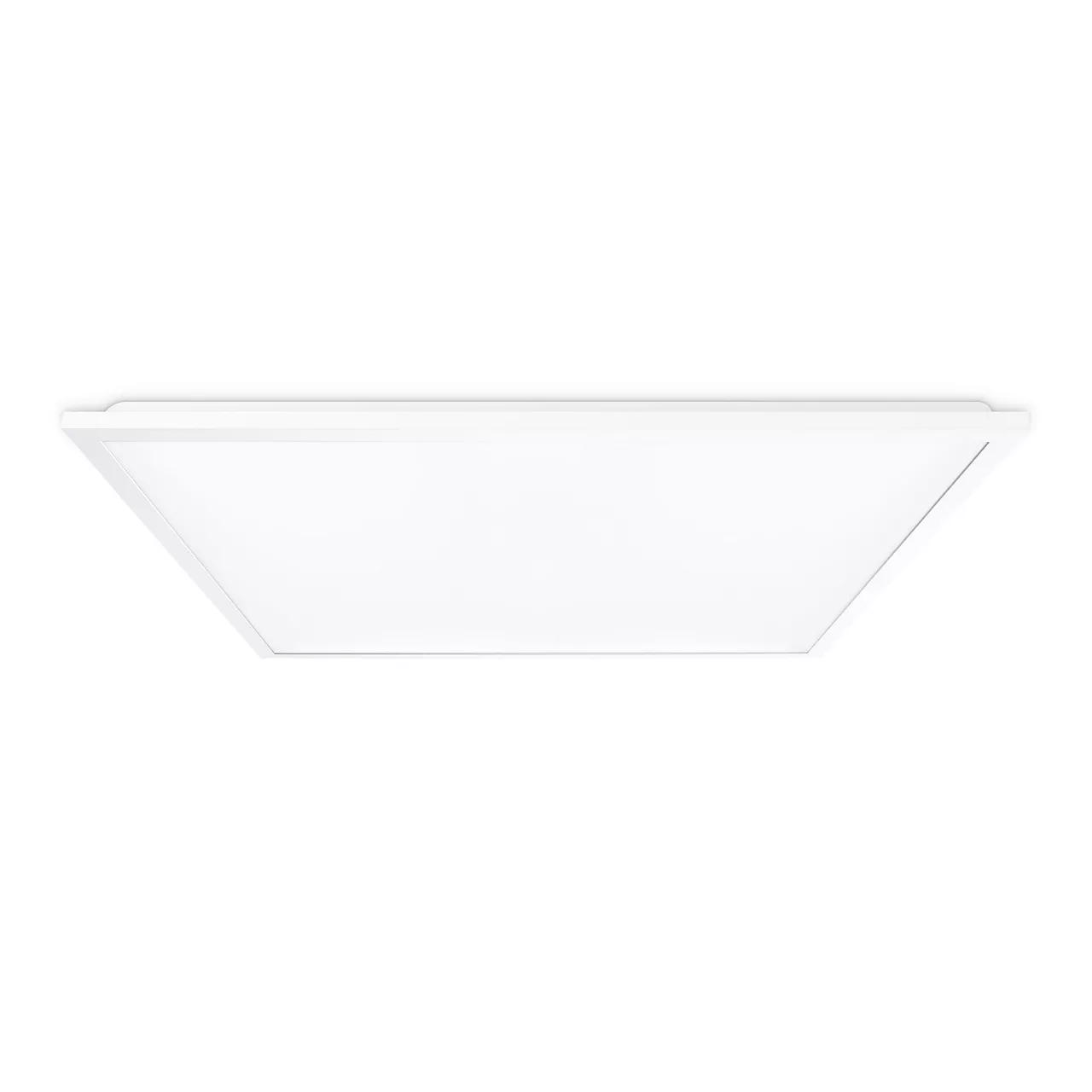

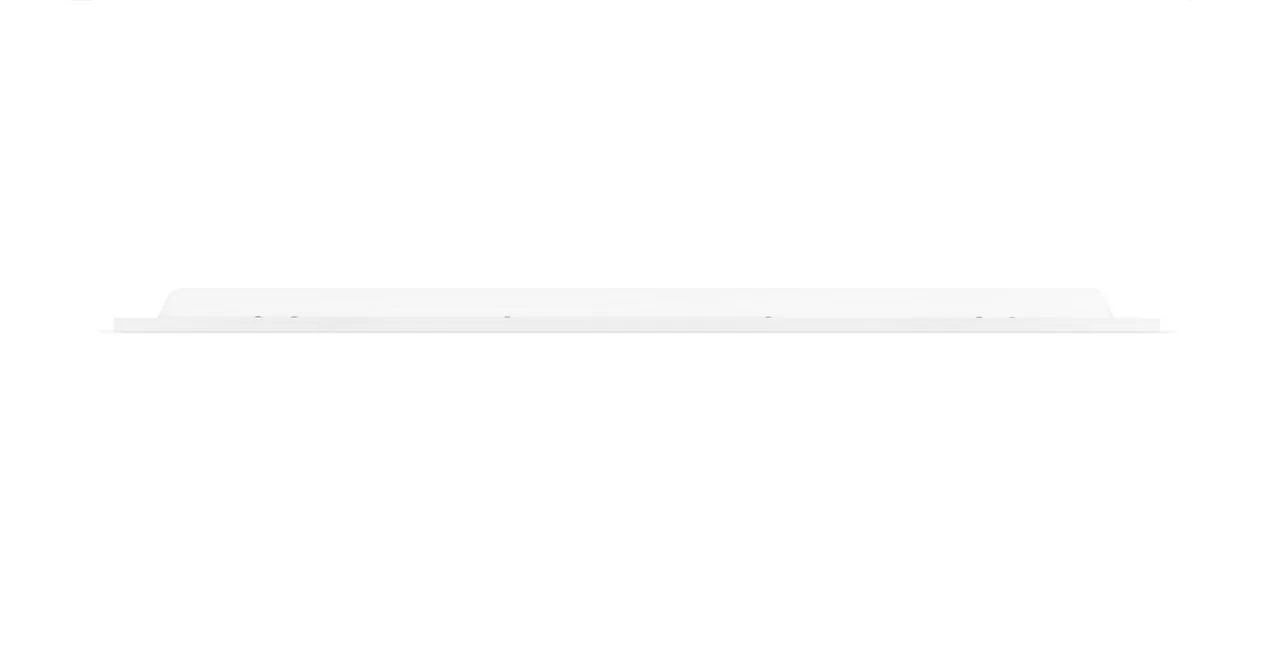

Skytile Base 600x600mm 30W IP40 CCT 3000/4000/5700K TP(a) DSI
JC080220
- Up to 125 LpcW

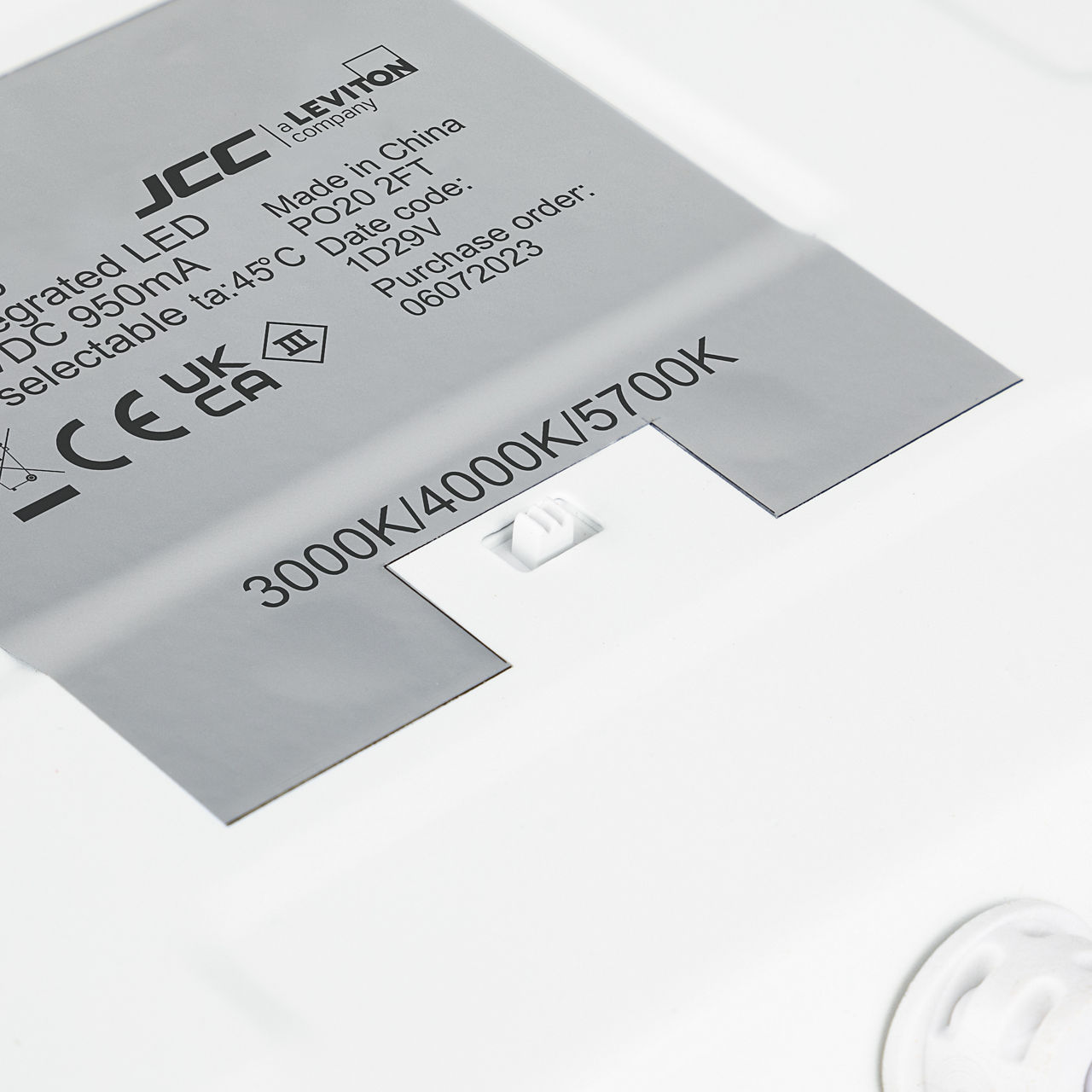

- 3CCT 3000/4000/5700K selectable

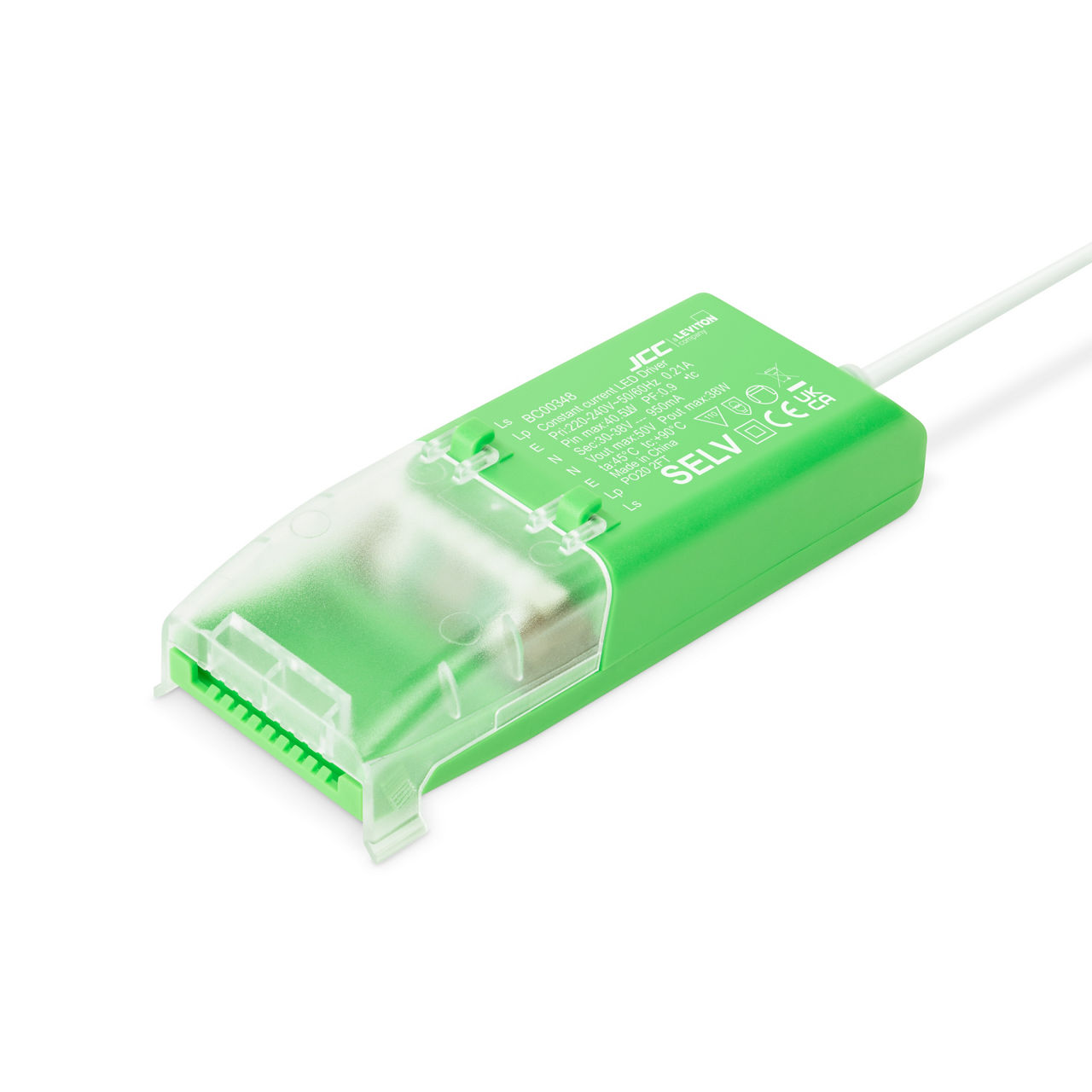

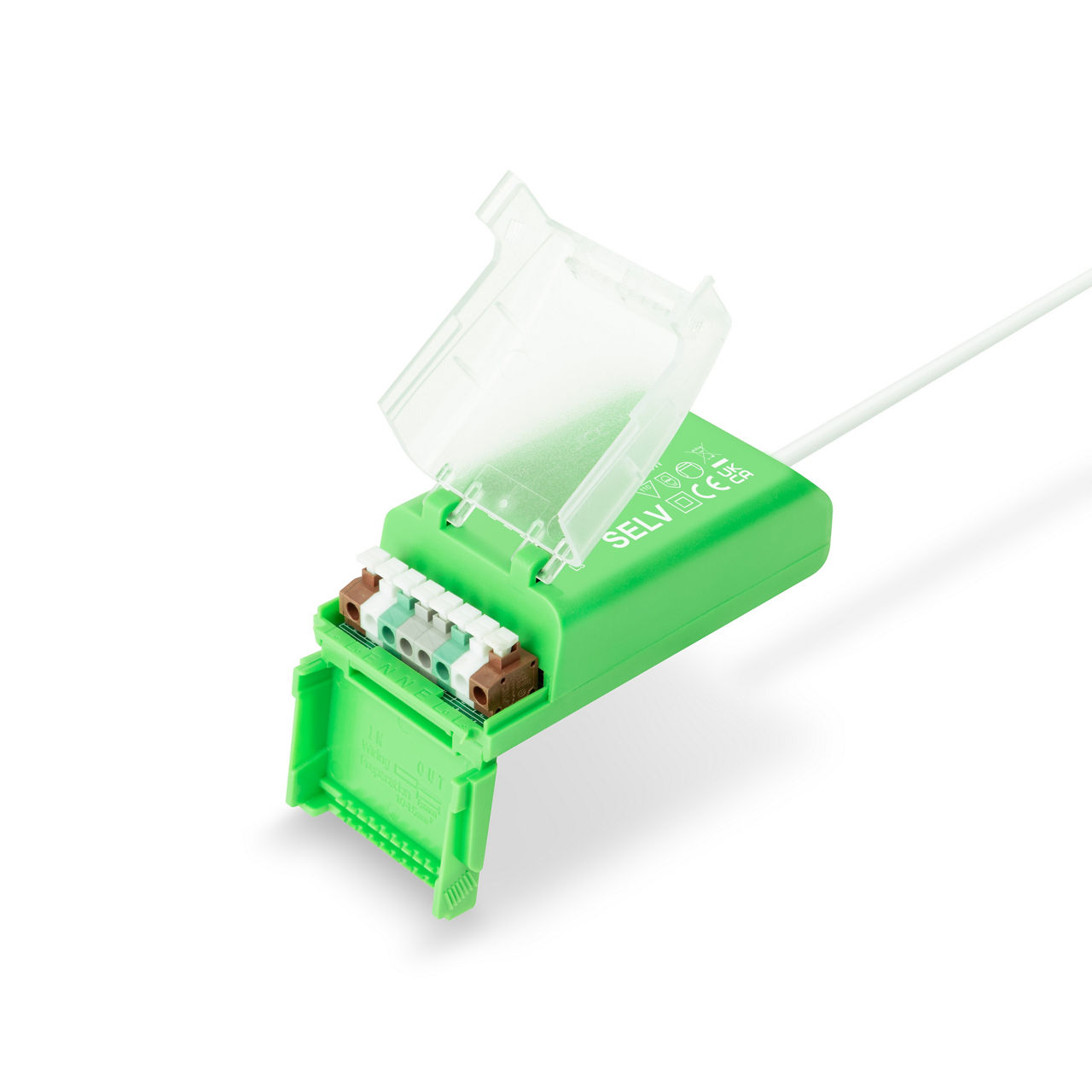

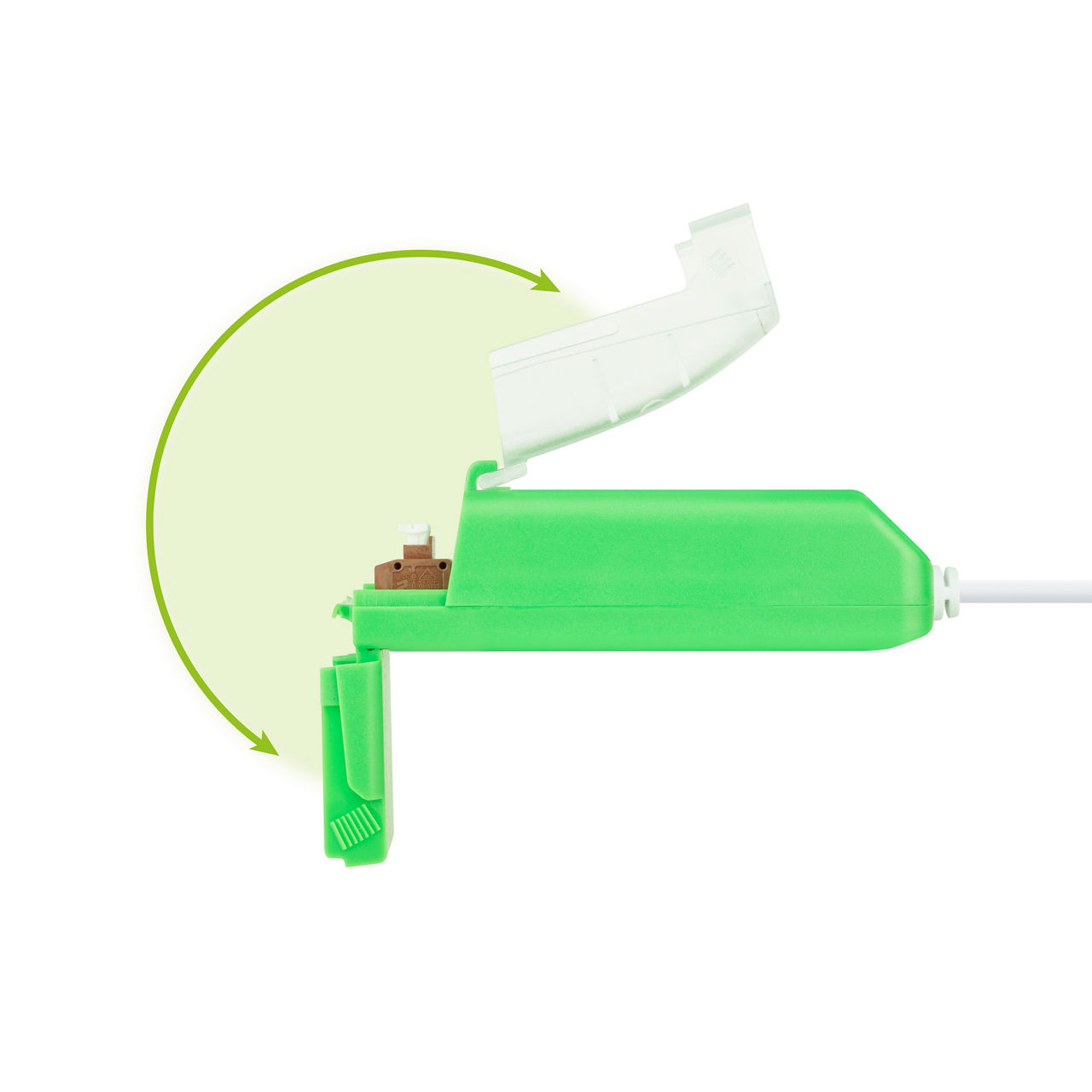

- 8 pole loop in/loop out double hinged driver with permanent live and earth for continuous wiring
- Flicker free non dimmable driver as standard
- Meets TP(a) requirements, suitable for all applications
- UGR options designed to comply with BS EN 12464-1 lighting of workspace
- Available in low, standard and high output options to suit various applications
- High output option over 5100 lumens, suitable for applications with higher ceilings or areas that require greater light levels
- DALI/1-10V/Switch dim or DSI options
- Emergency remote pack options available
Country of Origin: Please Contact Customer Service
Product Information
Dimensional Data

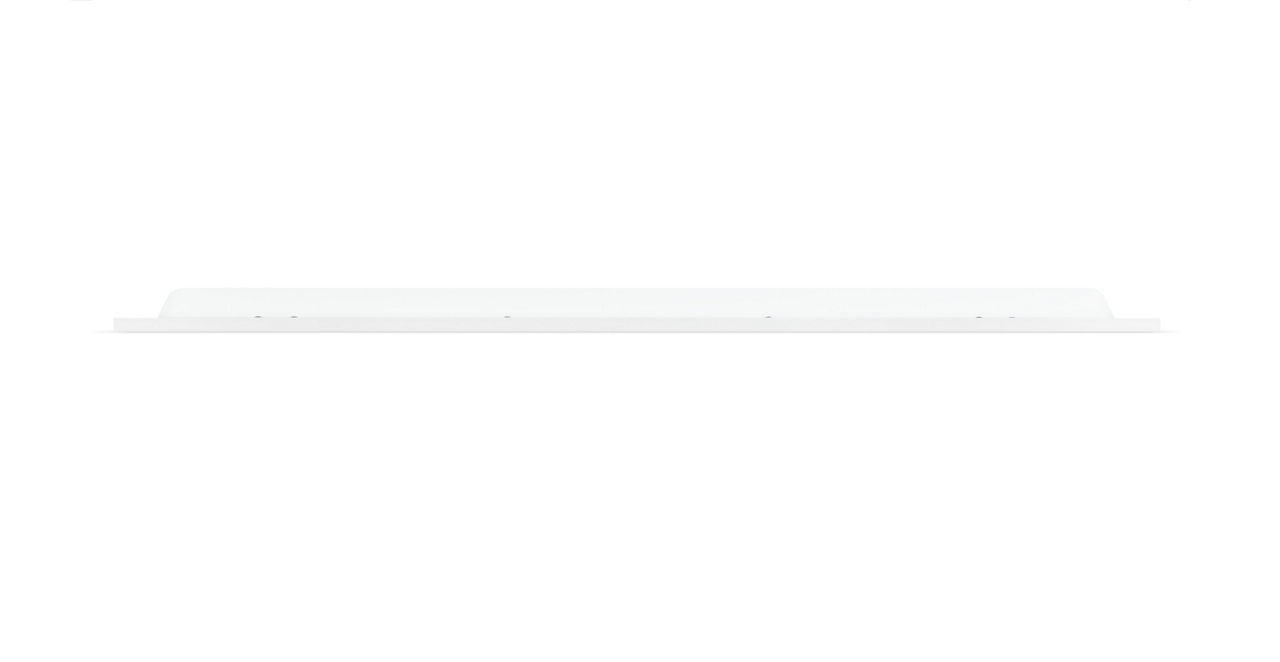

Overall Dimensions : 595 x 595 x 25mm
Product Details
Additional Information : Suitable for use with remote emergency packs JCEM002 or JCEM002ST
Color Finish : White
Product Range : Skytile
Warranty : 5 Year Warranty
Product Specifications
Actual Lumen Output : 3300/3760/3500
Beam Angle : 113
CRI : 82-85
Class : II
Correlated Color Temperature : 3000/4000/5700
Dimmable : DSI
IP Rating : IP40
Lumens Per Circuit Watt : 110/125/117
Luminaire Circuit Wattage : 30
Operating Temperature range °C : -25 to +65
